Description

Technical Overview

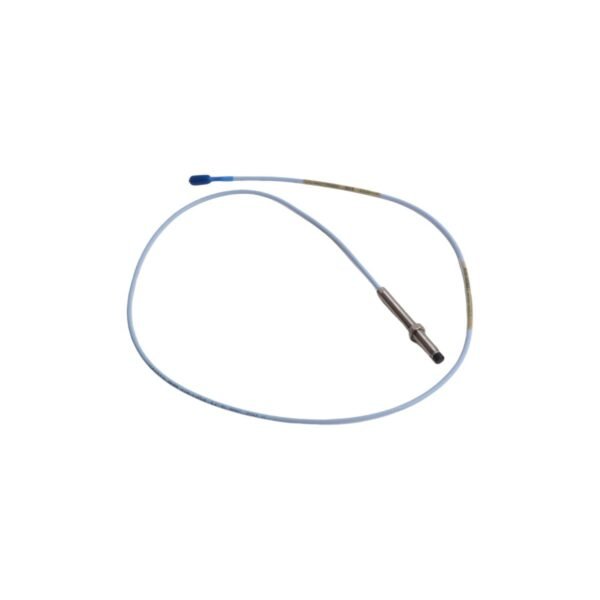

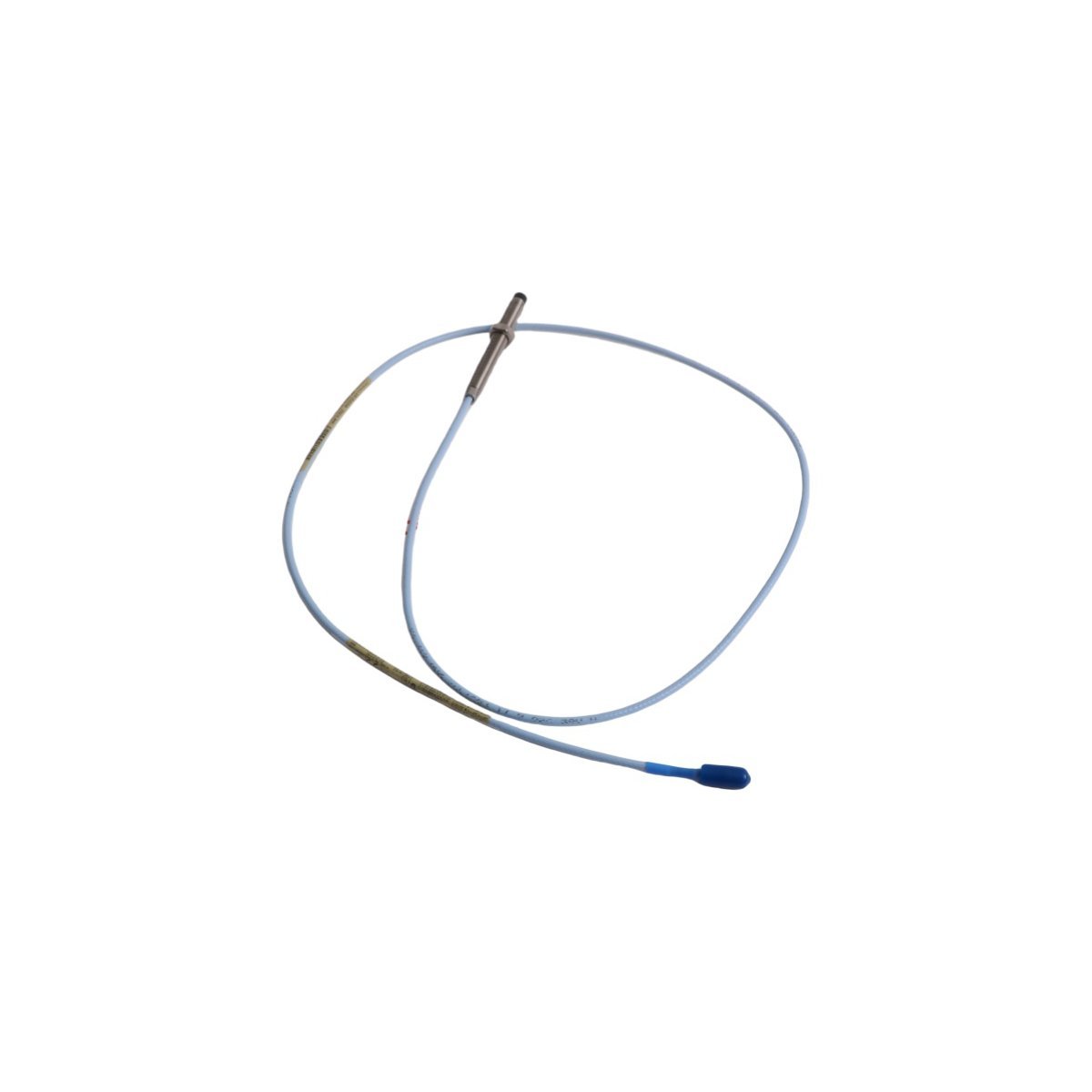

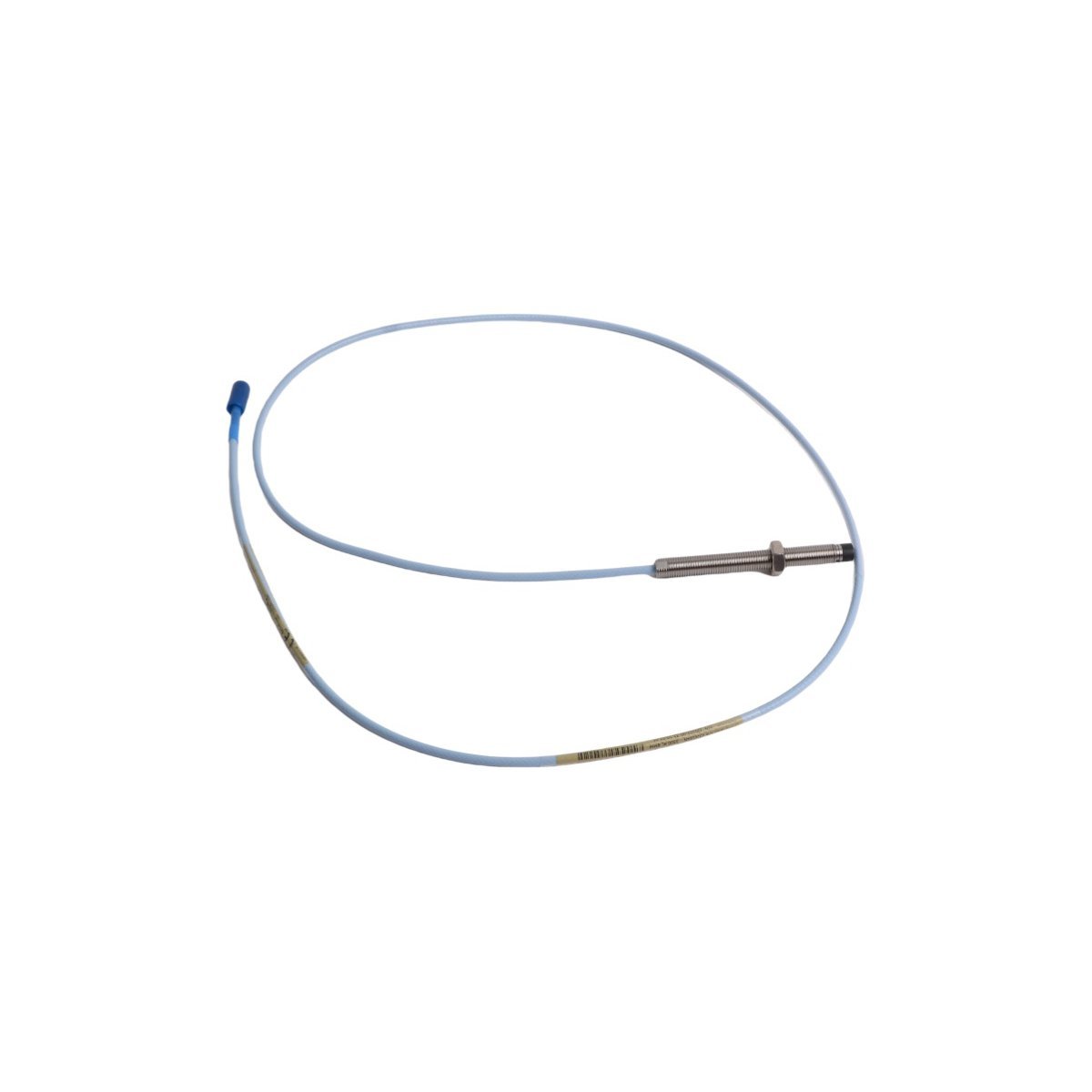

The Bently Nevada 330101-00-32-10-02-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in critical rotating machinery applications. Manufactured by Baker Hughes (under the Bently Nevada brand—a globally recognized leader in condition monitoring and predictive maintenance solutions), this probe is part of the trusted 3300 XL 8 mm sensor family, specifically designed to deliver exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity in demanding plant environments. The probe operates on the eddy-current principle, generating highly accurate analog voltage outputs proportional to the distance between the probe tip and a conductive target surface—typically shafts, rotors, or thrust collars made of ferromagnetic or non-ferrous metals. Its robust stainless steel construction, hermetically sealed design, and optimized frequency response (0–10 kHz typical bandwidth) ensure long-term reliability under extreme temperatures (−25 °C to +125 °C ambient), high humidity, oil immersion, and aggressive chemical exposure. Designed for seamless integration with the 3300 XL monitoring system—including 3300/16, 3300/20, and 3500 series monitors—the 330101-00-32-10-02-05 supports comprehensive asset health assessment through real-time shaft orbit analysis, gap voltage trending, and dynamic clearance evaluation. This model is supplied new and factory-certified, meeting all applicable IEC 61000-4 (EMC), ATEX/IECEx (for hazardous area variants—note: this specific model is rated for general-purpose use), and ISO 10816-3 vibration severity standards. Backed by a standard 24-month limited warranty from the date of shipment, it guarantees conformance to original equipment manufacturer (OEM) performance specifications and traceable calibration documentation per ISO/IEC 17025 requirements.

Detailed Specifications

Key Features

• OEM-Grade Calibration & Traceability: Each unit undergoes individual dynamic calibration at the Bently Nevada calibration laboratory, with NIST-traceable documentation and serial-number-matched certificate of conformance.
• Enhanced Thermal Stability: Utilizes proprietary temperature-compensated coil winding and low-drift electronics to maintain sensitivity drift ≤ ±0.5% over full operating range—critical for turbine and compressor applications where thermal transients are frequent.
• Hermetic Stainless Steel Housing: 316 stainless steel probe body with laser-welded, helium-leak-tested enclosure ensures resistance to corrosion, steam cleaning, and hydrocarbon-based lubricants.
• Low-Noise Integrated Cable: 5-meter coaxial cable features double-shielded construction (foil + braid), optimized impedance matching (50 Ω), and integrated strain relief to eliminate microphonic noise and mechanical fatigue failure.
• Plug-and-Play System Integration: Fully compatible with all 3300 XL monitor racks and software platforms (including System 1™), supporting automatic sensor identification, configuration validation, and health diagnostics via the 3300 XL 8 mm probe’s embedded EEPROM.
• Hazardous Area Ready (Optional Configurations): While the base 330101-00-32-10-02-05 is general-purpose, identical form-factor variants are available with ATEX/IECEx certification (e.g., 330101-00-32-10-02-05-EX) for Zone 1/21 installations.
• Extended Service Life: Rated for >100,000 hours MTBF under continuous operation, validated per Telcordia SR-332 and MIL-HDBK-217F reliability models.

Applications

• Steam and Gas Turbines: Monitoring radial vibration, axial position (thrust), and differential expansion in utility-scale and industrial turbines operating at speeds up to 15,000 RPM.
• Centrifugal Compressors: Critical shaft displacement sensing in petrochemical, refining, and LNG facilities—especially where API 617 and API 670 compliance is mandated.
• Aero-Derivative Engines: Rotor dynamics analysis and bearing clearance verification in power generation and marine propulsion systems.
• Large Electric Motors and Generators: Stator-to-rotor air gap monitoring, eccentricity detection, and vibration-based fault diagnosis per IEEE 112 and ISO 10816 standards.
• Pumps and Gearboxes: High-frequency bearing defect detection, misalignment assessment, and casing-relative shaft motion analysis in API 610 and API 671 applications.
• Research & Development Test Benches: Precision displacement measurement in academic, OEM, and third-party validation labs requiring metrology-grade repeatability and documented uncertainty budgets.
• Legacy System Upgrades: Direct replacement for aging 3300 Series probes without hardware or software reconfiguration—leveraging backward-compatible electrical and mechanical interfaces.
