330101-00-30-10-10-02-05 | Bently Nevada | | Bently Nevada | | Bently Nevada | Probe

### Product Description

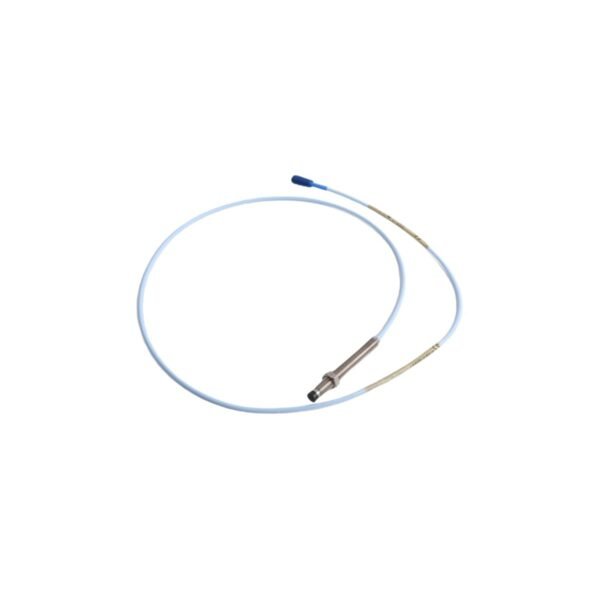

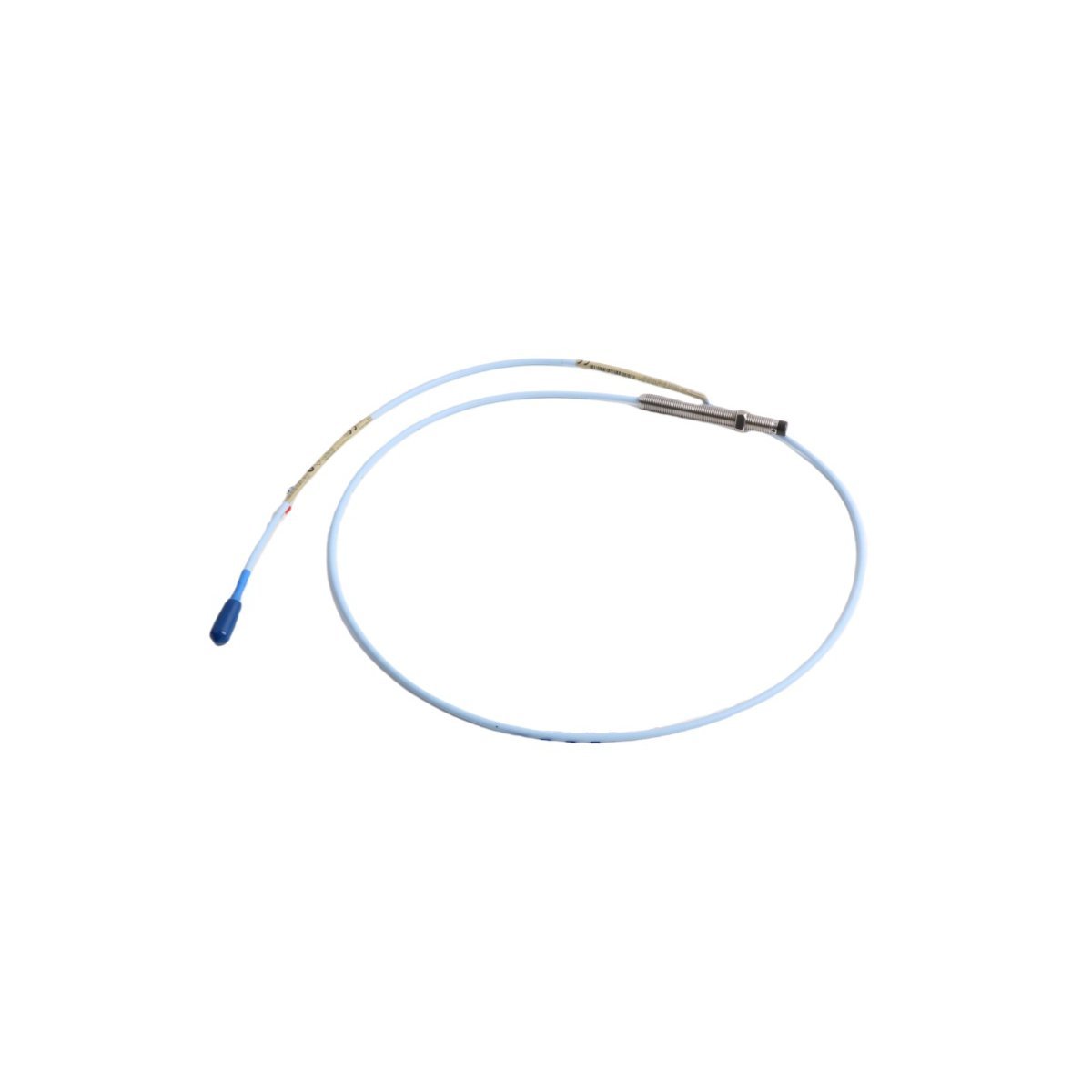

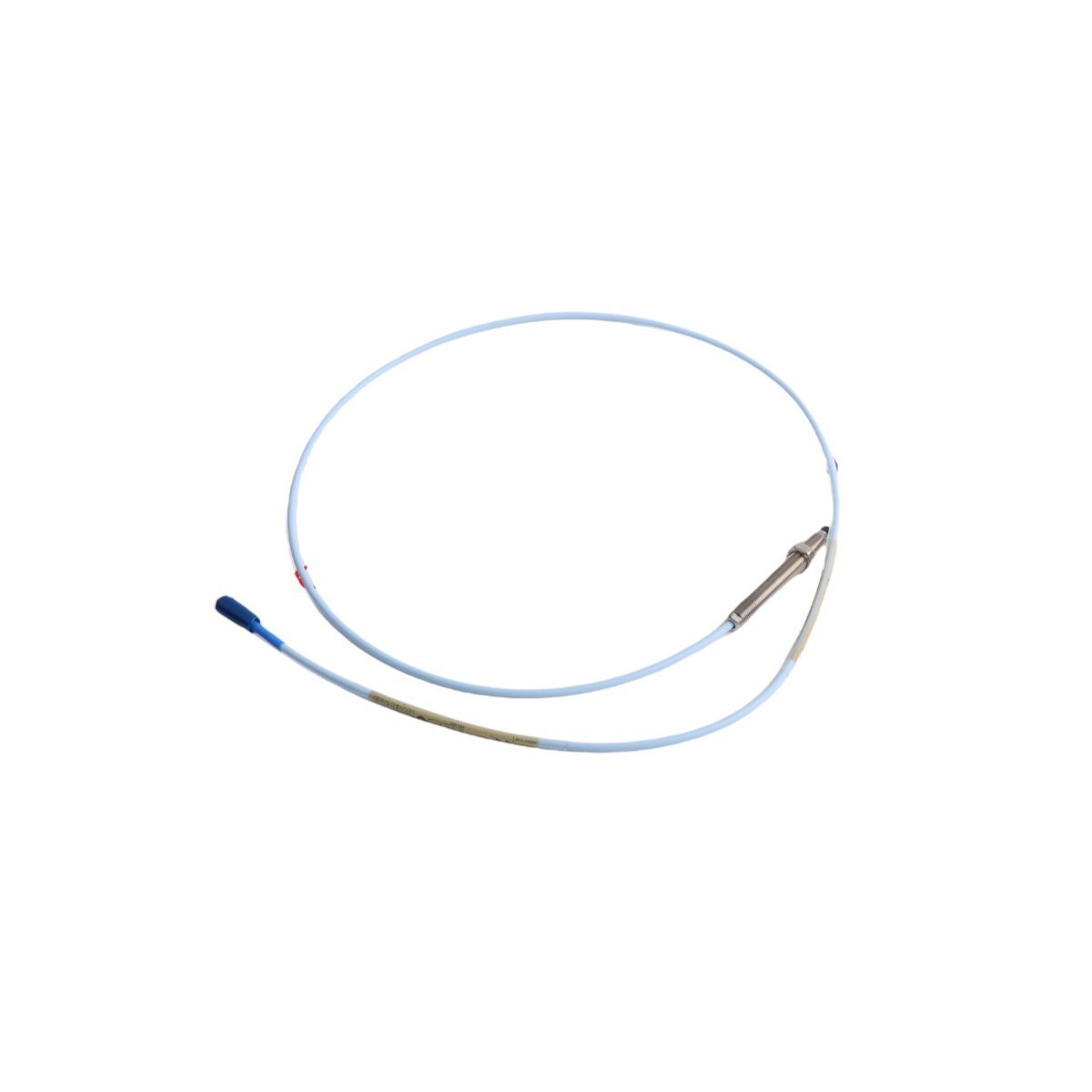

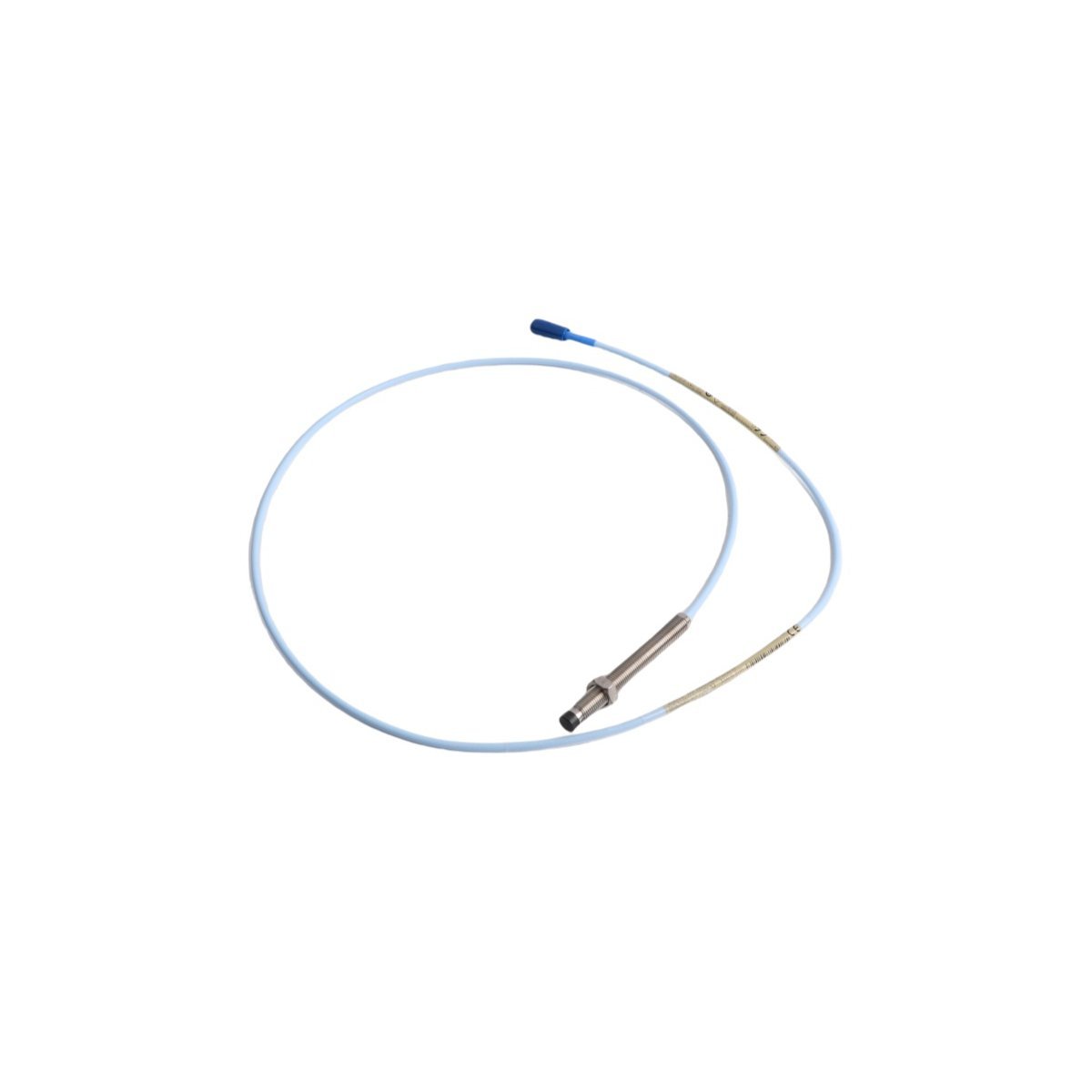

This is a high-precision eddy-current proximity probe designed for continuous shaft vibration and position monitoring. It operates as part of the Bently Nevada 3300 XL series monitoring system.
Moreover, it delivers accurate displacement measurements in harsh industrial environments, primarily used for rotating machinery protection. Therefore, it supports critical asset health assessment in turbomachinery and large motors. In addition, its robust construction ensures stable performance under high temperature and electromagnetic interference.

### Technical Specifications

### Typical Applications
– Steam turbine shaft vibration and axial position monitoring
– Gas compressor rotor dynamic measurement
– Large electric motor bearing housing displacement analysis
– Centrifugal pump shaft runout and thrust position tracking

### FAQ
What is the standard output signal?
It provides a negative DC voltage proportional to target gap, calibrated per API 670.

Is this probe compatible with 3300/50 series monitors?
Yes, it is fully compatible with Bently Nevada 3300/50 and 3500 monitoring systems.

Does it require a specific extension cable?
Yes, it must be used with Bently Nevada 330130-series coaxial extension cables rated for 100 Ω impedance.

What is the nominal sensing range?
The nominal linear range is 2.0 mm (0.080 in) with a sensitivity of −8.0 V/mm.

Can it operate at elevated temperatures?
The probe is rated for continuous operation up to +121 °C (250 °F) ambient temperature.
