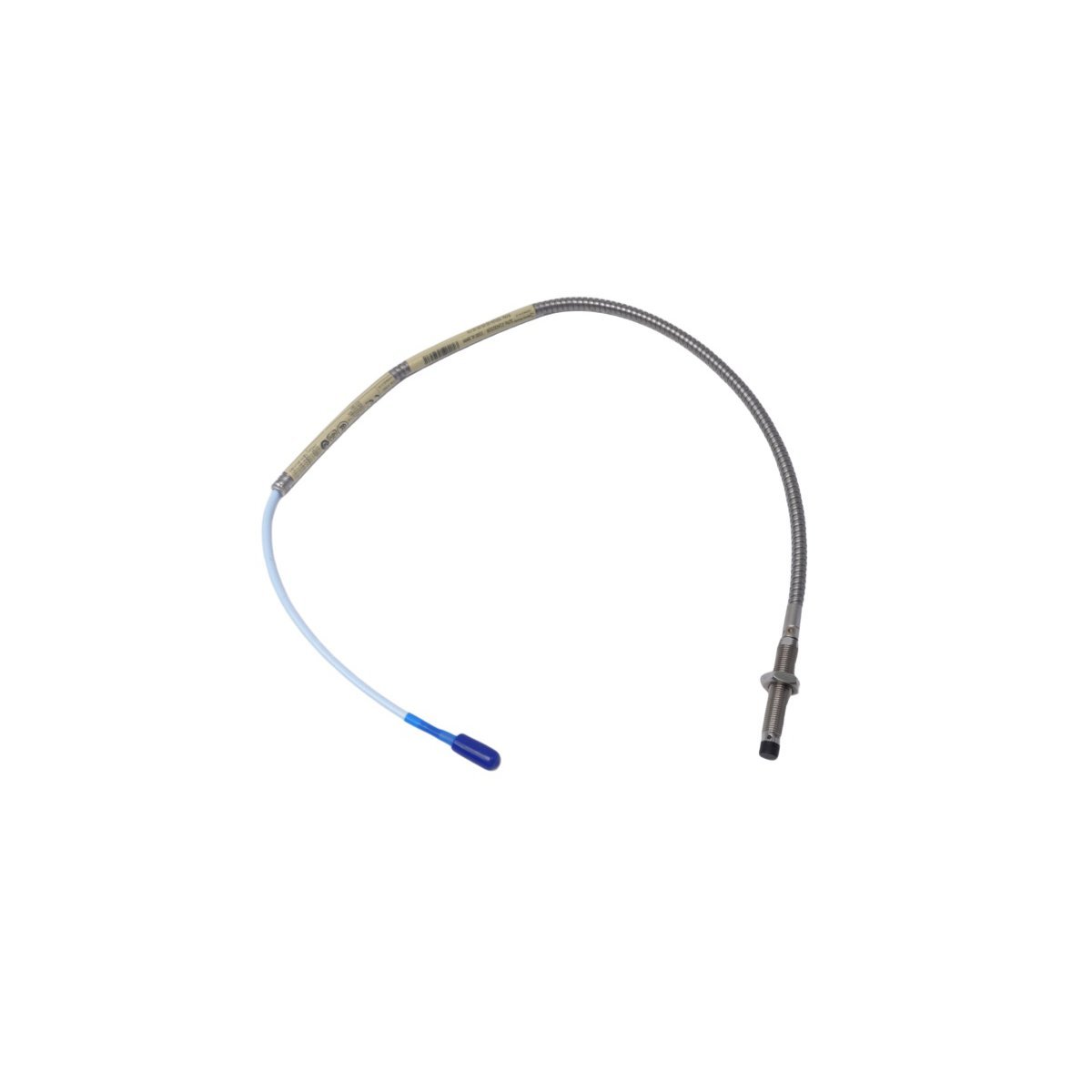

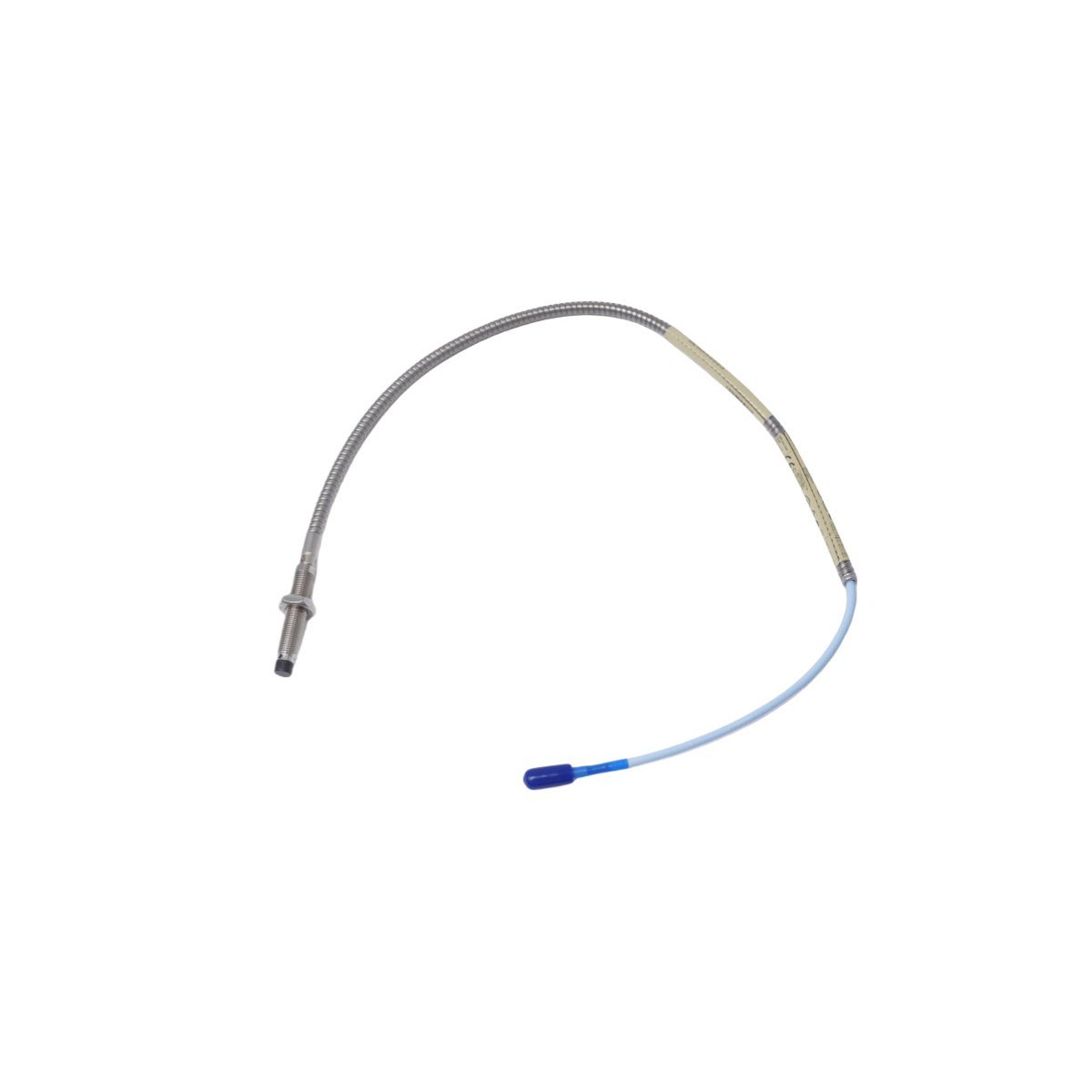

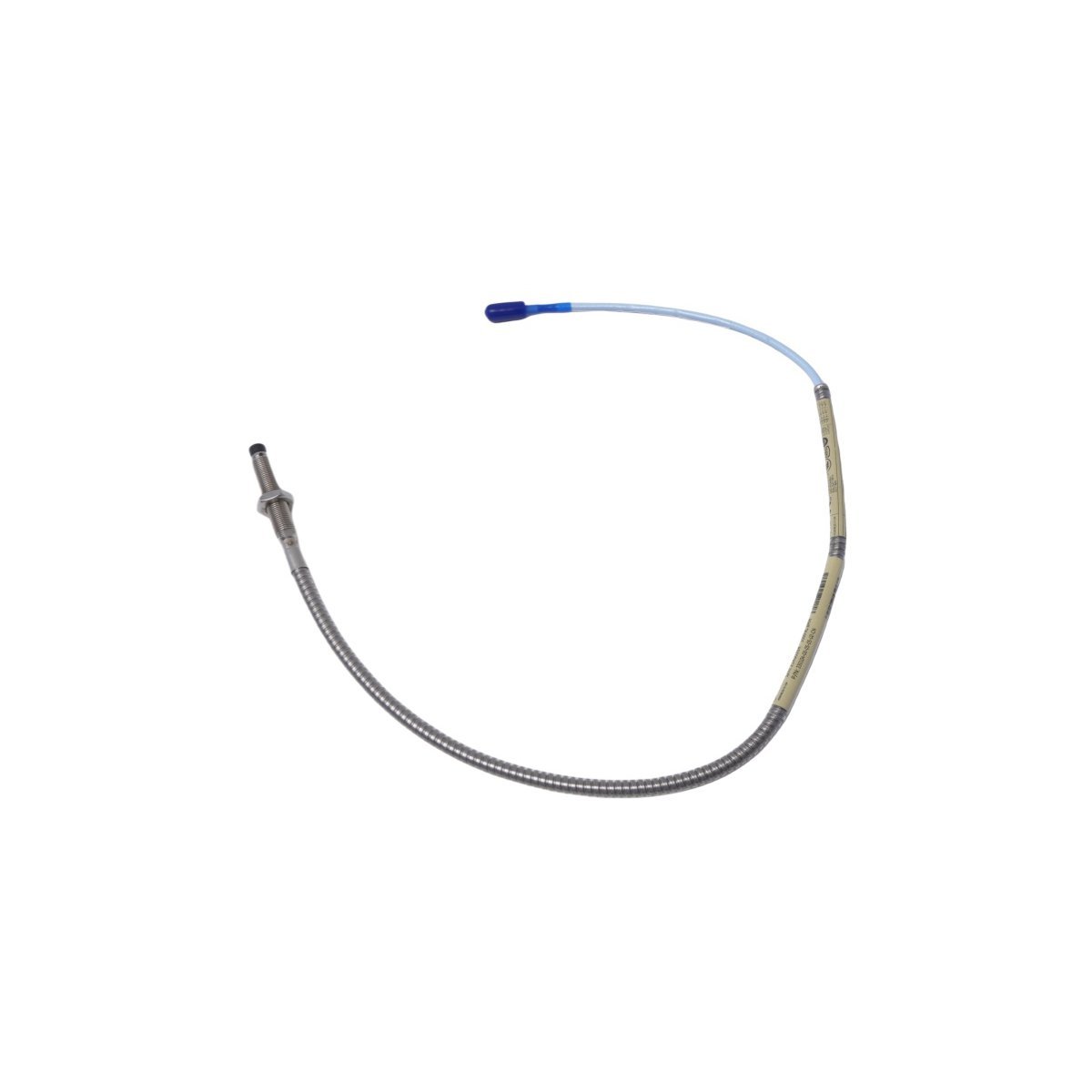

The Bently Nevada 330101-00-28-10-12-CN is a high-precision, non-contact proximity probe engineered for continuous shaft vibration, axial position, and differential expansion monitoring in critical rotating machinery. Part of the industry-standard 3300 XL series, this probe features a rugged 5/8–24 UNF threaded body with a 28 mm sensing range, optimized for integration with Bently Nevada 3300/3500 series monitors and condition monitoring systems. Its nickel-plated brass housing and integrated coaxial cable ensure reliable signal integrity in harsh industrial environments.

Key Benefits

• High Stability & Repeatability: Delivers ±0.5% full-scale linearity and thermal drift compensation down to 0.01%/°C — essential for long-term asset health trending.
• Plug-and-Play Compatibility: Designed for seamless integration with Bently Nevada 3300 XL extension cables (e.g., 330130-060-00-00) and system monitors—reducing commissioning time and configuration errors.
• Ruggedized Construction: IP67-rated housing with stainless steel shielding and high-temperature epoxy encapsulation ensures resilience against oil, steam, EMI, and mechanical shock.

Typical Applications

This proximity probe is widely deployed across power generation, oil & gas, petrochemical, and heavy manufacturing sectors — especially for monitoring steam turbines, centrifugal compressors, large motors, and gearboxes. It supports critical protection functions including overspeed trip, thrust bearing wear detection, and rotor dynamic stability analysis per API 670 standards.

Detailed Specifications

Electrical Parameters

Mechanical Parameters

• Probe Diameter: 11.0 mm (7/16″)
• Thread Size: 5/8–24 UNF–2A
• Sensing Range: 28 mm (1.10″)
• Standard Cable Length: 10 m (32.8 ft), integral low-noise coaxial
• Weight: Approx. 290 g (with cable)

Environmental Ratings

• Operating Temperature: −30°C to +120°C (cable rated to +120°C; probe tip to +150°C)
• Storage Temperature: −40°C to +125°C
• Ingress Protection: IP67 (dust-tight and water-immersion resistant)
• EMI/RFI Immunity: Compliant with IEC 61000-4-3 (Level 3) and EN 50082-2

Operational Capabilities

Dynamic Response & Signal Fidelity

Engineered for sub-micron resolution, the 330101-00-28-10-12-CN delivers exceptional phase accuracy (<±1° up to 5 kHz) and low noise floor (<50 µV rms), enabling precise orbit analysis and modal identification in multi-plane monitoring setups.

System Integration Flexibility

Supports both single-channel and dual-channel (differential) configurations. Compatible with Bently Nevada’s 3500 Rack Monitoring System, 3300 XL 25 mm and 50 mm monitors, and third-party DCS/SCADA interfaces via 4–20 mA or Modbus RTU (with appropriate signal conditioner).

Calibration & Maintenance

Factory-calibrated per ISO 10816 and NIST-traceable standards. Requires no field recalibration under normal operating conditions — reducing lifecycle maintenance costs and downtime risk.

Technical FAQ

Can this probe be used with non-Bently Nevada monitoring systems?

Yes — when paired with a compatible eddy-current signal conditioner (e.g., Wilcoxon W3900, PCB Piezotronics 482C), the 330101-00-28-10-12-CN provides standard -10 V to -2 V DC output proportional to gap. Verify input impedance (>100 kΩ) and excitation requirements before integration.

What is the recommended installation torque for the probe body?

Torque to 25–30 N·m (18–22 lbf·ft) using a calibrated torque wrench. Over-torquing may deform the coil assembly and degrade linearity; under-torquing risks vibration-induced loosening.

Is the probe suitable for hazardous areas?

The 330101-00-28-10-12-CN itself is not intrinsically safe. For Class I Div 1/Zone 1 applications, use with an approved IS barrier (e.g., Pepperl+Fuchs KFD2-STC4-Ex1) and verify system-level certification.
