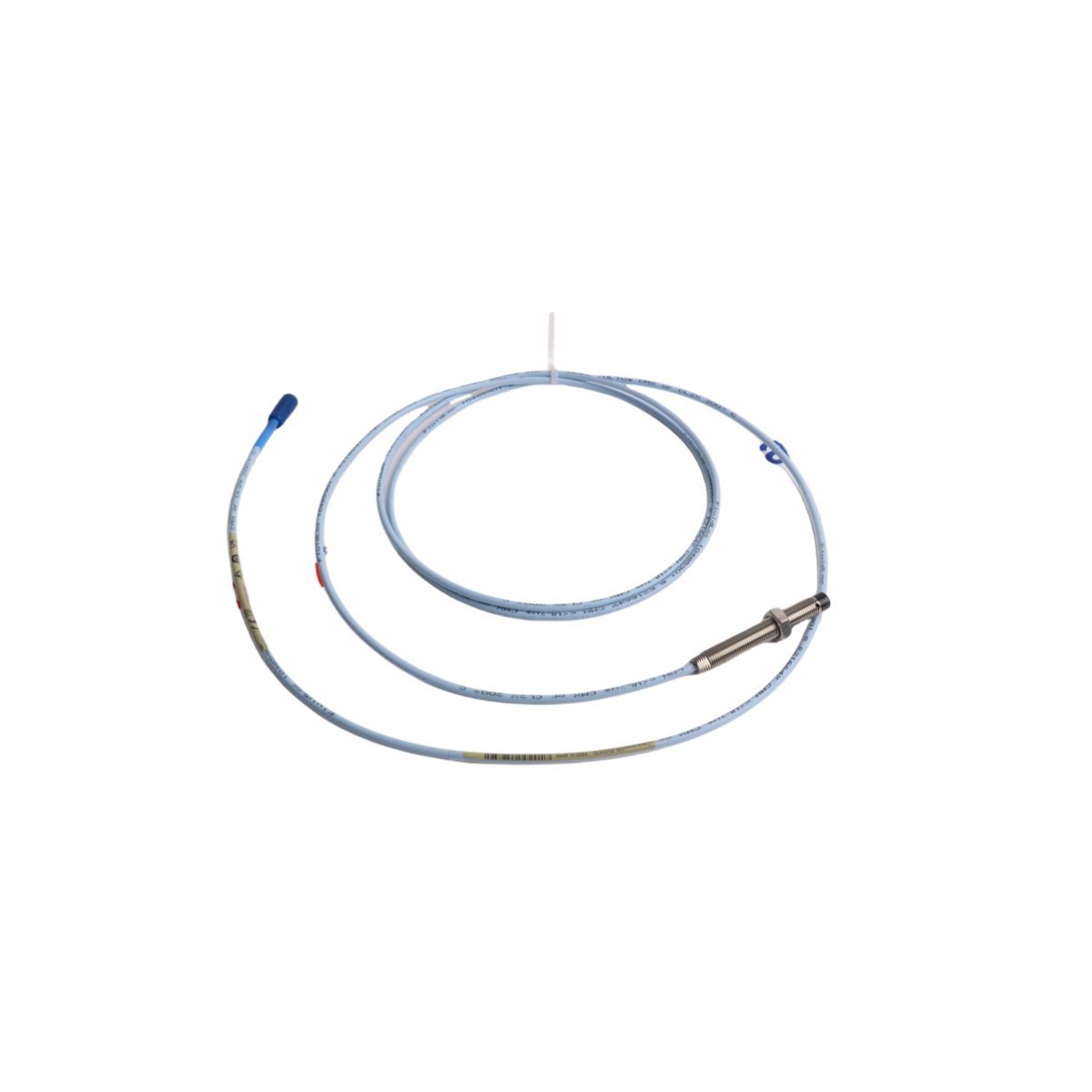

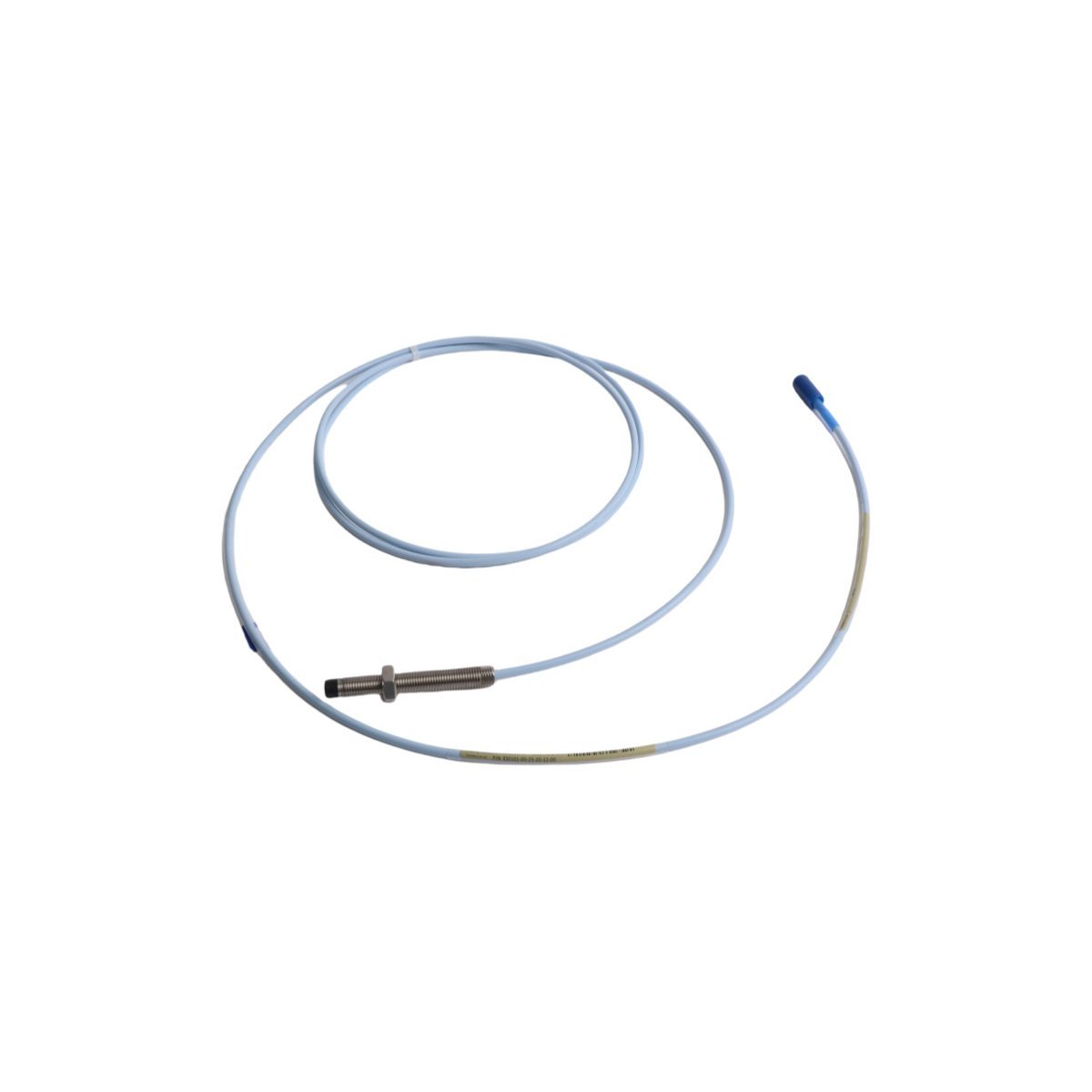

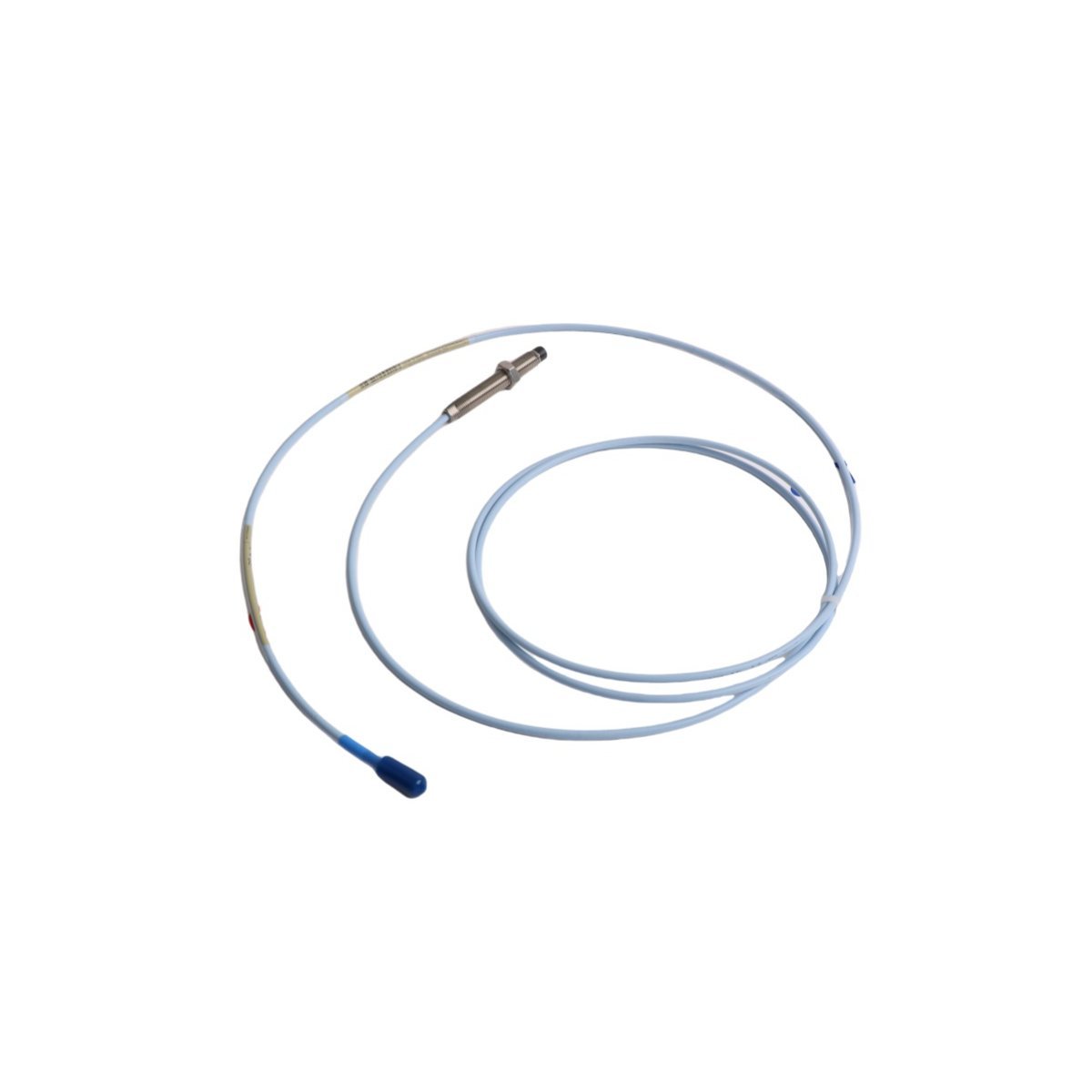

The Bently Nevada 330101-00-25-10-02-05 Proximity Probe is a high-precision, non-contact displacement sensor engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe forms the foundational sensing element of the industry-standard 3300 XL and 3500/40 Series vibration monitoring systems. Designed to operate reliably in harsh industrial environments—including high temperatures, electromagnetic interference (EMI)-rich settings, and aggressive chemical atmospheres—the 330101-00-25-10-02-05 delivers exceptional linearity, repeatability, and thermal stability across its full measurement range. Its robust construction features a stainless steel housing with an integral 3-meter coaxial cable terminated in a standard 10-32 UNF connector, ensuring seamless integration with Bently Nevada extension cables and proximity transducers. The probe operates on the eddy-current principle, generating a high-frequency electromagnetic field that interacts with conductive target surfaces (typically ferromagnetic or non-ferrous shaft materials) to produce a voltage output linearly proportional to gap distance. This model is supplied in New Surplus Condition, meaning it is unused, factory-fresh inventory sourced directly from authorized Baker Hughes distribution channels—fully traceable, tested, and certified to original OEM specifications. Each unit carries a comprehensive 24-month limited warranty covering material defects and workmanship, backed by technical support from certified application engineers. With precise dimensional tolerances and consistent calibration, the 330101-00-25-10-02-05 ensures system-level accuracy critical for API 670-compliant machinery protection and reliability programs.

Detailed Specifications

Key Features

• Precision Calibration: Factory-calibrated to API RP 670 Annex D and ISO 10816 standards using traceable NIST-certified equipment for guaranteed accuracy and interchangeability within Bently Nevada monitoring systems.
• Robust Mechanical Design: Austenitic stainless steel (316 SS) probe body and ceramic insulator provide superior corrosion resistance, mechanical strength, and long-term dimensional stability—even under repeated thermal cycling.
• EMI-Immune Signal Integrity: Integral coaxial cable with double-shielded construction (braided + foil) minimizes noise pickup and ensures stable output in high-noise environments typical of power plants, refineries, and compressor stations.
• Optimized for Critical Machinery: Engineered specifically for use with steam turbines, gas turbines, centrifugal compressors, large motors, and generators where sub-micron resolution and zero-drift performance are mission-critical.
• Plug-and-Play Integration: Fully compatible with Bently Nevada 3300 XL, 3500/40, and System 1 platforms—no field recalibration required when paired with matching 330180-series extension cables and 330780-series transducers.
• Traceable Documentation: Each unit ships with a Certificate of Conformance (CoC), calibration report, and serial-number-matched documentation for regulatory compliance (e.g., ISO 55001, API Q1).
• Sustainable Lifecycle Support: Backed by Baker Hughes’ global service network, including technical consultation, repair, recalibration, and obsolescence management—ensuring long-term operational continuity.

Applications

• Turbomachinery Protection: Real-time monitoring of radial vibration and axial position in steam and gas turbines per API 670 requirements for trip logic and alarm generation.
• Compressor Health Monitoring: Detection of bearing wear, misalignment, and surge onset in centrifugal and axial-flow compressors across oil & gas transmission and petrochemical processing facilities.
• Generator & Motor Diagnostics: Measurement of rotor eccentricity, air-gap variation, and thrust bearing wear in large synchronous generators and high-voltage induction motors.
• Power Generation Asset Management: Enabling predictive maintenance strategies in combined-cycle power plants by correlating proximity data with spectral analysis and trending algorithms.
• Refinery & Chemical Plant Rotating Equipment: Continuous surveillance of critical pumps, blowers, and fans operating in hazardous (Class I Div 1) and corrosive process environments.
• R&D and Test Stand Instrumentation: High-fidelity displacement measurement in laboratory and OEM test cells for validating dynamic models, balancing procedures, and bearing dynamics simulations.
• Renewable Energy Systems: Monitoring gearboxes and main shafts in utility-scale wind turbines where reliability and remote diagnostics are essential for O&M optimization.
