Description

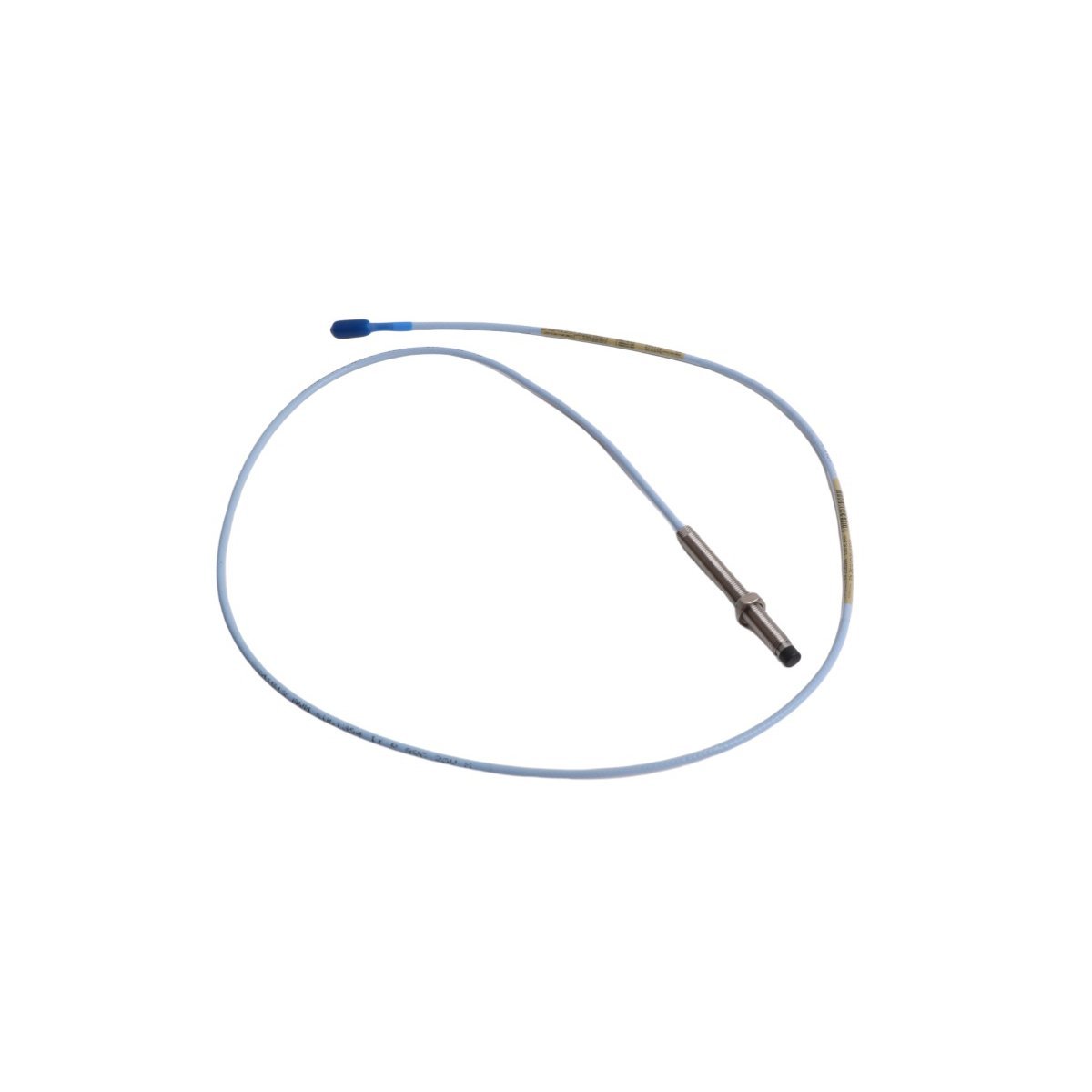

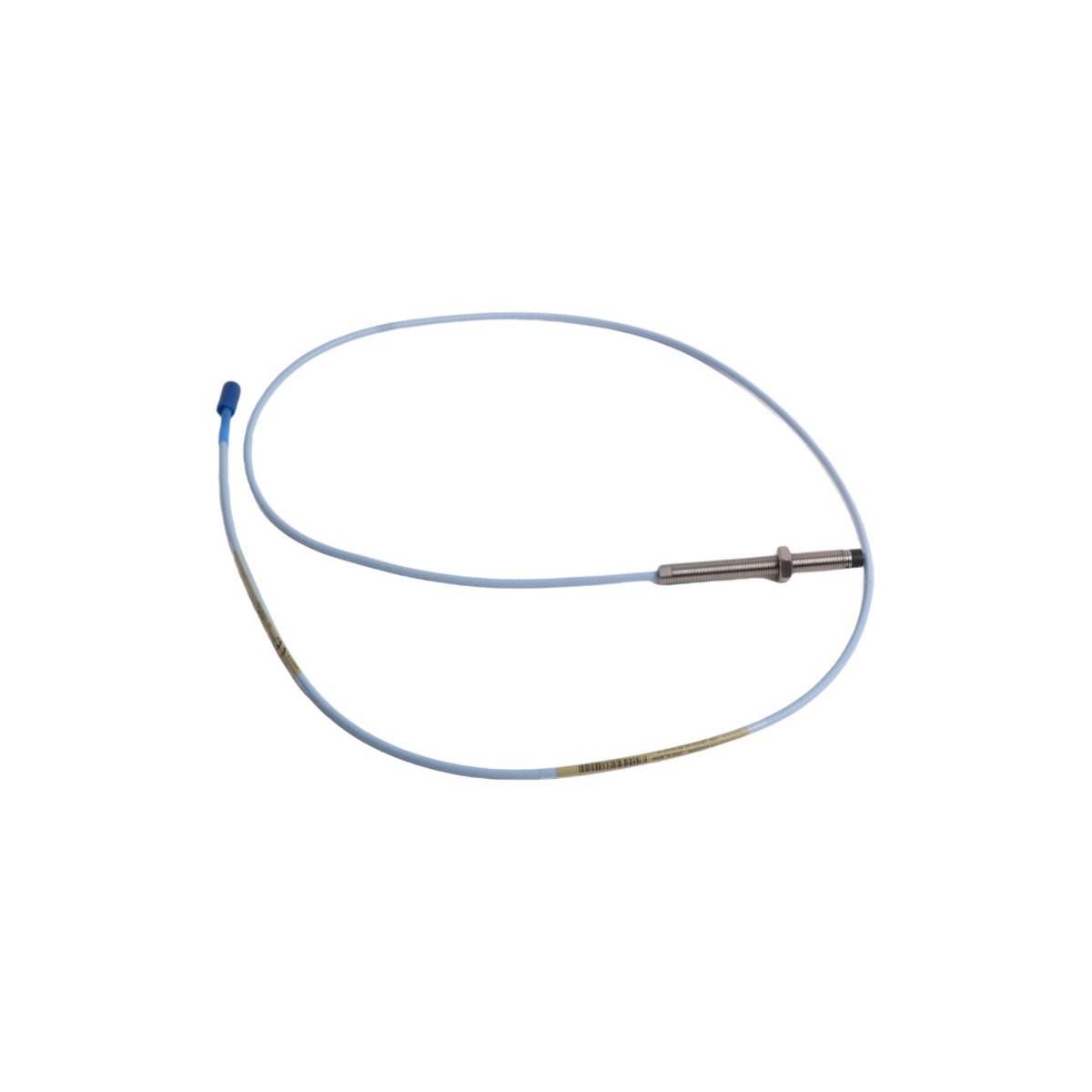

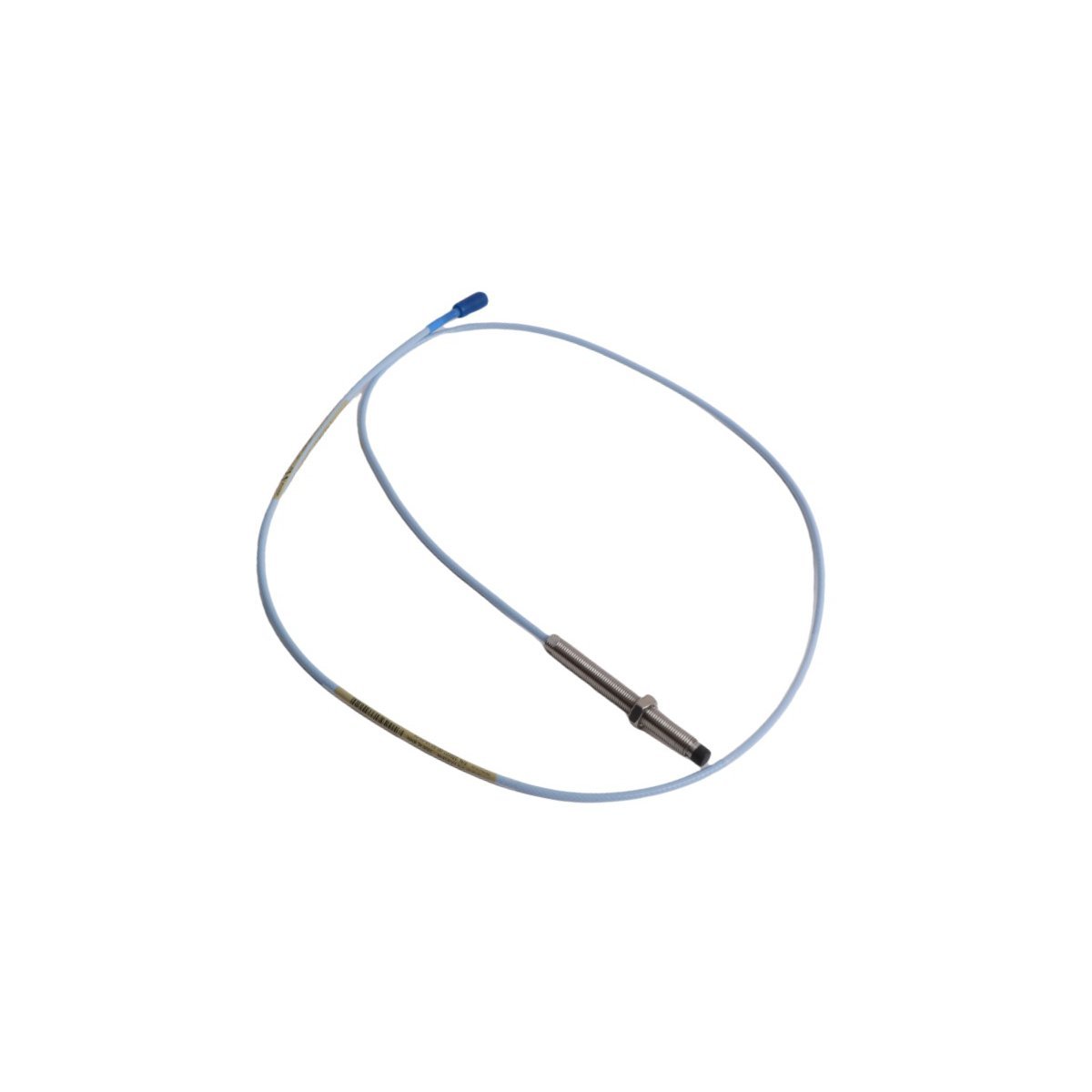

330101-00-20-15-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description
This is a non-contact eddy-current proximity probe designed for continuous displacement and vibration monitoring of rotating machinery.
Moreover, it delivers high-resolution measurements of shaft position, vibration, and axial thrust in harsh industrial environments.
Therefore, it is routinely deployed with 3300 XL monitoring systems for critical turbomachinery protection and condition assessment.

### Technical Specifications

### Typical Applications
– Monitoring shaft vibration and radial position in steam and gas turbines
– Measuring axial position and thrust bearing wear in centrifugal compressors
– Detecting rotor dynamic behavior in large electric motors and generators
– Supporting API 670-compliant machinery protection systems

### FAQ
What is the standard sensing range for this probe?
The nominal linear sensing range is 2.0 mm (0.08 in) with a 5% nonlinearity limit.

Is this probe compatible with legacy 3300 series monitors?
Yes, it is fully compatible with all 3300 series monitor racks and前置 amplifiers.

Does the probe require calibration before installation?
No—each probe is factory-calibrated and supplied with a unique calibration certificate traceable to NIST standards.

Can it operate in high-temperature environments?
It is rated for continuous operation up to +121 °C (250 °F) at the probe tip; extended temperature versions are available separately.
