Description

330101-00-20-10-02-00 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description

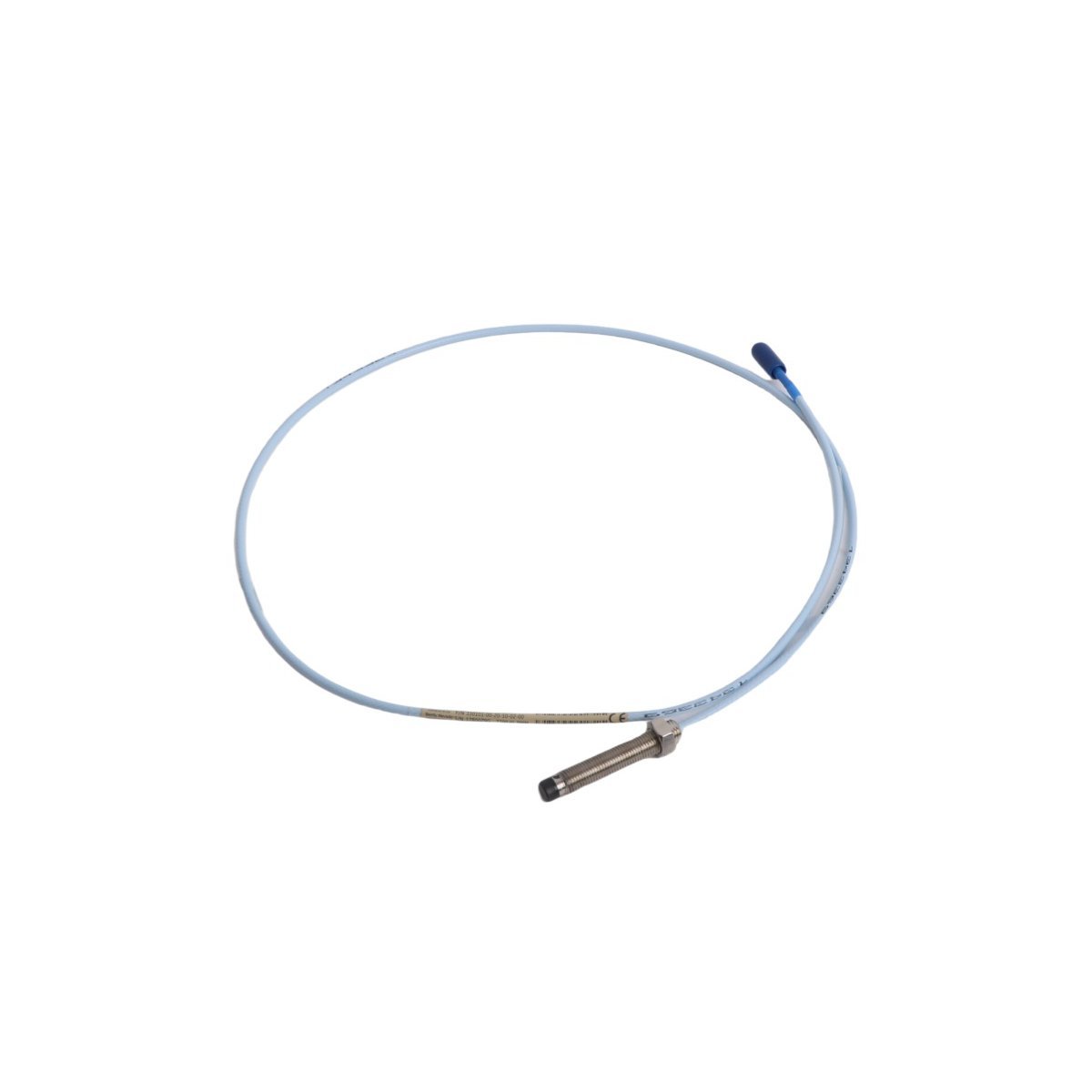

The 330101-00-20-10-02-00 is a non-contact eddy-current proximity probe from Bently Nevada’s 3300 XL series, designed for high-precision shaft vibration and position monitoring.
Moreover, it delivers stable, linear output in harsh industrial environments, supporting continuous machinery health assessment in rotating equipment.
Therefore, it is commonly integrated with 3300 series monitors for real-time protection and diagnostics in critical turbomachinery applications.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration and axial position of steam turbine shafts
– Measuring differential expansion in gas turbine casings
– Detecting thrust collar position in centrifugal compressors
– Verifying bearing clearance during startup and steady-state operation

### FAQ
What is the standard cable length for this probe?
The probe includes a fixed 5-meter integral coaxial cable with a 3300-series compatible connector.

Is calibration required before installation?
Yes—each probe must be calibrated with its matching extension cable and monitor using a certified calibration kit per API 670.

Can this probe operate in high-temperature environments?
It is rated for continuous operation up to +120 °C at the probe tip; derating applies above that temperature.

Does it require a separate前置 amplifier?
No—it is designed for direct connection to 3300 XL monitoring systems, which provide built-in signal conditioning.

What material is the probe tip made of?
The sensing tip is constructed from corrosion-resistant PPS (polyphenylene sulfide) encapsulated stainless steel.
