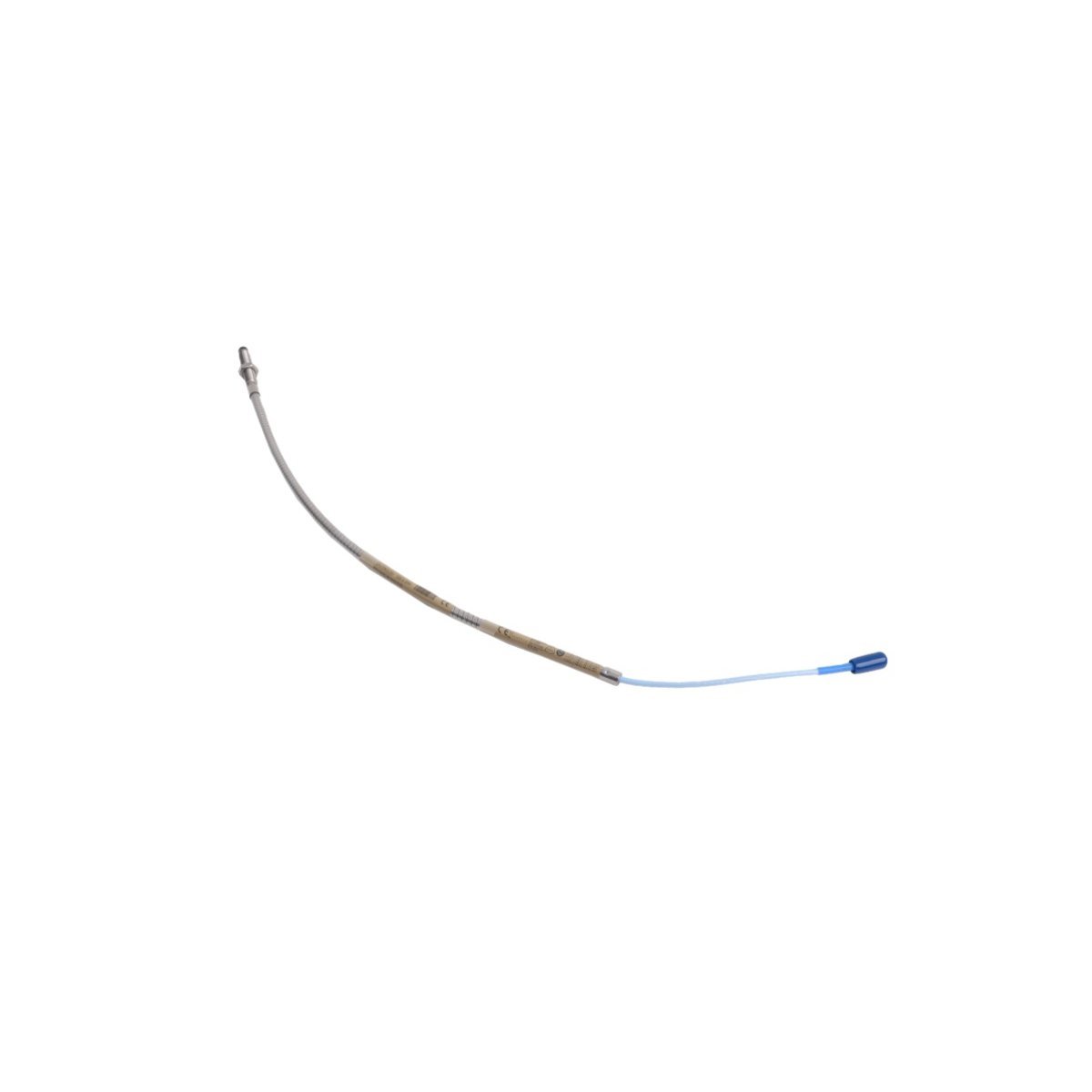

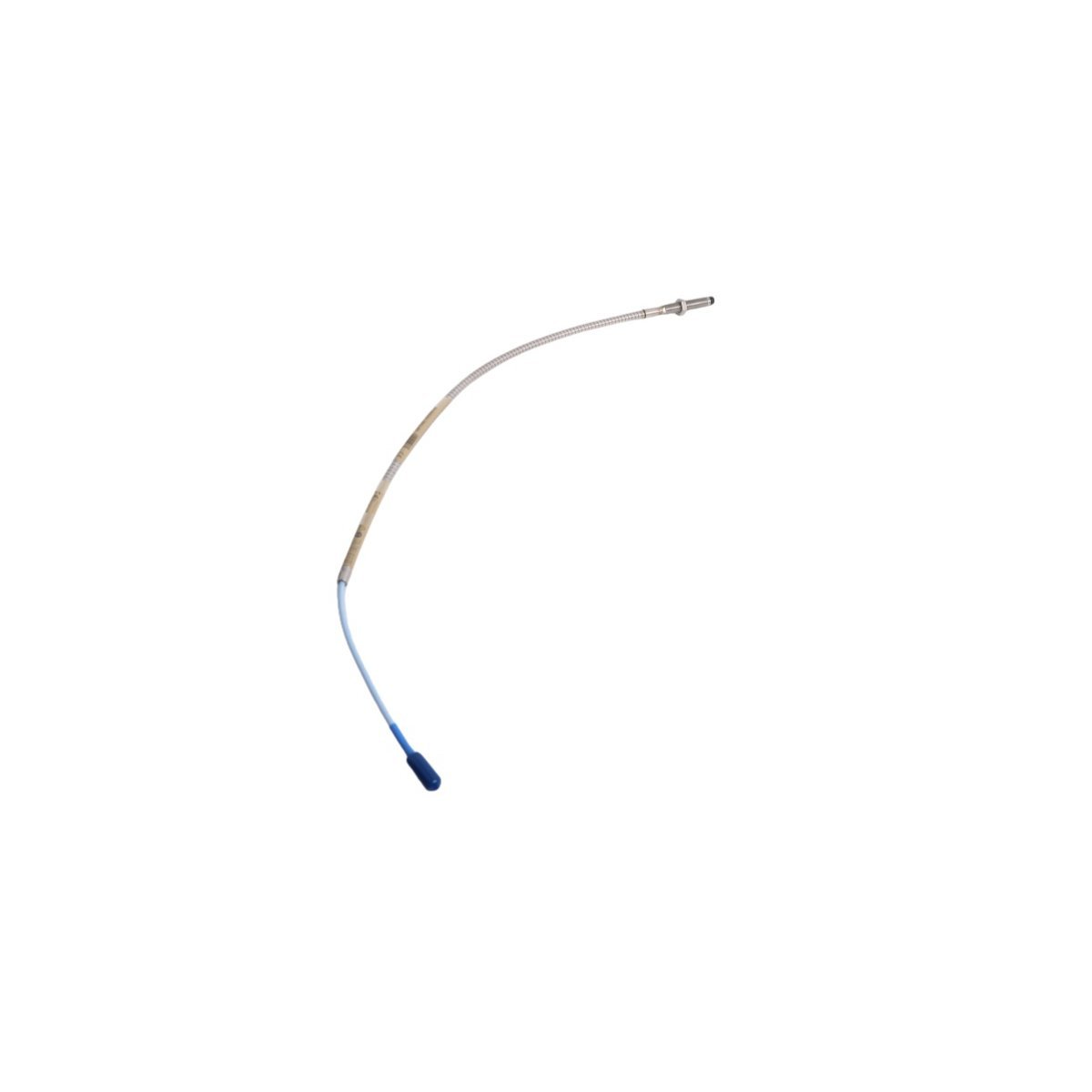

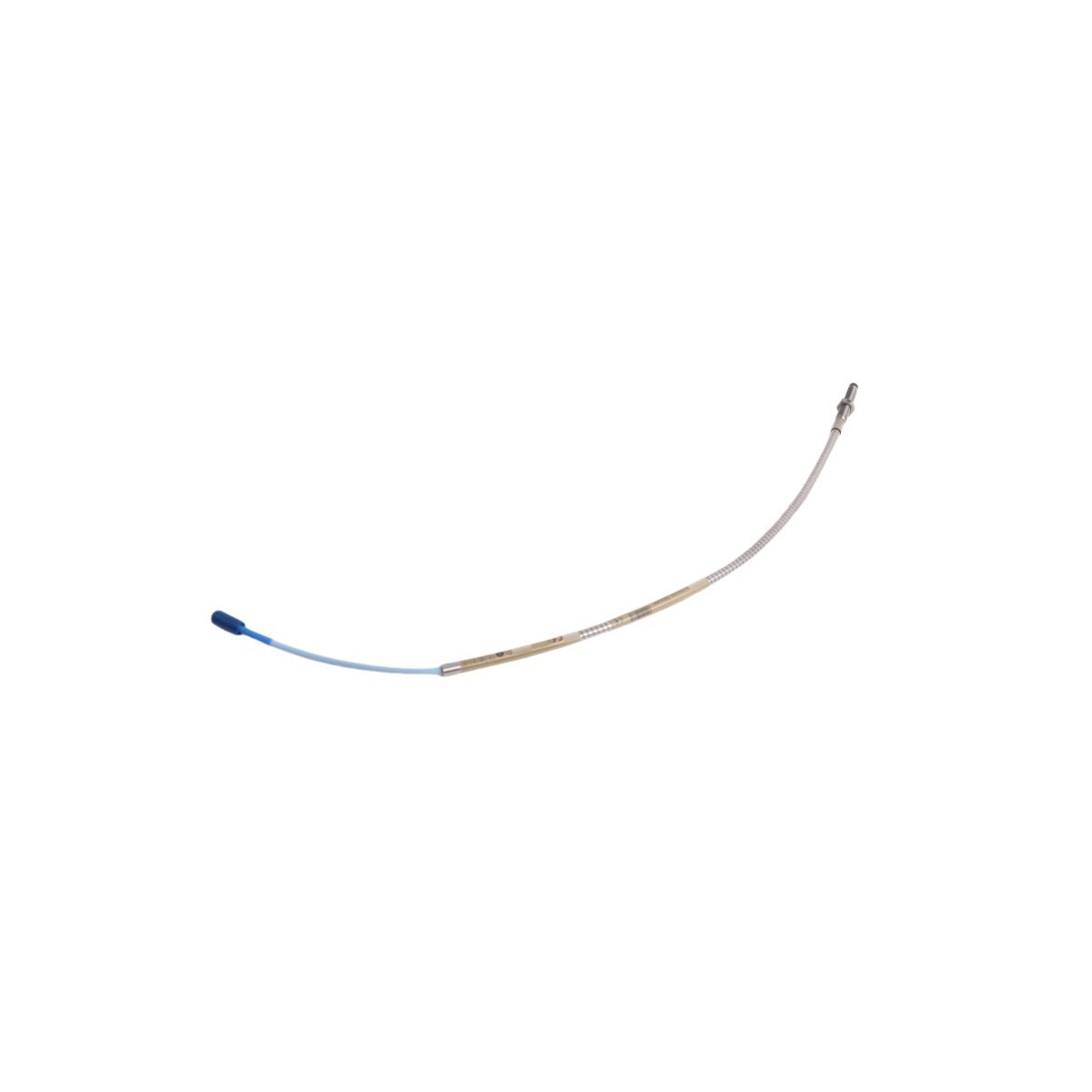

The Bently Nevada 330101-00-20-05-02-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and position monitoring in critical rotating machinery applications. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset condition monitoring and predictive maintenance solutions—this probe forms an integral component of the 3300 XL 8 mm sensor system family. Designed to operate within the rigorous demands of power generation, oil & gas, petrochemical, and heavy industrial environments, the 330101-00-20-05-02-05 delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity. Its robust construction features a stainless steel housing with a PTFE-insulated coaxial cable and integrated connector, ensuring long-term reliability in high-vibration, high-temperature, and corrosive atmospheres. This probe is factory-calibrated to meet API RP 670 (4th Edition) and ISO 10816 standards, providing traceable accuracy across its full measurement range. The unit is supplied new, unused, and in original factory-sealed packaging, confirming its genuine OEM status and compliance with all applicable RoHS and CE directives. Backed by a comprehensive 24-month limited warranty covering material defects and workmanship, this probe supports seamless integration into existing 3300 XL monitoring systems without recalibration or firmware updates. Originating from the United States—where Bently Nevada’s advanced R&D and precision manufacturing facilities are headquartered—the probe adheres to stringent ASME Y14.5 geometric dimensioning and tolerancing standards. With compact dimensions of 1.0 inch (25.4 mm) diameter and 3.5 inches (88.9 mm) overall length—including the integral 3-foot (0.91 m) shielded coaxial cable—and a net weight of 0.42 lbs (190 g), it enables flexible installation in space-constrained bearing housings and pedestal configurations.

Detailed Specifications

Key Features

• OEM-Exact Calibration: Factory-traceable calibration certificate included; ensures plug-and-play compatibility with all 3300 XL 8 mm extension cables and monitors (e.g., 3300 NSV, 3500 rack systems).
• Enhanced Thermal Stability: Advanced coil design and temperature-compensated electronics maintain ≤ ±3% sensitivity drift over full operating range, minimizing false alarms during thermal transients.
• Corrosion-Resistant Construction: 316 stainless steel probe tip and housing with hermetically sealed ceramic insulator provide IP67-rated ingress protection against moisture, oil mist, and hydrogen sulfide exposure.
• EMI/RFI Immunity: Meets IEC 61000-6-2 (immunity) and -6-4 (emission) standards; validated in >150 V/m RF fields typical of VFD-driven motor installations.
• Optimized Gap Voltage: Nominal 10 Vdc bias output at mid-range gap (1.0 mm) simplifies setup and enables rapid verification using standard multimeters or oscilloscopes.
• Integrated Cable Design: Strain-relieved, low-noise RG-174 cable eliminates field splicing risks and reduces signal attenuation—critical for maintaining SNR >60 dB in high-noise turbine enclosures.
• Global Support Ecosystem: Fully supported by Bently Nevada’s Asset Health Management software (System 1), enabling automated diagnostics, trend analysis, and alarm rationalization per ISO 13374.

Applications

• Steam and Gas Turbines: Radial vibration monitoring of journal bearings, thrust collar position, and differential expansion in combined-cycle and cogeneration plants.
• Centrifugal Compressors: Shaft displacement measurement for anti-surge control, dry gas seal monitoring, and rotor dynamic analysis in refinery and LNG facilities.
• Large Electric Motors: Sleeve bearing wear detection, shaft orbit analysis, and unbalance identification in 5+ MW drive motors powering pumps and fans.
• Hydroelectric Generators: Permanent magnet generator air-gap monitoring and vertical shaft axial position tracking under variable load conditions.
• Petrochemical Pumps: Critical service API 610 pumps requiring continuous proximity-based health assessment per API RP 670 Annex D guidelines.
• Wind Turbine Gearboxes: Low-speed shaft runout and bearing preload verification during commissioning and life-extension campaigns.
• Research & Development Test Stands: High-fidelity transient response capture for rotor dynamics modeling, modal analysis, and bearing coefficient validation.
