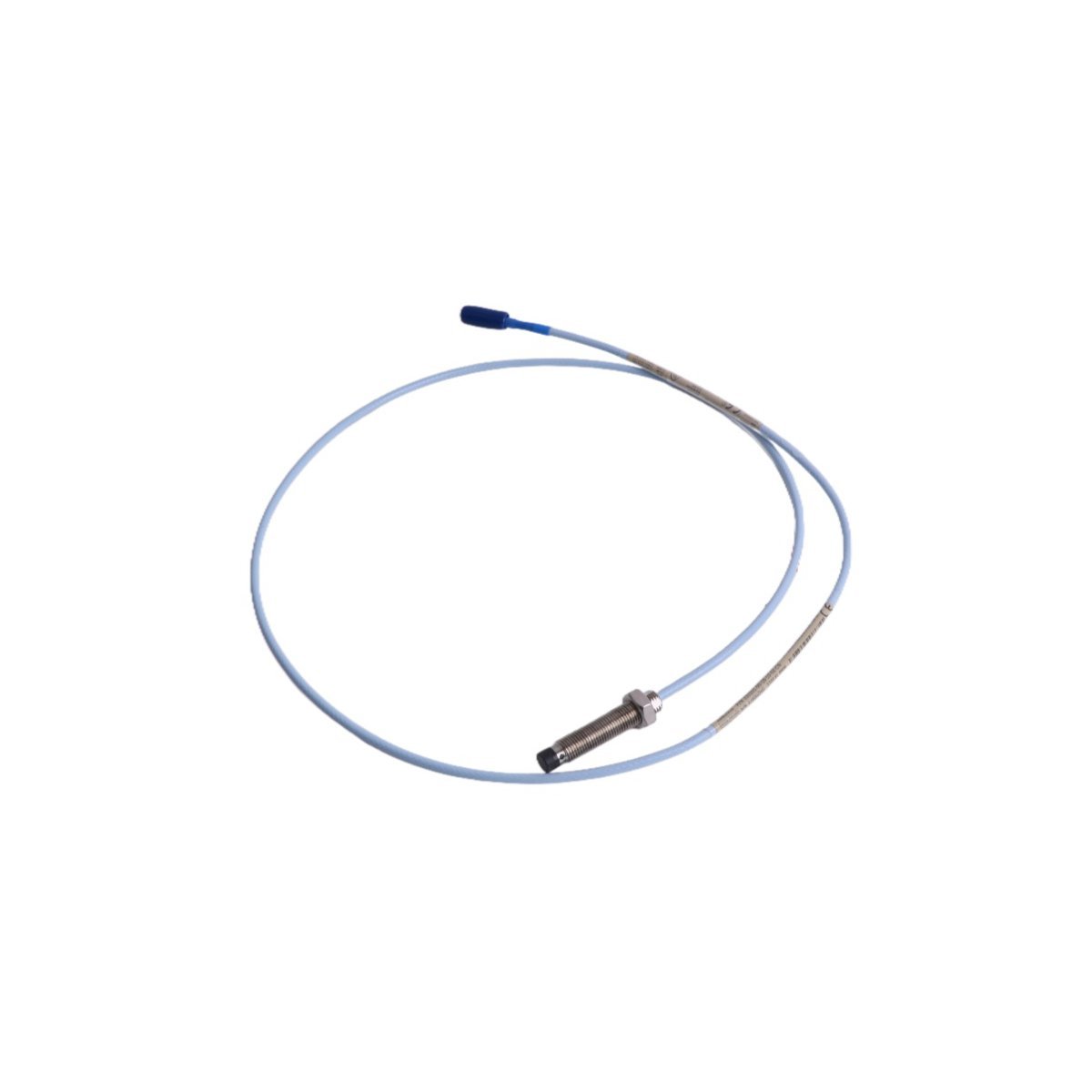

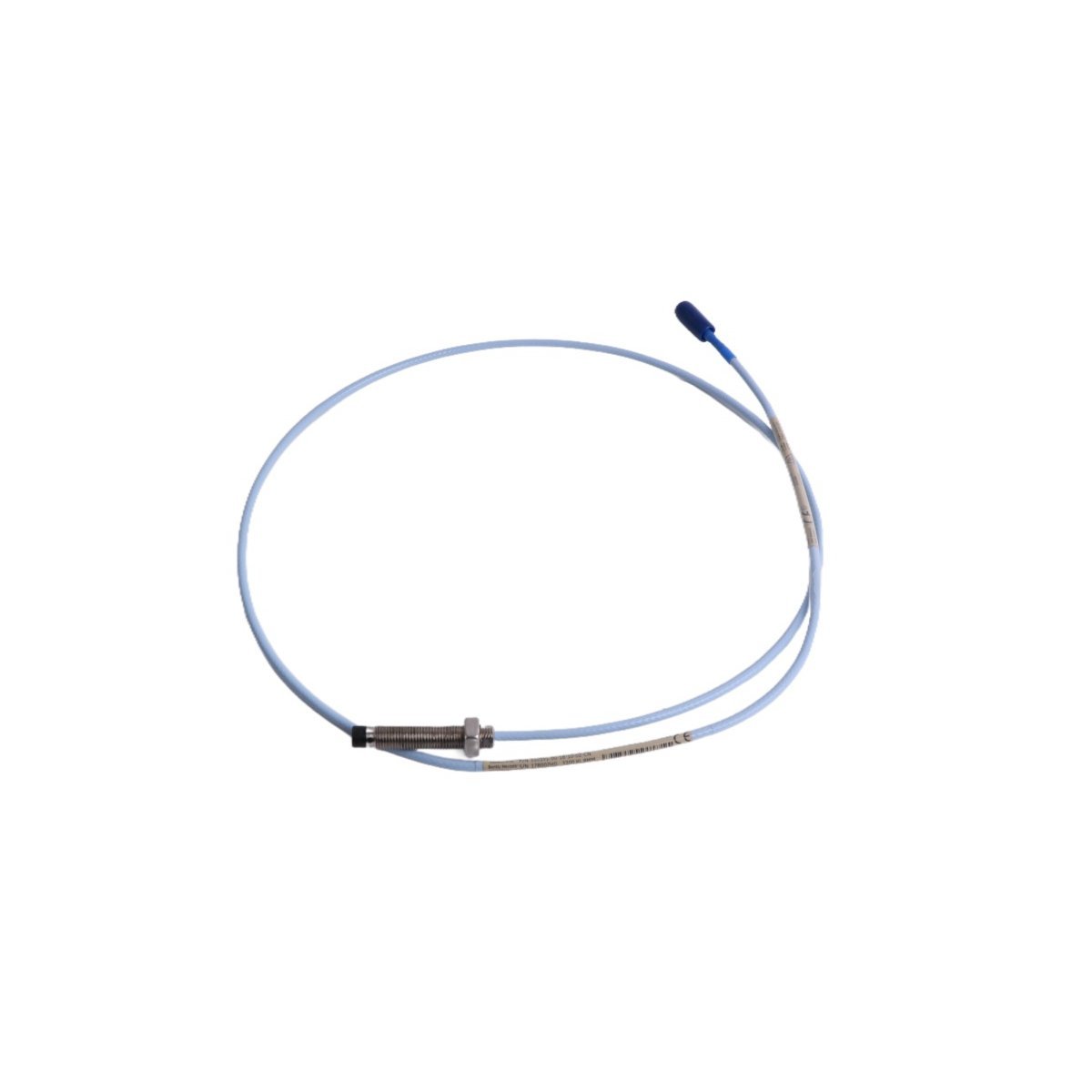

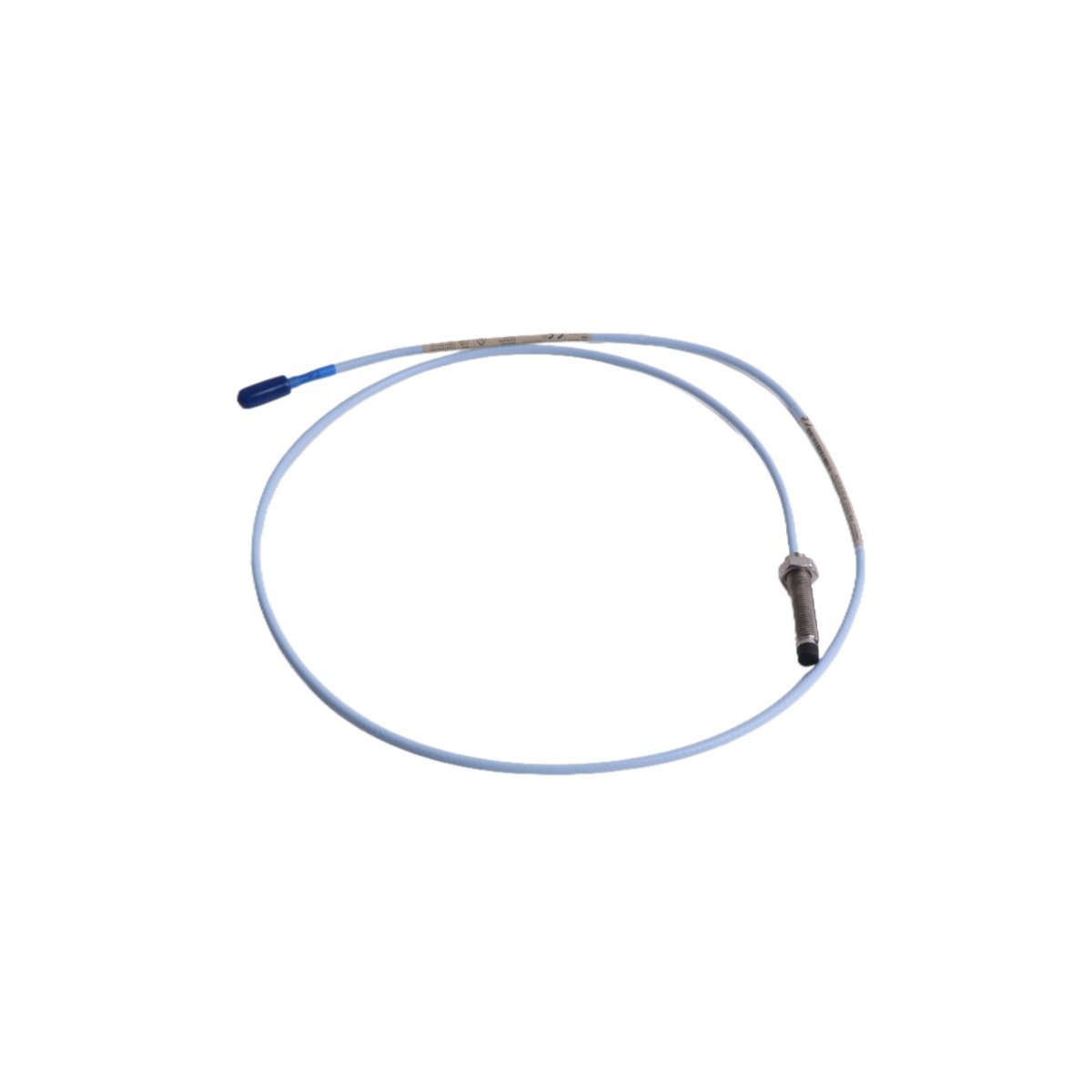

330101-00-18-20-12-05 | Bently Nevada | 3300 XL 8mm Proximity Probes

### Product Description
This is a non-contact eddy-current proximity probe from the Bently Nevada 3300 XL series, designed for high-accuracy shaft displacement and vibration monitoring.
Moreover, it delivers linear output calibrated to measure radial and axial motion of rotating machinery components in harsh industrial environments.
Therefore, it is routinely deployed with 3300 series monitors for continuous condition monitoring of critical turbomachinery.

### Technical Specifications

### Typical Applications
– Monitoring shaft vibration and position in steam and gas turbines
– Measuring thrust collar displacement in centrifugal compressors
– Detecting rotor runout and dynamic imbalance in large electric motors
– Providing input for active magnetic bearing control systems

### FAQ
What is the standard calibration range for this probe?
The probe is factory-calibrated for an 8 mm diameter target with a linear range of 2.0 mm and sensitivity of 4.0 V/mm.

Is this probe compatible with legacy 3300 system monitors?
Yes, it is fully compatible with all 3300 series monitor modules, including 3300/16, 3300/20, and 3300/25.

Does the probe require a separate extension cable?
Yes, it must be used with a shielded coaxial extension cable rated for 3300 XL systems; direct connection to the monitor is not supported.

What is the operating temperature range?
The probe operates continuously from –30 °C to +120 °C ambient temperature.

Can it be used on non-ferrous targets?
No, it requires a conductive ferromagnetic target material such as 4140 steel for specified linearity and sensitivity.
