Description

Technical Overview

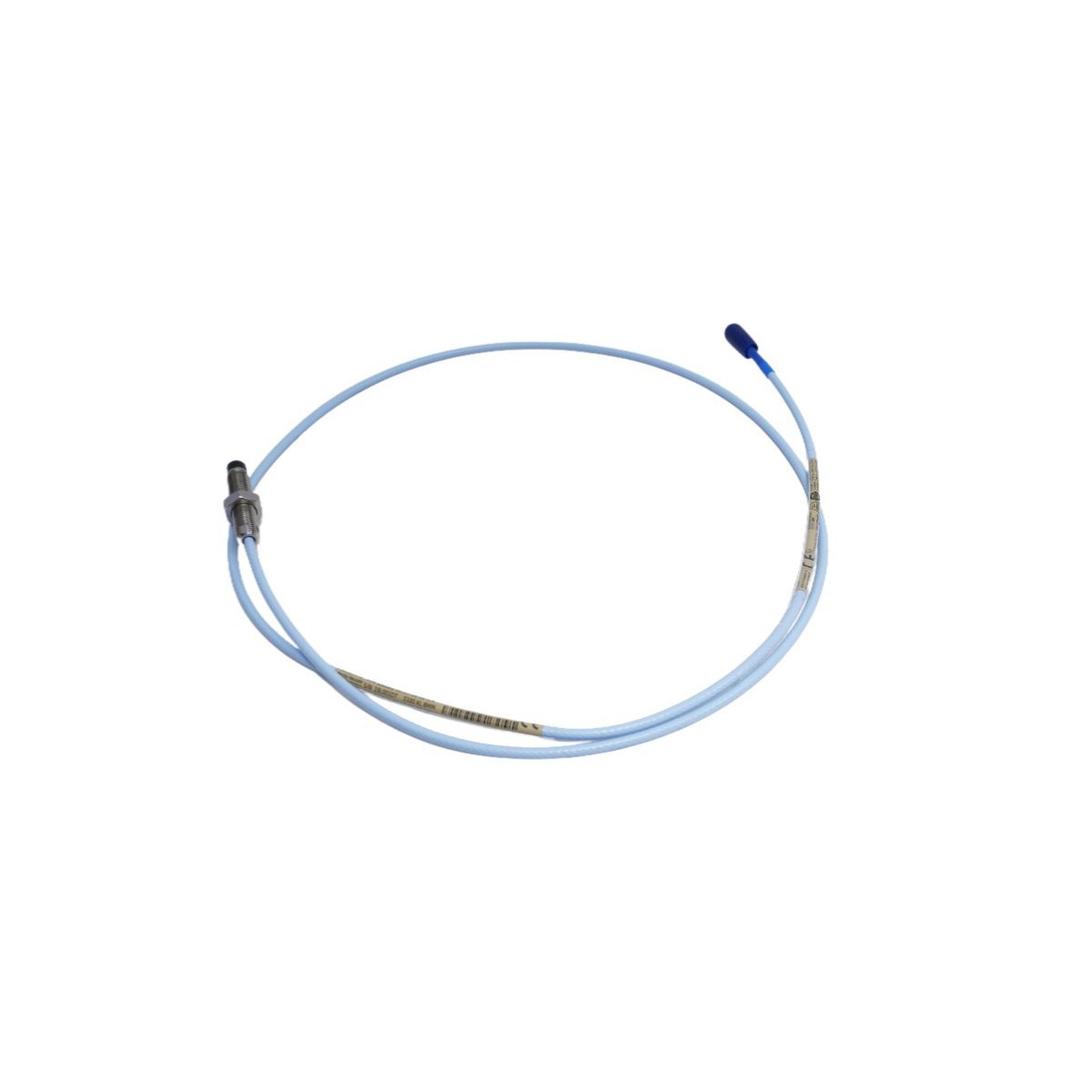

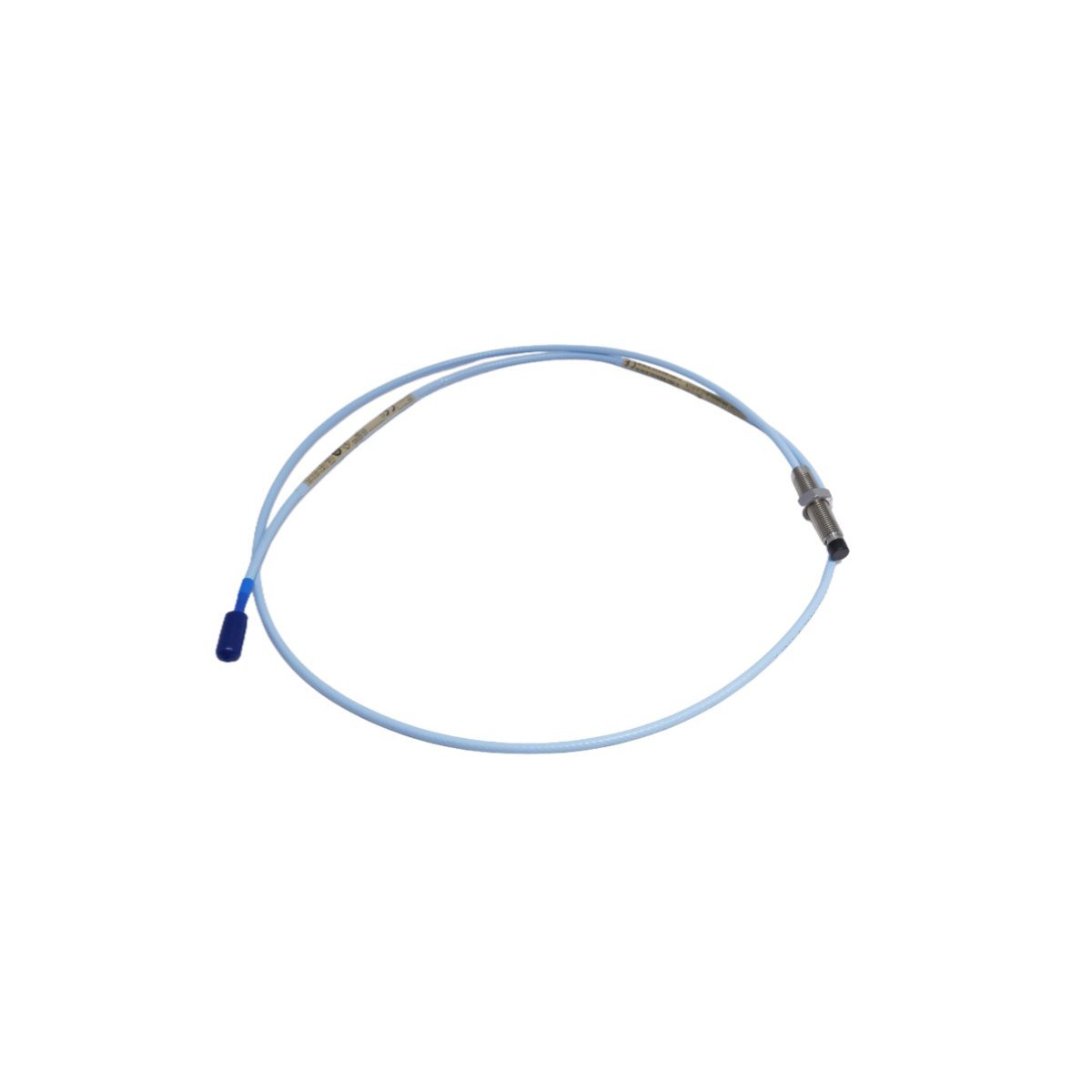

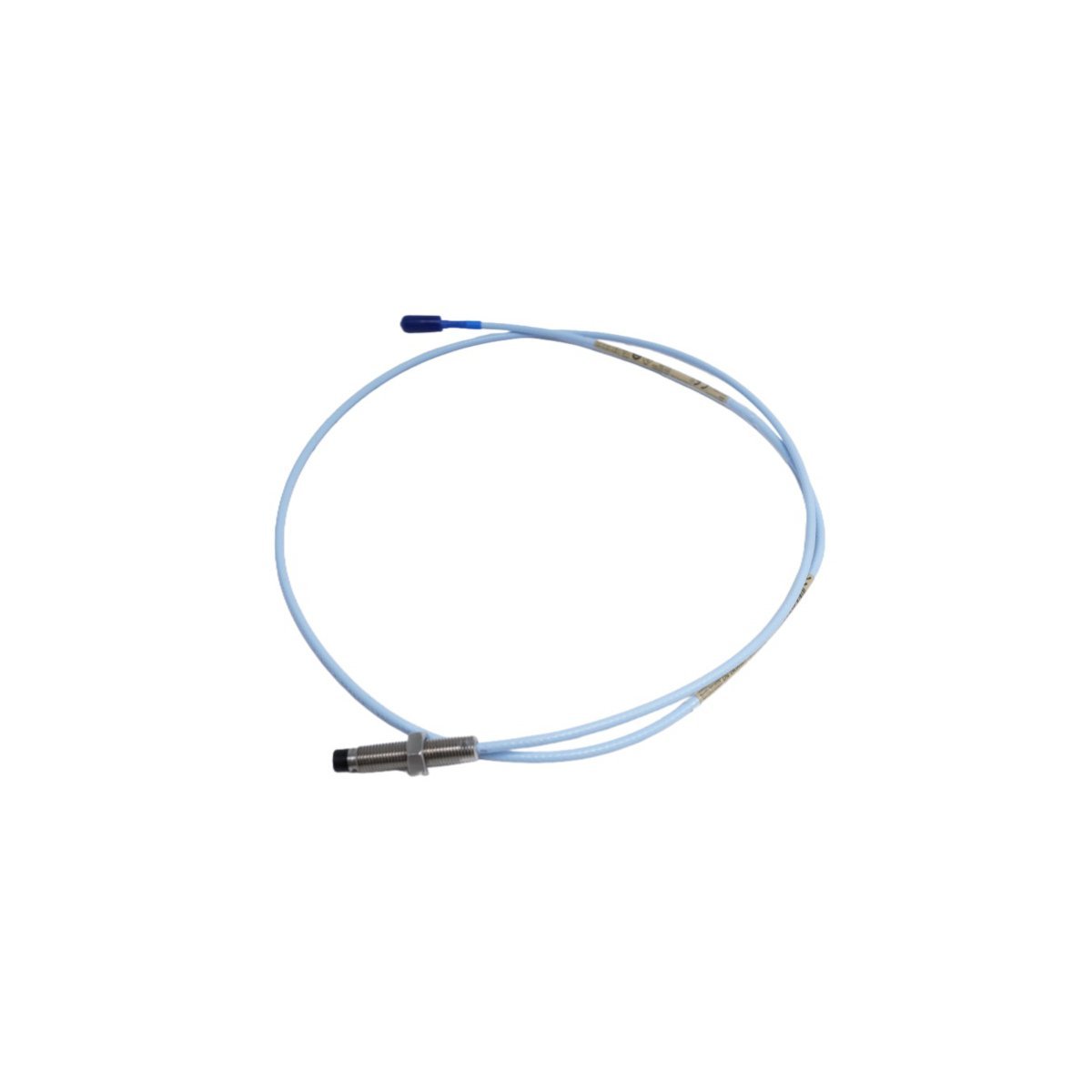

The Bently Nevada 330101-00-18-10-12-05 is a high-precision, non-contact eddy-current proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in critical rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe is part of the industry-standard 3300 XL family—specifically designed to deliver exceptional stability, repeatability, and immunity to environmental interference across demanding industrial settings. The probe operates on the principle of electromagnetic induction, generating a high-frequency magnetic field that interacts with conductive target surfaces (typically ferromagnetic or non-ferrous shaft materials) to produce a linear, analog voltage output proportional to gap distance. Its robust construction features a stainless steel housing, integral PTFE-insulated coaxial cable, and hermetically sealed electronics optimized for long-term reliability under extreme thermal, mechanical, and electromagnetic conditions. Designed for seamless integration with the 3300/3300 XL monitoring systems—including 3300 Rack, 3500 System, and compatible third-party controllers—the 330101-00-18-10-12-05 ensures full backward compatibility with legacy 3300-series infrastructure while meeting stringent IEC 61000-4 electromagnetic compatibility (EMC) standards. Each unit undergoes rigorous factory calibration against NIST-traceable reference standards and is supplied with a certified calibration report documenting sensitivity, linearity, temperature drift, and frequency response characteristics. This probe is offered in new, factory-fresh condition—never refurbished or reconditioned—with full traceability to original manufacturing lot data and compliance documentation.

Detailed Specifications

Key Features

• Precision Calibration & Traceability: Factory-calibrated to NIST-traceable standards with individual calibration certificate including sensitivity, linearity, thermal drift, and phase response data—ensuring measurement integrity from commissioning through operational life.
• Enhanced Environmental Resilience: Hermetically sealed probe tip and PTFE-insulated cable withstand aggressive chemical exposure, high-pressure washdowns, steam cleaning, and wide ambient temperature swings without performance degradation.
• Optimized Electromagnetic Immunity: Engineered with advanced shielding and balanced transmission design to reject common-mode noise, RFI, and ground-loop interference—even in electrically noisy turbine halls and compressor stations.
• Mechanical Robustness: 316 stainless steel housing resists mechanical impact, abrasion, and corrosion in harsh petrochemical, power generation, and marine environments.
• Plug-and-Play Integration: Fully compatible with all 3300 XL monitoring systems and seamlessly interoperable with legacy 3300 racks via standard 3300 XL extension cables and proximitor modules.
• Long-Term Stability: Zero-point drift ≤0.1% FSR/year under normal operating conditions—minimizing recalibration frequency and maximizing uptime.
• Global Compliance Ready: Certified to ATEX, IECEx, UL, and CE directives—enabling deployment across North America, EMEA, APAC, and offshore installations without regional certification barriers.
• Extended Cable Integrity: Integral 5-meter RG-174/U equivalent coaxial cable features double-braided shielding (95% coverage), low-loss dielectric, and reinforced strain relief—reducing signal attenuation and improving noise rejection over longer runs.

Applications

• Steam and Gas Turbines: Monitoring radial vibration, thrust position, and differential expansion in main turbines, auxiliary turbines, and LP/IP/HP sections for early fault detection and trip protection.
• Centrifugal Compressors: Critical shaft displacement and vibration analysis in oil & gas processing, LNG facilities, and refinery air separation units.
• Large Electric Motors and Generators: Axial float and bearing housing vibration assessment in synchronous motors, hydroelectric generators, and nuclear plant auxiliaries.
• Petrochemical Pumps: High-speed API 610 pumps where precise shaft orbit analysis prevents catastrophic seal and bearing failure.
• Aerospace Test Stands: Rotor dynamics validation and modal testing in engine test cells requiring high-bandwidth, low-phase-shift measurements.
• Marine Propulsion Systems: Shaft alignment verification and torsional vibration monitoring aboard commercial vessels and naval platforms.
• Wind Turbine Gearboxes: Low-speed shaft position feedback for pitch control and main bearing health monitoring in onshore and offshore wind farms.
• Research & Development Labs: Precision motion sensing in academic and industrial R&D applications involving rotating test rigs, bearing fatigue studies, and active magnetic bearing development.
