Description

Technical Overview

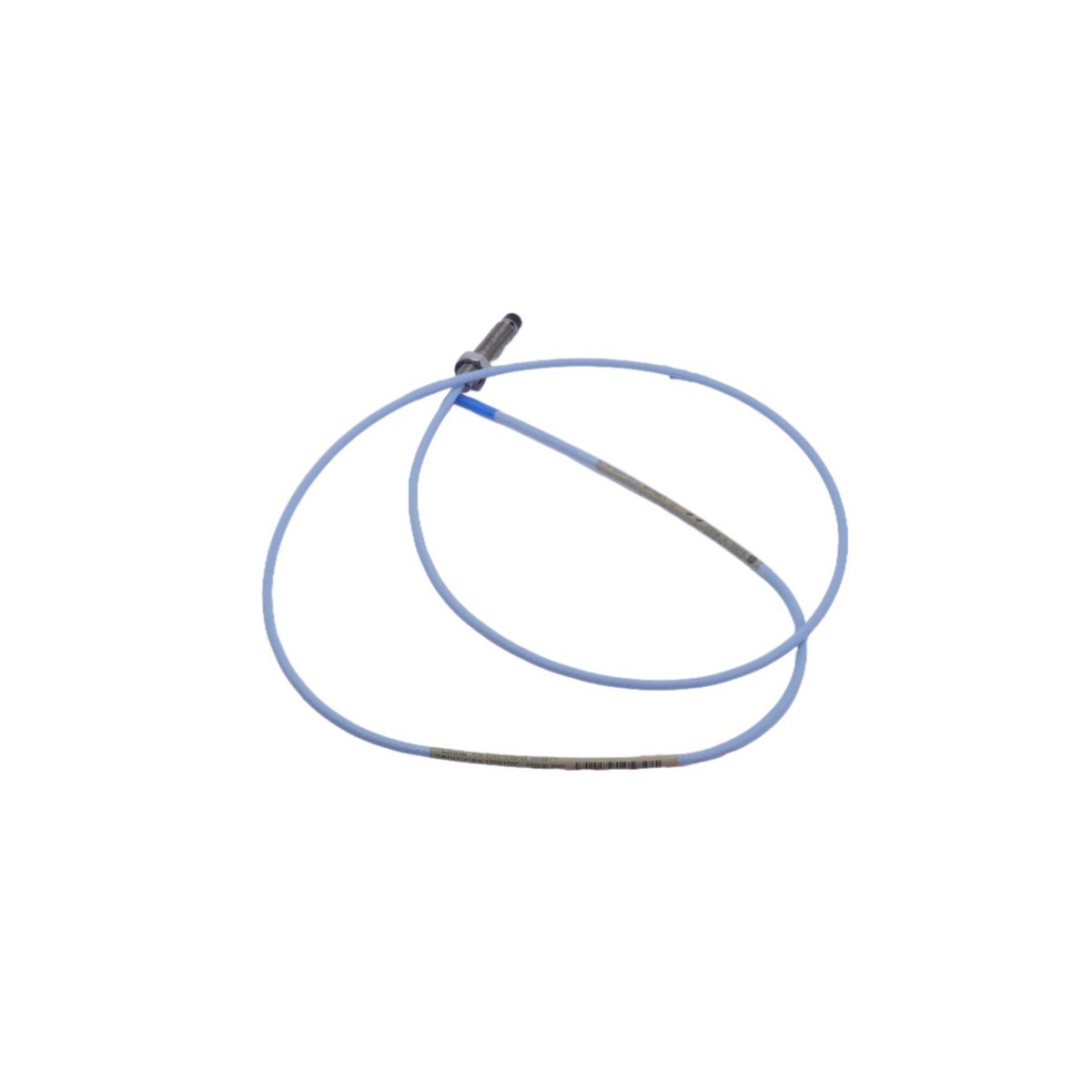

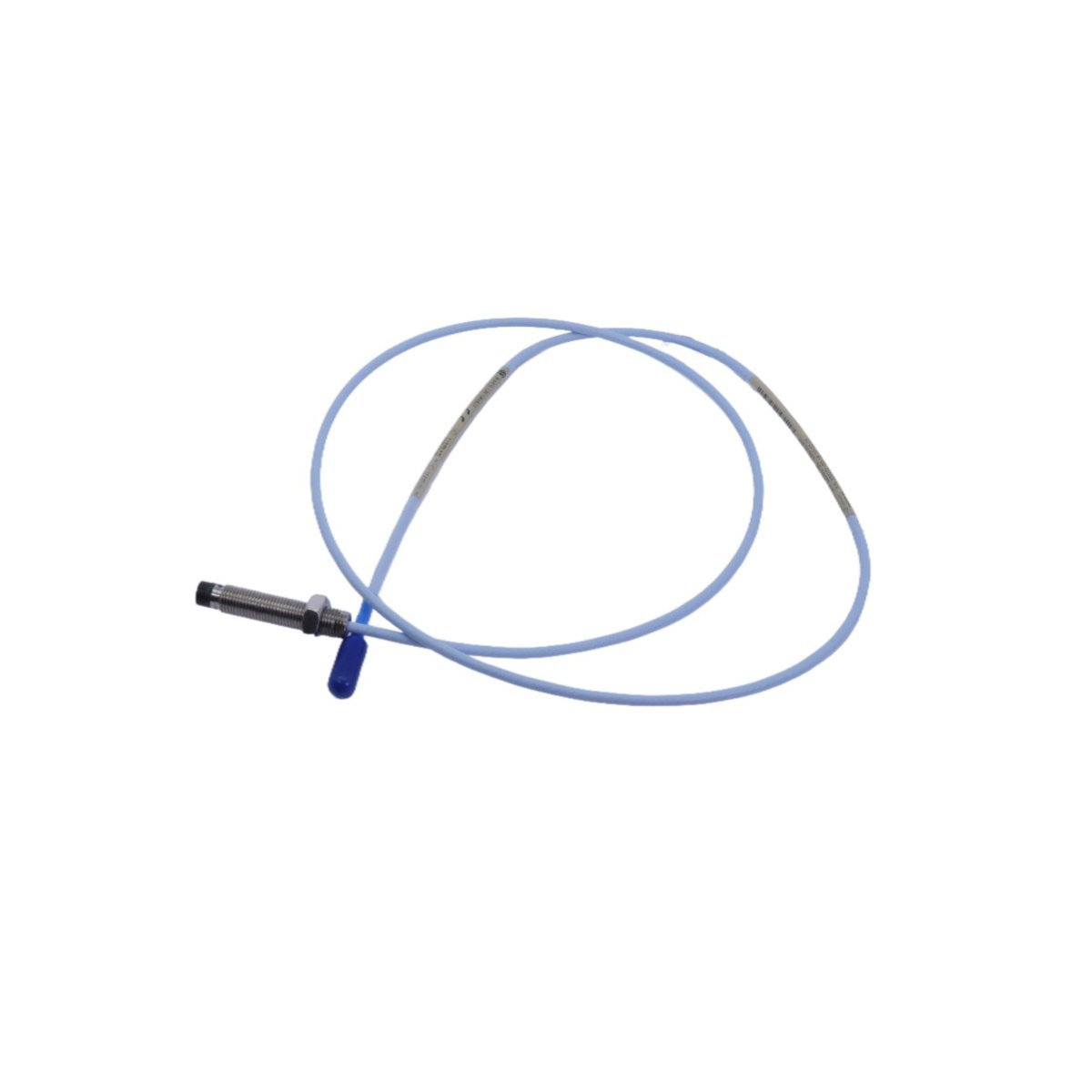

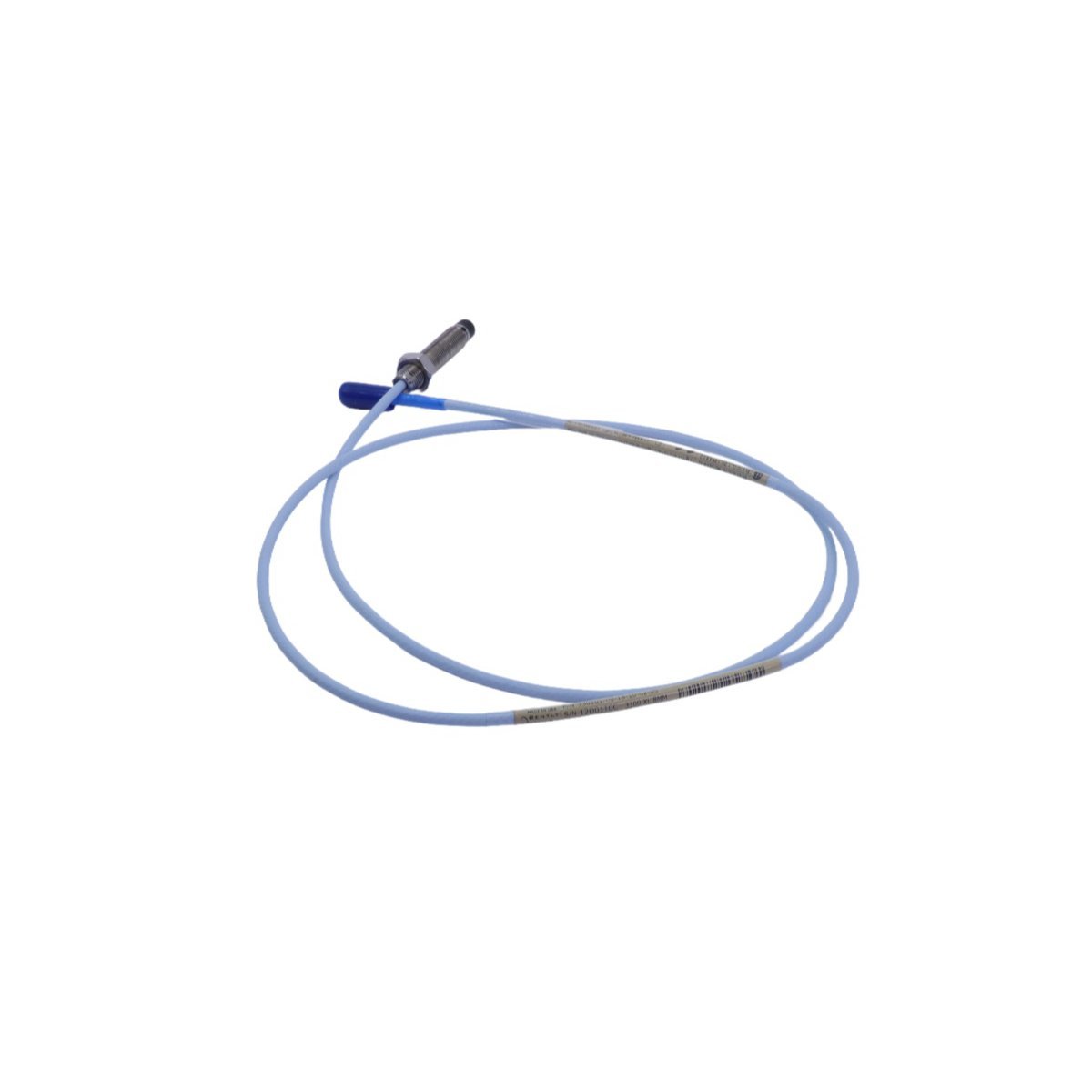

The Bently Nevada 330101-00-18-10-02-05 is a high-precision, factory-calibrated proximity probe engineered for continuous, non-contact monitoring of shaft displacement, vibration, and position in critical rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in asset condition monitoring and predictive maintenance solutions, this probe forms an integral component of the industry-standard 3300 XL Series—designed to deliver exceptional signal integrity, thermal stability, and long-term repeatability under demanding industrial conditions. As part of the 8 mm probe family, the 330101-00-18-10-02-05 features a robust stainless steel housing, hermetically sealed construction, and optimized electromagnetic field geometry to ensure accurate gap measurements across a nominal sensing range of 2.0 mm (0.08 in). It is rigorously tested per IEEE 1249 and API 670 standards and fully compatible with 3300 XL 8 mm extension cables and 3300 XL 8 mm proximitor transducers. This probe is supplied new, unused, and in original factory packaging—guaranteeing full compliance with OEM specifications and performance benchmarks. Each unit carries a standard 24-month limited warranty covering material defects and workmanship, reinforcing its reliability for mission-critical applications in power generation, oil & gas, petrochemical, and heavy industrial facilities.

Detailed Specifications

Key Features

• Precision Factory Calibration: Each probe undergoes individual calibration traceable to NIST standards, ensuring guaranteed sensitivity accuracy within ±5% and linearity deviation ≤±1% across the linear range.
• Thermal Stability Engineering: Advanced coil winding techniques and low-thermal-coefficient materials minimize output drift—critical for turbines and compressors subject to rapid thermal cycling.
• Hermetic Sealing & Corrosion Resistance: Fully welded stainless steel housing with glass-to-metal feedthroughs prevents moisture ingress and ensures operational integrity in humid, saline, or chemically aggressive environments.
• Optimized Electromagnetic Field Profile: Proprietary core design delivers uniform field distribution, reducing edge effects and enabling reliable measurement on small-diameter shafts and irregular target surfaces.
• Plug-and-Play System Integration: Seamless compatibility with 3300 XL series proximitors (e.g., 3300/16, 3300/25), extension cables (330130-00-00), and monitoring systems including System 1™ and Asset Guardian™.
• Hazardous Area Ready (Optional): Available with ATEX/IECEx certification for use in Zone 1/Zone 2 explosive atmospheres—ideal for offshore platforms and refinery service.
• Long-Term Reliability: Rated for >100,000 hours MTBF; validated through accelerated life testing including vibration, thermal shock, and humidity cycling per MIL-STD-810H.
• Traceability & Documentation: Supplied with full calibration certificate (including serial-numbered test data), RoHS/REACH compliance statement, and OEM installation and commissioning guidelines.

Applications

• Steam and Gas Turbines: Monitoring radial vibration, axial position (thrust), and differential expansion in utility-scale and industrial turbine sets compliant with API RP 670 and ISO 10816-3.
• Centrifugal Compressors & Pumps: Detecting bearing wear, misalignment, and surge onset in oil & gas transmission, LNG liquefaction, and chemical processing plants.
• Aeroderivative Engines: High-frequency vibration surveillance for auxiliary power units (APUs) and mechanical drive applications requiring sub-micron resolution.
• Electric Motors & Generators: Shaft orbit analysis and eccentricity tracking in large synchronous machines (>5 MW) to prevent stator-rotor rub events.
• Wind Turbine Gearboxes: Low-speed shaft position feedback for pitch control and main bearing health assessment in onshore and offshore wind farms.
• Critical Process Rotating Equipment: Monitoring fans, blowers, and extruders in pharmaceutical, food & beverage, and pulp & paper industries where hygiene and uptime are paramount.
• Condition Monitoring Retrofit Projects: Direct replacement for legacy 3300 probes—no recalibration or system reconfiguration required when upgrading to current-generation XL platform.
• Research & Development Test Benches: Used in university labs and OEM validation centers for dynamic rotor dynamics studies, modal analysis, and active magnetic bearing development.
