Description

Technical Overview

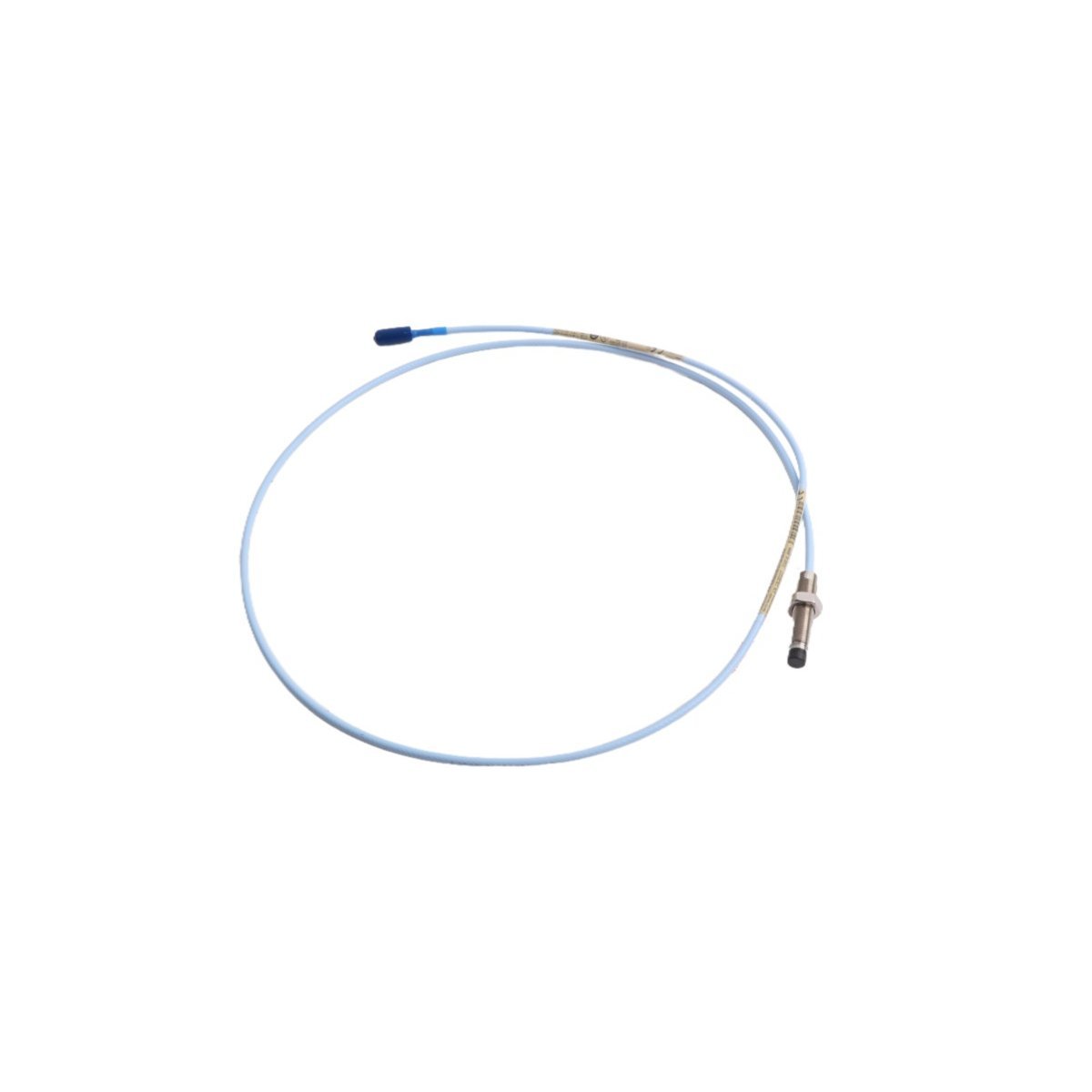

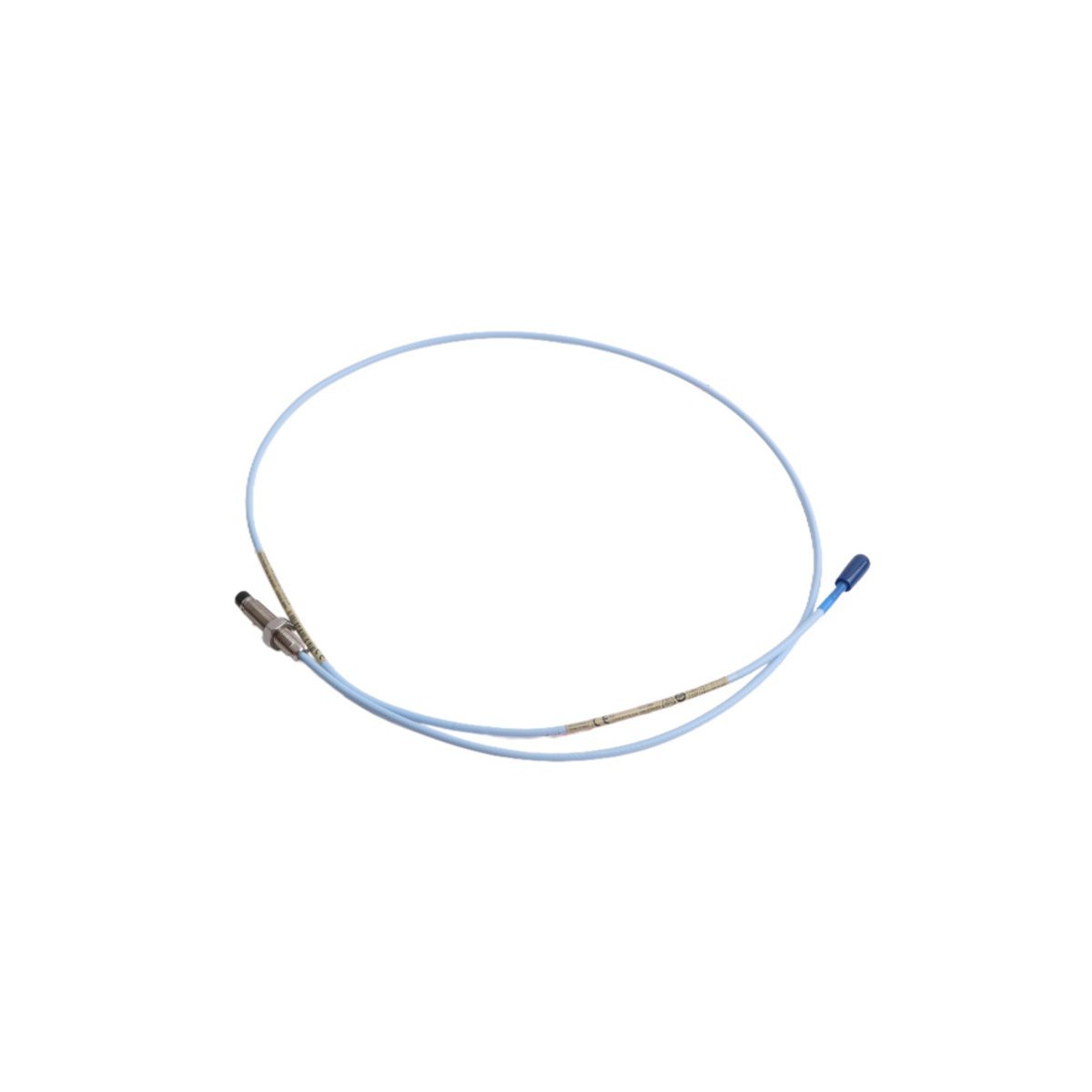

The Bently Nevada 330101-00-17-20-12-05 Proximity Probe is a high-precision, industrial-grade eddy-current sensing device engineered for continuous, non-contact displacement and vibration monitoring of rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in asset condition monitoring and predictive maintenance solutions, this probe forms a critical component of the 3300 XL series proximity transducer systems. Designed to operate reliably in harsh industrial environments—including petrochemical plants, power generation facilities, refineries, and aerospace test stands—the 330101-00-17-20-12-05 delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity. Its robust construction features a stainless steel housing with an integral PTFE-insulated coaxial cable, ensuring long-term performance under extreme temperatures, pressure fluctuations, and corrosive atmospheres. Each unit undergoes rigorous factory calibration against NIST-traceable standards and is supplied with full calibration documentation, including sensitivity (mV/mil), linearity error (<±0.3% FS), and frequency response (DC to 10 kHz). The probe is compatible exclusively with Bently Nevada 3300 XL series extension cables and前置 transducers (e.g., 3300 XL 25 mm or 50 mm transducers), enabling seamless integration into existing 3300/3500 monitoring platforms. As a new, unused OEM product, it carries a standard 24-month limited warranty from the date of shipment and is shipped in original factory-sealed packaging with protective end caps. Originating from the United States, this probe adheres to ISO 9001:2015 certified manufacturing processes and complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) standards.

Detailed Specifications

Key Features

• OEM Precision Calibration: Factory-calibrated to ±0.15% FS linearity tolerance with individual calibration certificate traceable to NIST standards—ensuring repeatable, metrologically sound measurements across installations.
• Thermally Stable Design: Utilizes proprietary coil geometry and temperature-compensated electronics to maintain sensitivity drift <0.05%/°C over full operating range—critical for turbine and compressor monitoring where ambient shifts exceed 70°C.
• Corrosion-Resistant Construction: 316 stainless steel probe tip and body with PTFE dielectric insulation provide superior resistance to H₂S, salt spray, hydrocarbons, and process chemicals—validated per ASTM B117 salt fog testing (1000+ hrs).
• EMI/RFI Immunity: Fully shielded coaxial architecture and grounded braided jacket meet IEC 61000-4-3 (10 V/m) and IEC 61000-4-6 (30 V/m) requirements—ideal for installations near VFDs, switchgear, and high-power motors.
• Plug-and-Play Integration: Direct compatibility with Bently Nevada 3300 XL 25 mm and 50 mm前置 transducers, eliminating field recalibration when replacing legacy probes within the same system architecture.
• Long-Term Reliability: Mean Time Between Failures (MTBF) exceeding 250,000 hours under continuous operation—supported by accelerated life testing per MIL-HDBK-217F.
• Global Regulatory Support: Ships with full compliance documentation—including EU Declaration of Conformity, RoHS statement, and hazardous location certifications—for rapid deployment in regulated industries worldwide.

Applications

• Steam and Gas Turbines: Monitoring radial vibration, axial position, and differential expansion on HP/IP/LP rotors, thrust collars, and journal bearings in combined-cycle and cogeneration plants.
• Centrifugal Compressors: Measuring shaft displacement, surge detection, and casing vibration in oil & gas transmission, LNG liquefaction, and chemical processing applications.
• Large Electric Motors and Generators: Detecting bearing wear, misalignment, and rotor eccentricity in 5 MW+ induction and synchronous machines used in mining, marine propulsion, and grid infrastructure.
• Aerospace Test Cells: High-fidelity transient response measurement during engine run-up, spin testing, and modal analysis—leveraging DC-coupled output and sub-millisecond rise time.
• Pump Trains and Gearboxes: Critical speed mapping, gear mesh analysis, and bearing health assessment in API 610 and API 672 service environments.
• Condition-Based Maintenance (CBM) Programs: Serving as primary sensors in Bently Nevada System 1™, AMS Machinery Manager®, and third-party IIoT platforms for AI-driven fault diagnostics and remaining useful life (RUL) estimation.
