Description

Technical Overview

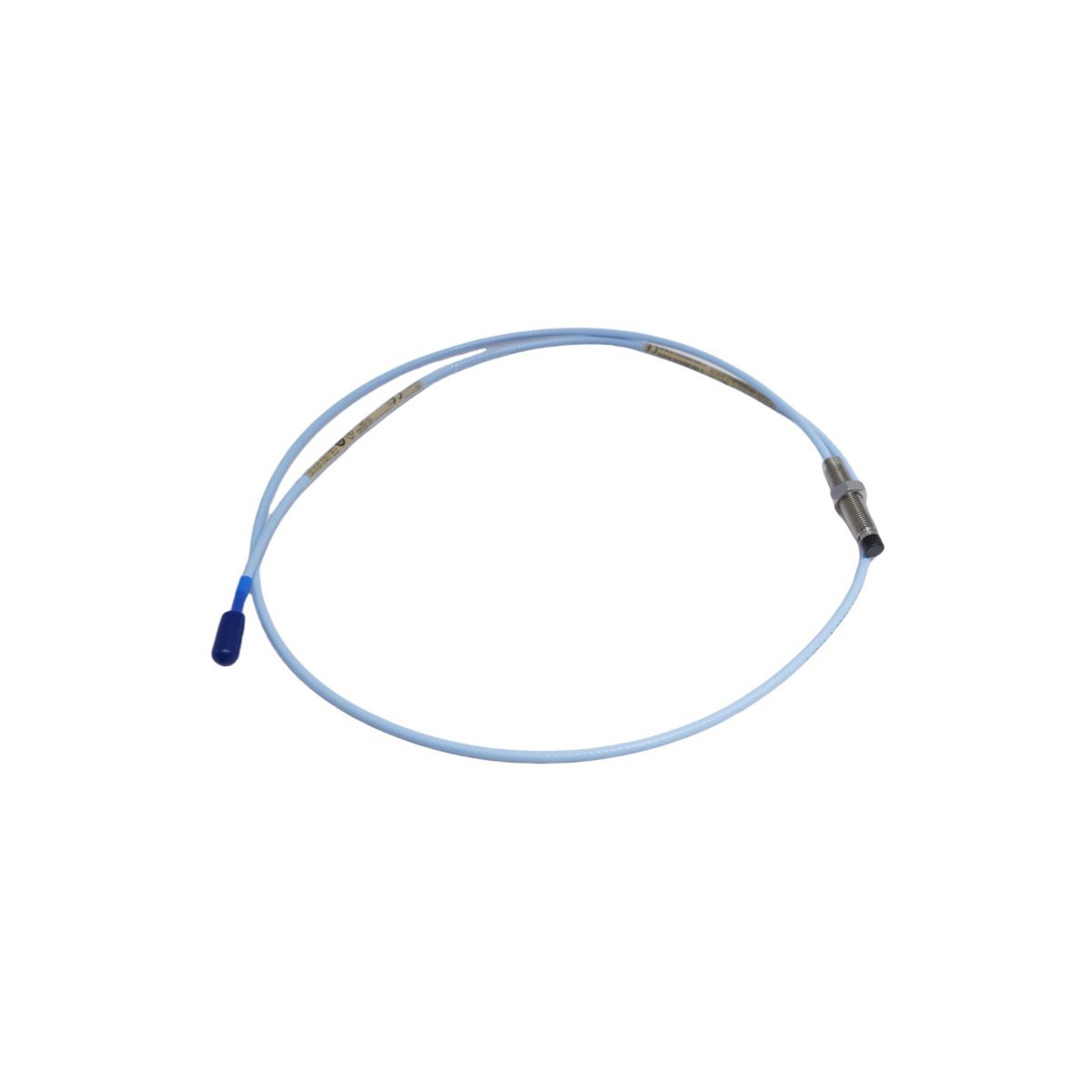

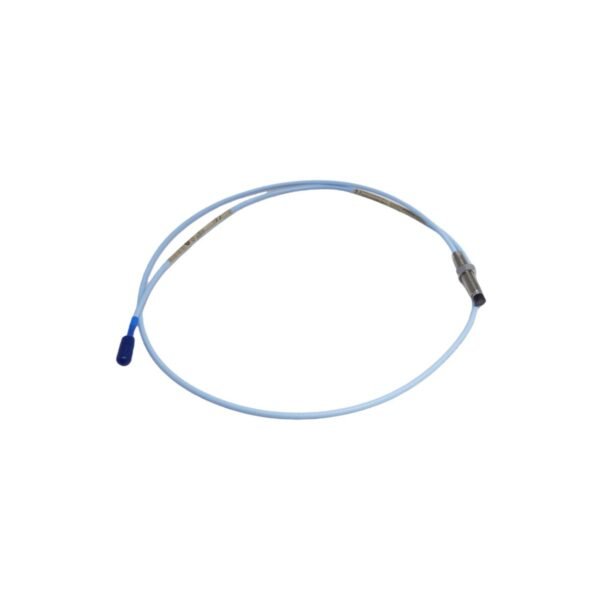

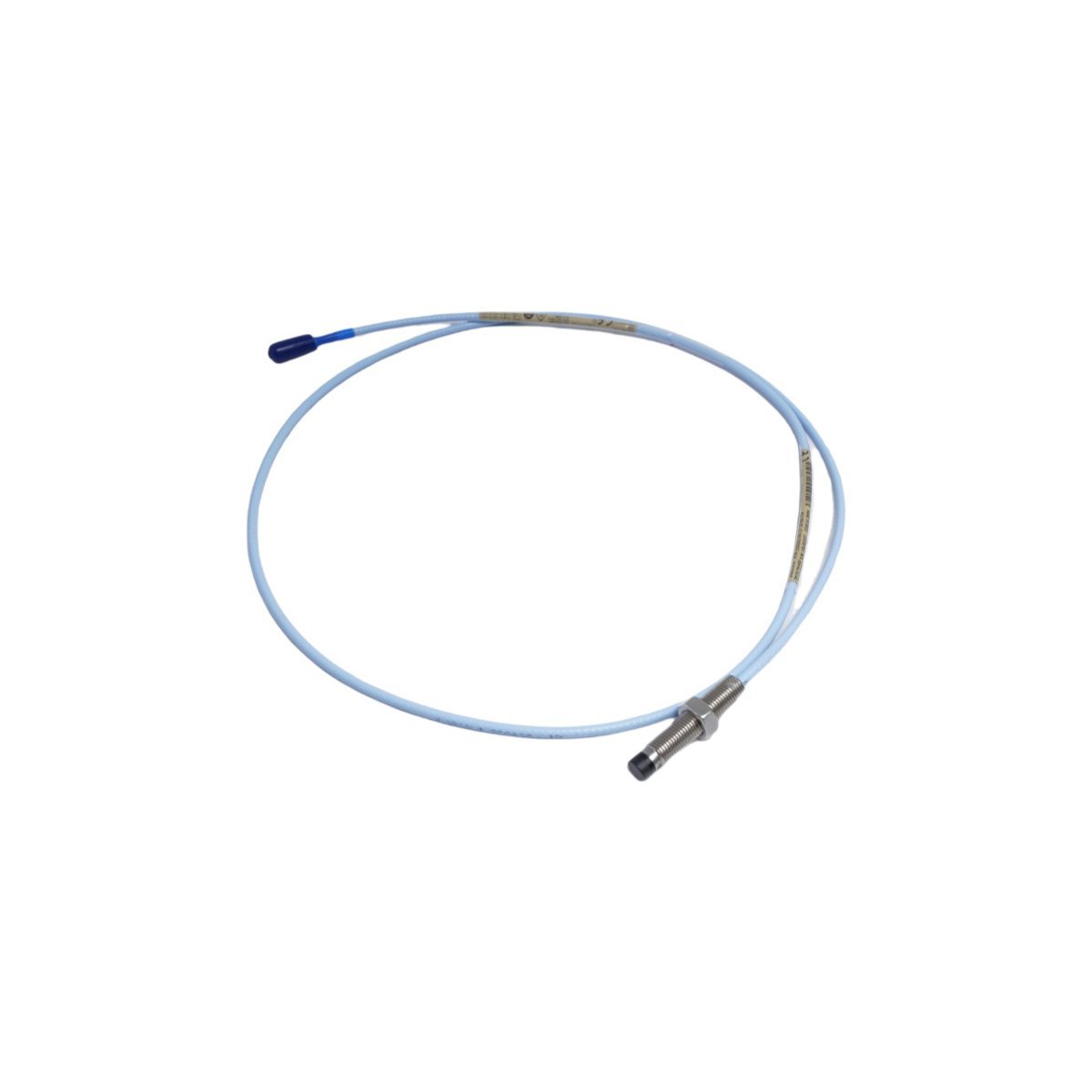

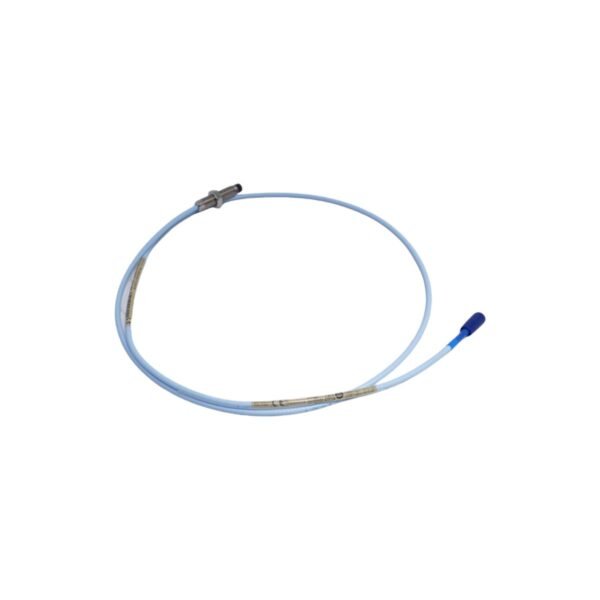

The Bently Nevada 330101-00-17-10-02-00 is a high-precision 3300 XL 8 mm proximity probe engineered for mission-critical machinery protection and condition monitoring in demanding industrial environments. As part of the industry-standard 3300 XL series, this probe delivers exceptional linearity, repeatability, and thermal stability—essential for reliable shaft vibration, axial position, and differential expansion measurements in rotating equipment such as turbines, compressors, motors, and generators. Its robust stainless steel construction and optimized electromagnetic design ensure consistent performance across wide temperature ranges (–30 °C to +120 °C) and harsh conditions including high humidity, oil mist, and electromagnetic interference.

Designed for seamless integration with Bently Nevada 3300/3500 series monitors and compatible data acquisition systems, the 330101-00-17-10-02-00 features a 17 mm probe diameter, 10 m coaxial cable length, and a standard 1/4–28 UNF threaded mounting configuration. The probe operates on the eddy-current principle, providing non-contact, wear-free sensing with a linear range of ±2.0 mm and sensitivity of 4.0 V/mm—enabling precise detection of sub-micron mechanical deviations. Its calibrated output ensures traceable accuracy per ISO 10816 and API 670 standards, supporting predictive maintenance strategies and compliance with OEM specifications.

Key Features

• High-Performance Sensing: 8 mm diameter probe with ±2.0 mm linear range and 4.0 V/mm sensitivity for accurate shaft displacement and vibration monitoring.
• Rugged Industrial Design: Hermetically sealed stainless steel body and PTFE-insulated cable rated for continuous operation in extreme temperatures, corrosive atmospheres, and high-vibration settings.
• System Compatibility: Fully interoperable with Bently Nevada 3300 XL 8 mm extension cables and 3300/3500 monitoring systems—ensuring plug-and-play installation and consistent calibration integrity.
• Traceable Calibration: Factory-calibrated to NIST-traceable standards with individual calibration certificate supplied, meeting API RP 670 and ISO 20816 requirements.

Specifications

• Part Number: 330101-00-17-10-02-00
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: 3300 XL 8 mm Proximity Probe (Non-contact Eddy-Current Sensor)
• Warranty: 24-month limited warranty covering material and workmanship defects under normal industrial use

Contact us for bulk pricing and availability
