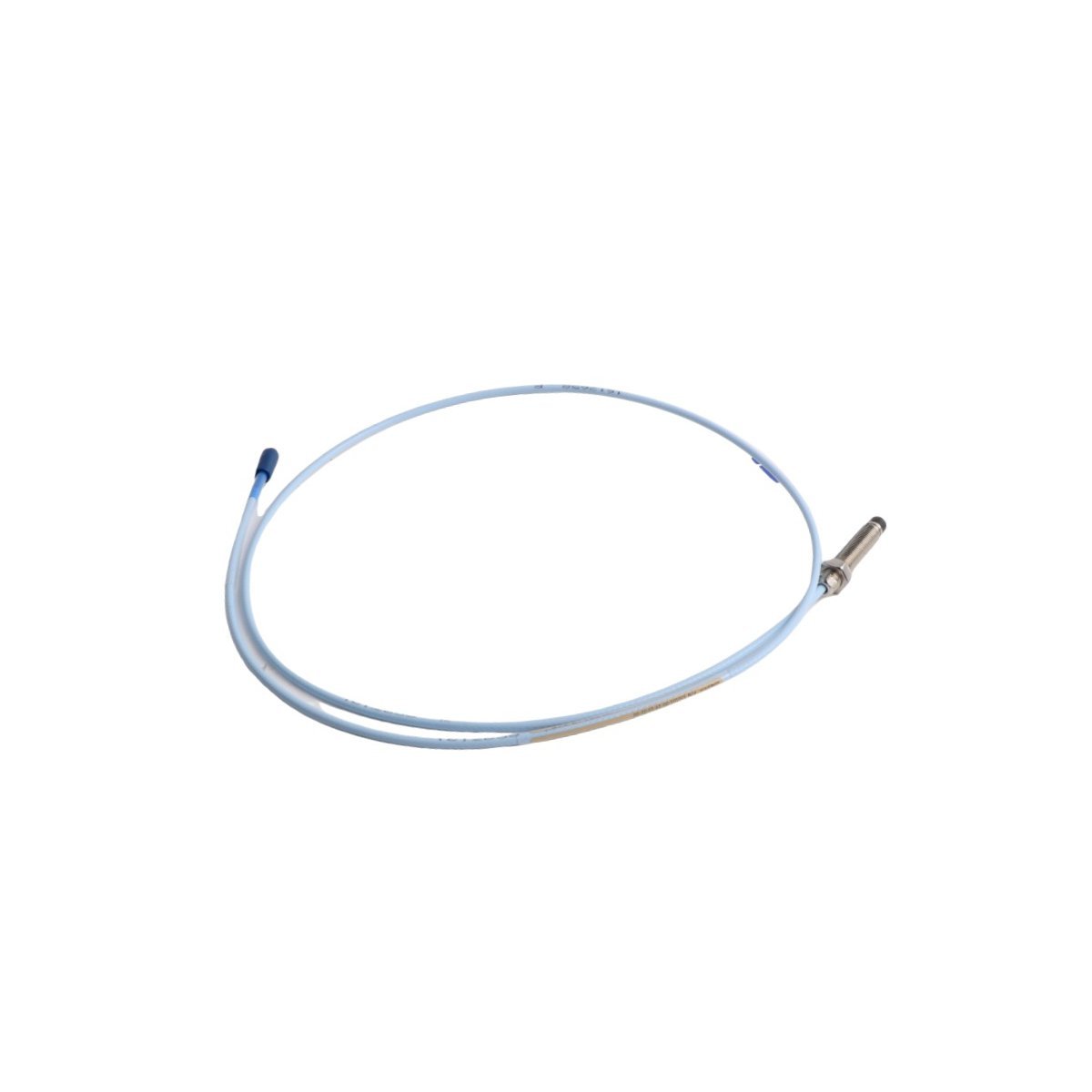

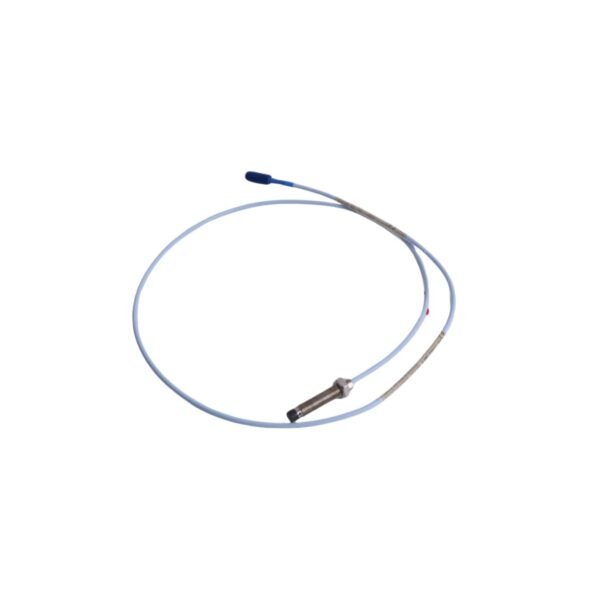

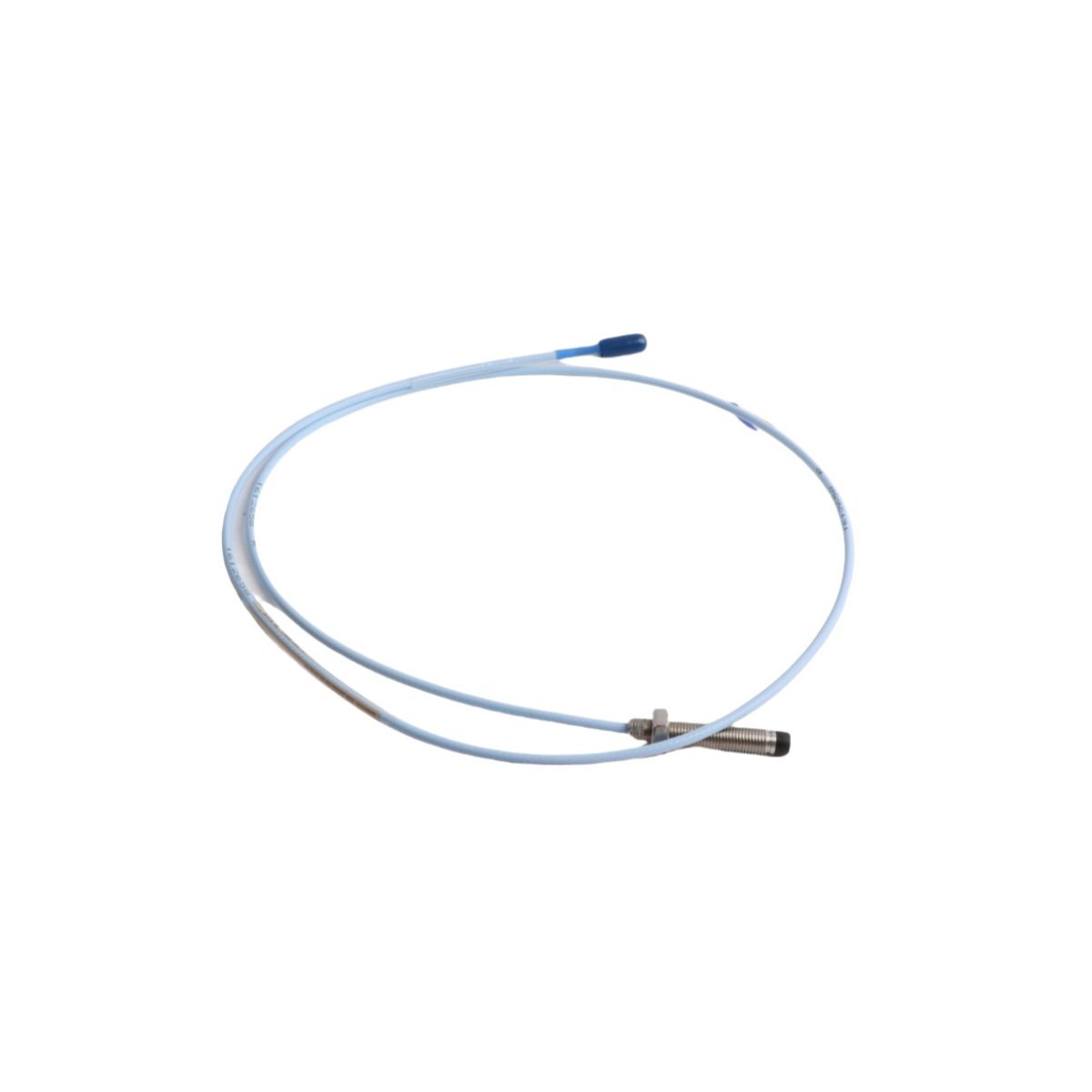

330101-00-15-20-12-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description
This is a non-contact eddy-current proximity probe designed for continuous displacement and vibration monitoring of rotating machinery.
Moreover, it delivers high-resolution analog output for shaft position, vibration, and axial thrust measurement in critical turbomachinery applications.
Therefore, it integrates directly with Bently Nevada 3300 series monitors and supports API 670 compliance for machinery protection systems.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration on steam turbine shafts
– Measuring axial position and thrust bearing wear in centrifugal compressors
– Detecting shaft orbit and dynamic motion in gas turbine generators
– Providing input for machinery protection systems per API 670

### FAQ
What is the standard operating temperature range?
–40 °C to +125 °C ambient, with probe tip rated to +200 °C for short durations.

Is cable length included in the part number?
Yes, the “12” in the part number denotes a 12-meter integral coaxial cable.

Does this probe require a separate extension cable?
No, it features a factory-terminated 12-meter cable with a standard 10-32 UNF connector for direct monitor interface.

Can it be used with non-Bently Nevada monitors?
Only with compatible eddy-current monitoring systems supporting 3300 XL 8 mm probe calibration and sensitivity.

What is the nominal linear range?
2.0 mm, with ±1.0 mm full-scale displacement output.
