330101-00-15-20-02-05 | Bently Nevada | Proximity Probes

### Product Description

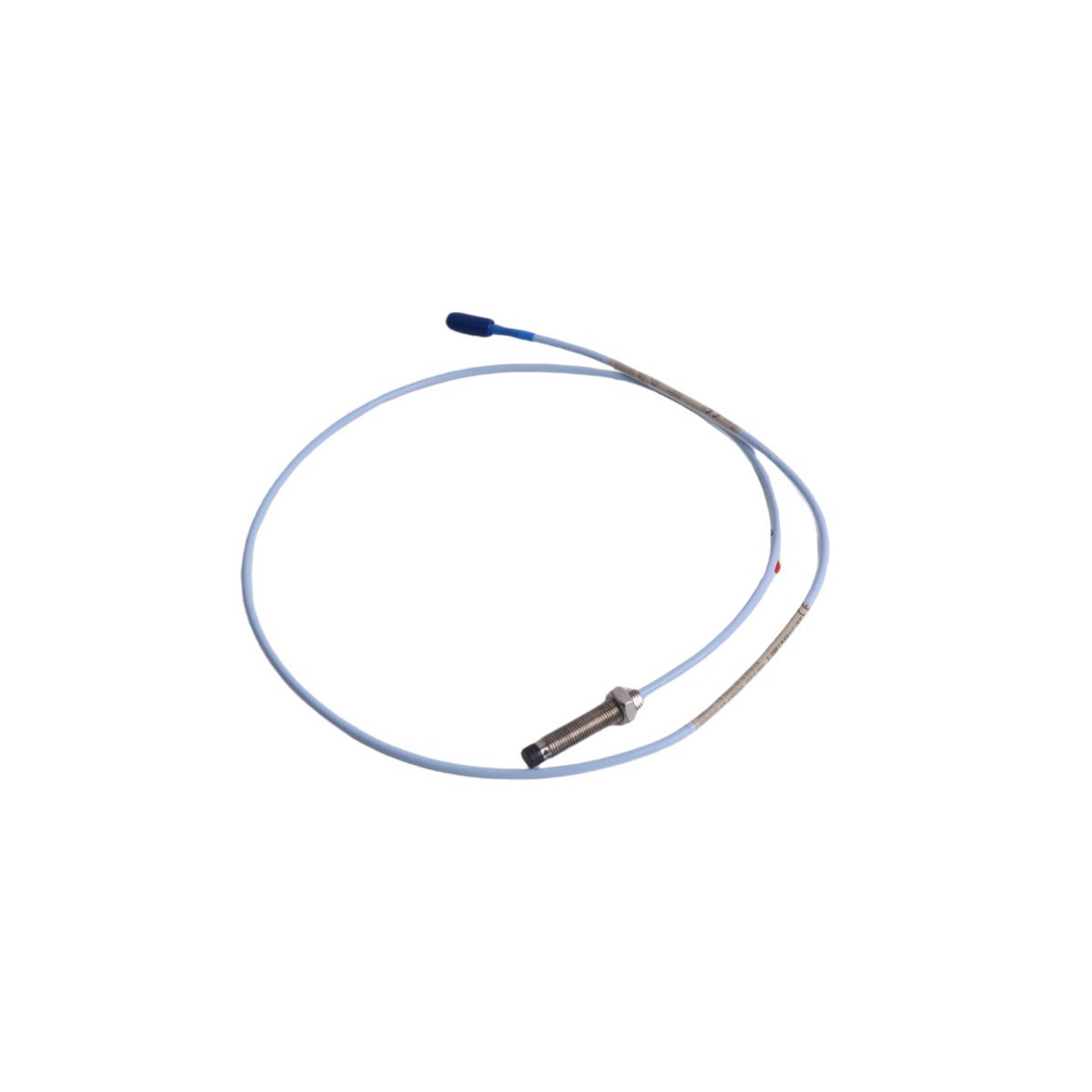

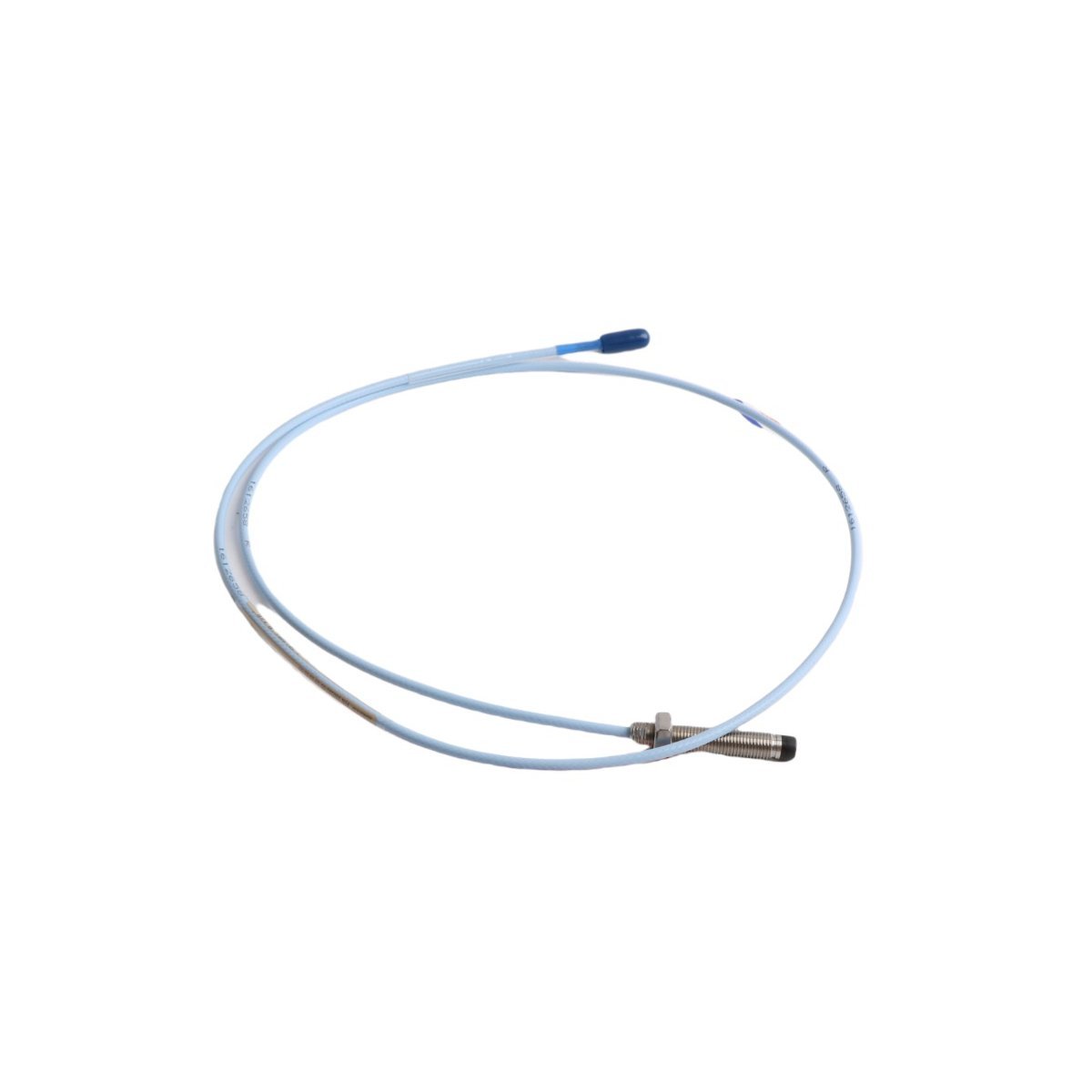

The 330101-00-15-20-02-05 is a high-precision eddy-current proximity probe engineered for non-contact displacement and vibration monitoring.
Moreover, it delivers stable, linear output for shaft relative position and dynamic motion in rotating machinery.
Therefore, it is routinely deployed in turbomachinery protection systems where accuracy and long-term reliability are critical.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration and axial position of steam turbine shafts
– Measuring differential expansion in gas turbine casings
– Detecting bearing housing movement in centrifugal compressors
– Providing input signals to 3500/3300 series monitoring systems

### FAQ
What is the standard sensing range for this probe?
The nominal sensing range is 2.0 mm (0.08 in) with a linear output across ±1.0 mm.

Is this probe compatible with 3500 series monitors?
Yes, it is fully compatible with Bently Nevada 3500, 3300, and System 1 monitoring platforms.

Does the probe require a specific extension cable?
Yes, it must be used with a shielded, low-noise coaxial extension cable rated for proximity probe applications.

What is the operating temperature range?
The probe operates continuously from –30 °C to +120 °C ambient temperature.

Can it be used in hazardous areas?
No—this probe is not intrinsically safe or certified for Class I, Div 1 hazardous locations without additional barrier systems.
