Description

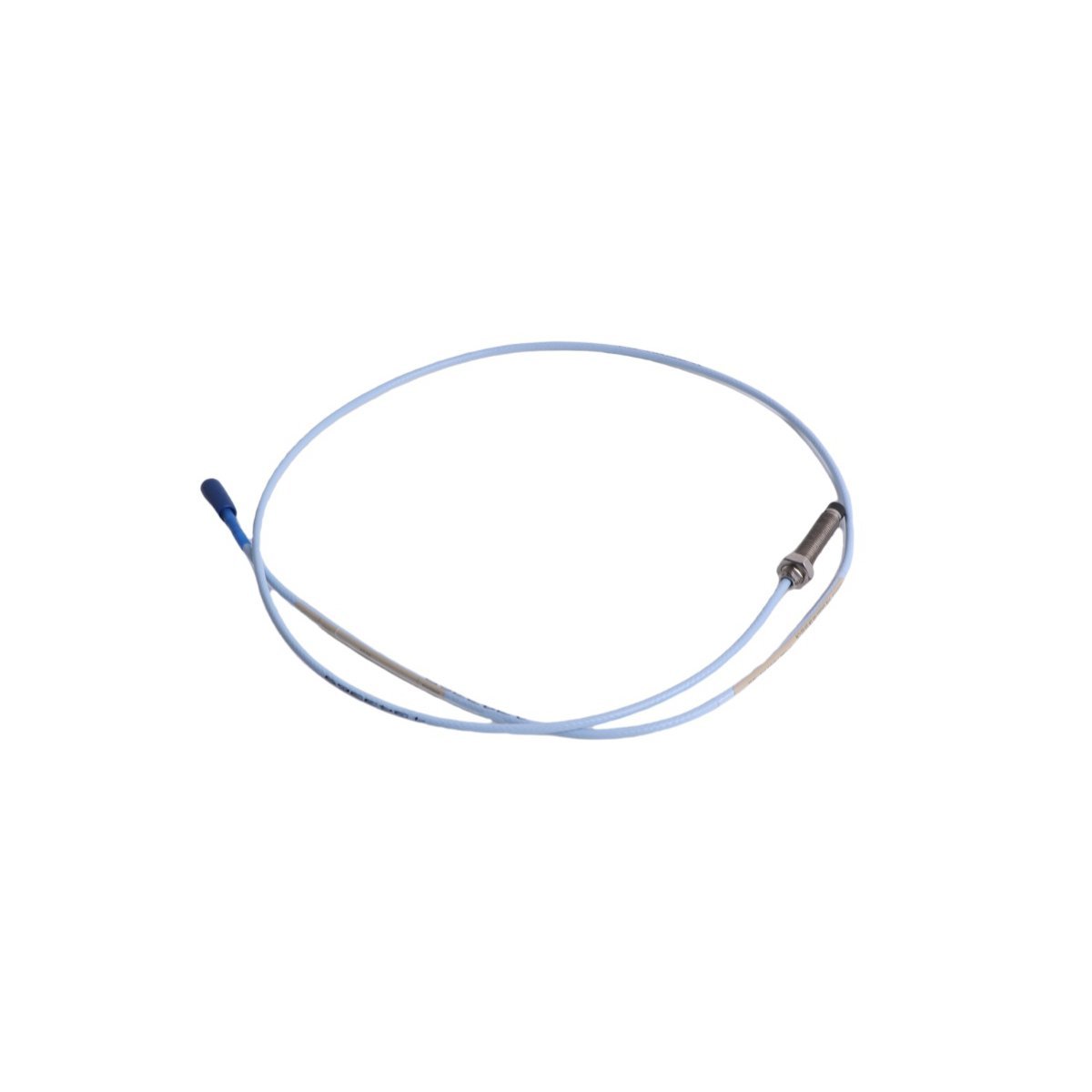

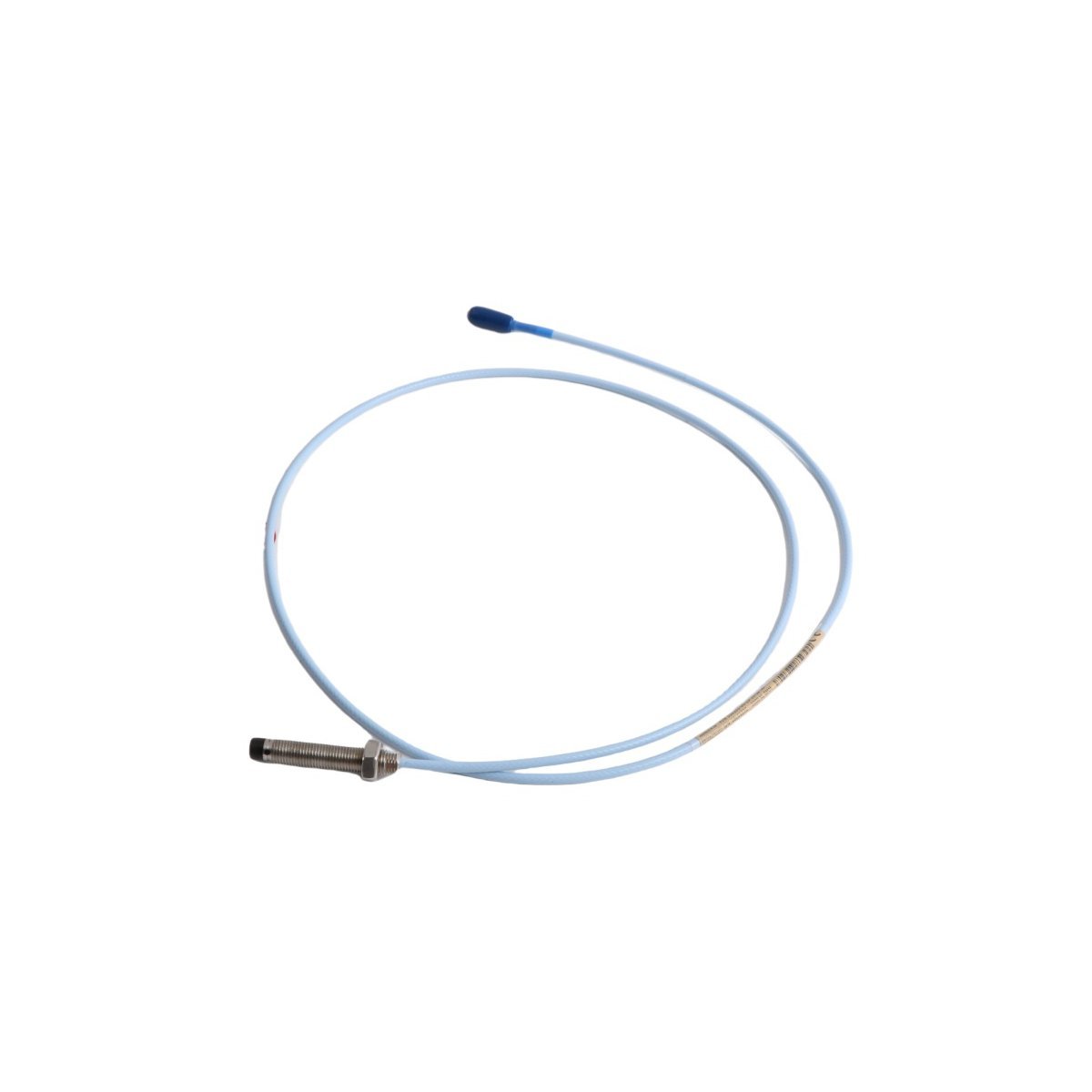

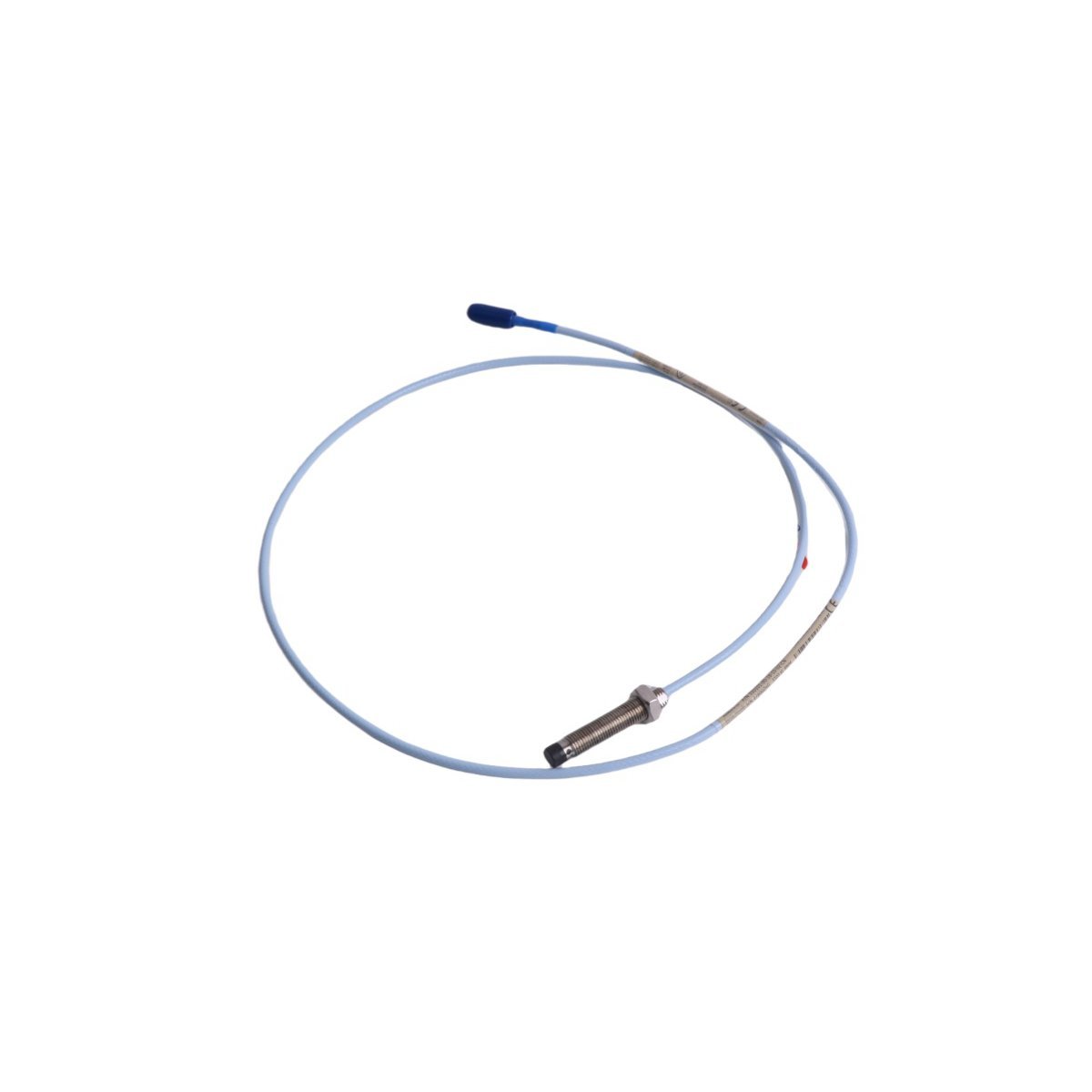

330101-00-14-10-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description
The 330101-00-14-10-02-05 is a high-precision eddy-current proximity probe from the Bently Nevada 3300 XL series. It delivers analog displacement measurements for rotating machinery monitoring.
Moreover, it is engineered for continuous vibration and position sensing in harsh industrial environments. Therefore, it supports critical shaft dynamics analysis in turbomachinery protection systems. In addition, its 8 mm diameter sensing tip enables stable operation with standard 3300 XL extension cables and monitors.

### Technical Specifications

### Typical Applications
– Shaft vibration monitoring in steam and gas turbines
– Axial position and thrust bearing wear detection in centrifugal compressors
– Radial vibration measurement on motor-driven pumps and fans
– Differential expansion monitoring in large rotating equipment

### FAQ
What is the nominal sensing range of this probe?
The nominal linear sensing range is 2.0 mm (0.08 in).

Is this probe compatible with all 3300 XL monitor modules?
Yes, it is fully compatible with 3300 XL 16-channel, 4-channel, and dual-channel monitors.

Does the probe require calibration before installation?
No—each probe is factory-calibrated and supplied with a unique calibration certificate traceable to NIST standards.

Can it operate in high-temperature environments?
It is rated for continuous operation up to +121 °C (250 °F) at the probe tip; higher temperatures require thermal isolation or special variants.

What cable length options are supported?
Standard configurations use 5 m or 9 m low-noise coaxial extension cables compliant with 3300 XL system specifications.
