Description

Technical Overview

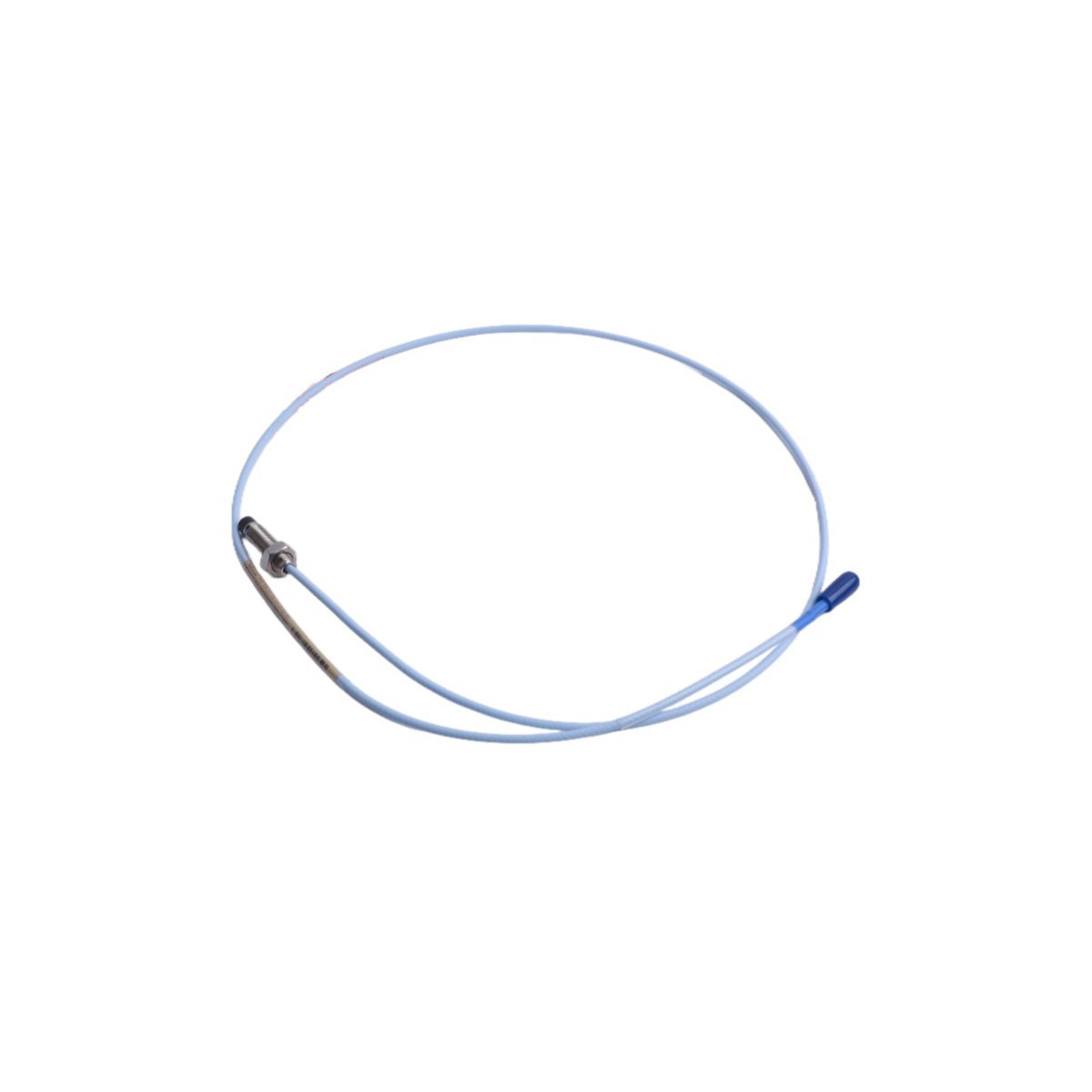

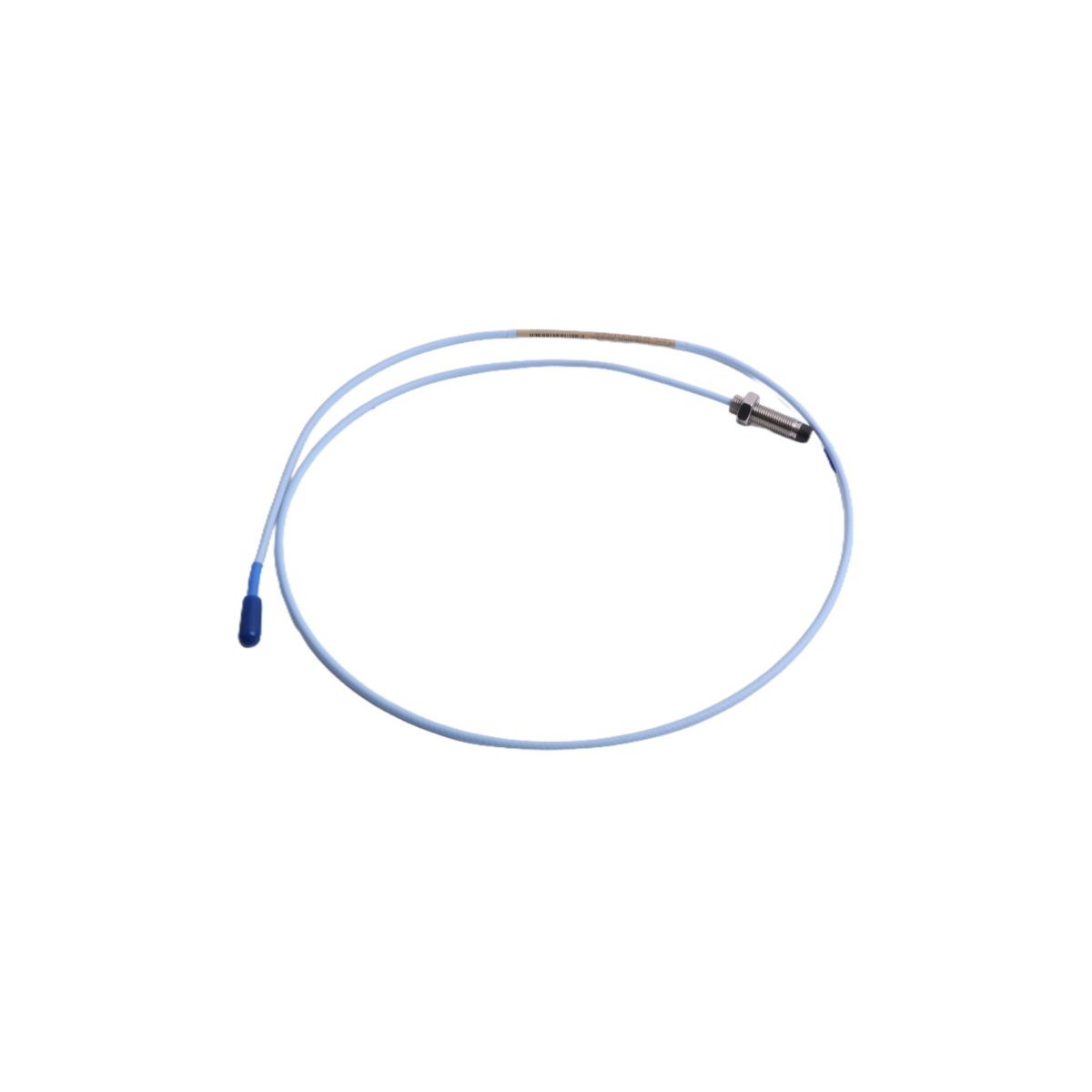

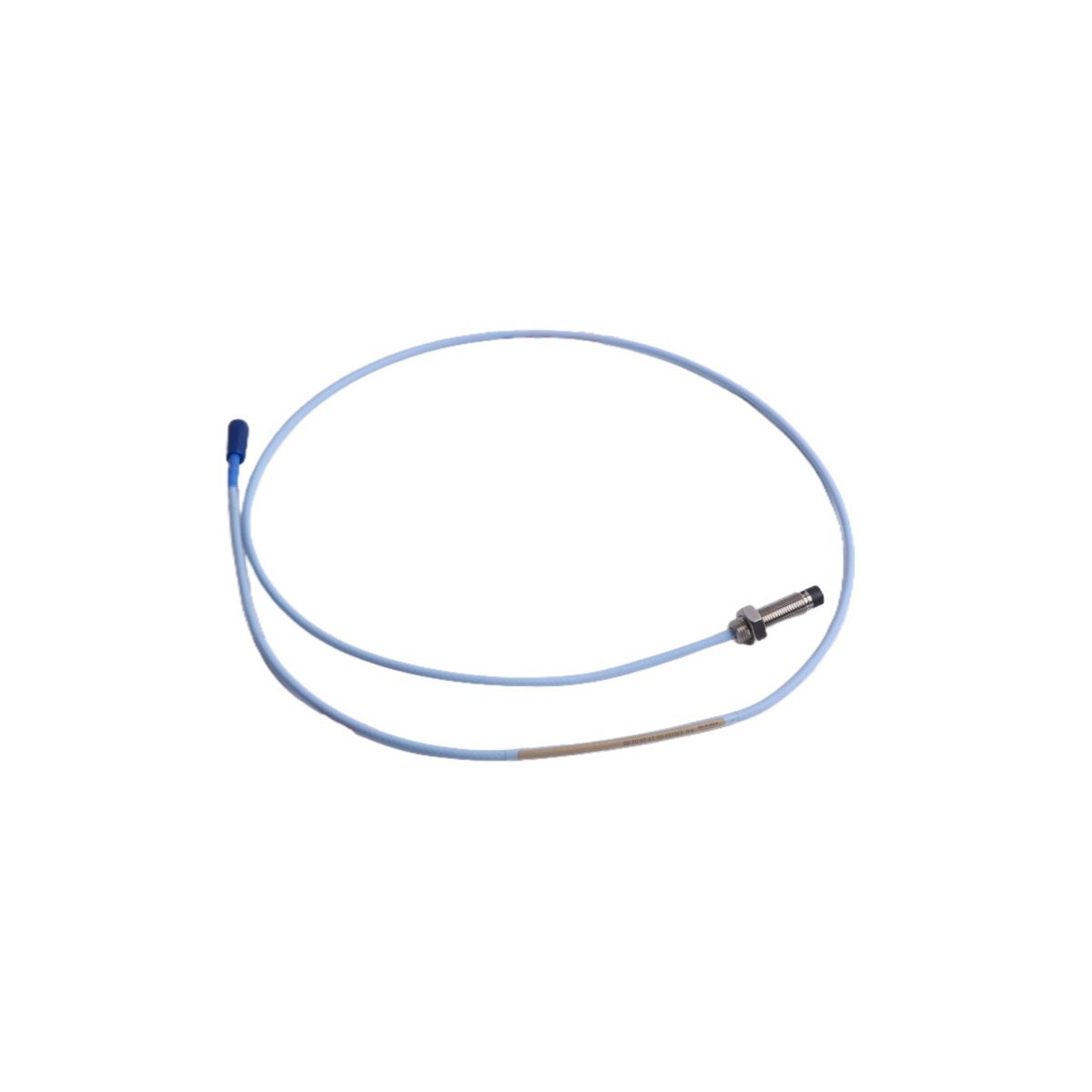

The Bently Nevada 330101-00-13-10-12-CN is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and position monitoring in critical rotating machinery applications. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset condition monitoring since 1961—this probe is part of the trusted 3300 XL series, specifically designed to deliver exceptional signal integrity, thermal stability, and long-term repeatability in demanding environments. The “CN” suffix denotes compliance with China-specific regulatory and electromagnetic compatibility (EMC) standards, including GB/T 17626 and CCC certification, making it ideal for deployment across power generation, oil & gas, petrochemical, and heavy industrial facilities within mainland China and APAC markets. Built to stringent ISO 9001:2015 quality management systems, each unit undergoes rigorous factory calibration against NIST-traceable standards and is supplied in new, unused condition with full manufacturer documentation. Backed by a standard 24-month limited warranty covering material defects and workmanship, the probe ensures operational confidence and lifecycle cost efficiency. With compact dimensions of 8 mm diameter × 100 mm overall length and a lightweight construction of just 125 g, the 330101-00-13-10-12-CN facilitates easy integration into space-constrained bearing housings and OEM equipment interfaces. Its stainless steel 316L probe tip and PTFE-insulated coaxial cable provide superior corrosion resistance and dielectric strength, while the integrated 3300 XL system compatibility guarantees seamless interoperability with 3300/50, 3500, and System 1™ platforms. Originating from Baker Hughes’ state-of-the-art manufacturing facility in Houston, Texas, USA, this probe exemplifies American engineering excellence adapted for regional regulatory requirements without compromising global performance benchmarks.

Detailed Specifications

Key Features

• High-Fidelity Signal Integrity: Utilizes proprietary low-noise oscillator circuitry and precision-machined 316L stainless steel sensing elements to minimize harmonic distortion and ensure sub-micron resolution for shaft orbit analysis and dynamic clearance measurement.
• Enhanced Thermal Stability: Engineered with matched-coefficient thermal compensation to maintain calibration accuracy across extreme ambient fluctuations—from arctic compressor stations to desert-based gas turbines—reducing costly recalibrations.
• China-Specific Regulatory Compliance: Fully certified to GB/T 17626-2018 (EMC immunity), GB 4943.1-2022 (safety), and CCC mandatory certification, enabling immediate commissioning in Chinese industrial projects without local revalidation delays.
• Robust Mechanical Construction: Integral 5-meter PTFE-jacketed cable resists hydrocarbon exposure, UV degradation, and mechanical abrasion; probe body meets IP68 ingress protection when mated with appropriate extension cables and junction boxes.
• Plug-and-Play 3300 XL Compatibility: Designed for native integration with Bently Nevada 3300 XL monitoring systems—including 3300 XL 8 mm前置器 (proximitor), 3500 rack systems, and System 1™ software—enabling automatic sensor recognition and configuration via Asset Manager.
• Extended Service Life: Rated for >100,000 hours MTBF under continuous operation; probe tip hardness exceeds 45 HRC to withstand accidental contact during maintenance without permanent sensitivity shift.
• Global Traceability & Support: Each unit carries a unique serialized QR code linking to Baker Hughes’ global support portal for firmware updates, calibration history, technical bulletins, and localized service center access across 72 countries.

Applications

• Turbomachinery Monitoring: Real-time shaft vibration, axial position, and differential expansion measurement on steam turbines, gas turbines, and centrifugal compressors in thermal and combined-cycle power plants.
• Oil & Gas Rotating Equipment: Critical monitoring of reciprocating compressors, pipeline pumps, and offshore drilling mud pumps where explosion-proof compliance and salt-spray resistance are mandatory.
• Petrochemical Process Units: Bearing health assessment in FCCU compressors, hydrogen recycle units, and ethylene cracker trains operating under high-temperature, high-pressure process conditions.
• Wind Turbine Gearbox Diagnostics: Precise rotor runout and gear mesh offset detection in nacelle-mounted high-speed shafts—leveraging wide bandwidth for early-stage fault signature extraction.
• OEM Integration: Pre-installed sensor solution for original equipment manufacturers of industrial motors, gearmotors, and turbochargers requiring embedded condition monitoring per GB/T 21209-2019 standards.
• Research & Development Test Benches: High-fidelity dynamic testing of prototype bearings, seals, and rotor dynamics where sub-1 µm displacement resolution and phase coherence are essential for modal analysis.
• Municipal Infrastructure: Reliable monitoring of large-capacity water and wastewater pump stations subject to variable load cycling and extended unattended operation.
