330101-00-12-10-02-00 | Bently Nevada | 3300 XL 8 mm Proximity Probes

### Product Description

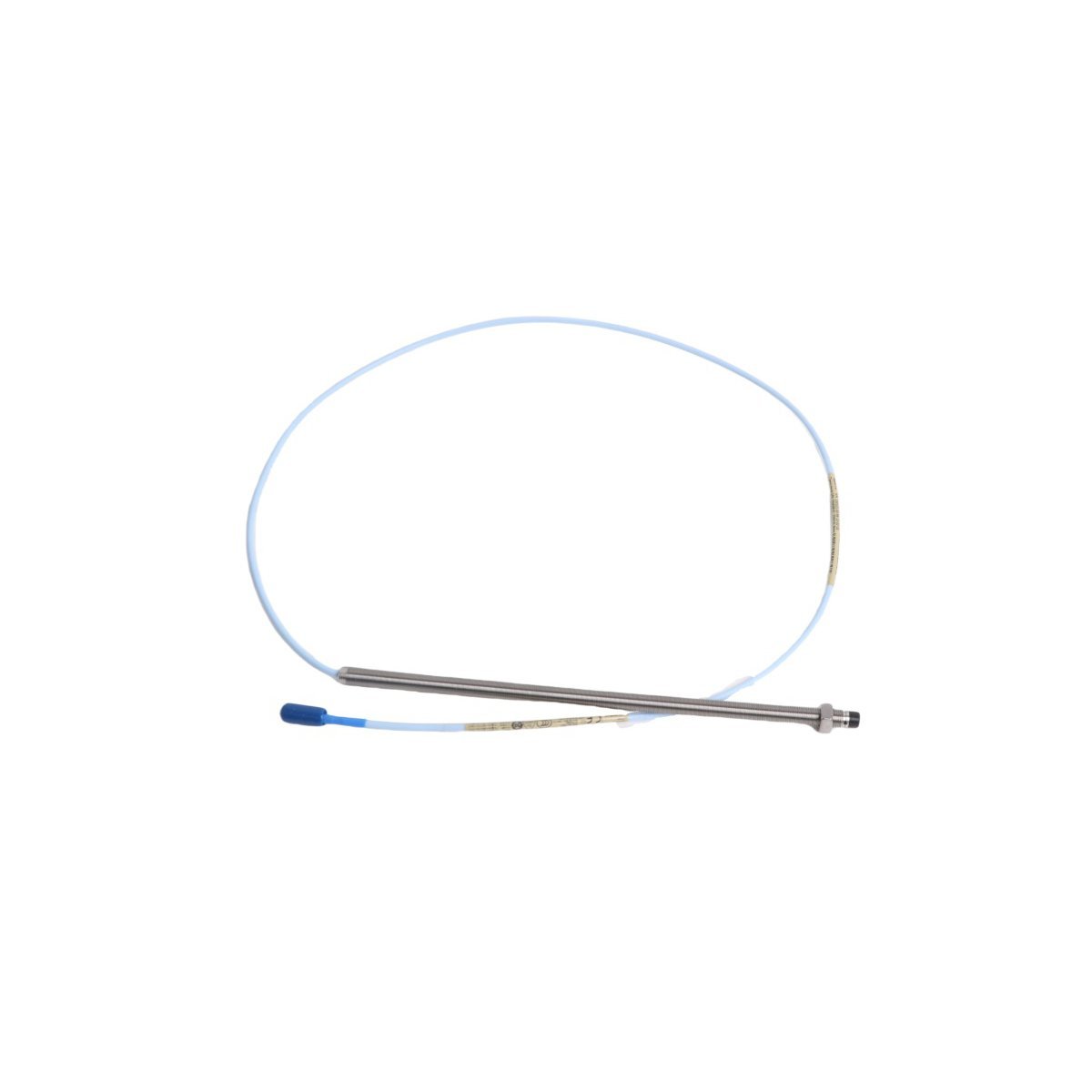

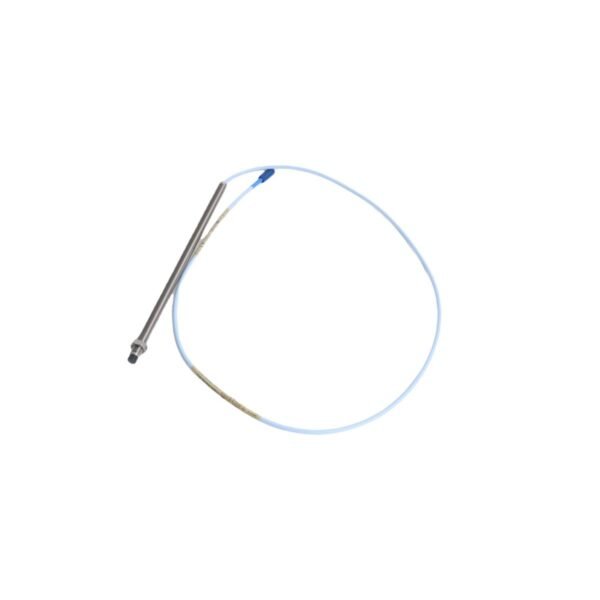

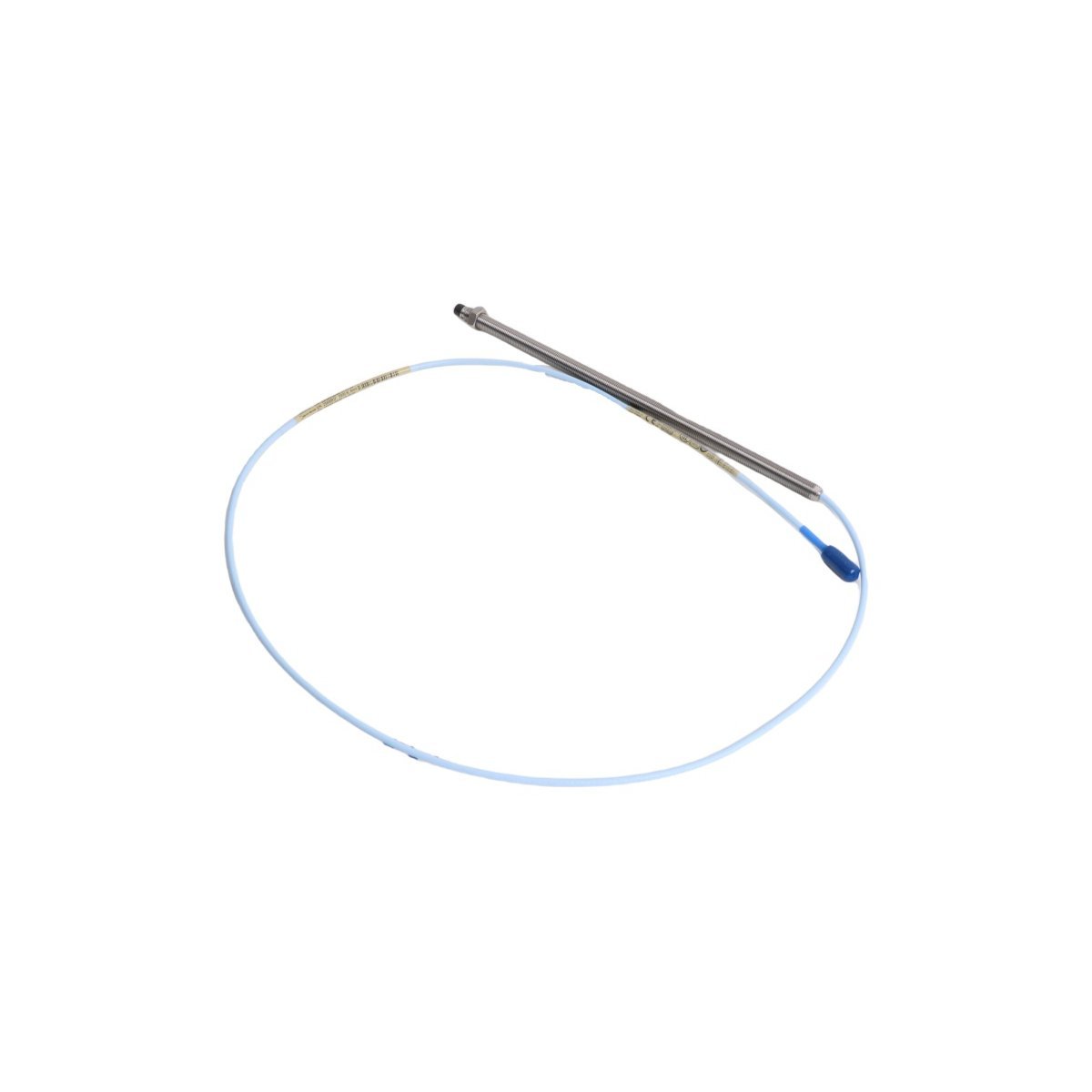

The 330101-00-12-10-02-00 is a non-contact eddy-current proximity probe from Bently Nevada’s 3300 XL sensor family. It delivers high-fidelity displacement and vibration measurements for rotating machinery.
Moreover, it is engineered for continuous monitoring of shaft position, vibration, and axial thrust in critical turbomachinery applications. Therefore, it integrates directly with 3300 series monitors to support API 670-compliant protection systems. In addition, its robust 8 mm diameter sensing tip ensures stable performance across wide temperature and EMI environments.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration and shaft position in steam and gas turbines
– Measuring axial position and thrust bearing wear in centrifugal compressors
– Detecting rotor runout and dynamic clearance in large electric motors and generators
– Providing input signals for machine protection systems per API 670 standards

### FAQ
What is the standard cable length for this probe?
The probe ships with a 5-meter integral coaxial cable terminated in a 10-32 UNF connector.

Is calibration required before installation?
Yes—each probe must be calibrated with its matching extension cable and前置器 (proximity driver) using a certified calibration fixture.

Can this probe operate in hazardous areas?
No—it is not intrinsically safe or ATEX/IECEx certified; use only in non-hazardous locations unless paired with an approved safety barrier system.

What is the operating temperature range?
−40 °C to +120 °C for the probe tip; −40 °C to +85 °C for the connector and cable jacket.

Does it require a specific power supply?
Yes—it requires a 24 VDC ±10% excitation voltage supplied by a compatible 3300 XL monitor or前置器.
