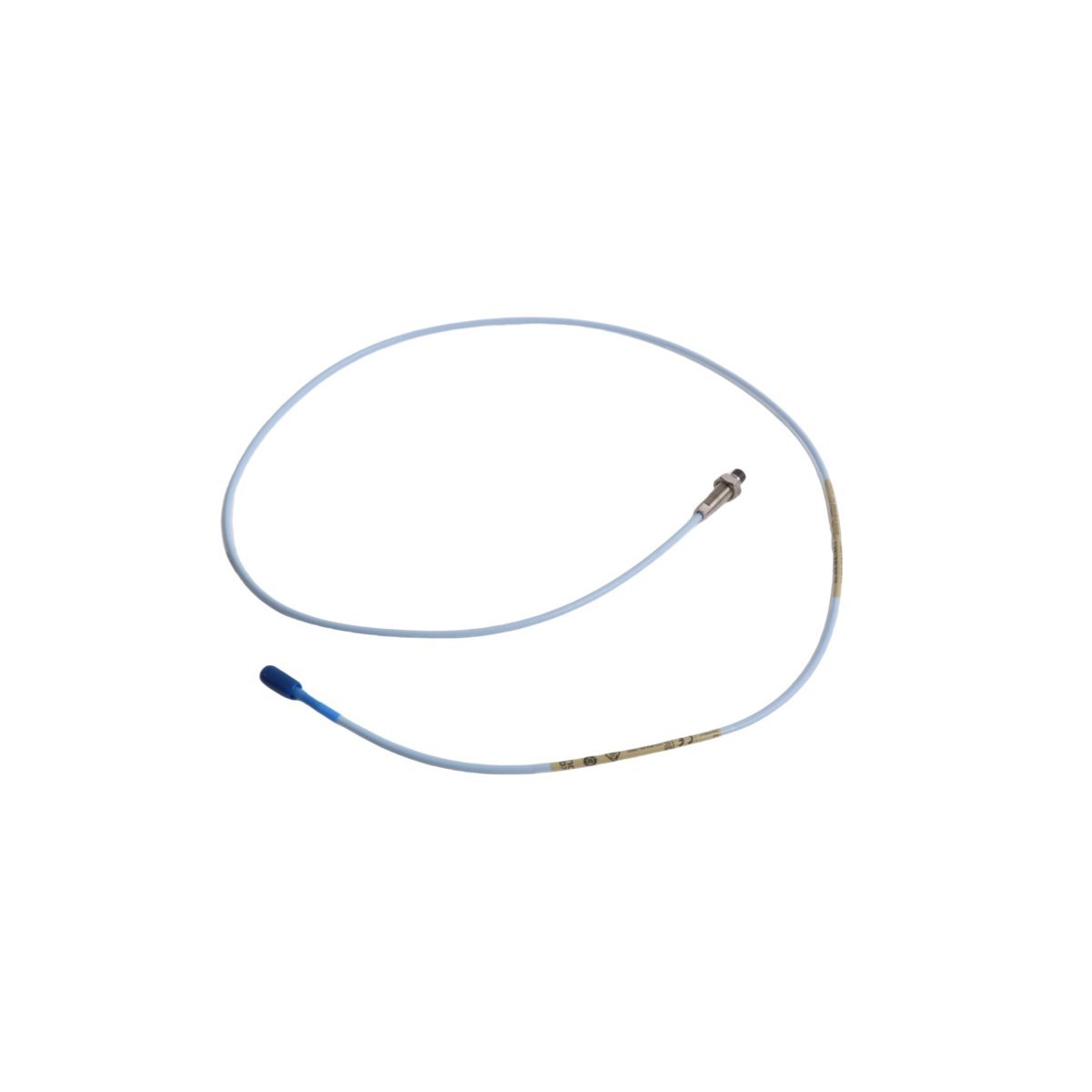

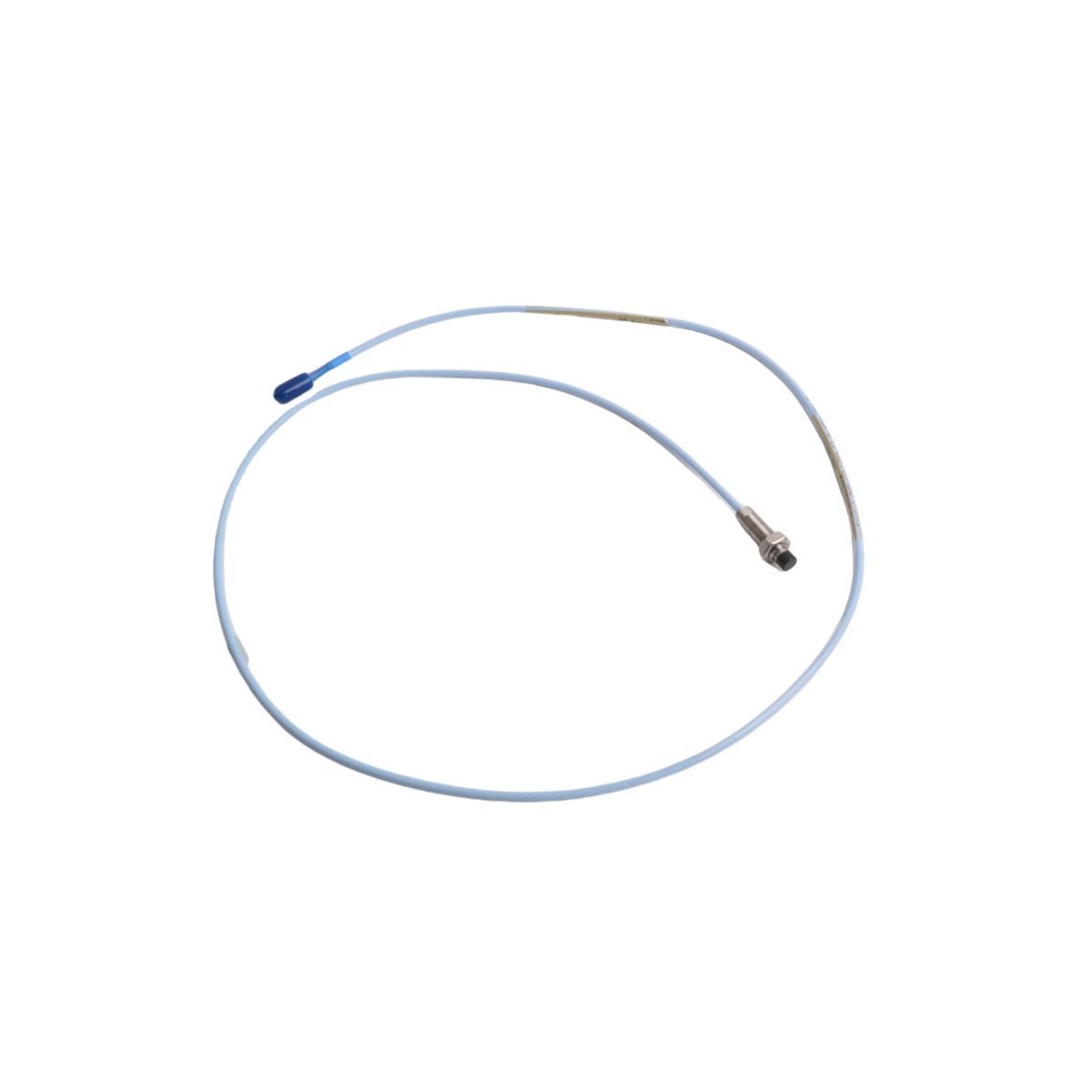

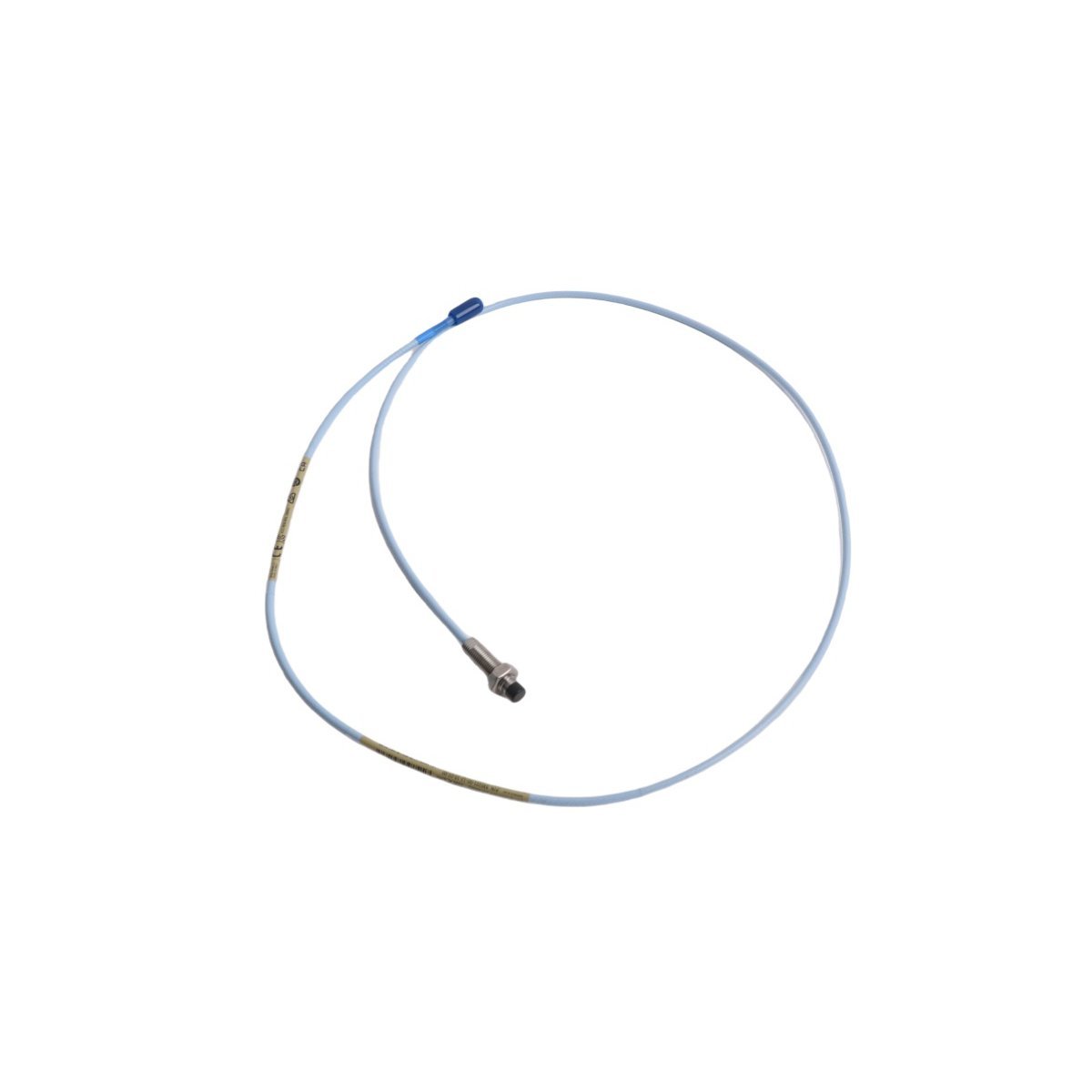

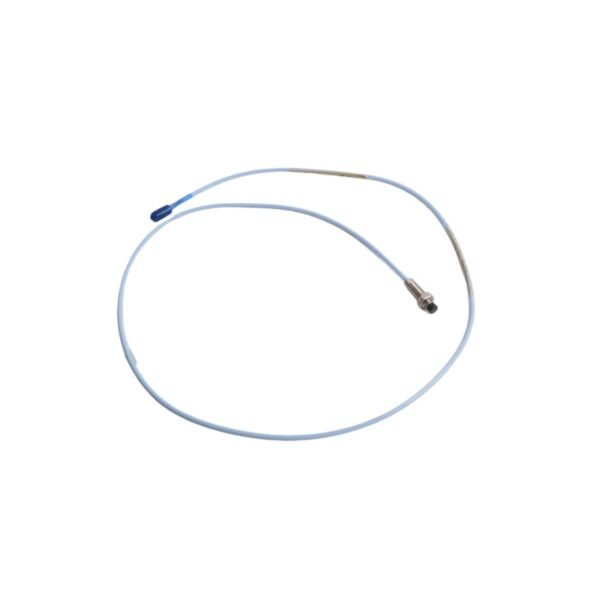

The Bently Nevada 330101-00-12-05-02-05 is a high-precision, non-contact eddy-current proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in rotating machinery. As part of the industry-standard 3300 XL family—renowned for exceptional signal integrity, thermal stability, and long-term reliability—this 8 mm diameter probe delivers Class A performance per API RP 670 (4th Edition) and complies with ISO 10816 and ISO 20816 vibration severity standards. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, the probe integrates seamlessly with the 3300 XL 8 mm sensor system architecture, including 3300 XL 8 mm extension cables and 3300 XL 8 mm monitor modules. Designed for harsh industrial environments—including petrochemical refineries, power generation plants, gas compression stations, and marine propulsion systems—the 330101-00-12-05-02-05 operates reliably across extreme temperature gradients (–30 °C to +120 °C ambient), high humidity, electromagnetic interference (EMI), and mechanical shock. Its robust stainless steel housing (AISI 316L) and hermetically sealed ceramic insulator ensure corrosion resistance and long service life, even in aggressive chemical atmospheres. Each unit undergoes rigorous factory calibration against NIST-traceable standards and is supplied with full calibration documentation, including sensitivity (mV/mil), linearity error (< ±0.5% FS), and frequency response (0–10 kHz, –3 dB). The probe is offered in new, factory-fresh condition, backed by a comprehensive 24-month limited warranty covering material defects and workmanship—ensuring operational confidence and minimizing lifecycle cost of ownership.

Detailed Specifications

Key Features

• Precision Calibration & Traceability: Factory-calibrated to NIST-traceable standards with documented sensitivity, linearity, and phase response—ensuring measurement repeatability within ±0.25% across the linear range.
• Thermal Stability: Compensated design maintains output drift ≤ ±1% over full operating temperature range (–30 °C to +120 °C), eliminating need for field recalibration during thermal transients.
• Corrosion-Resistant Construction: AISI 316L stainless steel housing and alumina ceramic insulator deliver superior resistance to H₂S, chloride, hydrocarbons, and acidic condensates—ideal for offshore and refinery applications.
• EMI Immunity: Shielded coaxial cable and optimized coil geometry provide >60 dB common-mode rejection and immunity to radiated RF fields up to 10 V/m (10 MHz–2 GHz).
• Optimized Mechanical Interface: M8 × 0.75 fine-thread mounting ensures precise axial positioning and consistent gap setting; integrated locking nut prevents loosening under vibration.
• Plug-and-Play Compatibility: Fully interoperable with all 3300 XL 8 mm monitors (e.g., 3300/16, 3300/20), extension cables (330130 series), and data acquisition systems—including Bently Nevada System 1™ and AMS Machinery Health Manager™.
• Long-Term Reliability: Rated for >100,000 hours MTBF under continuous operation; no moving parts or wear surfaces; lifetime calibration stability verified via accelerated aging tests.
• Global Support Ecosystem: Backed by Baker Hughes’ worldwide technical support network, certified training programs, spare parts logistics, and OEM firmware updates—ensuring seamless integration and lifecycle sustainment.

Applications

• Steam & Gas Turbines: Monitoring radial vibration (bearing journals), axial position (thrust collar), and differential expansion (casing-to-rotor) in utility-scale and industrial turbines per ANSI/API 612 and 617.
• Centrifugal Compressors: Critical shaft displacement and vibration surveillance in oil & gas pipeline compression, LNG liquefaction trains, and refinery process gas services.
• Large Electric Motors & Generators: Detection of rotor eccentricity, bearing wear, misalignment, and electromagnetic imbalance in 5+ MW machines operating at 1,500–3,600 RPM.
• Hydroelectric Units: Real-time monitoring of turbine runner wobble, guide bearing clearance, and generator air-gap variation under variable load conditions.
• Marine Propulsion Systems: Shaft orbit analysis and thrust bearing health assessment in naval vessels and commercial cargo ships equipped with controllable-pitch propellers.
• Power Transmission Gearboxes: High-frequency vibration detection for early-stage gear tooth pitting, spalling, and bearing cage failure in wind turbine main gearboxes and industrial drives.
• Test Stands & R&D Facilities: Precision dynamic testing of rotating components under controlled lab conditions, supporting ISO 1940-1 balancing validation and modal analysis.
• Legacy Retrofit Projects: Direct replacement for obsolete 3300, 3300 XL, and legacy 7200-series probes—maintaining existing mounting hardware, cabling infrastructure, and control system configuration.
