330101-00-10-10-02-05 | Bently Nevada | 3300 XL 8 mm Probe

### Product Description

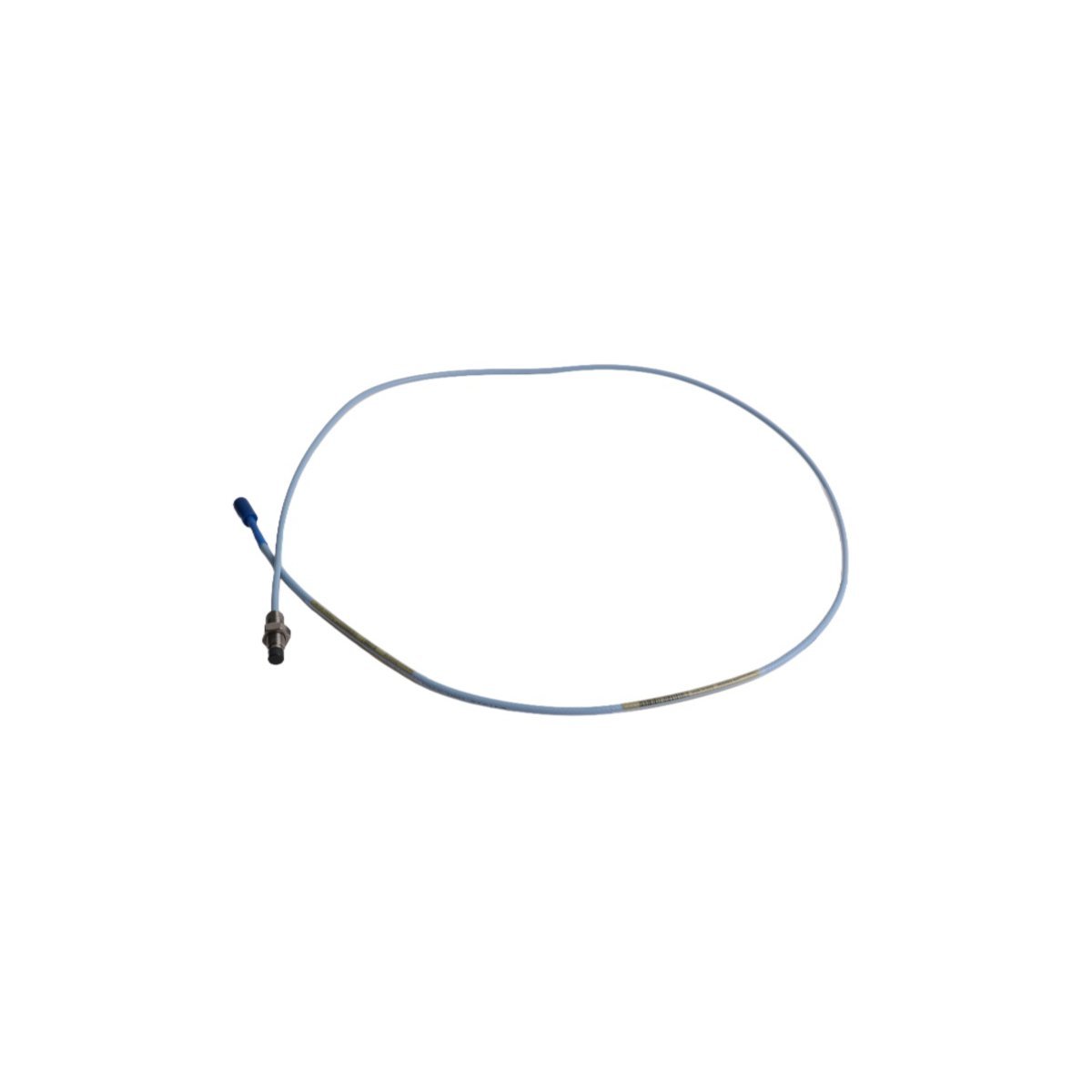

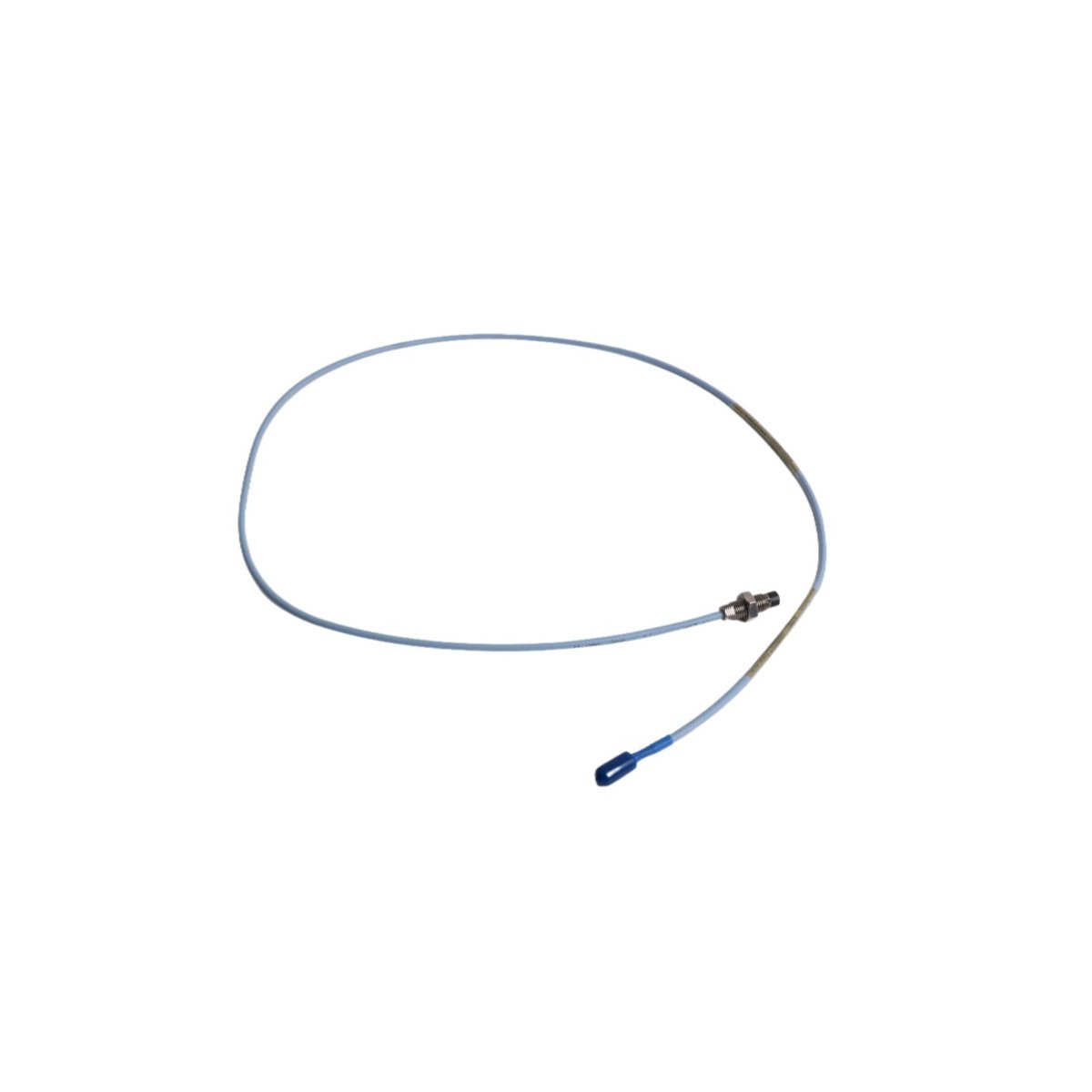

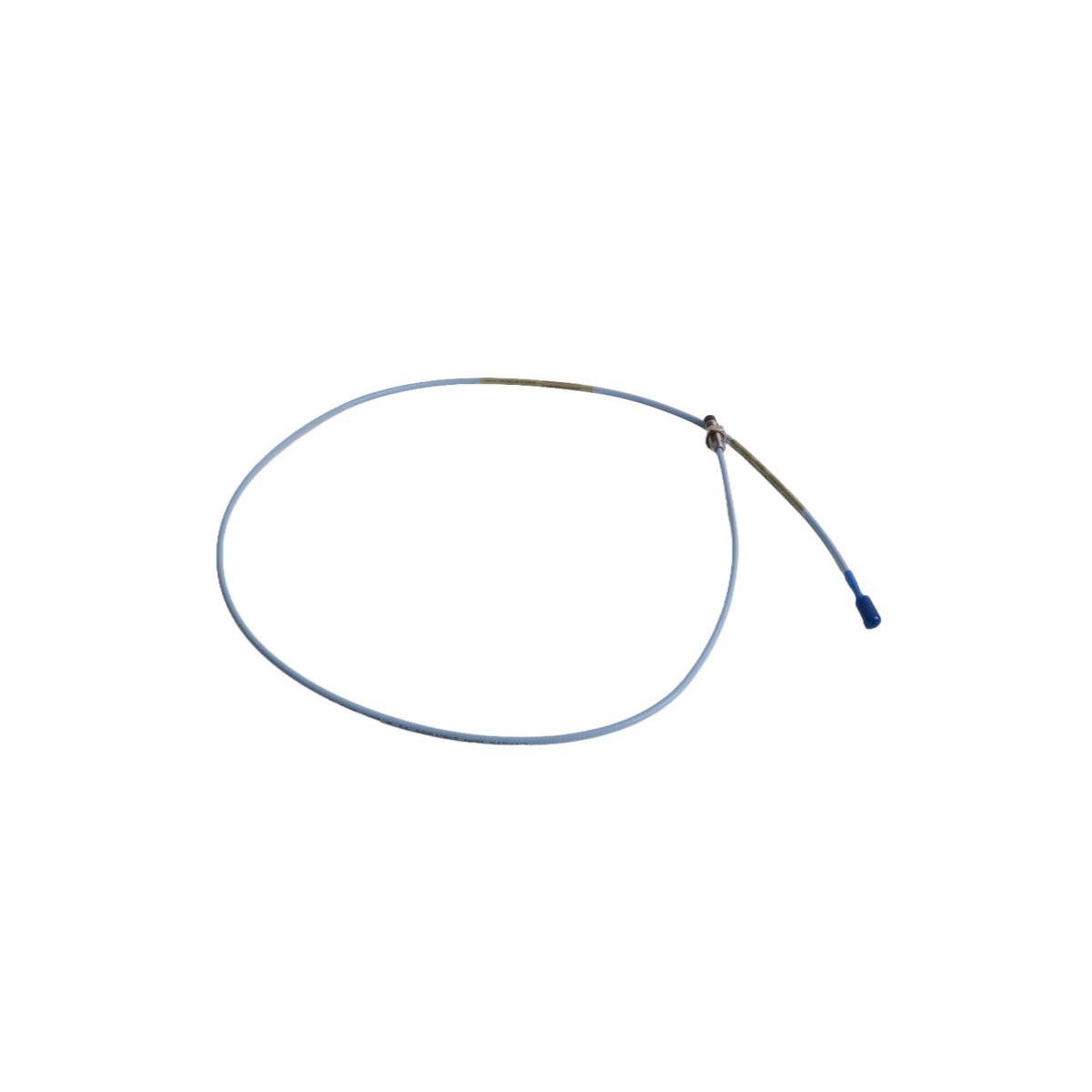

This is a high-precision eddy current proximity probe from the Bently Nevada 3300 XL sensor system. It delivers non-contact displacement and vibration measurements for rotating machinery.
Moreover, it is engineered for continuous monitoring of shaft position, vibration, and axial thrust in critical turbomachinery applications. Therefore, it supports reliable condition monitoring and machine protection functions in industrial control systems. In addition, its robust 8 mm diameter design ensures stable operation in high-temperature, high-vibration environments.

### Technical Specifications

### Typical Applications
– Steam and gas turbine shaft vibration and position monitoring
– Centrifugal compressor axial position and thrust bearing monitoring
– Large electric motor rotor dynamic clearance measurement
– Gearbox input/output shaft displacement tracking

### FAQ
What is the standard operating temperature range?
–40 °C to +125 °C ambient, with probe tip rated to +175 °C.

Is this probe compatible with all 3300 series monitors?
Yes, it is fully compatible with 3300/16, 3300/20, and 3300/25 monitor systems.

Does it require a separate extension cable?
Yes, a shielded 3300 XL extension cable (e.g., 330130-040-00-00) must be used between probe and monitor.

What is the nominal sensitivity?
8.0 V/mm (200 mV/mil) at 1 kHz, per API 670 4th edition.

Can it be used in hazardous areas?
No — it is not intrinsically safe or explosion-proof; use only in non-hazardous locations unless paired with appropriate certified barriers.
