Technical Overview

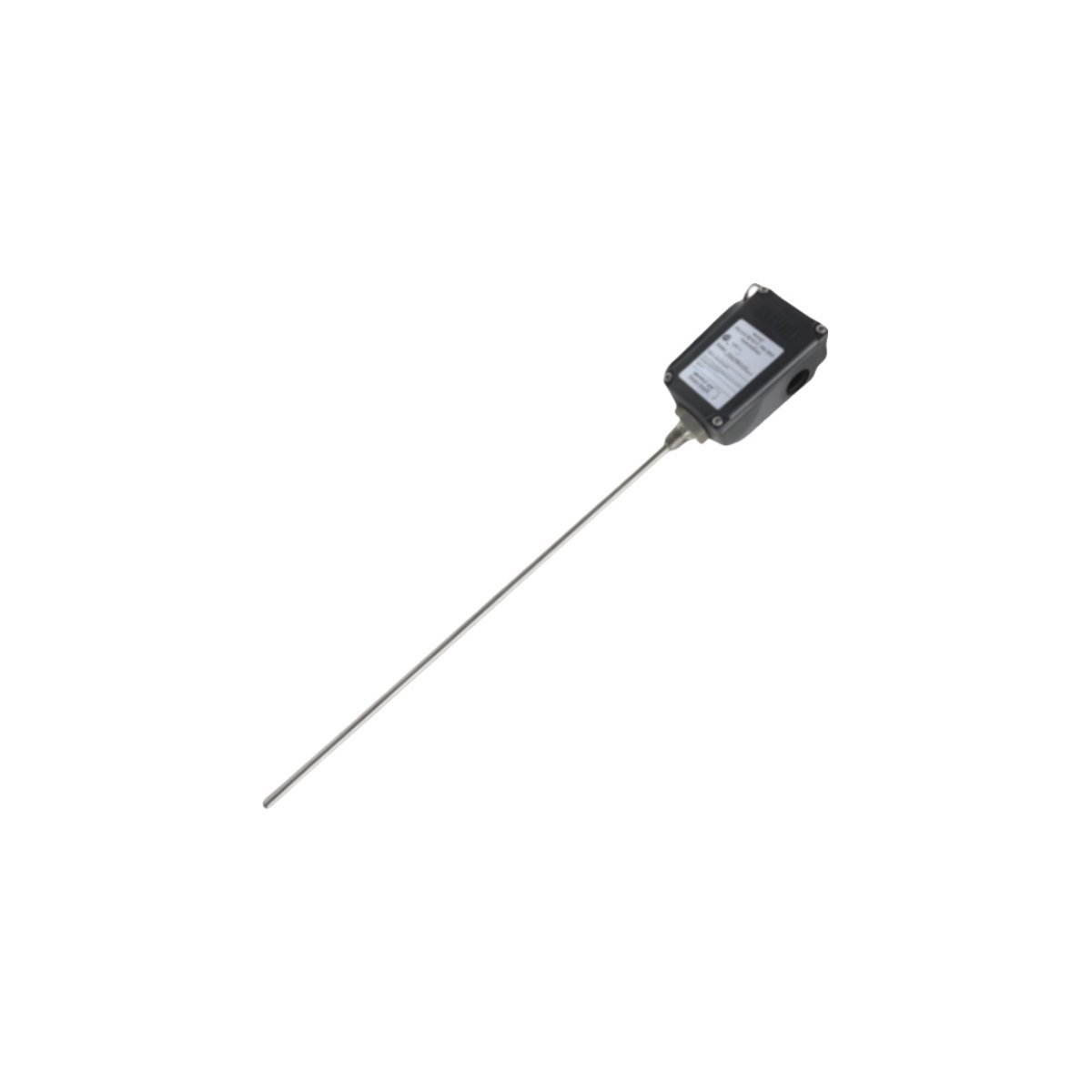

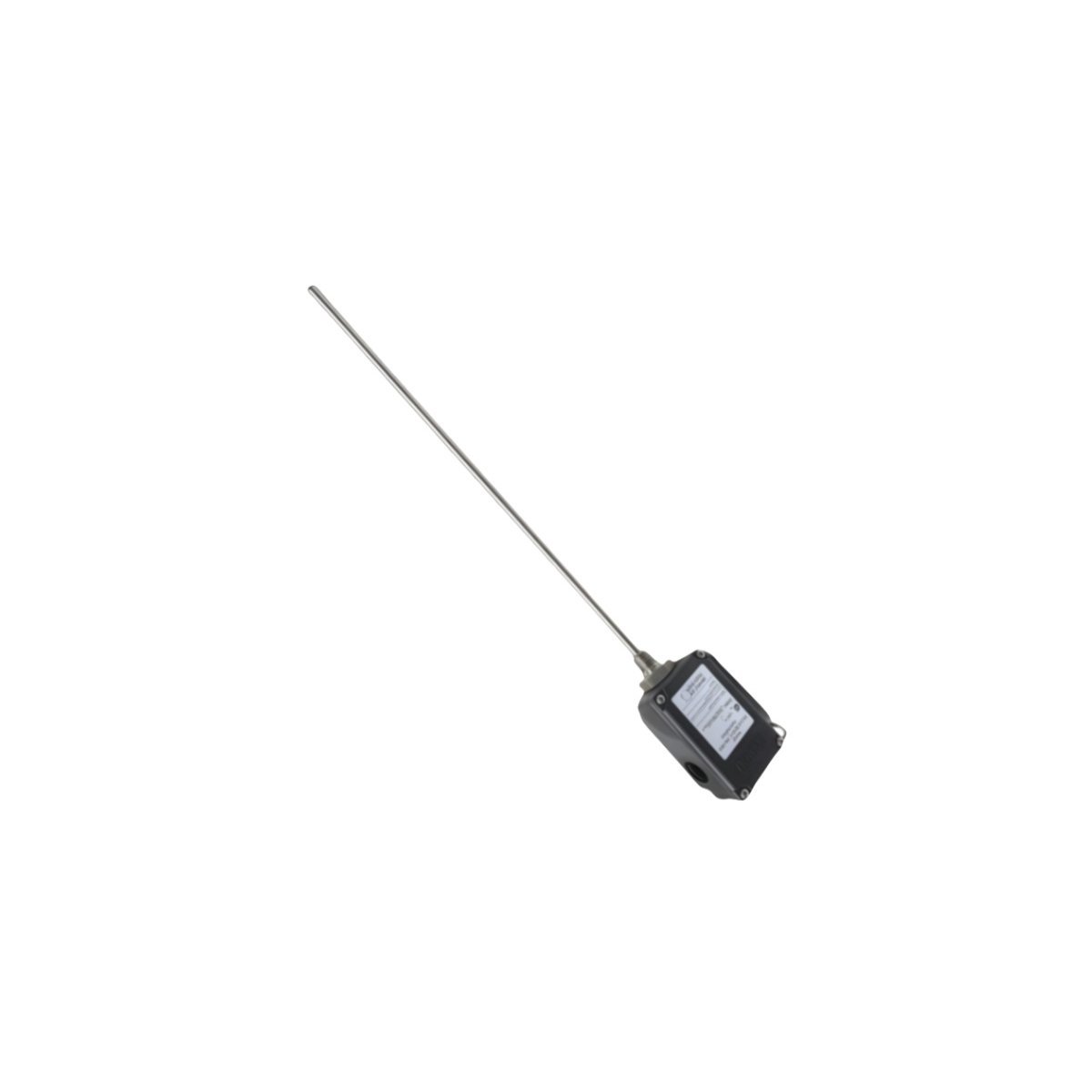

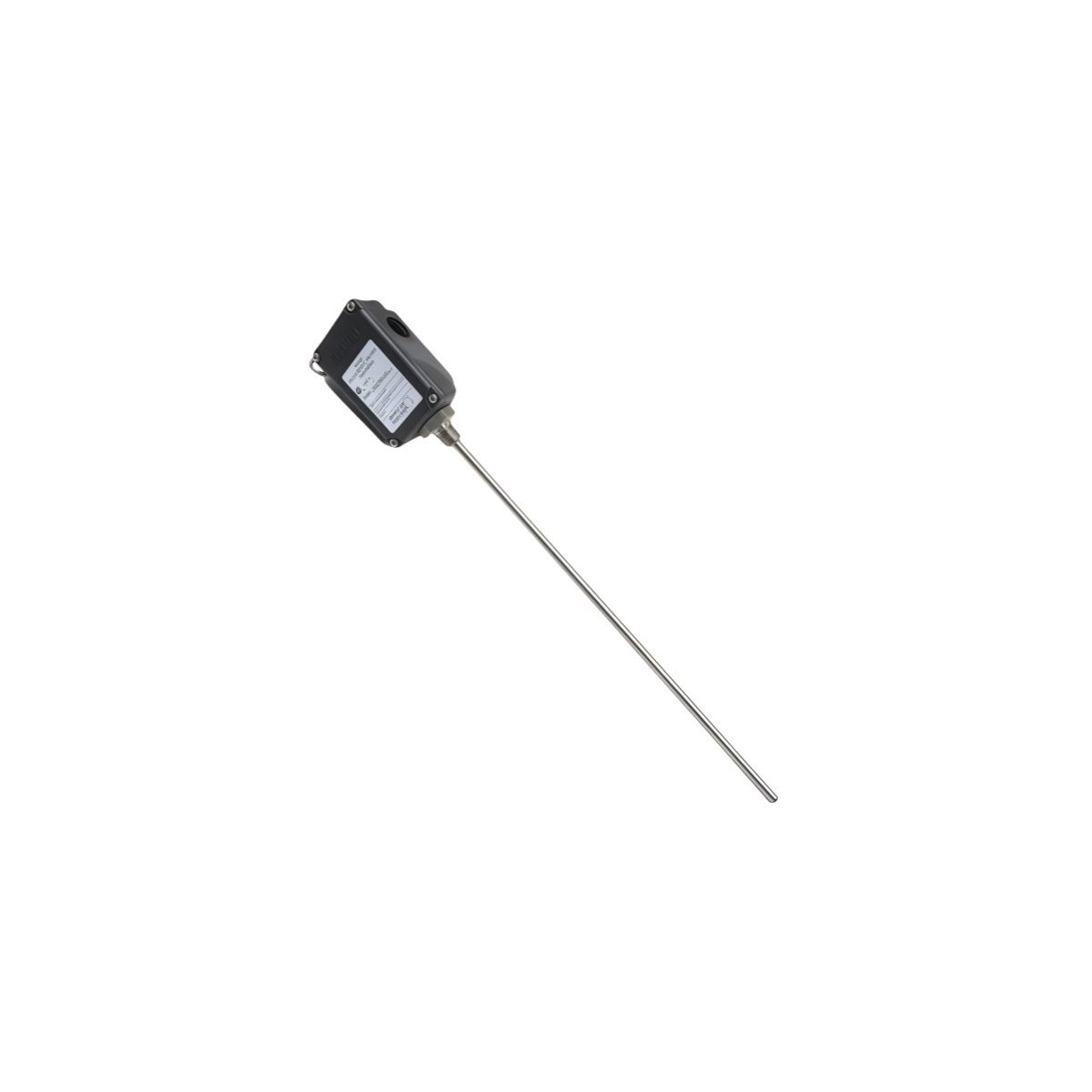

The Bently Nevada 31000-26-05-00-100-03-02 Proximity Probe Housing Assembly is a precision-engineered component designed for demanding industrial condition monitoring applications. As part of the industry-standard 3300 XL series ecosystem, this housing assembly ensures optimal mechanical integration, thermal stability, and electromagnetic shielding for high-fidelity eddy-current proximity measurements. It is specifically calibrated to maintain consistent probe-to-target gap integrity under extreme operating conditions—including wide temperature fluctuations, high vibration environments, and exposure to oil, steam, or corrosive process media commonly found in turbines, compressors, and large motors.

Manufactured to exacting OEM specifications, the 31000-26-05-00-100-03-02 features a robust stainless steel body with integrated O-ring sealing and a standardized 1/4–28 UNF threaded mounting interface. Its design supports repeatable installation torque and alignment, minimizing measurement drift and ensuring long-term signal fidelity critical for predictive maintenance and machine protection systems. Compatibility with Bently Nevada’s 3300/5000-series monitors and Asset Management Systems (AMS) enables seamless integration into existing enterprise-wide reliability programs—reducing commissioning time and supporting compliance with ISO 10816 and API 670 standards.

Key Features

• Precision-Machined Stainless Steel Housing: Provides superior corrosion resistance, mechanical rigidity, and EMI/RFI shielding for stable signal integrity in harsh industrial settings.
• Integrated Sealing System: Dual O-ring configuration ensures IP67-rated environmental protection against dust, moisture, and process fluids—even during extended operation at elevated temperatures (–40°C to +125°C).
• OEM-Approved Compatibility: Fully interoperable with Bently Nevada 3300 XL proximity probes and monitoring systems, supporting factory-calibrated sensitivity and linear range performance.
• Repeatable Mounting Geometry: Precision-threaded 1/4–28 UNF interface and reference shoulder guarantee consistent probe positioning—critical for accurate shaft vibration and axial position measurements.
• Traceable Calibration Support: Designed to retain original probe calibration when installed per Bently Nevada installation guidelines, reducing field verification requirements and downtime.

Specifications

• Part Number: 31000-26-05-00-100-03-02
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: Proximity Probe Housing Assembly
• Warranty: 24-month limited warranty covering material and workmanship defects under normal industrial use
