Description

Technical Overview

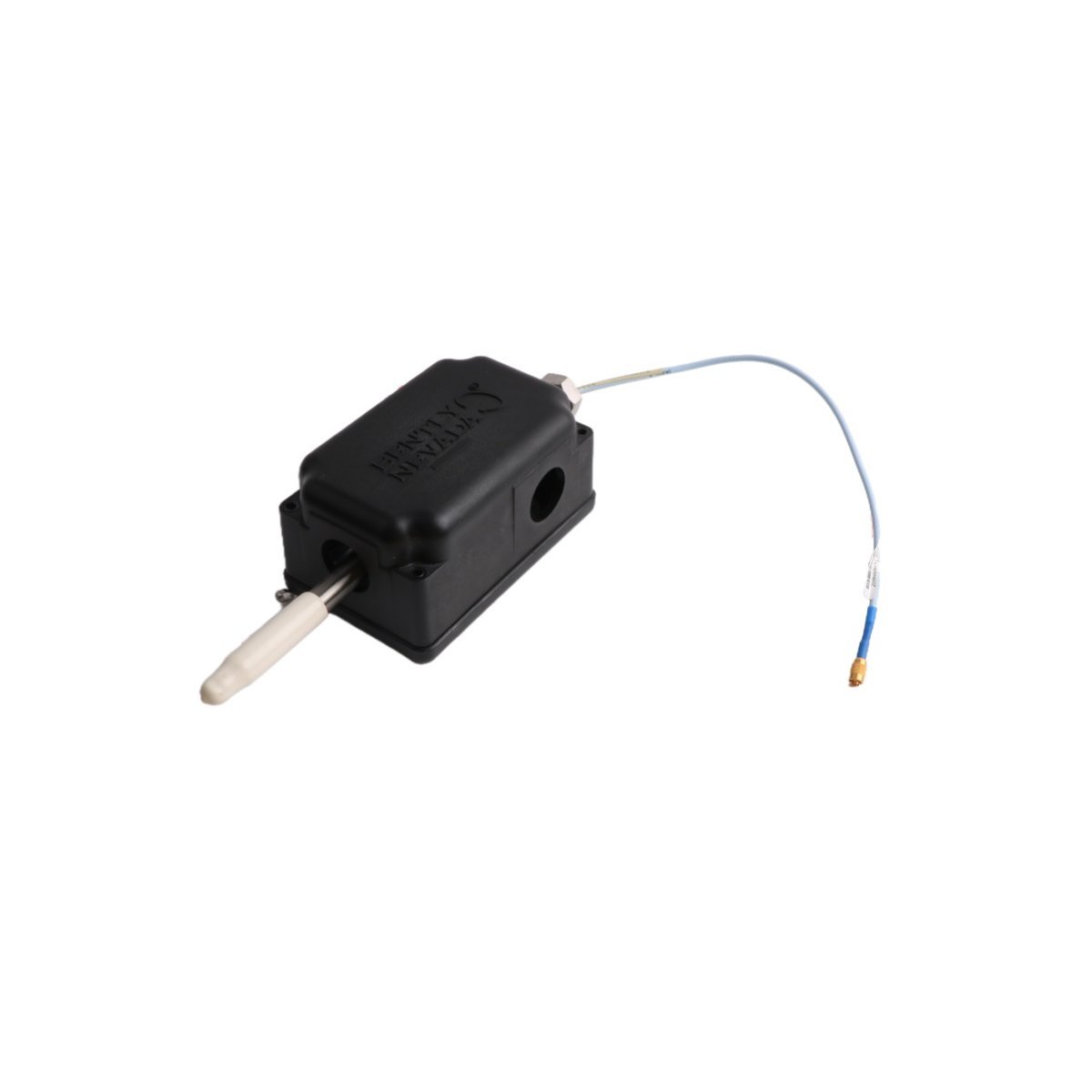

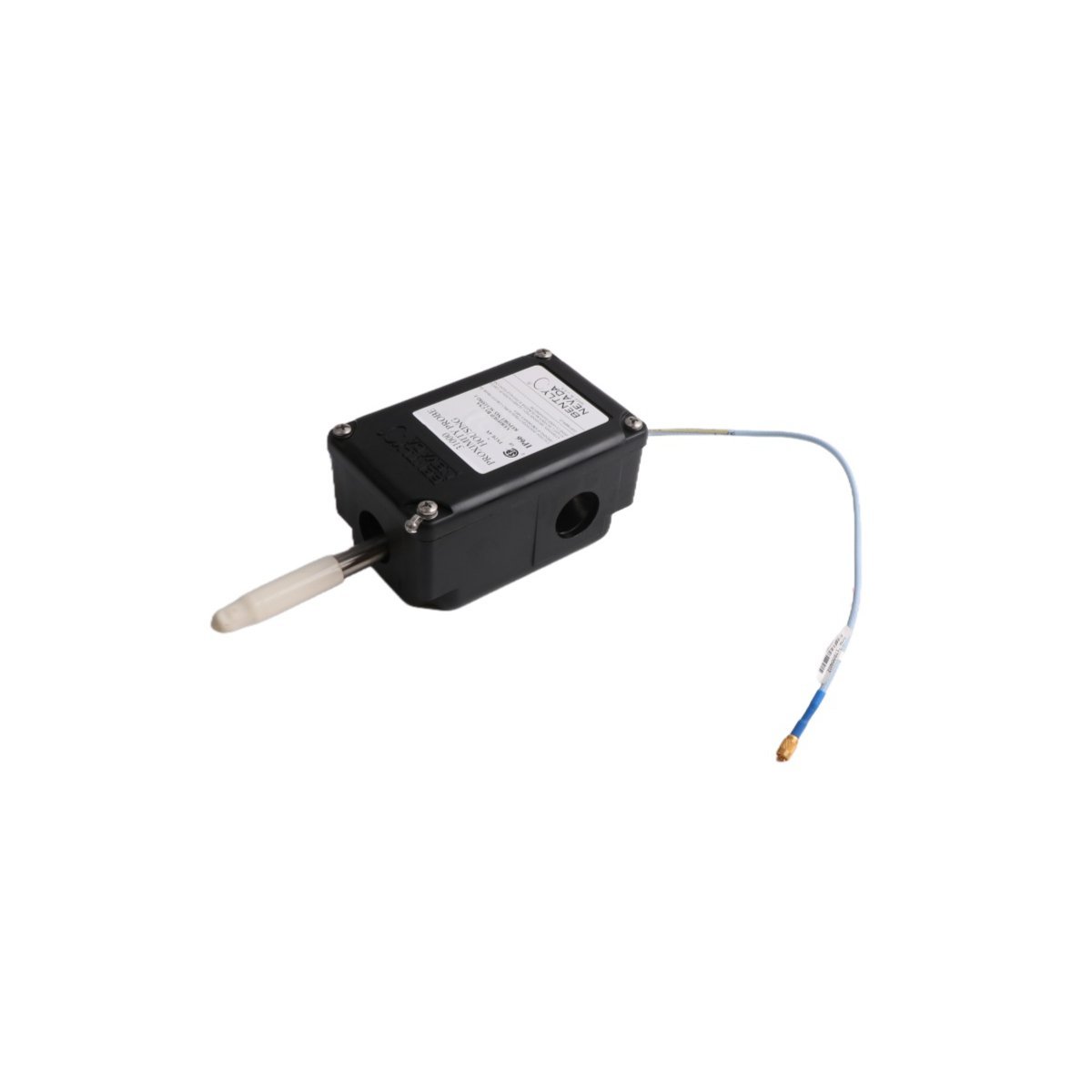

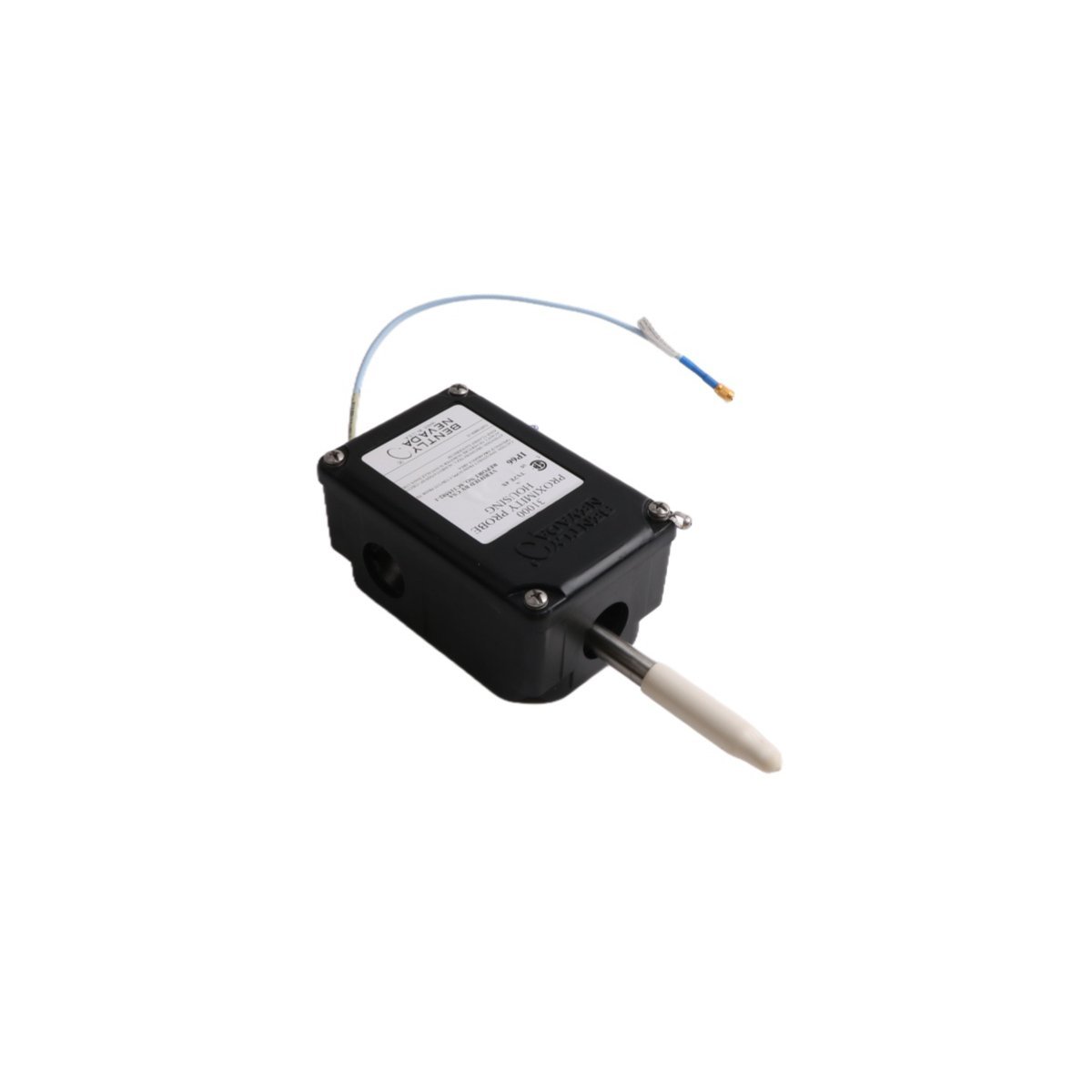

The Bently Nevada 31000-16-10-00-162-00-02 Proximity Probe Housing Assembly is a precision-engineered, OEM-certified component designed exclusively for integration with Bently Nevada’s industry-leading 3300 and 3500 Series proximity probe systems. Manufactured by Baker Hughes (formerly Bently Nevada), this housing assembly serves as the critical mechanical interface between the proximity probe sensor and the target shaft or rotor—ensuring optimal alignment, mechanical stability, thermal compensation, and electromagnetic shielding under demanding industrial conditions. Engineered to meet stringent API 670 (4th Edition) and ISO 10816 standards for machinery protection and condition monitoring, the 31000-16-10-00-162-00-02 delivers repeatable, high-fidelity displacement measurements with sub-micron resolution. Its robust stainless steel construction, hermetically sealed design, and integrated temperature-compensated mounting flange enable reliable long-term operation in environments subject to extreme vibration, wide thermal excursions (–40 °C to +125 °C), oil mist, steam, and corrosive process gases. As a factory-assembled, pre-calibrated unit, it eliminates field calibration drift and ensures full compatibility with Bently Nevada 3300/3500 System 1™ software, Asset Manager, and Machinery Health Monitor platforms. This housing assembly is supplied new, never refurbished or remanufactured, and carries full traceability to original manufacturing lot data—including material certifications (ASTM A276 Type 316 SS), RoHS compliance documentation, and MTRs (Mill Test Reports). It is intended for use in safety-critical rotating equipment monitoring applications where measurement integrity directly impacts operational availability, predictive maintenance efficacy, and regulatory compliance.

Detailed Specifications

Key Features

• OEM Precision Alignment System: Incorporates factory-lapped reference surfaces and laser-aligned probe port geometry to ensure ≤ ±0.005 mm radial runout tolerance—critical for eliminating measurement hysteresis and phase error in high-speed turbomachinery.
• Thermal Expansion Compensation: Dual-material flange design (stainless steel housing + Invar® thermal anchor ring) minimizes probe-to-target gap shift across operating temperature gradients, maintaining calibration integrity over ±85 °C delta-T.
• Hermetic Sealing & Contamination Barrier: Triple-seal architecture (metal-to-metal face seal, Viton® O-ring, and epoxy-filled cable entry) prevents ingress of oil, steam condensate, and particulates—validated per ASTM D471 fluid resistance testing.
• Integrated Cable Management: Patented strain-relief collar with adjustable clamping force (0.8–1.2 kN) secures 3300 XL-series coaxial cables without kinking or shield degradation, preserving signal fidelity up to 10 kHz bandwidth.
• API 670-Compliant Mounting Rigidity: Flange stiffness ≥ 1.8 × 10⁶ N/m ensures minimal dynamic deflection during transient events (e.g., surge, blade passing frequency), supporting reliable trip-level detection per API RP 670 Clause 4.3.3.
• Full Traceability & Documentation: Each unit ships with serialized Certificate of Conformance (CoC), calibration report (traceable to NIST), material test reports (MTRs), and explosion-proof certification dossier.
• Plug-and-Play Integration: Pre-matched to Bently Nevada 3300/3500 system gain settings—no field recalibration required; supports automatic sensor identification via TEDS (IEEE 1451.4) embedded memory chip.

Applications

• Gas & Steam Turbines: Axial position monitoring of thrust collars, differential expansion measurement across casings, and journal bearing vibration analysis in power generation and combined-cycle plants.
• Centrifugal Compressors & Pumps: Radial vibration and shaft orbit tracking in petrochemical refineries, LNG terminals, and pipeline booster stations—enabling early detection of imbalance, misalignment, and bearing wear.
• Aero-Derivative Engines: High-bandwidth shaft displacement sensing for FADEC-integrated health monitoring in marine propulsion and emergency power systems.
• Large Induction Motors & Generators: Rotor eccentricity and air-gap monitoring in critical drive trains for mining conveyors, steel mill rolling stands, and water desalination facilities.
• Nuclear Power Applications: Qualified for use in non-safety-related auxiliary systems (ASME NQA-1 compliant), including feedwater pump monitoring and turbine gland seal differential pressure control loops.
• Wind Turbine Gearboxes: Low-speed shaft runout and planetary carrier displacement monitoring in offshore wind farms—enhancing predictive maintenance intervals and reducing unplanned downtime.
