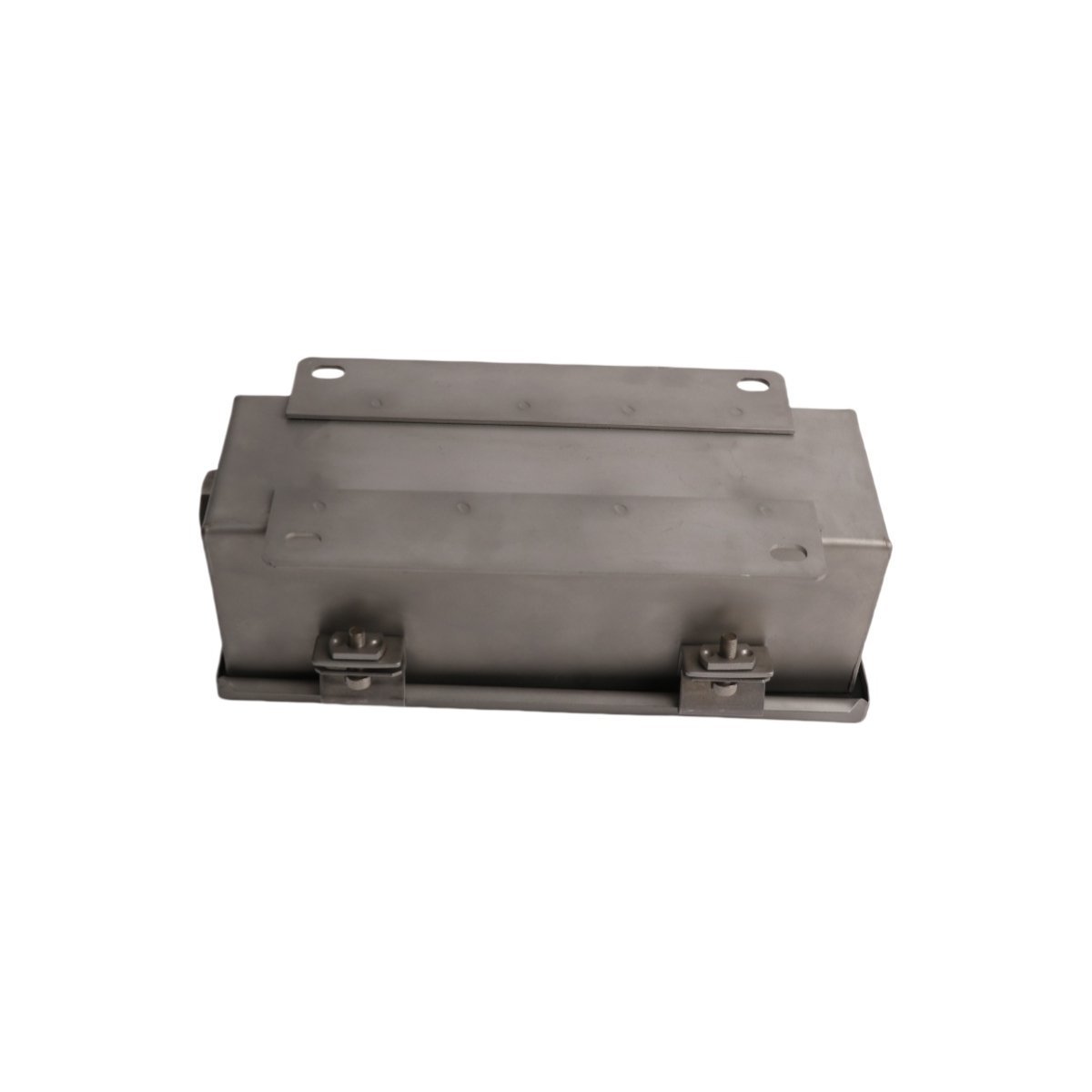

24765-01-00 | Bently Nevada | Case Expansion Transducer Systems

### Product Description
The 24765-01-00 is a case expansion transducer system designed for continuous, non-contact measurement of thermal growth in turbine and compressor casings.
Moreover, it provides high-resolution analog output for integration into machinery protection and condition monitoring systems.
Therefore, it supports reliable assessment of differential thermal expansion between rotating and stationary components during startup, operation, and shutdown.

### Technical Specifications

### Typical Applications
– Steam turbine casing expansion monitoring
– Gas turbine hot section thermal growth tracking
– Centrifugal compressor frame expansion measurement
– Combined-cycle power plant thermal alignment verification

### FAQ
What output signal does the 24765-01-00 provide?
A standard 4–20 mA DC current loop output, linear with measured expansion displacement.

Is the transducer compatible with Bently Nevada 3500/42M monitors?
Yes, it interfaces directly with the 3500/42M expansion monitor module via standard wiring.

Does the system require external power?
Yes, it operates from a 24 VDC supply provided by the connected monitor or signal conditioner.

Can it be used in hazardous areas?
No—this model is rated for general-purpose industrial environments only; intrinsic safety certification is not included.
