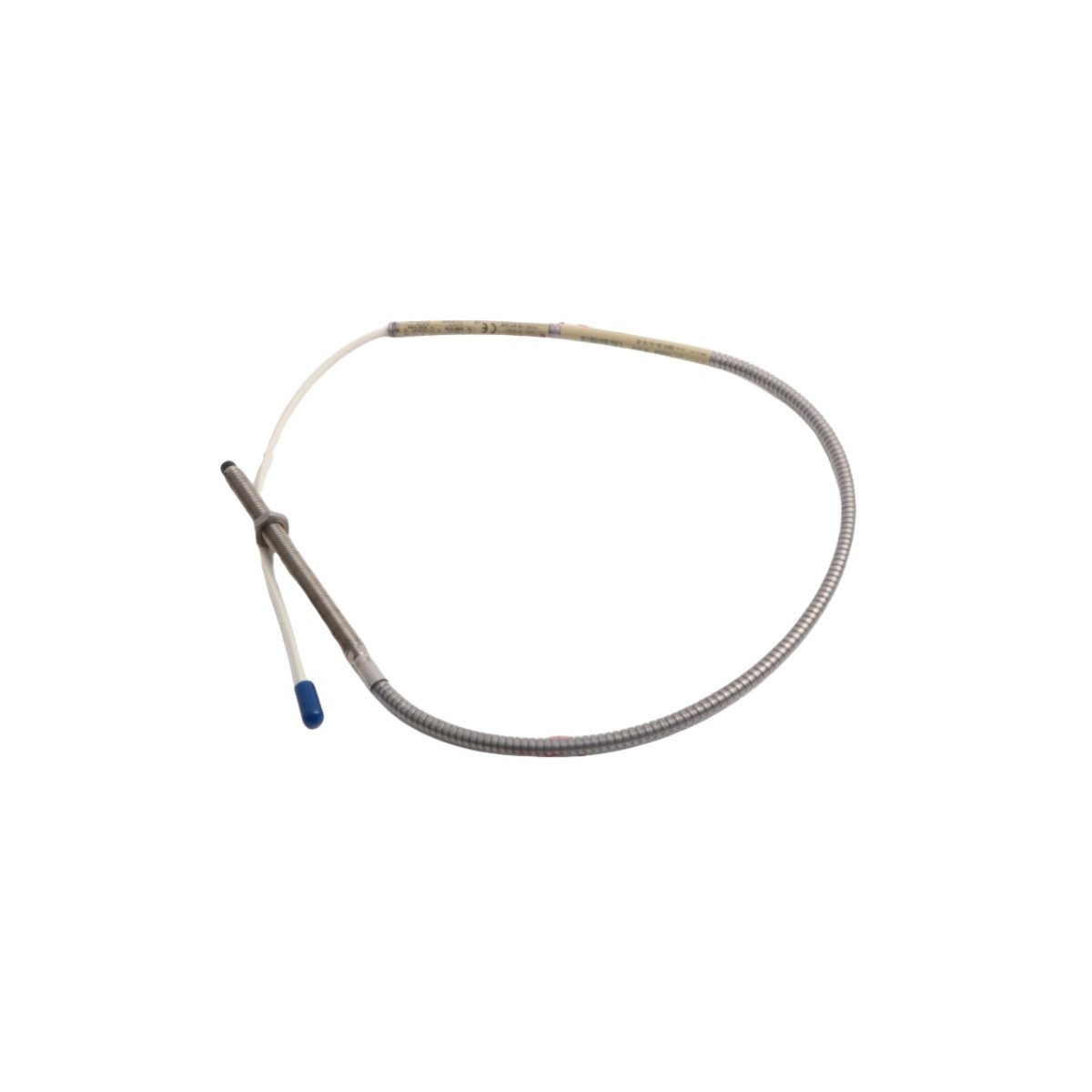

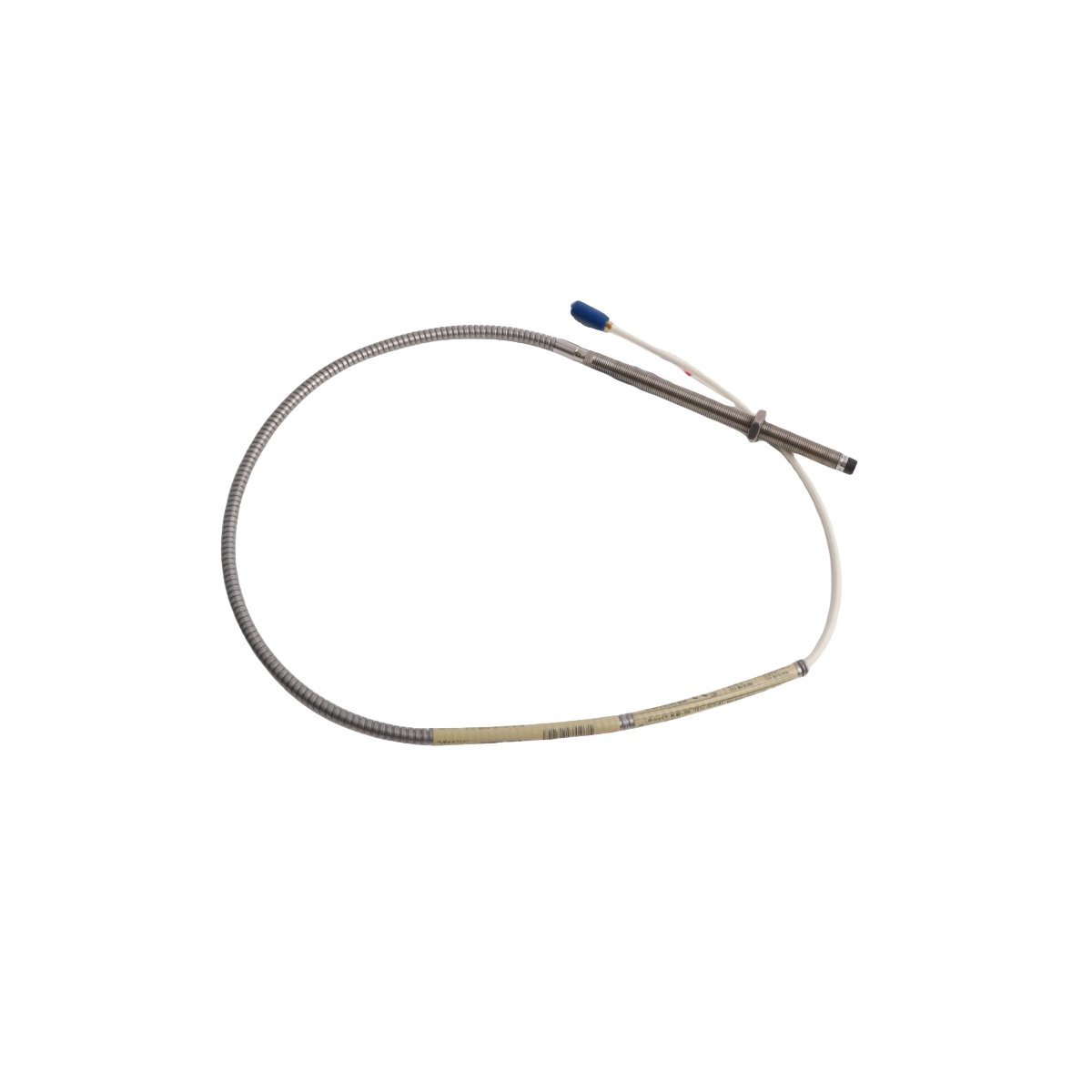

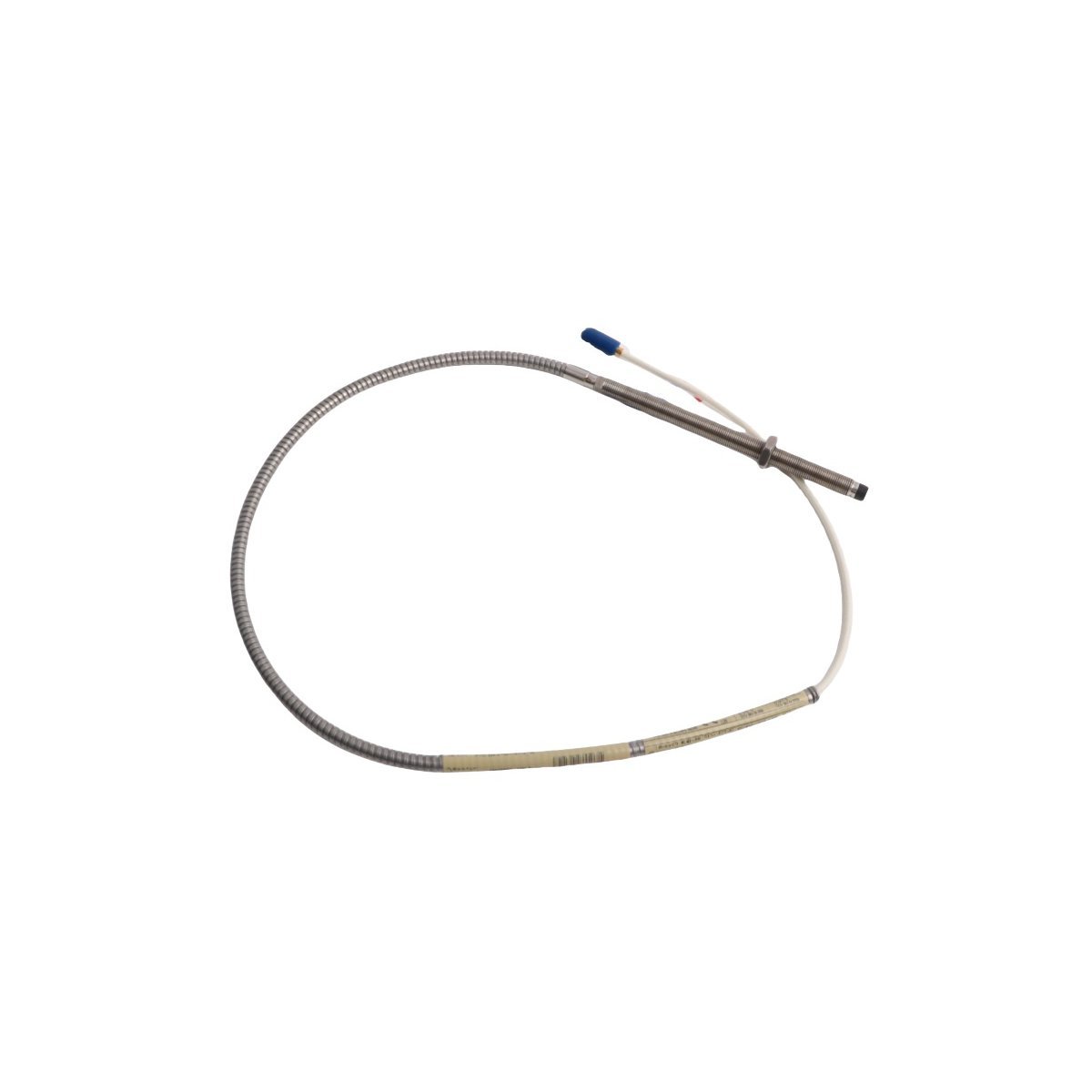

22810-00-04-10-02 | Bently Nevada | Proximity Probe

### Product Description
The 22810-00-04-10-02 is a high-precision eddy-current proximity probe designed for non-contact displacement and vibration measurement.
Moreover, it delivers stable, repeatable output in harsh industrial environments where reliability and signal integrity are critical.
Therefore, it is routinely integrated into machinery protection systems for continuous monitoring of rotating equipment shafts and bearings.

### Technical Specifications

### Typical Applications
– Monitoring radial vibration and axial position of steam turbine shafts
– Measuring bearing housing displacement in large centrifugal compressors
– Detecting shaft runout and thrust position in gas turbine generators
– Providing input signals to 3500/3300 series machinery protection systems

### FAQ
What is the standard probe gap range for this model?
The nominal linear range is 2.0 mm with a recommended operating gap of 1.0 mm ± 0.2 mm.

Is this probe compatible with Bently Nevada 3500 system monitors?
Yes, it is fully compatible with 3500 rack-based monitoring systems when used with matching extension cables and proximitor modules.

Does the probe require calibration before installation?
Factory-calibrated; no field recalibration is required unless damaged or exposed to extreme thermal shock.

What cable length options are available for use with this probe?
Standard extension cables include 5 m and 9 m lengths, both rated for Class I, Division 1 hazardous locations.

Can it be used in high-temperature environments?
Rated for continuous operation up to +121°C (250°F); ambient temperature limits apply to the probe body only.
