Description

Technical Overview

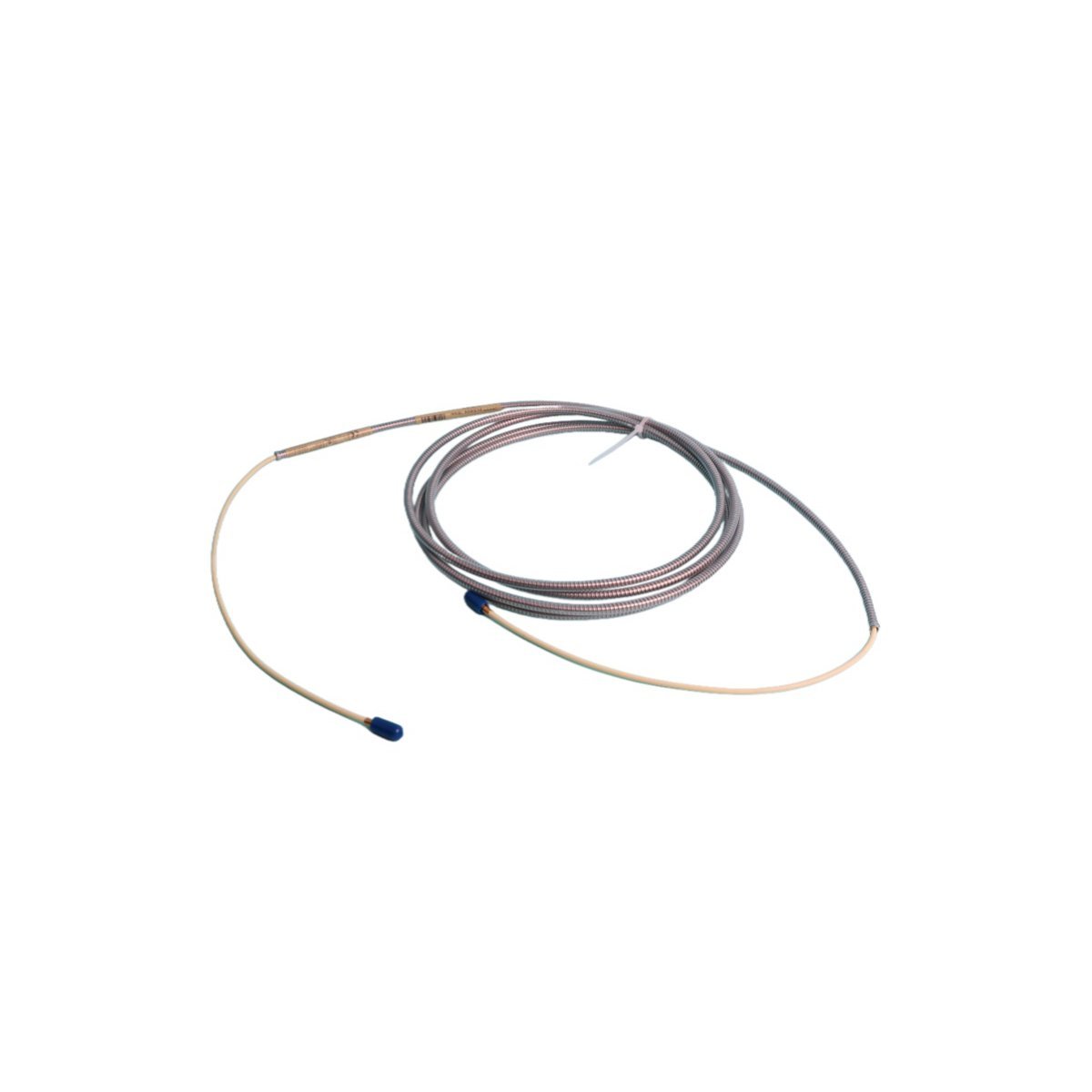

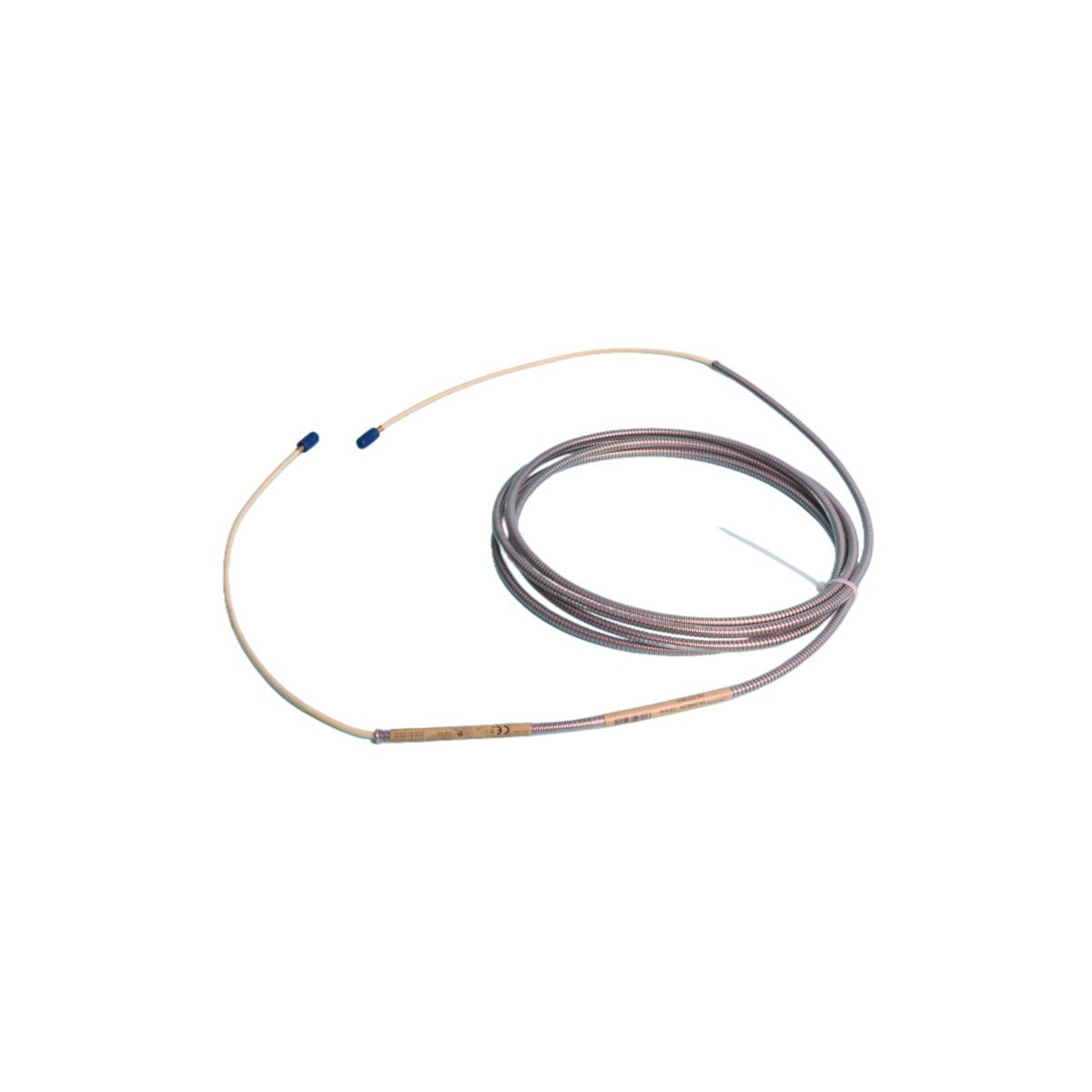

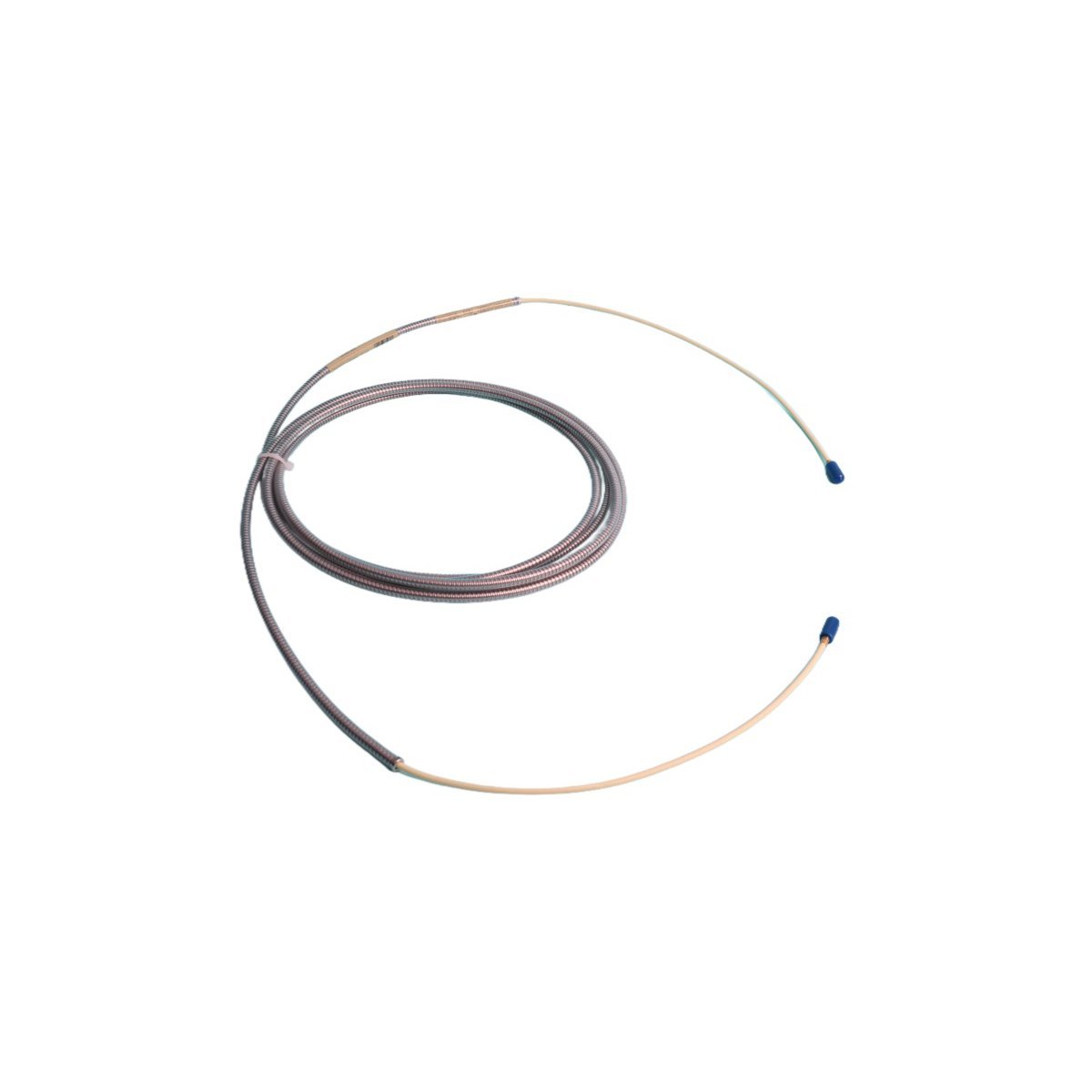

The Bently Nevada 21747-040-01 Extension Cable is a high-integrity, precision-engineered signal transmission component designed exclusively for integration within Bently Nevada’s 3500/40 Series Machinery Protection Systems (MPS). Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in condition monitoring and predictive maintenance solutions—this cable serves as a critical interface between proximity probe sensors and their corresponding monitor modules. Engineered to preserve signal fidelity across extended distances, the 21747-040-01 ensures minimal noise ingress, consistent impedance matching (50 Ω nominal), and stable phase response—essential attributes for reliable vibration, position, and speed measurements in mission-critical rotating equipment applications. The cable features a robust, multi-layered construction comprising silver-plated copper conductors, low-noise triaxial shielding (inner foil + braided outer shield), and a flame-retardant, oil-resistant, and abrasion-resistant polyurethane jacket compliant with UL AWM 20928 and CSA Type FT4 standards. Each unit undergoes 100% factory testing—including time-domain reflectometry (TDR), continuity verification, insulation resistance measurement (>100 MΩ at 500 VDC), and frequency response validation from DC to 10 kHz—to guarantee adherence to API RP 670 (4th Edition) and ISO 10816 vibration monitoring requirements. Supplied new-in-box with original Bently Nevada packaging, serialized traceability, and full compliance documentation, the 21747-040-01 is certified for continuous operation in industrial environments ranging from −40 °C to +85 °C ambient temperature, with optional high-temperature variants available upon request.

Detailed Specifications

Key Features

• Precision Signal Integrity: Optimized triaxial architecture maintains tight impedance control and ultra-low noise coupling (<−110 dBV/√Hz at 1 kHz), ensuring accurate dynamic response for shaft orbit analysis and gap voltage stability.
• Industrial-Grade Durability: Polyurethane jacket provides exceptional resistance to mechanical abrasion, crushing loads (up to 2.5 kN crush resistance), flex fatigue (>1 million cycles at ±180° bend radius), and exposure to hydrocarbon-based fluids.
• EMI/RFI Immunity: Dual-layer shielding (foil + braid) delivers >95 dB common-mode rejection and meets stringent electromagnetic compatibility requirements per IEC 61000-4-3 and IEC 61000-4-6 Level 3.
• Plug-and-Play Compatibility: Terminated with precision-machined, gold-plated BNC connectors (male on probe end, female on monitor end) meeting MIL-C-39012 specifications for repeatable mating cycles (>500 insertions).
• Traceable Quality Assurance: Each cable carries a unique serial number laser-engraved on the jacket and documented in the Bently Nevada Global Traceability System (GTS), enabling full lifecycle auditability from raw materials to final test data.
• Environmental Compliance: Fully RoHS 3 and REACH-compliant with no SVHC substances above threshold limits; halogen-free formulation supports safe operation in confined or safety-critical spaces.
• Thermal Stability: Low coefficient of thermal expansion (CTE) in dielectric materials minimizes capacitance drift across operating temperature extremes—critical for maintaining calibration integrity in gas turbines and compressors.

Applications

• Rotating Equipment Monitoring: Integral cabling solution for Bently Nevada 3500/40M and 3500/45M monitors used on steam and gas turbines, centrifugal compressors, axial flow fans, and large electric motors in power generation, oil & gas, and chemical processing facilities.
• Asset Health Programs: Enables deployment of permanent proximity probe arrays for continuous shaft vibration, axial position, differential expansion, and keyphasor timing—core inputs for AI-driven predictive analytics platforms.
• Refurbishment & Retrofit Projects: Direct replacement cable for legacy 3500 systems undergoing digital modernization, supporting seamless integration with newer 3500/42M and 3500/50M monitors without recalibration.
• Hazardous Area Installations: Certified for use in Class I, Division 2 / Zone 2 locations when paired with approved intrinsic safety barriers—ideal for offshore platforms, refineries, and LNG terminals.
• Test Stands & R&D Labs: Preferred cable for laboratory-grade rotor dynamics testing, modal analysis, and bearing performance evaluation due to its flat frequency response and phase linearity up to 10 kHz.
• Condition-Based Maintenance (CBM) Infrastructure: Supports scalable sensor networks in IIoT-enabled plants where long-distance, low-loss analog transmission reduces need for edge signal conditioning and preserves legacy system investments.
