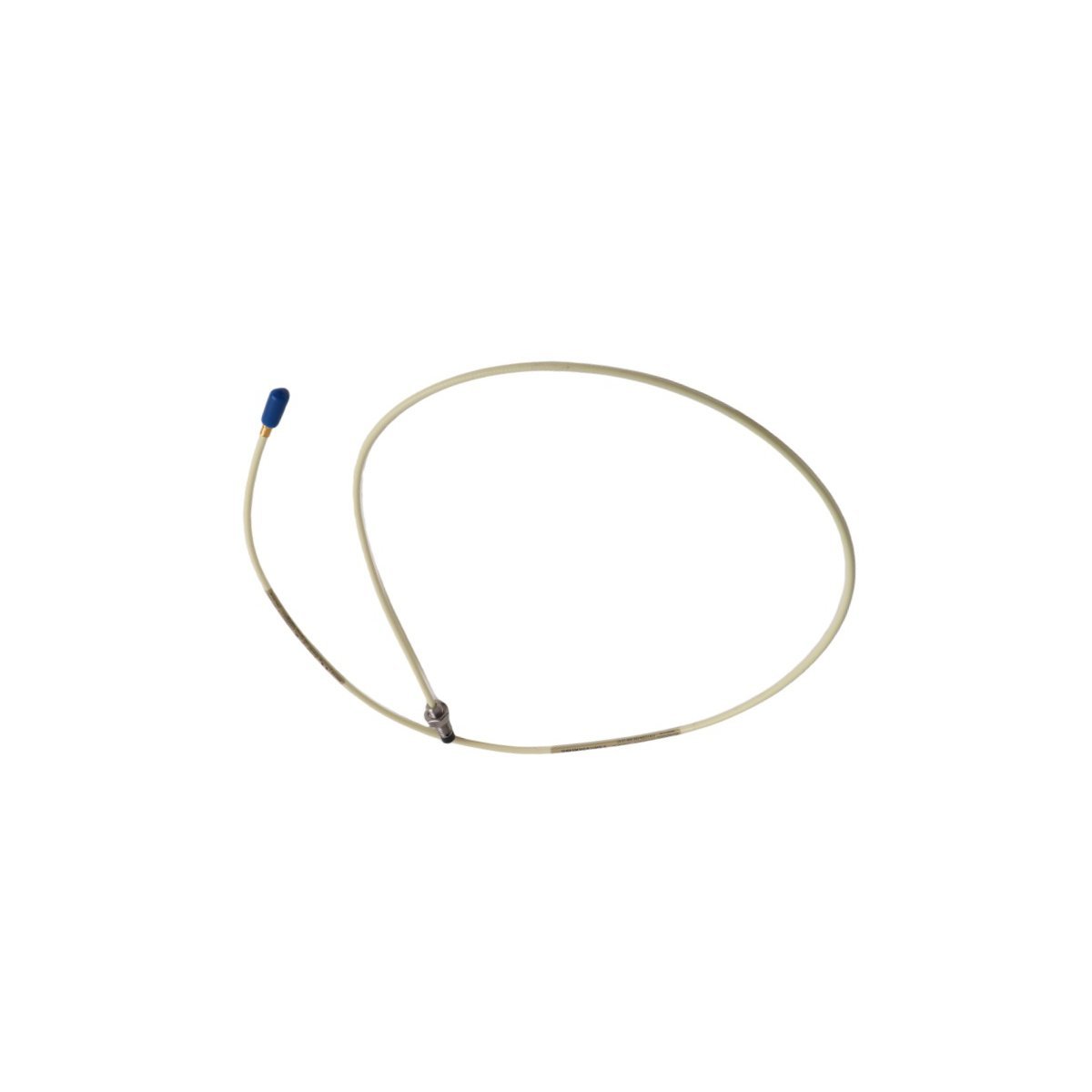

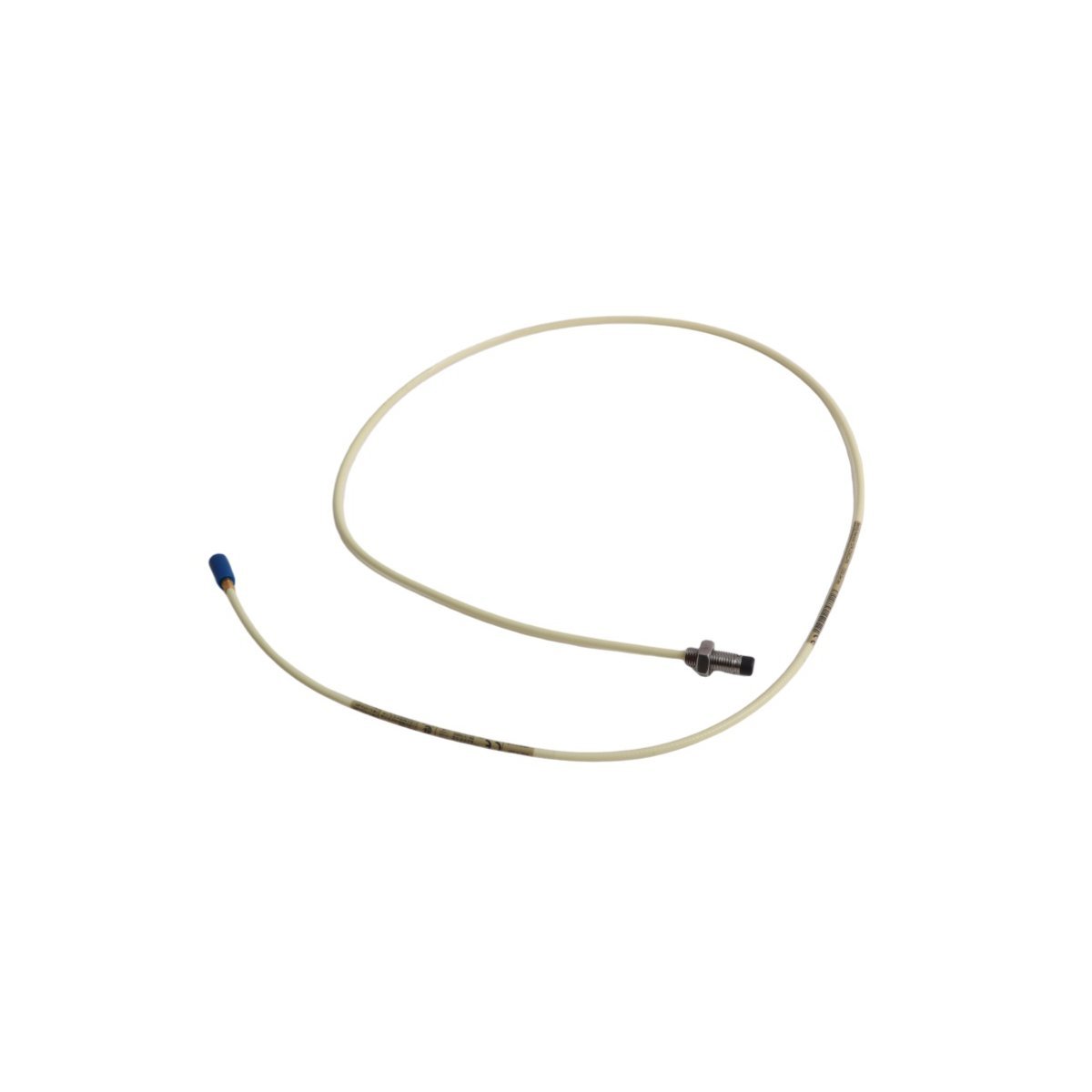

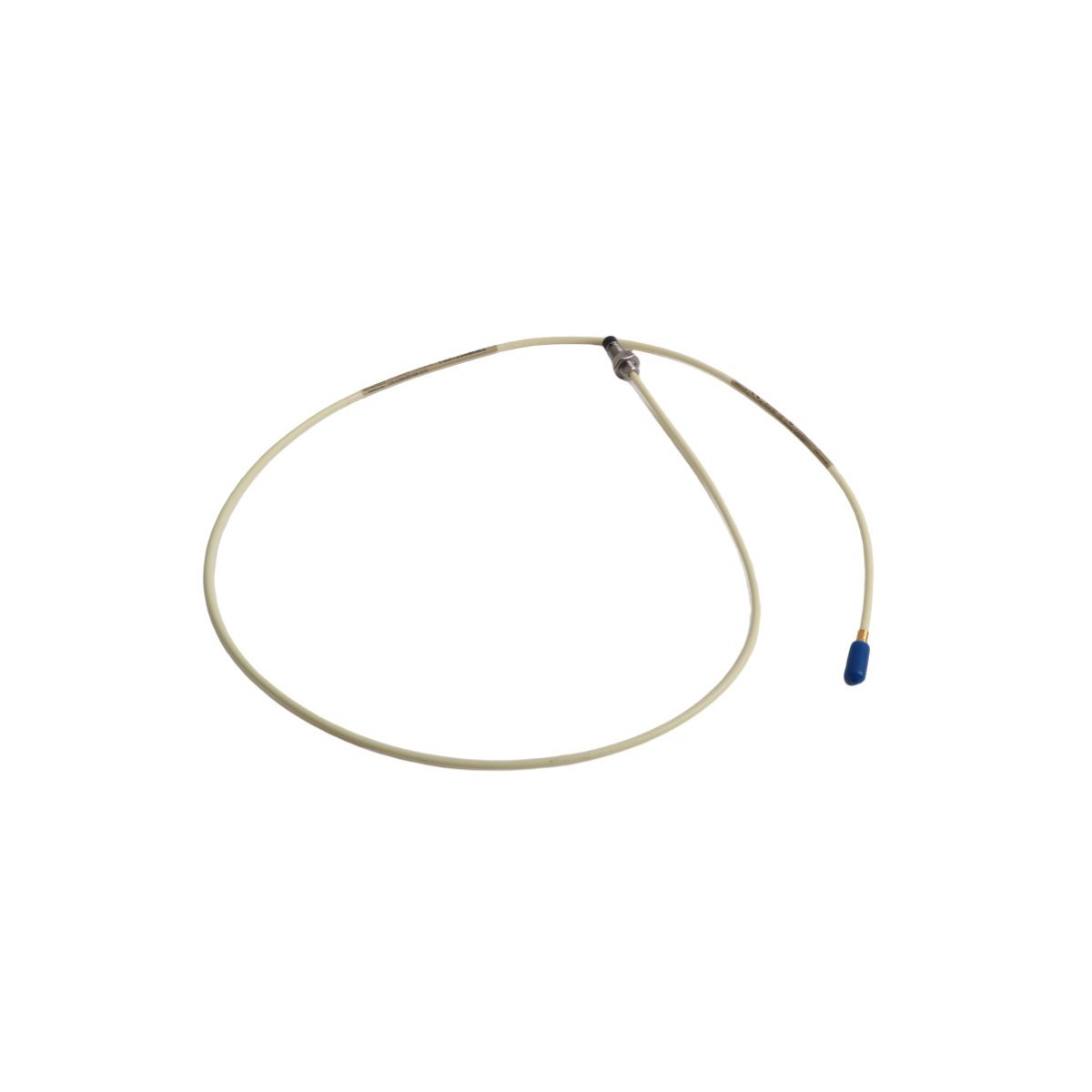

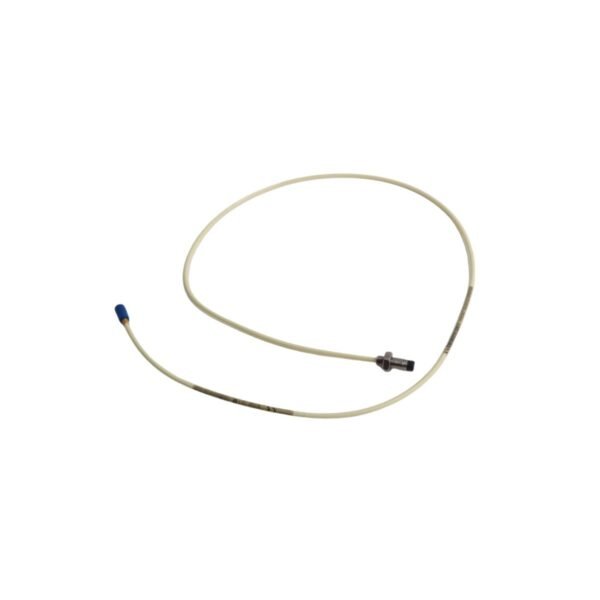

The Bently Nevada 21504-12-28-10-02 Standard Mount Probe is a high-precision, non-contact eddy-current displacement sensor engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in rotating machinery. Manufactured by Baker Hughes (under the Bently Nevada brand—a globally recognized leader in condition monitoring and predictive maintenance solutions), this probe forms a critical component of the 3300 XL series monitoring systems. Designed to meet stringent industrial reliability standards—including API 670 (Machinery Protection Systems) and ISO 10816 (Mechanical Vibration Evaluation)—the 21504-12-28-10-02 delivers exceptional linearity, thermal stability, and signal fidelity across demanding operational environments. Its robust stainless steel construction ensures resistance to corrosion, mechanical abrasion, and electromagnetic interference, making it ideal for deployment in power generation turbines, compressors, pumps, motors, and other mission-critical rotating equipment. The probe operates as part of an integrated transducer system, requiring pairing with a compatible Bently Nevada 3300 XL or 3500 series proximity driver to convert eddy-current field variations into calibrated DC voltage outputs (typically −2 to −18 VDC). All units are factory-calibrated using traceable NIST-certified equipment and shipped with full calibration documentation, including sensitivity, linearity error, and temperature drift coefficients. This product is supplied in new, unused condition—original factory sealed packaging with complete accessories (probe, extension cable, and mounting hardware)—and backed by a comprehensive 24-month limited warranty covering material defects and workmanship. The probe is manufactured in the United States, reflecting Bently Nevada’s commitment to precision engineering, rigorous quality control, and domestic supply chain integrity.

Detailed Specifications

Key Features

• Precision Calibration & Traceability: Each unit undergoes individual factory calibration with full NIST-traceable documentation, ensuring compliance with API 670 Section 5.4 and enabling seamless integration into certified machinery protection systems.
• Enhanced Thermal Compensation: Advanced coil winding and core geometry minimize temperature-induced zero-shift and sensitivity drift—critical for stable long-term operation in steam turbine casings and gas compressor skids.
• Robust Mechanical Design: IP67-rated housing with hardened stainless steel threads and corrosion-resistant surface finish withstands high-vibration, high-humidity, and chemically aggressive process environments.
• Optimized Electromagnetic Immunity: Integrated RF filtering and double-shielded coaxial cabling provide >60 dB common-mode rejection, eliminating noise from variable-frequency drives (VFDs), switchgear, and arc welding operations.
• Plug-and-Play Compatibility: Fully interoperable with Bently Nevada 3300 XL, 3500/22M, and System 1™ platforms—no field recalibration required when replacing legacy 3300 series probes.
• Extended Service Life: Gold-plated contacts and vacuum-impregnated coil insulation deliver MTBF exceeding 100,000 operating hours under continuous duty per IEC 61508 SIL 2 requirements.
• Global Regulatory Compliance: Certified to UL 61010-1, CSA C22.2 No. 61010-1, ATEX II 2G Ex db IIC T4 Gb, and IECEx DBEX 20.0021X for hazardous area installation (Zone 1/21).

Applications

• Steam and Gas Turbines: Monitoring radial vibration (bearing journals), thrust position (axial displacement), and casing-to-rotor differential expansion in utility-scale and industrial cogeneration plants.
• Centrifugal Compressors: Detecting surge onset, unbalance, misalignment, and bearing wear in petrochemical, refining, and LNG facilities—integrated with DCS and AMS Machinery Manager.
• Large Electric Motors & Generators: Measuring rotor eccentricity, air-gap variation, and frame vibration in 5–100 MW synchronous machines used in hydroelectric, nuclear, and wind farm balance-of-plant systems.
• Pump Trains & Gearboxes: Providing high-fidelity shaft motion data for root cause analysis of cavitation, recirculation, and gear mesh faults in API 610 and API 677 compliant installations.
• Test Stands & R&D Labs: Serving as a reference-grade transduction element in OEM validation, modal analysis, and dynamic balancing applications requiring sub-micron resolution and phase-coherent output.
• Renewable Energy Infrastructure: Supporting predictive health monitoring of pitch/yaw drive mechanisms and main shaft assemblies in modern multi-MW wind turbines operating under extreme cyclic loading.
