Description

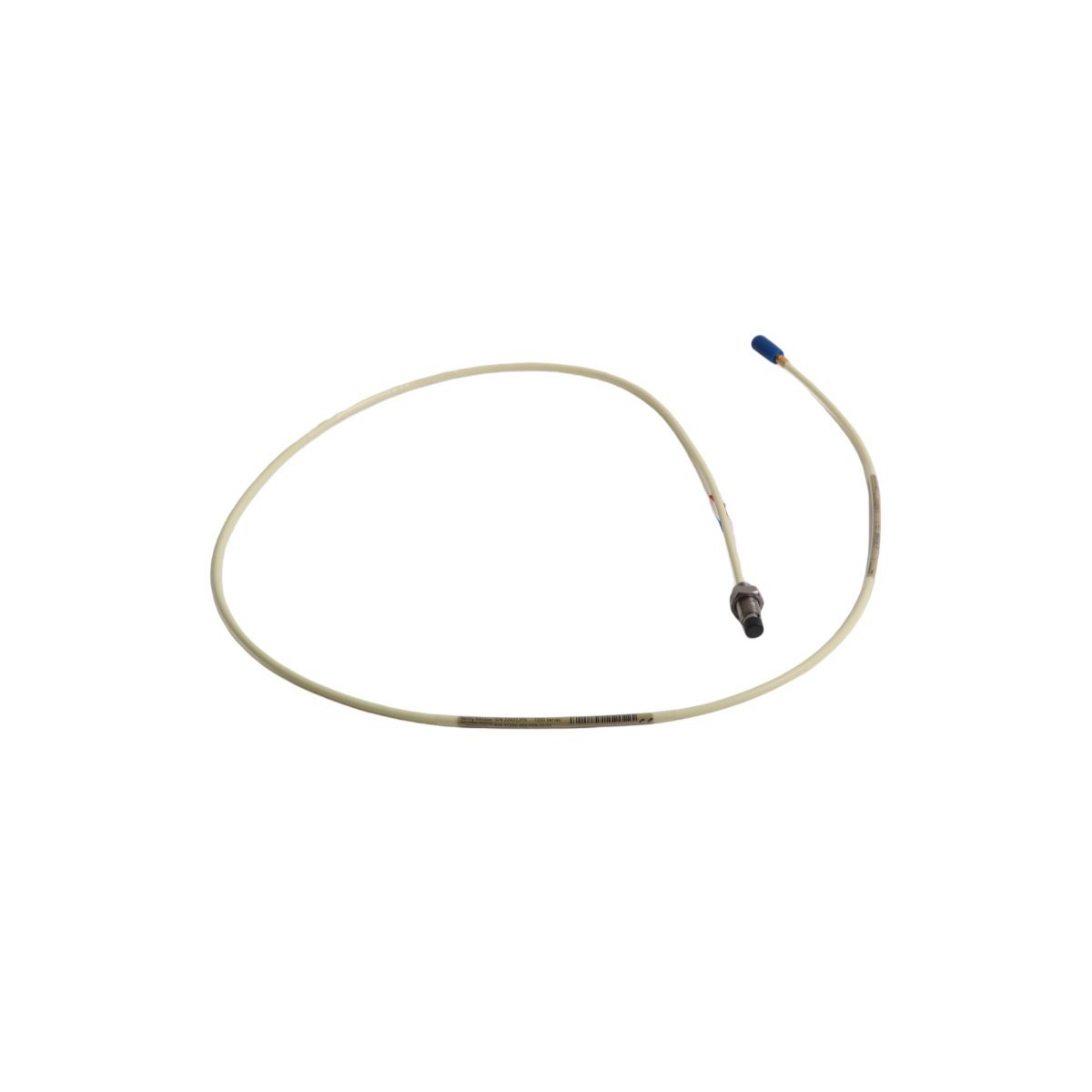

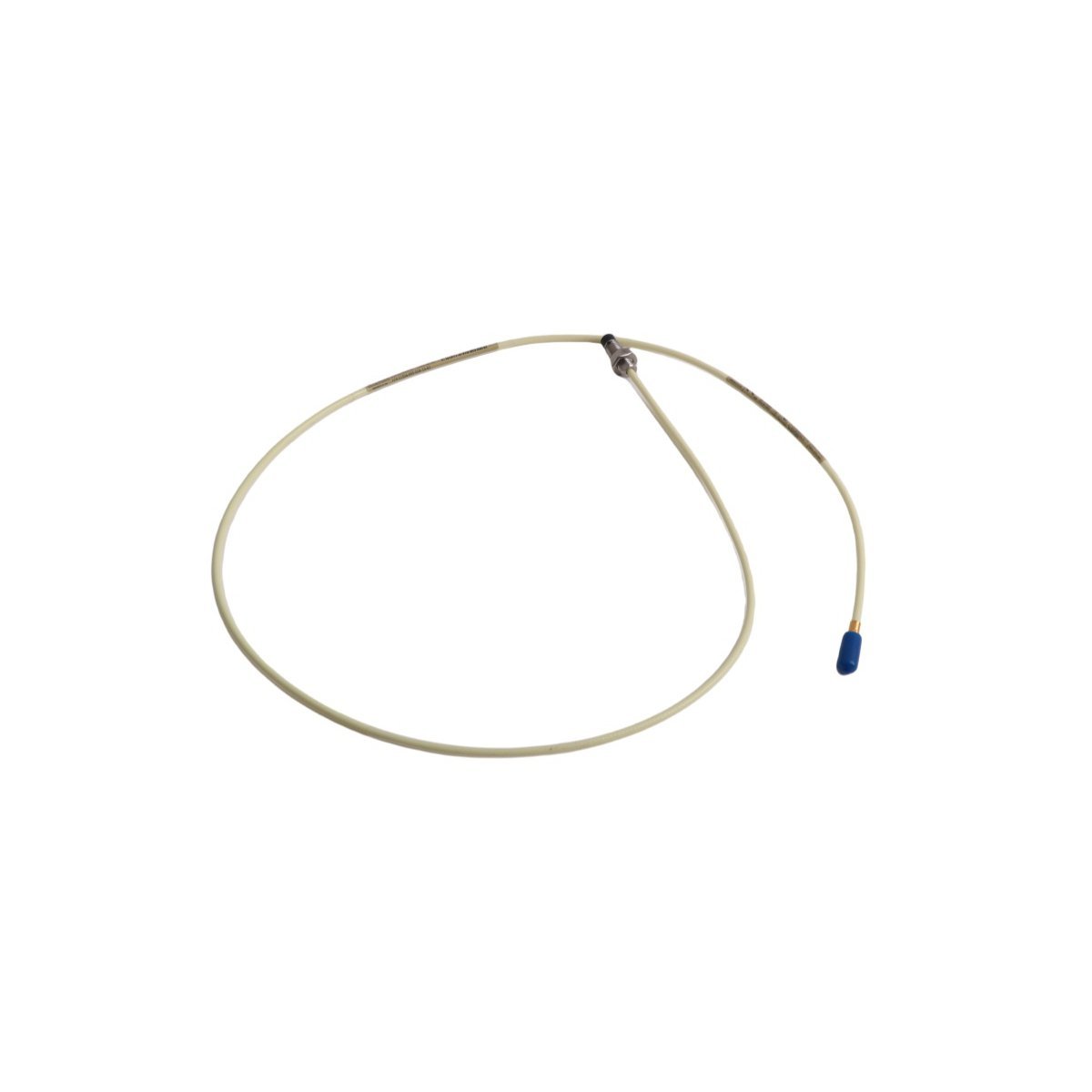

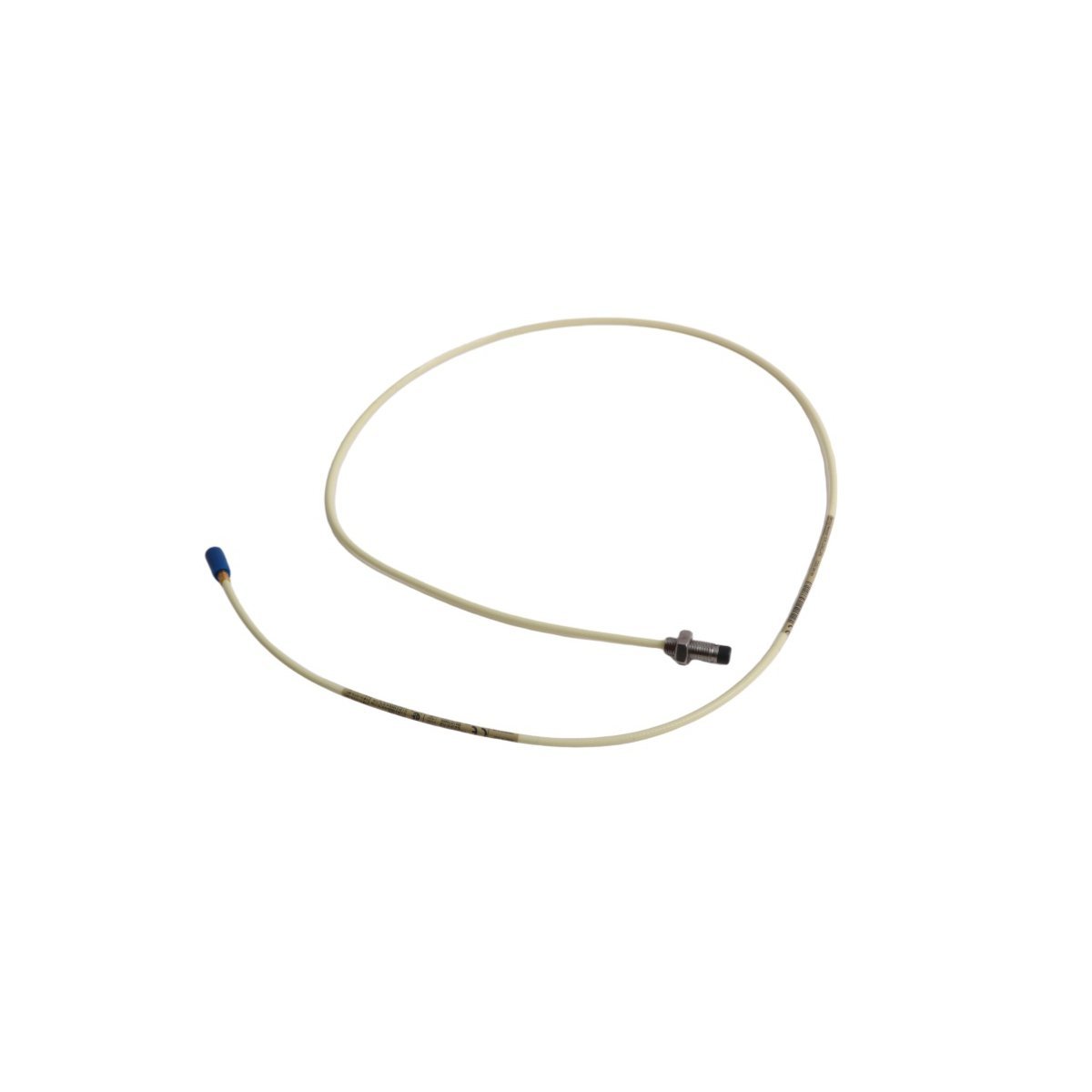

21504-000-008-10-02 | Bently Nevada | Standard Mount Probe

### Product Description
This is a non-contact eddy current proximity probe designed for shaft vibration and position monitoring in rotating machinery. It interfaces with Bently Nevada 3500/4000-series monitoring systems.
Moreover, it delivers high-resolution displacement measurements for critical machine protection and condition monitoring. Therefore, it is deployed on steam turbines, compressors, and large motors where precise shaft dynamics are required. In addition, its standard mount configuration enables straightforward installation into existing threaded housings without custom adapters.

### Technical Specifications

### Typical Applications
– Steam turbine shaft vibration and axial position monitoring
– Centrifugal compressor radial and thrust bearing monitoring
– Large electric motor shaft runout and gap measurement
– Gas turbine rotor dynamic analysis in power generation

### FAQ
What is the probe’s nominal sensing range?
The nominal linear sensing range is 2.0 mm (0.080 in).

Is this probe compatible with the 3500 system?
Yes, it is fully compatible with Bently Nevada 3500/4000-series monitors when used with appropriate extension cables and前置器.

Does it require calibration before installation?
No—factory-calibrated; zero-shift verification is recommended during installation per API 670.

What thread type does the probe body use?
1.25-12 UNF–2A external thread for standard mount housing integration.

Can it be used in hazardous areas?
Only when installed with an approved intrinsic safety barrier and certified associated apparatus per IECEx/ATEX requirements.
