Technical Overview

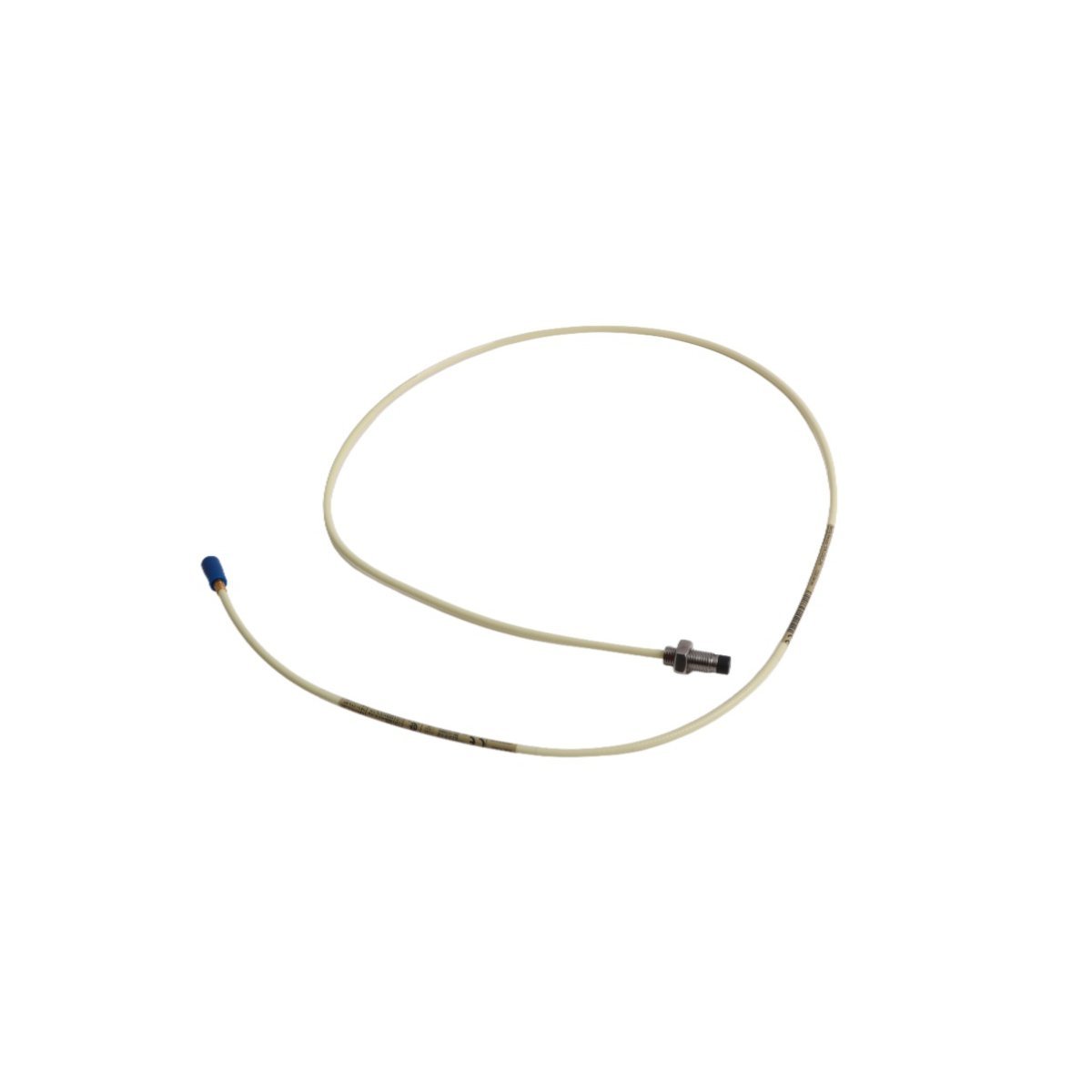

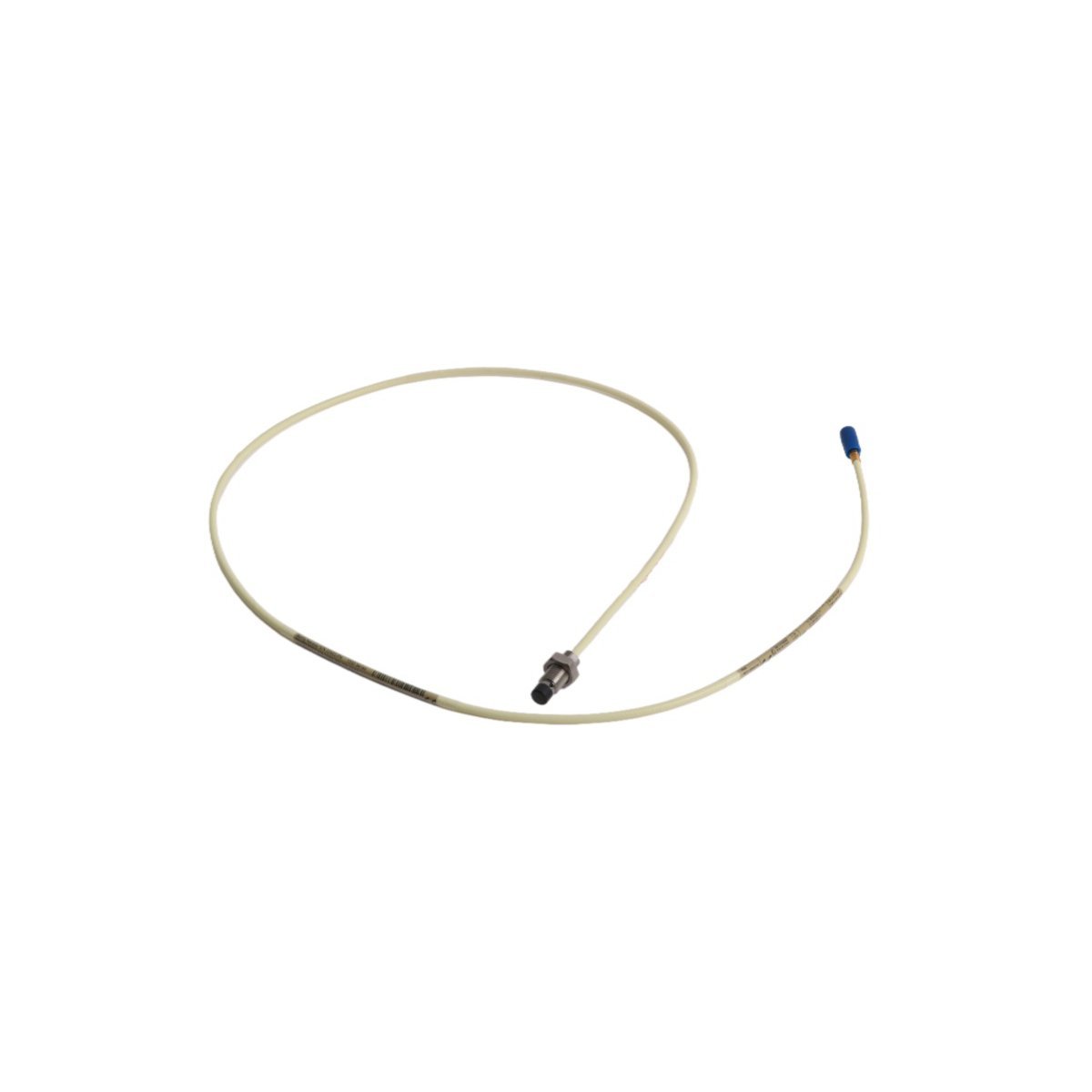

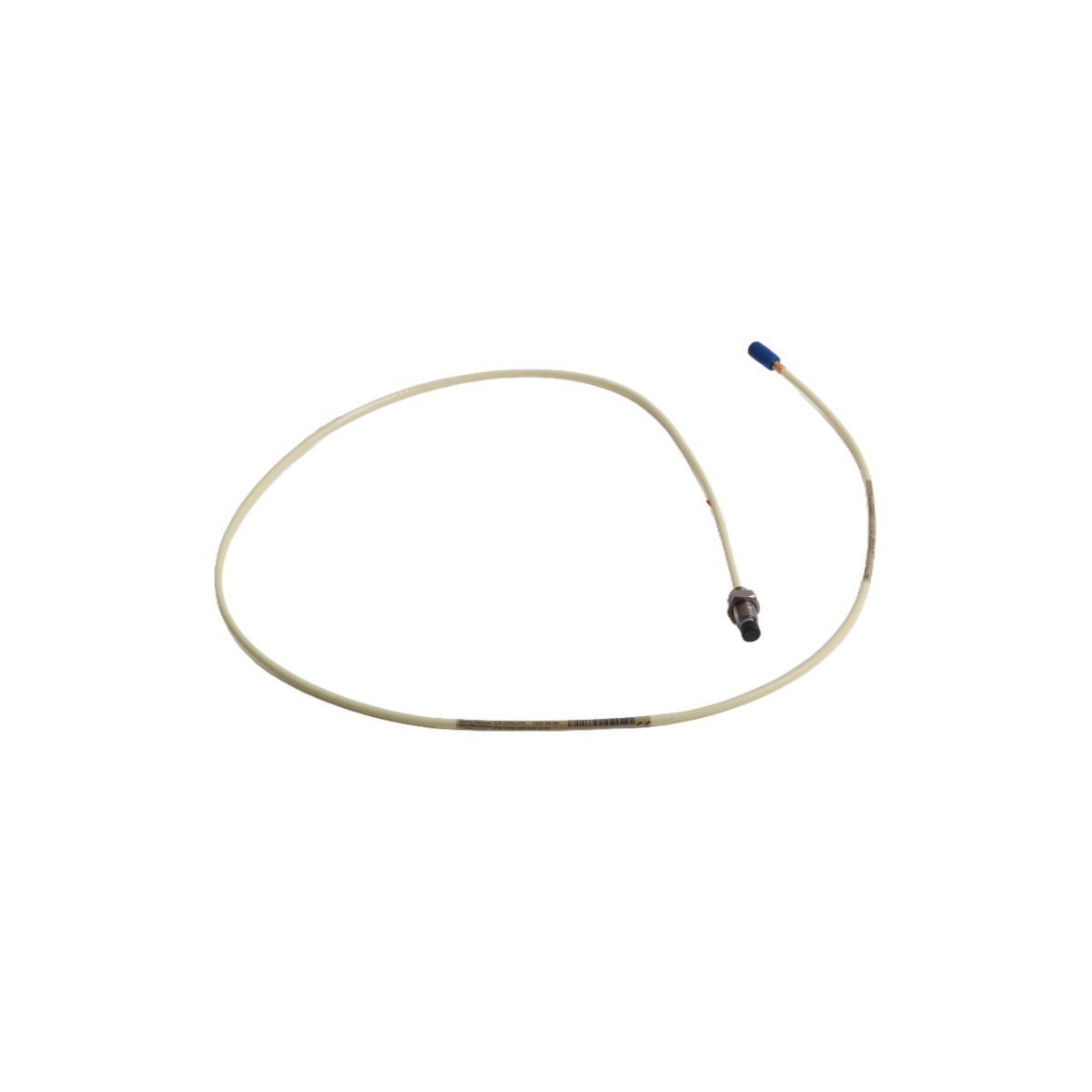

The Bently Nevada 21504-00-16-10-02 is a high-precision, reverse-mount proximity probe engineered for demanding industrial condition monitoring and machinery protection applications. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in asset reliability and predictive maintenance solutions, this probe is part of the renowned 3300 XL 8 mm sensor family—designed to deliver exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity in harsh operational environments. As a reverse-mount configuration, the 21504-00-16-10-02 features an integrated connector oriented toward the mounting surface, enabling compact installation in space-constrained machinery enclosures—particularly where conventional forward-mount probes would interfere with adjacent components or access panels. The probe utilizes advanced eddy-current technology to measure dynamic and static displacement of conductive target materials with sub-micron resolution, supporting critical functions such as shaft vibration monitoring, axial position sensing, differential expansion measurement, and rotational speed (RPM) determination. Each unit undergoes rigorous factory calibration against NIST-traceable standards and is certified to meet ISO 10816, API 670 (4th and 5th Editions), and IEC 61000-6-2/6-4 electromagnetic compatibility requirements. The probe is supplied in new, factory-fresh condition, backed by a comprehensive 24-month limited warranty covering material defects and workmanship—ensuring long-term reliability and compliance with OEM-specified performance criteria.

Detailed Specifications

Key Features

• Reverse-Mount Design: Unique rear-facing connector enables flush installation in tight spaces—ideal for turbine casings, compressor housings, and gearboxes where front-access clearance is restricted.
• Enhanced Thermal Stability: Precision-matched coil and housing materials minimize temperature-induced drift (<0.05% FS/°C), ensuring consistent accuracy across wide ambient fluctuations.
• High EMI Immunity: Fully shielded construction with double-braided copper braid and ferrite suppression meets stringent IEC 61000-6-4 industrial emission standards.
• NIST-Traceable Calibration: Supplied with individual calibration certificate documenting sensitivity, linearity error (<±0.3%), and frequency response verification.
• Robust Mechanical Integrity: 316 stainless steel body rated for IP68 ingress protection; withstands shock up to 500 g and vibration up to 50 g RMS.
• OEM-Compatible Integration: Designed for seamless interoperability with Bently Nevada 3300 XL 2-channel monitors (e.g., 3300/22, 3300/25), 3500 system racks, and third-party PLC/DCS interfaces via standard 4–20 mA or voltage output modules.
• Extended Service Life: Gold-plated contacts and hermetically sealed internal electronics ensure >10-year operational longevity under continuous duty cycles.

Applications

• Rotating Machinery Protection: Real-time monitoring of radial vibration and axial position in steam/gas turbines, centrifugal compressors, and large electric motors per API 670 requirements.
• Turbine Differential Expansion Monitoring: Paired reverse-mount probes on casing and rotor enable precise thermal growth tracking during startup, shutdown, and load transitions.
• Hydroelectric Generator Condition Monitoring: Shaft orbit analysis and thrust bearing wear detection in vertical and horizontal configurations exposed to high humidity and cooling water environments.
• Petrochemical Process Equipment: Vibration surveillance of API 610/617 pumps and compressors operating in hazardous (Class I Div 1) areas requiring ATEX-certified sensing elements.
• Power Generation Balance-of-Plant Systems: Feedwater pump monitoring, induced draft fan control, and boiler circulation pump health assessment in fossil and nuclear facilities.
• Retrofit & Modernization Projects: Drop-in replacement for legacy 3300 series probes—preserves existing cabling infrastructure while upgrading to current-generation XL performance specifications.
• Research & Development Test Benches: High-fidelity displacement measurement in university labs, OEM validation centers, and aerospace engine test cells requiring traceable metrology-grade data.
