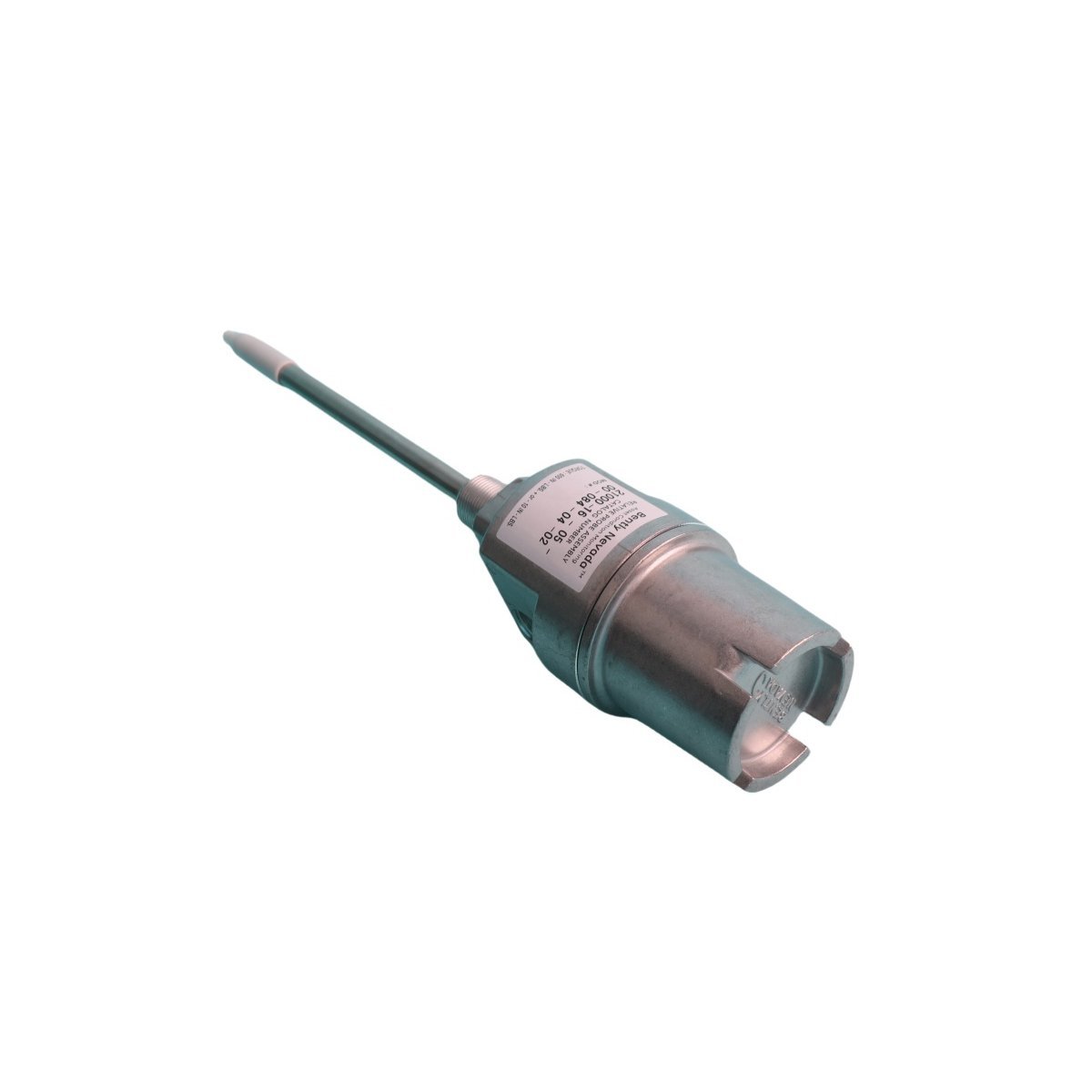

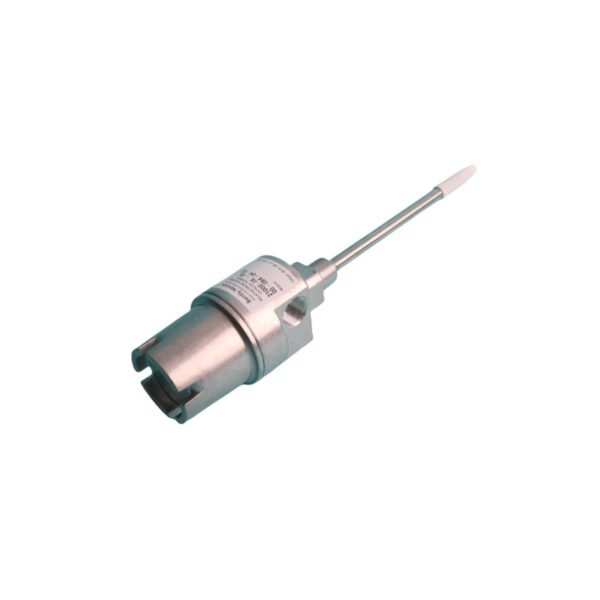

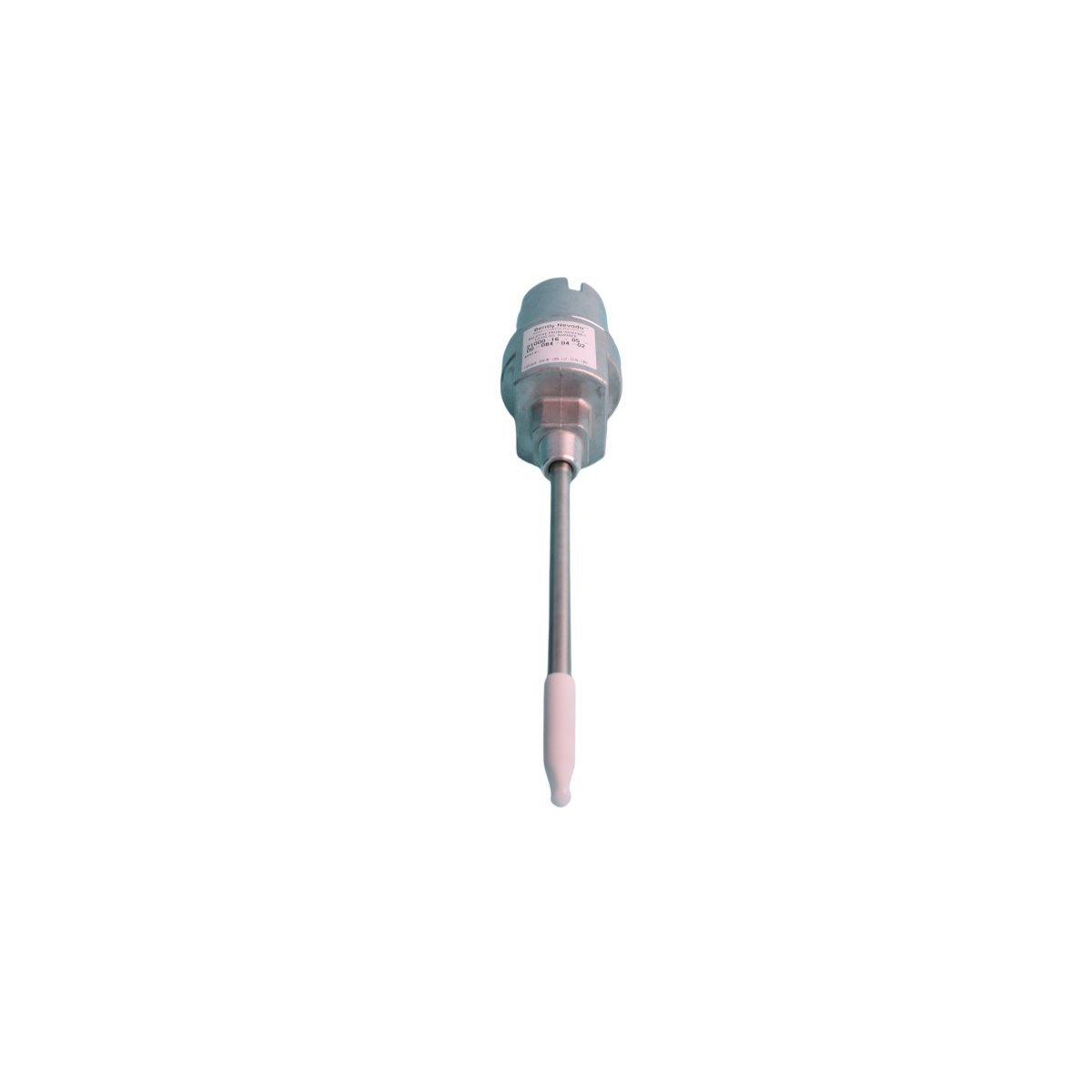

The Bently Nevada 21000-33-10-00-070-04-02 Proximity Probe Housing Assemblies are precision-engineered mechanical components designed exclusively for integration with Bently Nevada 3300 XL and 3500 series proximity probe systems. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in machinery protection and condition monitoring solutions, this housing assembly serves as the critical interface between the proximity probe sensor and the machine surface—ensuring optimal electromagnetic coupling, mechanical stability, thermal resilience, and long-term repeatability under demanding industrial conditions. Each unit is factory-assembled to exacting tolerances and rigorously tested for dimensional accuracy, material integrity, and electrical shielding performance. The housing incorporates a non-magnetic stainless steel body (AISI 316L) with integrated O-ring sealing (Viton®), threaded mounting (M10 × 1.0 mm fine pitch), and precision-machined internal bore geometry to accommodate standard 5 mm or 8 mm diameter probes. Designed for continuous operation in ambient temperatures ranging from –40 °C to +125 °C and vibration environments up to 100 g RMS, the 21000-33-10-00-070-04-02 meets IEC 61508 SIL 2 functional safety requirements when deployed within certified monitoring systems. Its robust construction mitigates signal drift caused by thermal expansion, mechanical creep, or electromagnetic interference—directly contributing to measurement accuracy of ±0.25% full scale across the operational bandwidth (0–10 kHz). This OEM-certified component is supplied new, unused, and in original factory packaging—guaranteeing full compliance with Bently Nevada’s system-level calibration protocols and diagnostic algorithms.

Detailed Specifications

Key Features

• OEM Precision Engineering: Manufactured to Bently Nevada’s proprietary GD&T (Geometric Dimensioning and Tolerancing) specifications—ensuring zero fitment variance with 3300 XL 5 mm and 8 mm probe cartridges and compatible with all 3500 rack-based monitors.
• Thermally Stable Construction: AISI 316L stainless steel body exhibits linear thermal expansion coefficient of 16.0 µm/m·°C—minimizing probe-to-target gap error across wide temperature gradients encountered in turbine casings, compressor housings, and gearbox flanges.
• Hermetic Sealing Performance: Dual-stage Viton® O-ring seal rated IP68 (1 m submersion for 30 days) and resistant to hydrocarbons, steam, and synthetic lubricants—critical for refinery, petrochemical, and offshore applications.
• EMI/RFI Immunity: Integrated copper-nickel electroplated shield layer and grounding spring eliminate common-mode noise ingress, preserving signal fidelity in high-noise EMI zones near VFDs, SCR drives, and switchgear.
• Repeatable Mounting Torque: Optimized thread pitch and surface finish (Ra ≤ 0.4 µm) enable consistent 12–15 N·m installation torque—preventing thread galling while ensuring axial preload stability over 10,000 thermal cycles.
• Traceability & Documentation: Each unit carries a unique laser-etched serial number linked to full MRP traceability, mill test reports (EN 10204 3.1), and calibration certificate per ISO/IEC 17025 standards.
• Global Support Infrastructure: Backed by Baker Hughes’ 24/7 technical assistance network—including on-site engineering audits, predictive maintenance analytics integration, and firmware compatibility validation for System 1™ platforms.

Applications

• Rotating Machinery Protection: Critical shaft vibration and axial position monitoring on gas turbines, steam turbines, centrifugal compressors, and large electric motors (>5 MW) in power generation plants.
• Oil & Gas Production Systems: Real-time rotor dynamics analysis in upstream ESPs (Electric Submersible Pumps), downstream fractionation compressors, and LNG train cold-end expanders operating at cryogenic temperatures.
• Refinery & Petrochemical Assets: Monitoring of critical pumps, blowers, and turboexpanders exposed to aggressive process media—including H₂S, amine solutions, and chlorinated hydrocarbons.
• Aerospace Ground Test Facilities: High-fidelity transient response capture during jet engine and APUs (Auxiliary Power Units) endurance testing—leveraging sub-micron resolution and 100 kHz bandwidth capability.
• Marine Propulsion Systems: Shaft orbit analysis and thrust bearing wear detection in naval vessels and commercial cargo ships utilizing controllable pitch propellers and podded drives.
• Pharmaceutical & Food Processing Equipment: Hygienic vibration monitoring of sterile mixers, homogenizers, and centrifuges where stainless steel compatibility and clean-in-place (CIP) resistance are mandatory.
• Renewable Energy Infrastructure: Condition monitoring of wind turbine gearboxes and main bearings—supporting predictive maintenance strategies aligned with ISO 13374-2 and ISO 13373-3 standards.
