Technical Overview

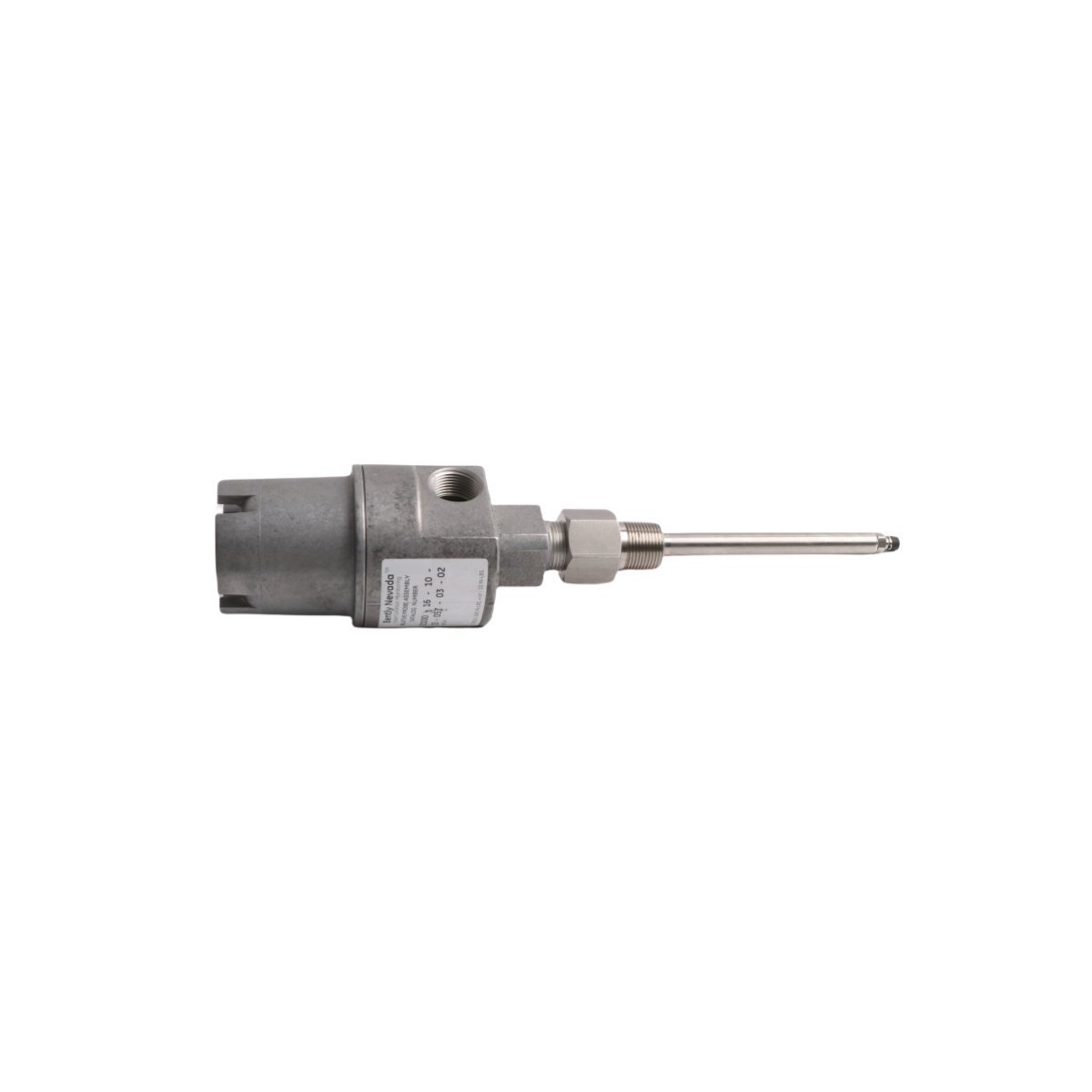

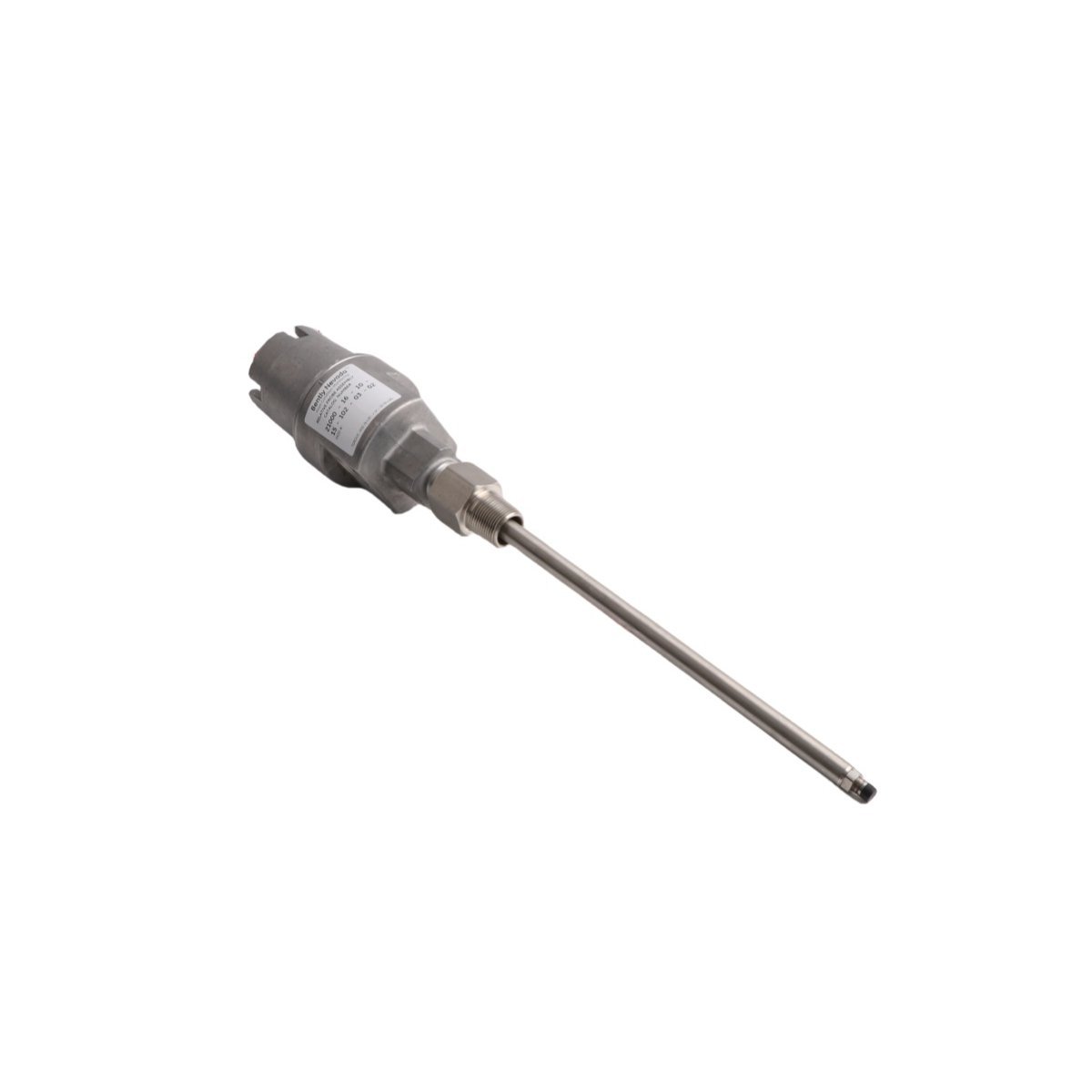

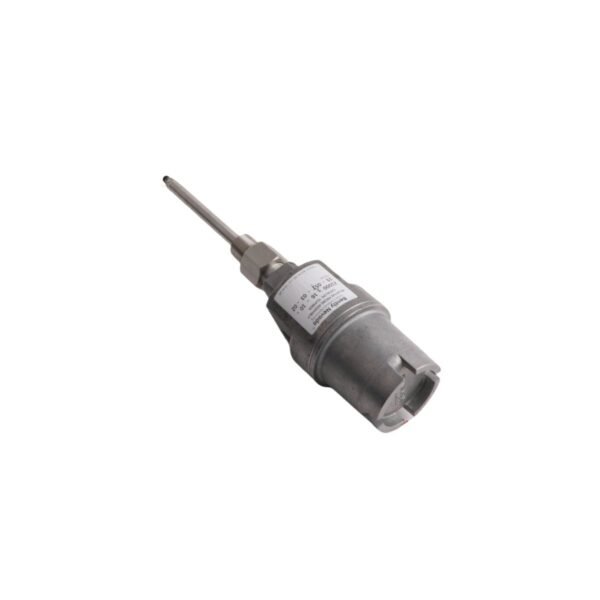

The Bently Nevada 21000-16-10-000-062-03-02 Proximity Probe Housing Assembly is a precision-engineered, OEM-certified component designed exclusively for integration into the Bently Nevada 3300 XL and 3500 series vibration monitoring systems. Manufactured by Baker Hughes (formerly Bently Nevada), this housing assembly serves as the critical mechanical interface between the proximity probe sensor and the machine shaft or target surface—ensuring optimal electromagnetic coupling, thermal stability, and long-term signal integrity under demanding industrial conditions. Engineered to meet stringent API 670 (4th Edition) and ISO 10816 standards, the unit delivers sub-micron resolution in displacement measurement while maintaining robust immunity to electromagnetic interference (EMI), oil mist ingress, and mechanical vibration-induced resonance. Each assembly undergoes 100% factory calibration verification using traceable NIST-standard equipment and is supplied with full documentation including calibration certificates, RoHS compliance statements, and mechanical installation schematics. Designed for permanent mounting on rotating machinery—including steam turbines, gas compressors, centrifugal pumps, and large electric motors—the housing ensures consistent probe tip-to-target gap alignment across thermal cycles ranging from –40 °C to +125 °C ambient. Its modular architecture supports rapid field replacement without recalibration of the associated monitor, minimizing unplanned downtime and supporting predictive maintenance strategies aligned with Industry 4.0 digital twin frameworks.

Detailed Specifications

Key Features

• OEM Precision Calibration Integration: Pre-aligned and pre-calibrated to match Bently Nevada 3300 XL 5 mm and 8 mm proximity probes—eliminates field calibration drift and ensures system-level accuracy within ±1% of full scale.
• Hermetic Sealing Architecture: Dual-lip Viton® O-ring design with axial compression retention prevents oil, water, and particulate ingress—even under high-vibration and cyclic thermal loading typical in refinery and power generation environments.
• Thermally Stable Stainless Steel Construction: AISI 316L housing minimizes coefficient of thermal expansion mismatch with common shaft materials (e.g., 4140 steel), reducing gap error to <0.25 µm/°C over operational range.
• Modular Threaded Mounting System: M10 × 1.0 thread enables secure, repeatable installation in confined spaces; torque specification of 12–15 N·m ensures consistent clamping force without thread deformation.
• EMI-Resistant Signal Integrity: Integrated coaxial grounding path and shielded cable exit port reduce common-mode noise by up to 40 dB compared to non-OEM alternatives—critical for low-amplitude fault detection (e.g., early-stage bearing wear).
• API 670-Compliant Documentation: Supplied with full traceable calibration data, mechanical drawings (ASME Y14.5), and installation instructions aligned with API RP 670 Annex C best practices.
• Sustainability-Ready Design: Fully recyclable metal construction; zero hazardous substances per EU Directive 2011/65/EU; supports circular economy initiatives through Baker Hughes’ certified remanufacturing program.

Applications

• Rotating Machinery Protection: Critical monitoring of shaft displacement in steam and gas turbines, axial and centrifugal compressors, and large induction/synchronous motors per API 612, API 617, and API 686 requirements.
• Power Generation Assets: Rotor position and thrust monitoring in nuclear, combined-cycle, and hydroelectric generating units where regulatory compliance (NRC, ISO 55001) mandates OEM-specified sensing components.
• Oil & Gas Infrastructure: Vibration and axial position monitoring in offshore platform compressors, pipeline booster stations, and FPSO turbomachinery exposed to corrosive marine atmospheres and H₂S environments.
• Industrial Process Pumps: Reliable shaft runout and bearing housing vibration assessment in API 610-compliant centrifugal pumps used in chemical processing, petrochemical refining, and desalination plants.
• Predictive Maintenance Programs: Enables high-fidelity data acquisition for AI-driven diagnostics (e.g., spectral analysis, envelope demodulation) when integrated with Bently Nevada System 1™ or third-party IIoT platforms.
• Functional Safety Systems: Approved for use in SIL-2 rated machinery protection systems (MPS) when deployed with compatible 3500/40 series monitors and certified logic solvers per IEC 61508 and IEC 61511.
