Technical Overview

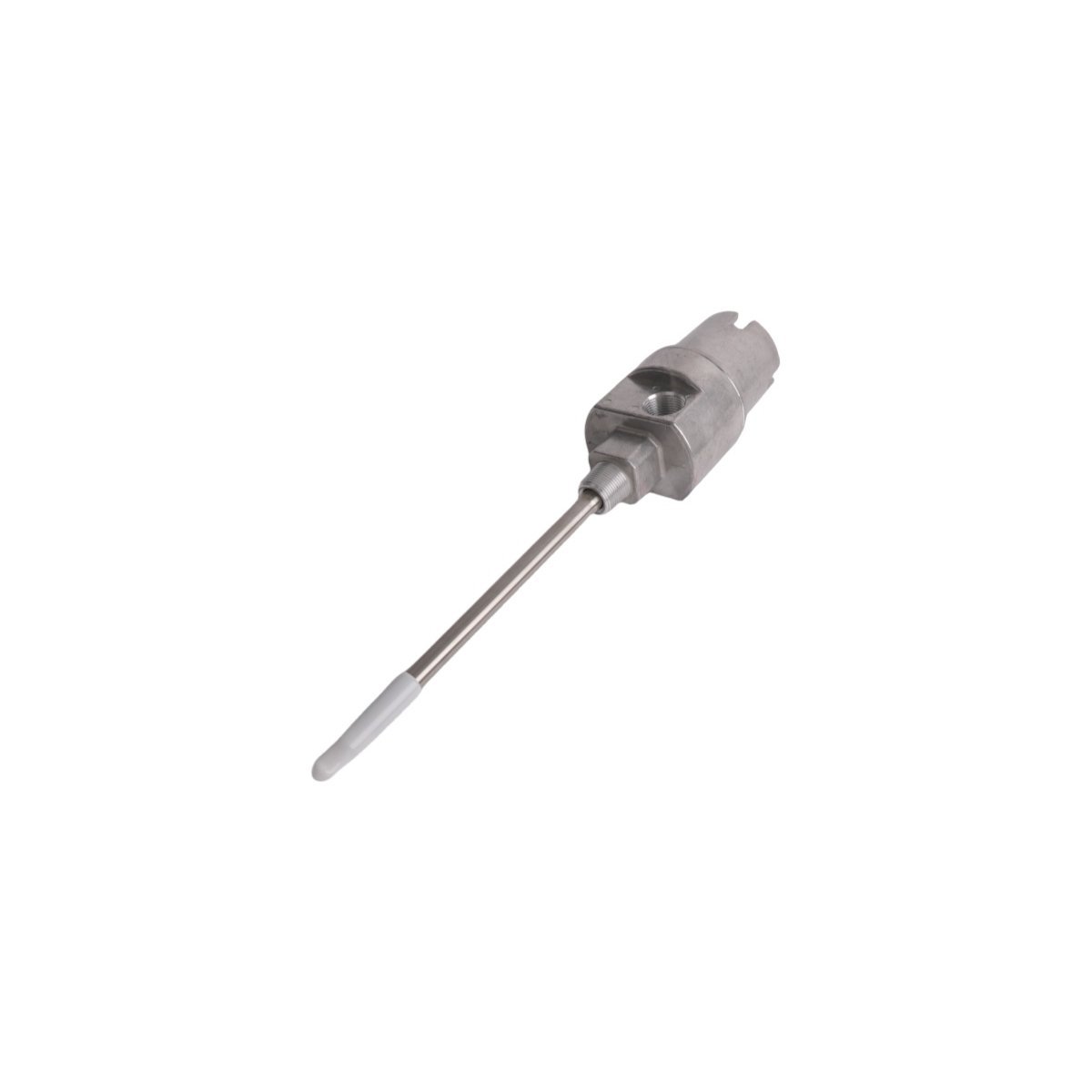

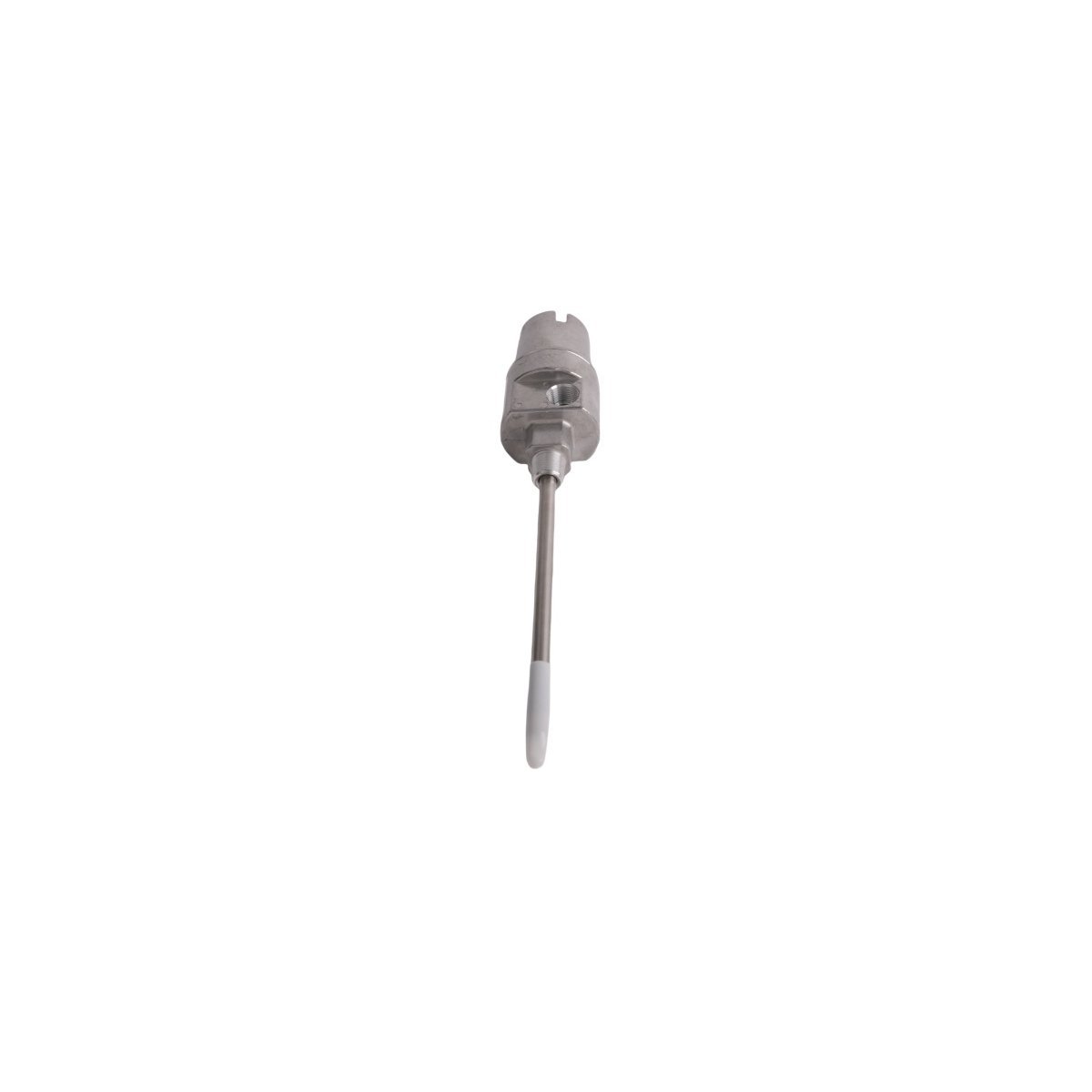

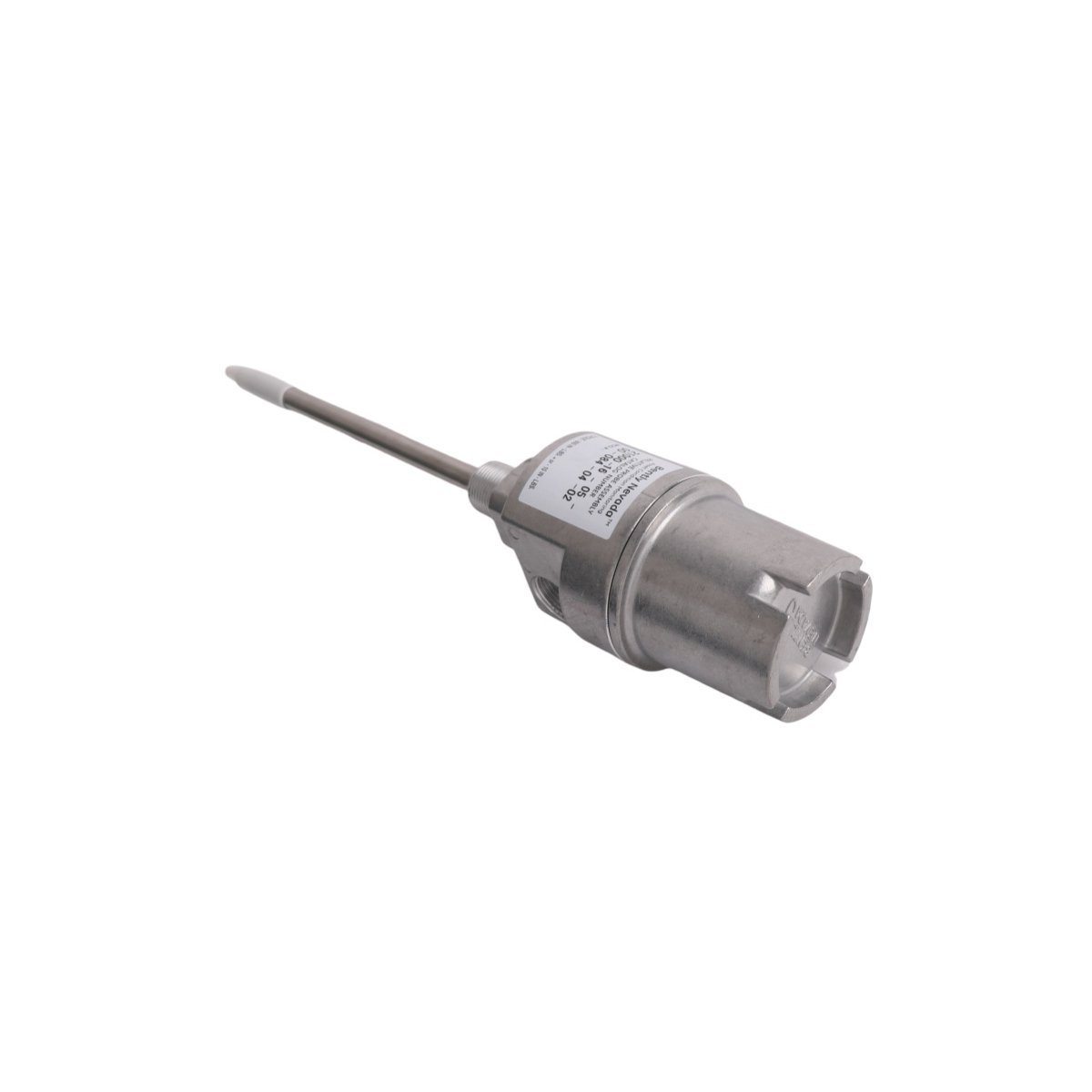

The Bently Nevada 21000-16-05-00-135-03-02 Proximity Probe Housing Assembly is a precision-engineered component designed for demanding industrial condition monitoring and machinery protection applications. As part of the industry-standard 3300 XL series ecosystem, this housing assembly ensures optimal mechanical alignment, thermal stability, and electromagnetic interference (EMI) shielding for compatible proximity probes—critical for accurate shaft vibration, axial position, and differential expansion measurements in rotating equipment.

Manufactured to stringent API 670 and ISO 10816 compliance standards, the assembly integrates seamlessly with Bently Nevada’s 3300 XL 8 mm and 11 mm probe systems. Its robust stainless steel construction provides superior resistance to corrosion, high-pressure washdowns, and harsh process environments—including petrochemical, power generation, and heavy manufacturing facilities. The housing features a precisely machined mounting thread (M16 × 1.5), integrated strain relief, and hermetically sealed cable entry to maintain signal integrity across wide temperature ranges (–30°C to +120°C).

Key Features

• Precision-Machined Housing: Ensures consistent probe tip-to-target gap repeatability and minimizes measurement drift over time
• EMI/RFI Shielding: Integrated conductive gasketing and grounded metal body suppress electrical noise in electrically noisy plant environments
• IP68-Rated Sealing: Fully protected against dust ingress and continuous submersion up to 1.5 meters—ideal for washdown and outdoor installations
• Thermally Stable Design: Low-coefficient-of-expansion materials reduce thermal-induced calibration shift during ambient or process temperature fluctuations
• Plug-and-Play Compatibility: Directly interfaces with 3300 XL monitoring systems and legacy 3300 NSV infrastructure without adapter kits

Specifications

• Part Number: 21000-16-05-00-135-03-02
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: Proximity Probe Housing Assembly (for 8 mm / 11 mm 3300 XL probes)
• Warranty: 24-month limited warranty covering material defects and workmanship under normal industrial use

Engineered for reliability in mission-critical applications, the 21000-16-05-00-135-03-02 housing supports predictive maintenance strategies by preserving probe accuracy over extended service intervals—reducing unplanned downtime and extending sensor lifecycle. Its standardized form factor simplifies inventory management and enables rapid field replacement during scheduled outages.
