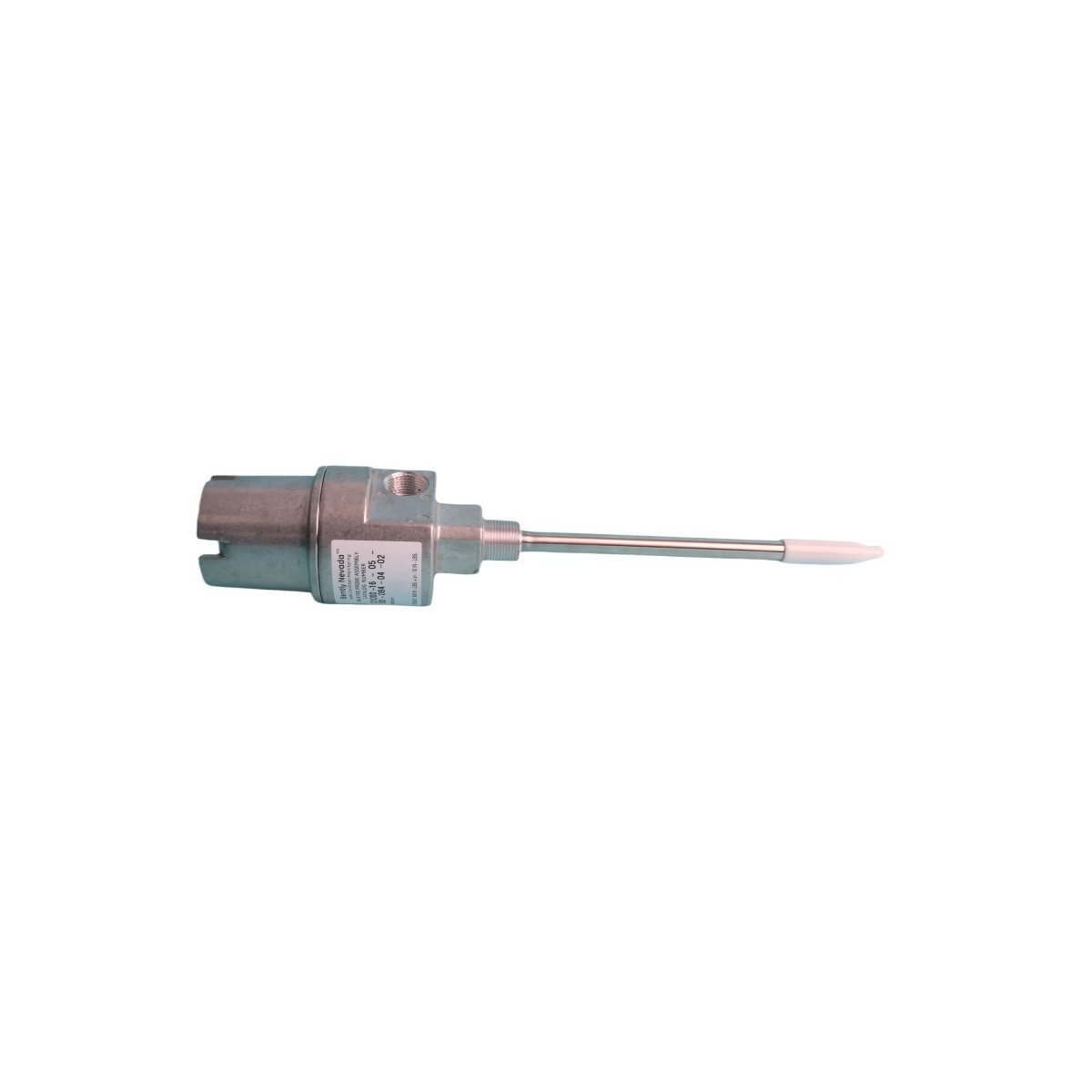

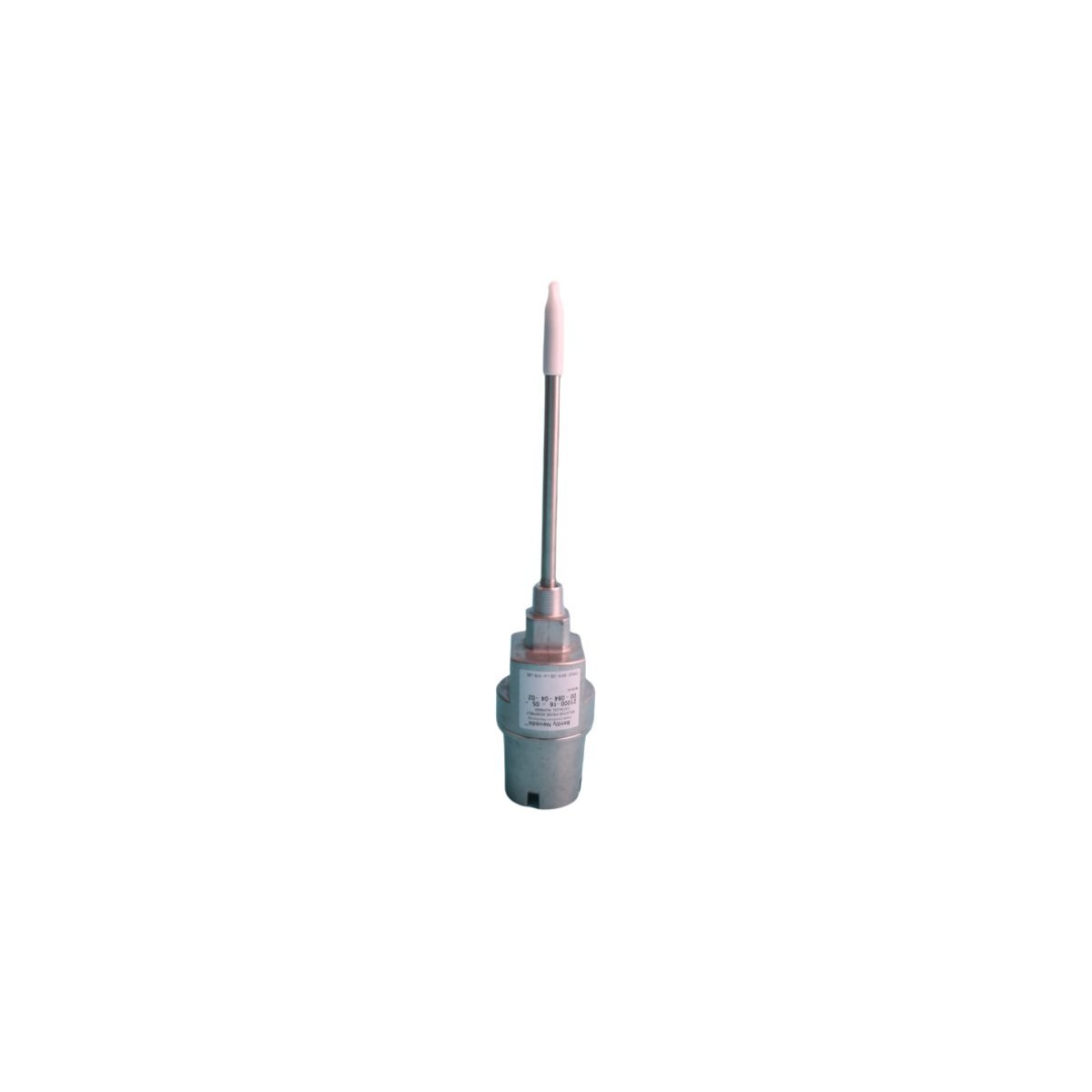

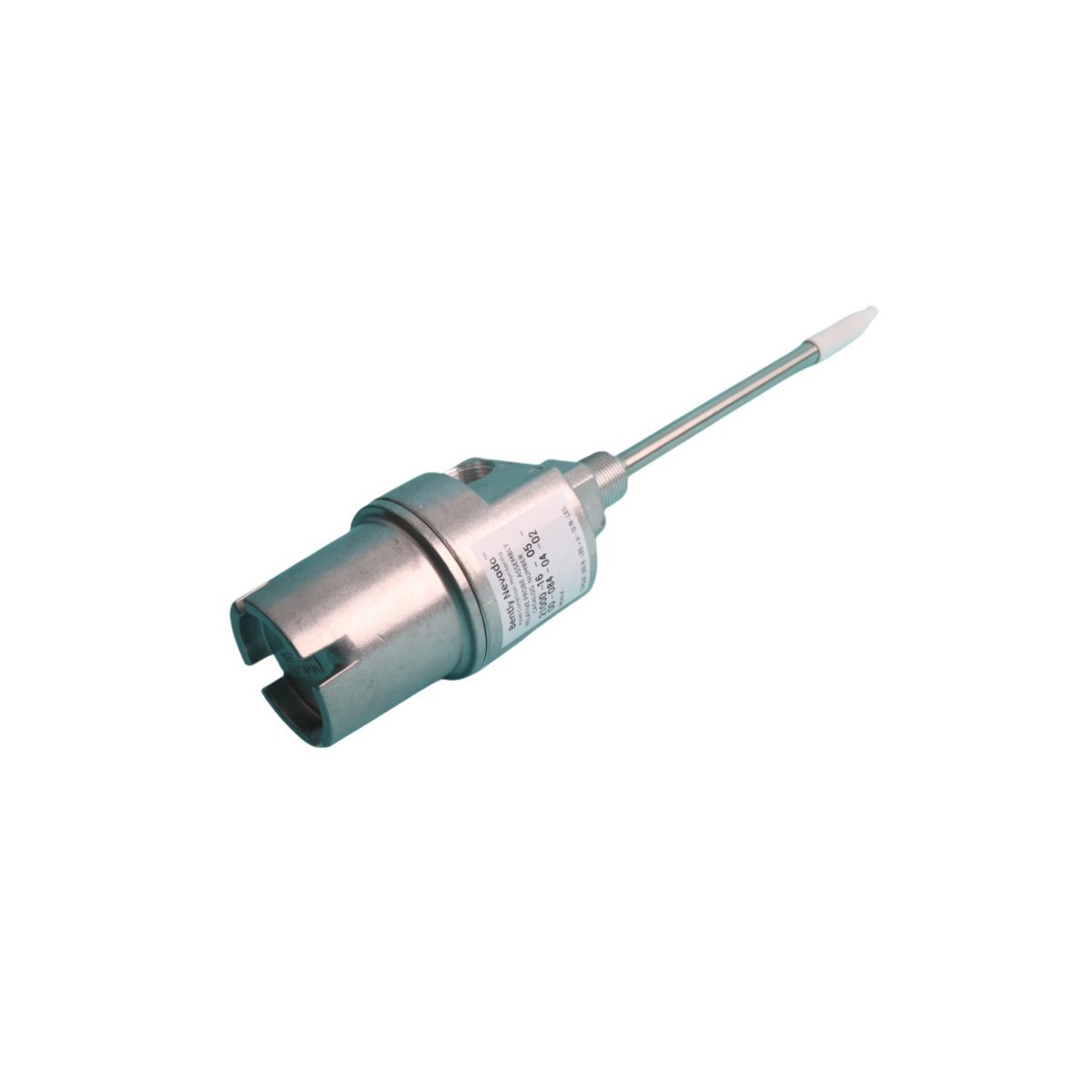

The Bently Nevada 21000-16-05-00-077-03-02 is a high-precision Proximity Probe Housing Assembly engineered for demanding industrial condition monitoring applications. Designed as an integral component of the 3300 XL 5/8 mm and 3300 NSV proximity sensor systems, this housing assembly ensures optimal mechanical alignment, thermal stability, and electromagnetic shielding for reliable displacement and vibration measurements. Its robust stainless steel construction and precision-machined threads (1/4–28 UNF) provide secure mounting and long-term repeatability in rotating machinery environments.

Key Benefits

• Enhanced Signal Integrity: Integrated EMI/RFI shielding minimizes electrical noise interference—critical for accurate shaft vibration and position data in electrically noisy plants.
• Plug-and-Play Compatibility: Fully compliant with Bently Nevada’s 3300 series monitoring systems, enabling seamless integration without recalibration or adapter hardware.
• Maintenance Reduction: Sealed design and corrosion-resistant materials extend service life and reduce unplanned downtime in harsh process environments—including petrochemical, power generation, and pulp & paper facilities.

Typical Applications

This housing assembly is deployed across critical rotating equipment including steam and gas turbines, centrifugal compressors, large motors, and gearboxes. It supports both radial and axial vibration monitoring per API 670 (4th Edition) standards and is widely specified in OEM turbine packages and retrofits requiring high-fidelity proximity-based protection and diagnostics.

Detailed Specifications

Electrical Parameters

Mechanical Parameters

Environmental Ratings

Rated for continuous operation in industrial environments per IEC 60529 (IP67) and MIL-STD-810G. Operating temperature range: –40°C to +125°C. Resistant to oil, steam, solvents, and condensation. Non-hazardous location rated; not intrinsically safe—consult system-level certification for hazardous area use.

Operational Capabilities

Precision Thermal Compensation

Engineered with matched thermal expansion coefficients between probe and housing to minimize zero-shift drift over wide ambient temperature swings—ensuring ±0.25% full-scale stability across the operating range.

Vibration Immunity

Rigid, low-resonance housing design suppresses mechanical coupling from panel or bearing housing vibrations, preserving signal fidelity up to 10 kHz bandwidth.

Repeatable Installation

Integrated depth-stop feature and laser-etched alignment marks ensure consistent probe gap setting and axial positioning—reducing setup time and measurement variance during commissioning or maintenance.

Technical FAQ

Is the 21000-16-05-00-077-03-02 compatible with legacy 3300 systems?

Yes. This housing assembly is backward-compatible with all 3300 series monitors (including 3300, 3300 XL, and 3300 NSV), supporting standard 5/8 mm probe configurations and maintaining calibration traceability to original OEM specifications.

Can it be used in high-pressure applications?

The housing itself is rated for static pressures up to 10 bar (145 psi). For dynamic or cyclic pressure environments exceeding 3 bar, consult engineering for optional O-ring upgrades and mounting reinforcement recommendations.

Does it require special tools for installation?

No. Standard 1/4–28 UNF wrenches or torque drivers (recommended torque: 8–12 N·m) are sufficient. Alignment verification is supported using Bently Nevada’s 1900/20 series gap check tools or calibrated feeler gauges.
