Description

Technical Overview

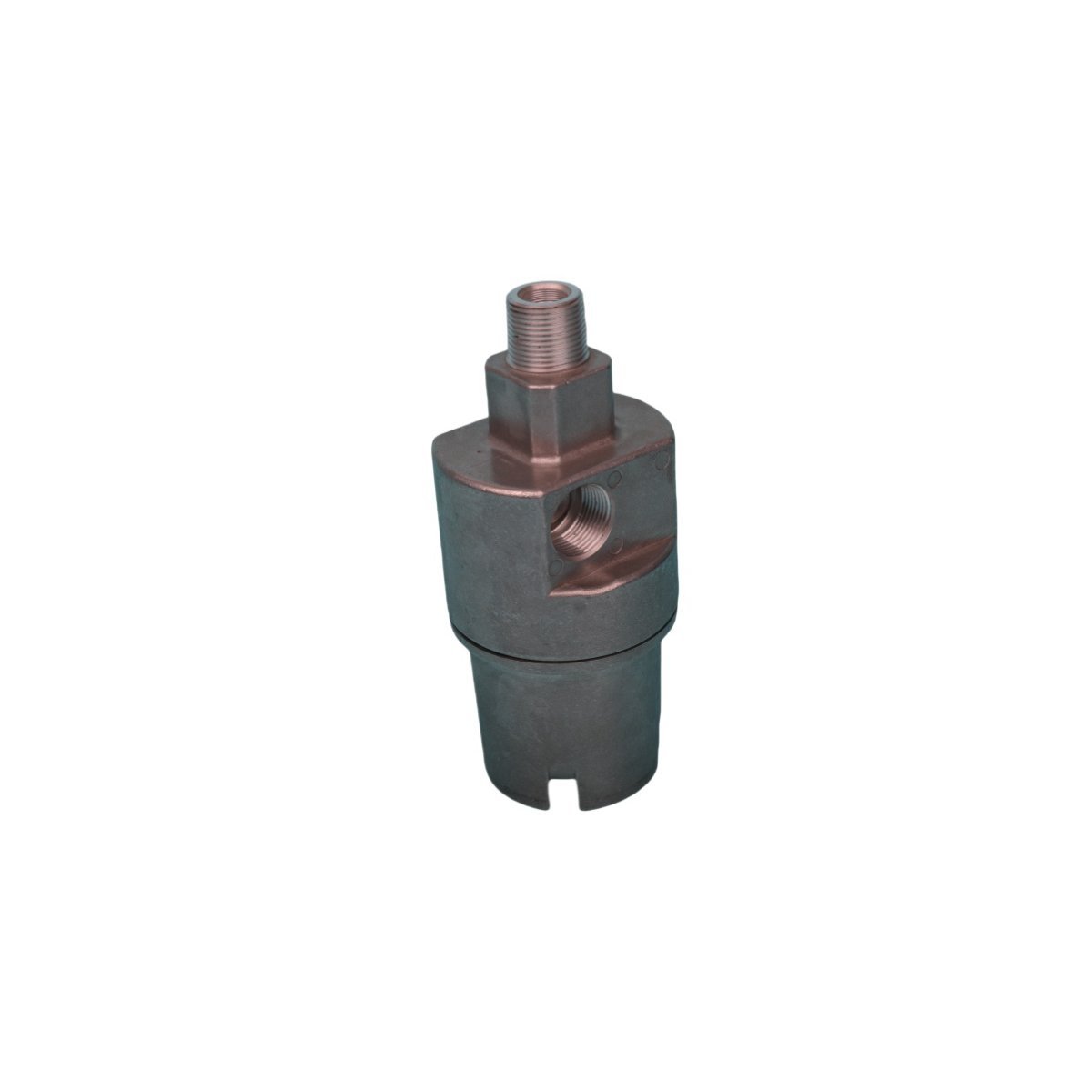

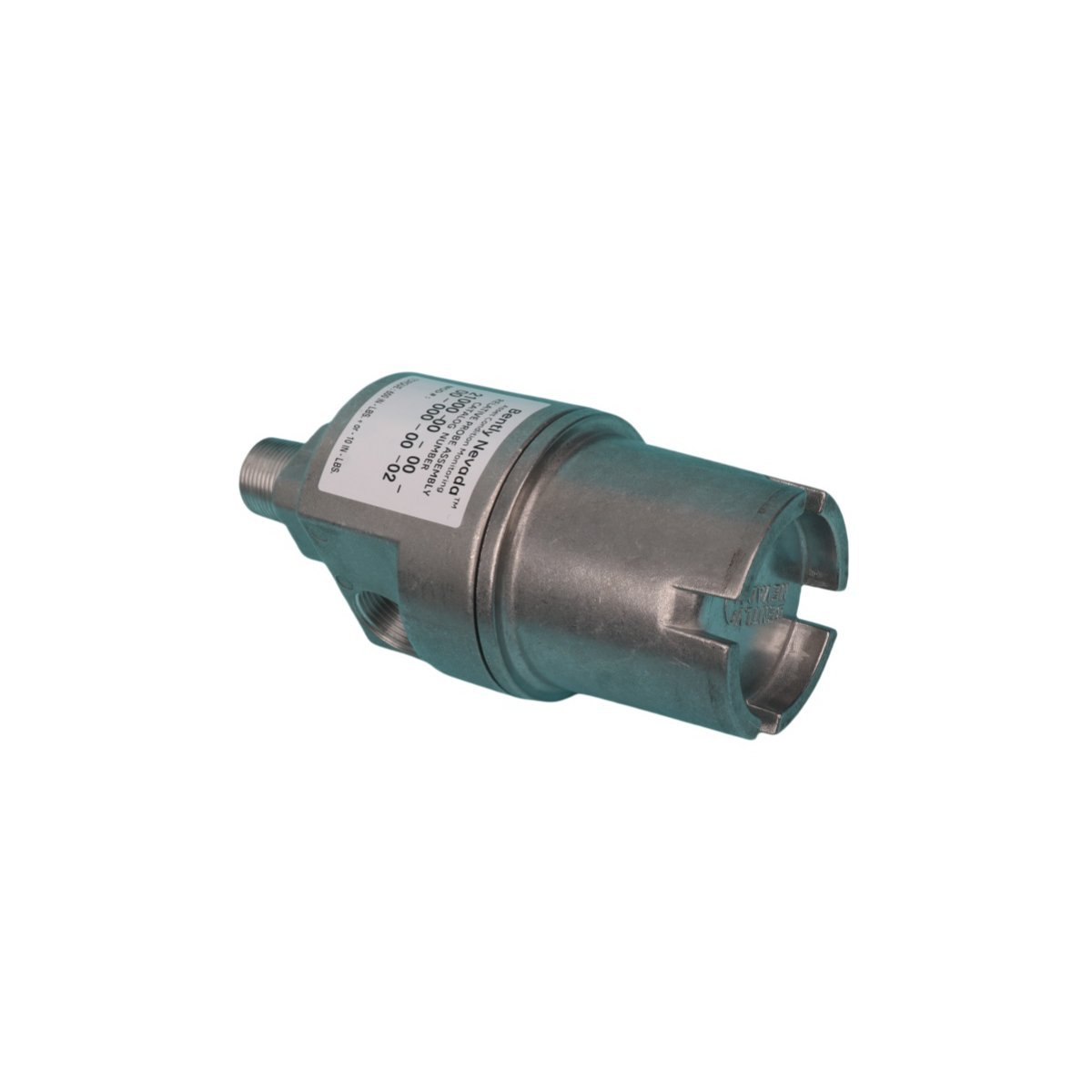

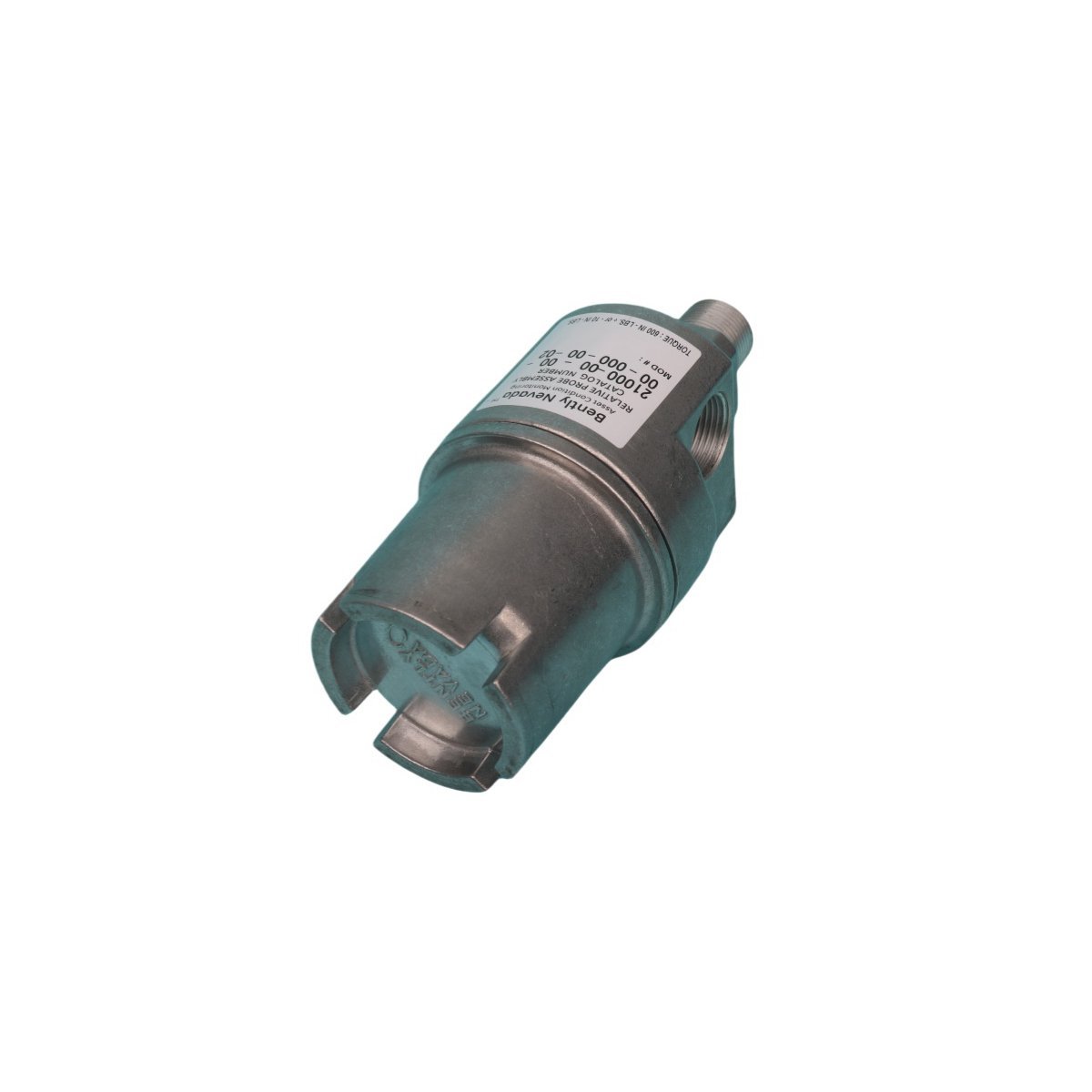

The Bently Nevada 21000-00-00-00-110-04-02 Proximity Probe Housing Assemblies are precision-engineered mechanical components designed exclusively for integration with Bently Nevada 3300 XL and 3500 series proximity probe systems. Manufactured by Baker Hughes (under the Bently Nevada brand), these housings serve as the critical interface between the proximity probe sensor and the rotating or reciprocating machinery surface—ensuring optimal electromagnetic coupling, mechanical stability, thermal resilience, and long-term signal integrity. Each assembly is meticulously calibrated and tested to meet stringent API 670 (4th Edition) and ISO 10816 vibration monitoring standards, making them indispensable in mission-critical asset health monitoring applications across oil & gas, power generation, petrochemical, and industrial manufacturing sectors. The housing provides robust environmental protection (IP67-rated when properly installed), resists corrosion from hydrocarbons, steam, and aggressive process chemicals, and maintains dimensional repeatability within ±0.0005 in (±0.013 mm) over its operational lifespan. Constructed from high-strength, non-magnetic 17-4 PH stainless steel with a passivated surface finish, the 21000-00-00-00-110-04-02 ensures minimal eddy current interference and consistent probe gap calibration—directly contributing to measurement accuracy of ±0.2% full scale under nominal operating conditions. This OEM-certified component is supplied new, factory-fresh, and traceable to original Bently Nevada production lot records, guaranteeing full compatibility with legacy and next-generation monitoring systems.

Detailed Specifications

Key Features

• OEM-Exact Dimensional & Material Fidelity: Precision-machined to Bently Nevada’s proprietary GD&T tolerances—ensures zero calibration drift, repeatable probe tip positioning, and guaranteed compatibility with 3300 XL 8mm and 11mm probes.
• Corrosion-Resistant Passive Layer: Electropolished 17-4 PH stainless steel housing delivers exceptional resistance to sulfide stress cracking (SSC), chloride pitting, and caustic erosion—validated per NACE MR0175/ISO 15156 for sour service environments.
• Thermally Stable Design: Low coefficient of thermal expansion (10.8 × 10⁻⁶ /°C) minimizes gap shift due to ambient or process-induced temperature gradients—critical for turbine and compressor shaft monitoring.
• Hermetic Seal Integrity: Integrated Viton® O-ring (AS568A #012) and precision-ground sealing surfaces achieve IP67 ingress protection—withstanding washdown, condensation, and particulate-laden atmospheres.
• Traceable Calibration Documentation: Each unit ships with a Certificate of Conformance (CoC) and optional NIST-traceable Calibration Report (per ISO/IEC 17025), including probe gap verification data and magnetic permeability testing results.
• Plug-and-Play Installation: Pre-assembled with correct torque-spec fasteners and alignment features—reduces field commissioning time by up to 65% versus aftermarket alternatives.
• Sustainability-Certified Manufacturing: Produced in a zero-landfill facility powered by 100% renewable electricity; packaging is FSC-certified and fully recyclable.

Applications

• Rotating Equipment Monitoring: Shaft displacement, vibration, and position sensing on steam/gas turbines, centrifugal compressors, and large electric motors in combined-cycle power plants and LNG facilities.
• Oil & Gas Downhole & Surface Systems: Real-time clearance monitoring in subsea blowout preventers (BOPs), top drives, and reciprocating compressor cylinders exposed to H₂S and CO₂.
• Petrochemical Process Trains: Critical bearing and seal monitoring on ethylene cracker compressors, hydrogen recycle units, and FCC main air blowers where reliability directly impacts process safety and emissions compliance.
• Nuclear Power Generation: Seismic-grade proximity sensing for reactor coolant pump shafts and turbine-generator sets—certified to IEEE 344 and ASME OM-2 requirements.
• Marine Propulsion Systems: Vibration and axial position monitoring on main propulsion gearboxes and azimuth thrusters aboard commercial vessels and naval platforms.
• Industrial Automation & Smart Factories: Integration into IIoT-enabled predictive maintenance architectures via 3500/42M monitors and Asset Health Management (AHM) software platforms.
