Description

Brief Product Description

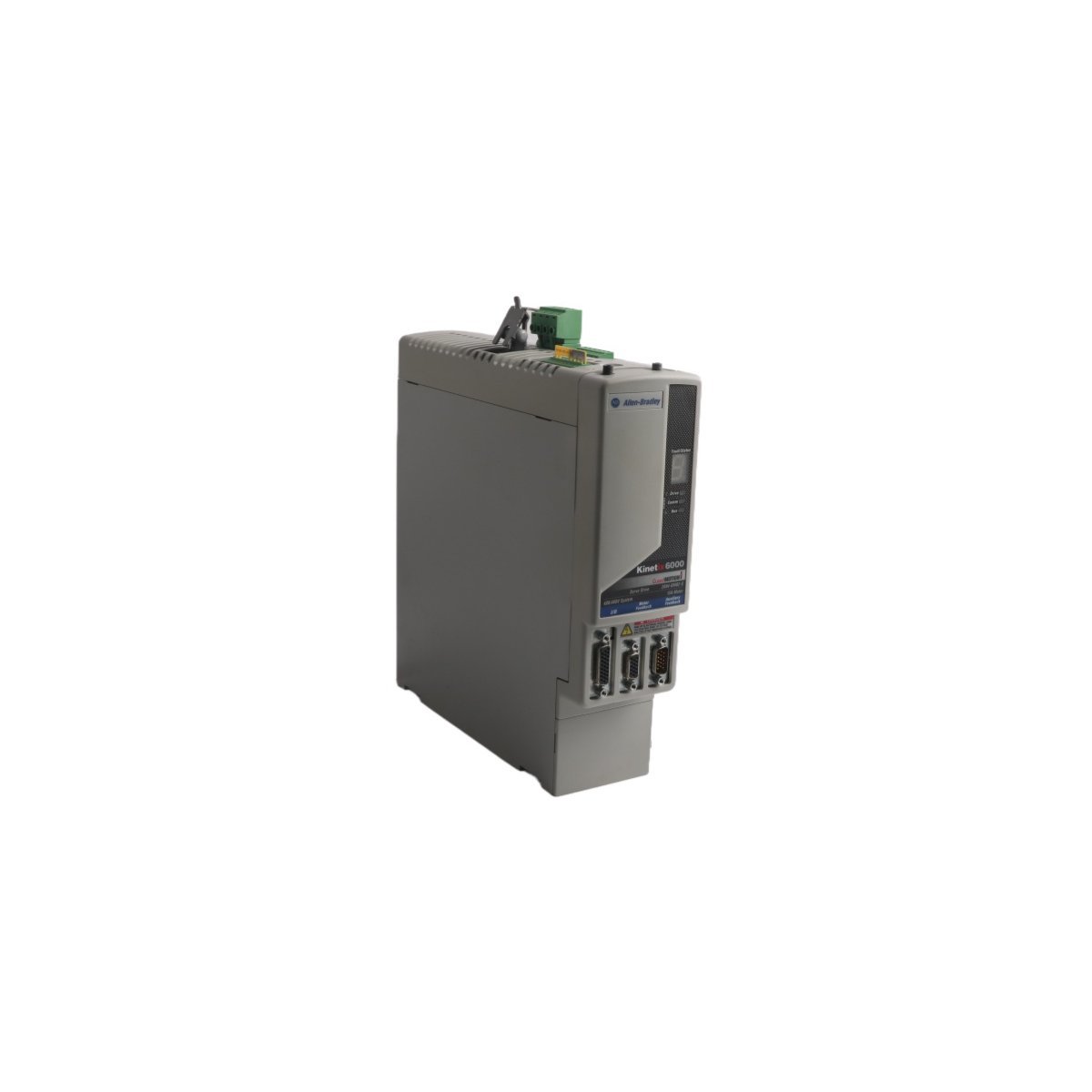

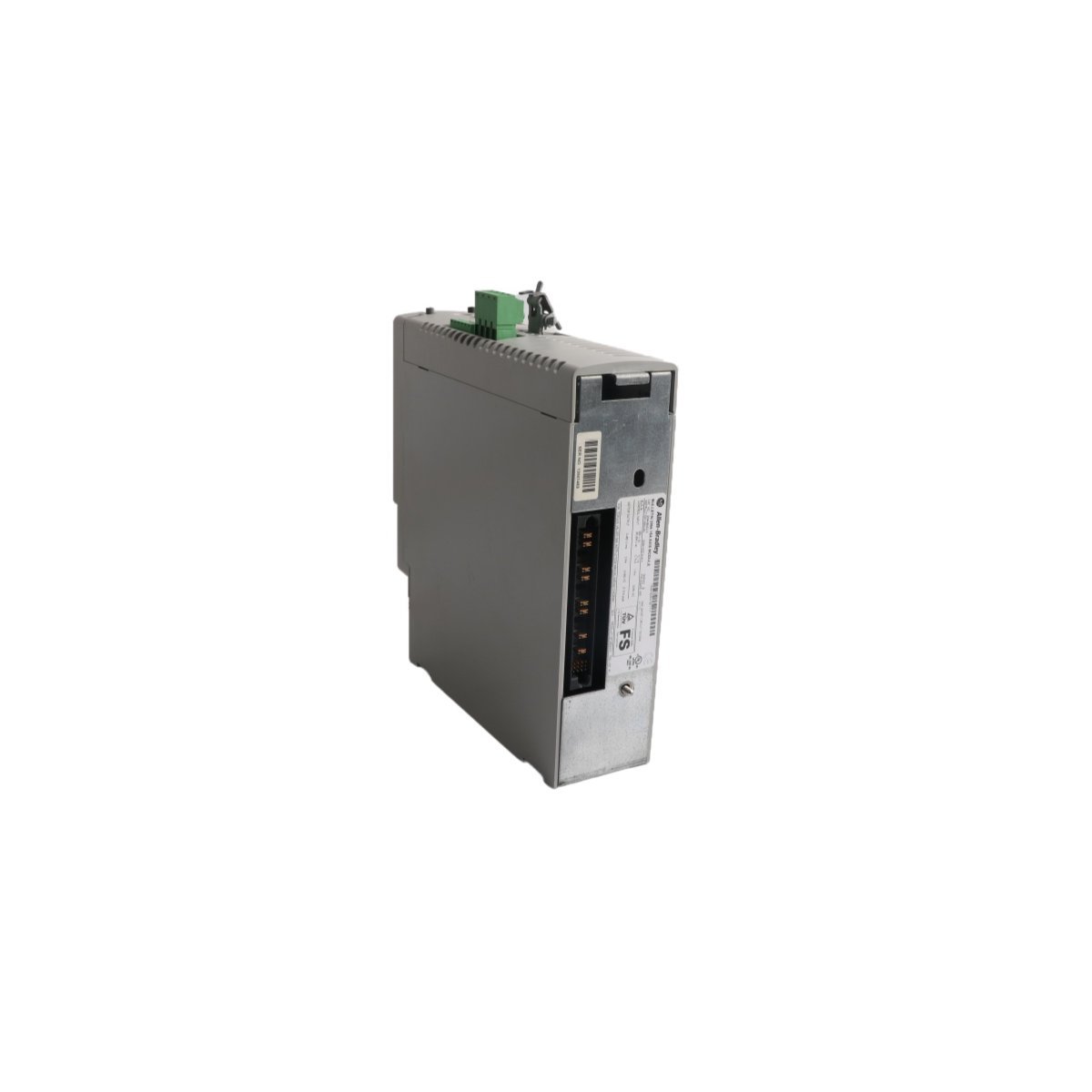

The Allen-Bradley 2094-BM02-S is a high-performance Kinetix 6000 axis module featuring integrated Safe Torque-Off (STO) for advanced motion control safety. This module provides precise motor control with high bandwidth capabilities, serving as a critical component in multi-axis power rail configurations.

​Product Description

High-Performance Motion Control

The Allen-Bradley 2094-BM02-S functions as a versatile axis module within the Kinetix 6000 multi-axis servo drive ecosystem. It delivers exceptional dynamic response through a velocity loop bandwidth of 500 Hz and a current loop frequency of 1300 Hz. These specifications allow the drive to manage rapid process changes with extreme precision. Furthermore, the module supports peak enhancement technology, which can boost the inverter current rating from 150% to 250%. This feature proves invaluable for industrial applications that demand aggressive acceleration profiles and high-torque bursts during peak operational cycles.

Integrated Safety and Efficiency

This module prioritizes workplace safety and operational continuity by incorporating a hardwired Safe Torque-Off (STO) function. Certified for SIL 3 and PLe applications, the 2094-BM02-S allows the control system to disable motor torque instantly during a safety event without removing power from the entire drive. Consequently, this targeted shutdown capability reduces mechanical wear, saves energy, and significantly shortens restart times after a safety trip. Operating at 98% efficiency, the drive effectively minimizes heat dissipation within the control cabinet, extending the lifespan of neighboring electronic components.

Installation and System Architecture

The 2094-BM02-S mounts directly onto the Kinetix 6000 power rail, facilitating a modular and compact footprint for complex motion systems. Because the unit requires consistent airflow to maintain its 460V class performance, engineers must ensure a minimum cabinet depth of 10.7 inches and observe strict clearance guidelines. To prevent electromagnetic interference, installers should separate shunt power cables from sensitive signal wiring and utilize shielded cables for longer runs. Proper integration into the ControlLogix platform via Sercos interface or analog command ensures a seamless flow of process data and synchronized multi-axis movement.

Technical Specification Table
