Technical Overview

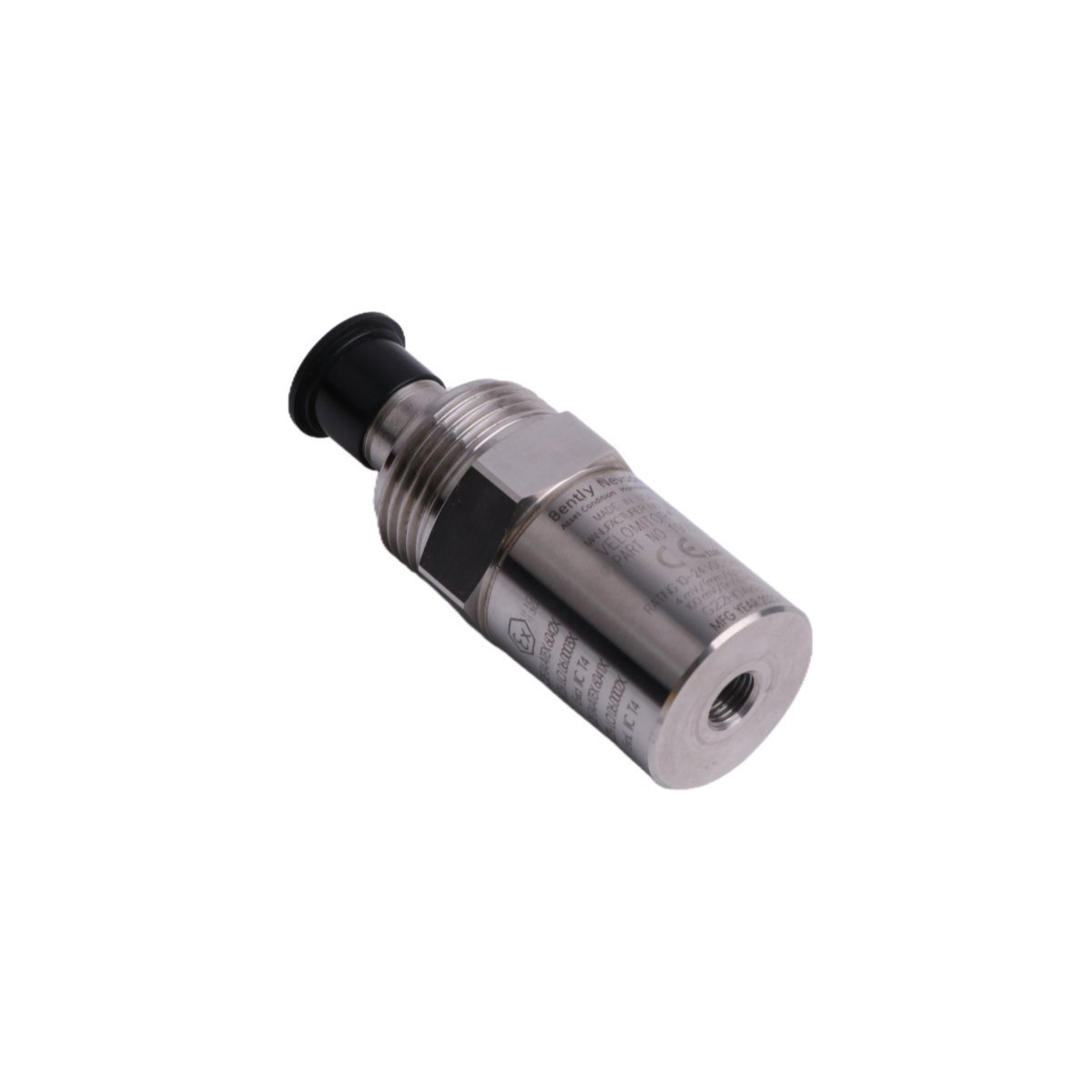

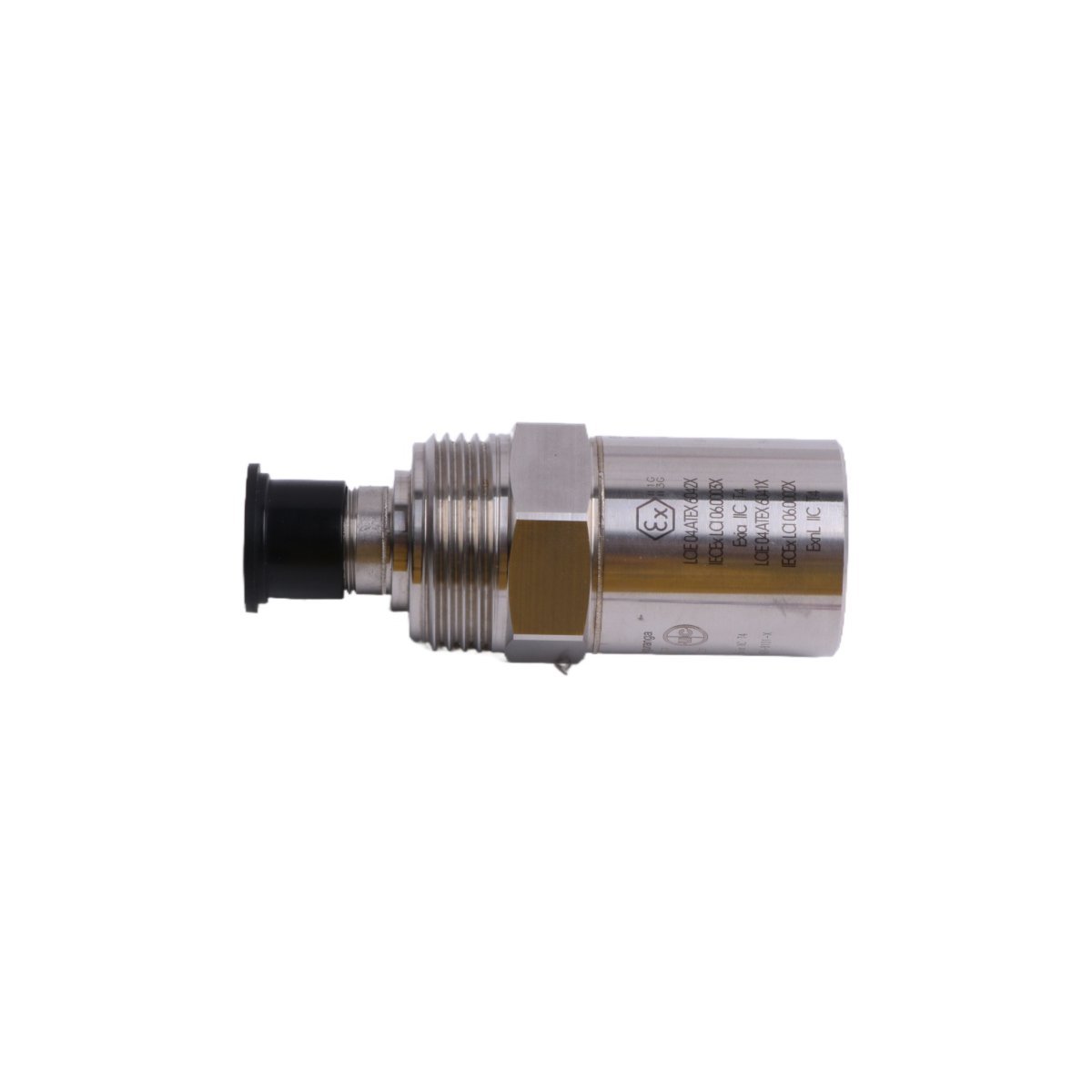

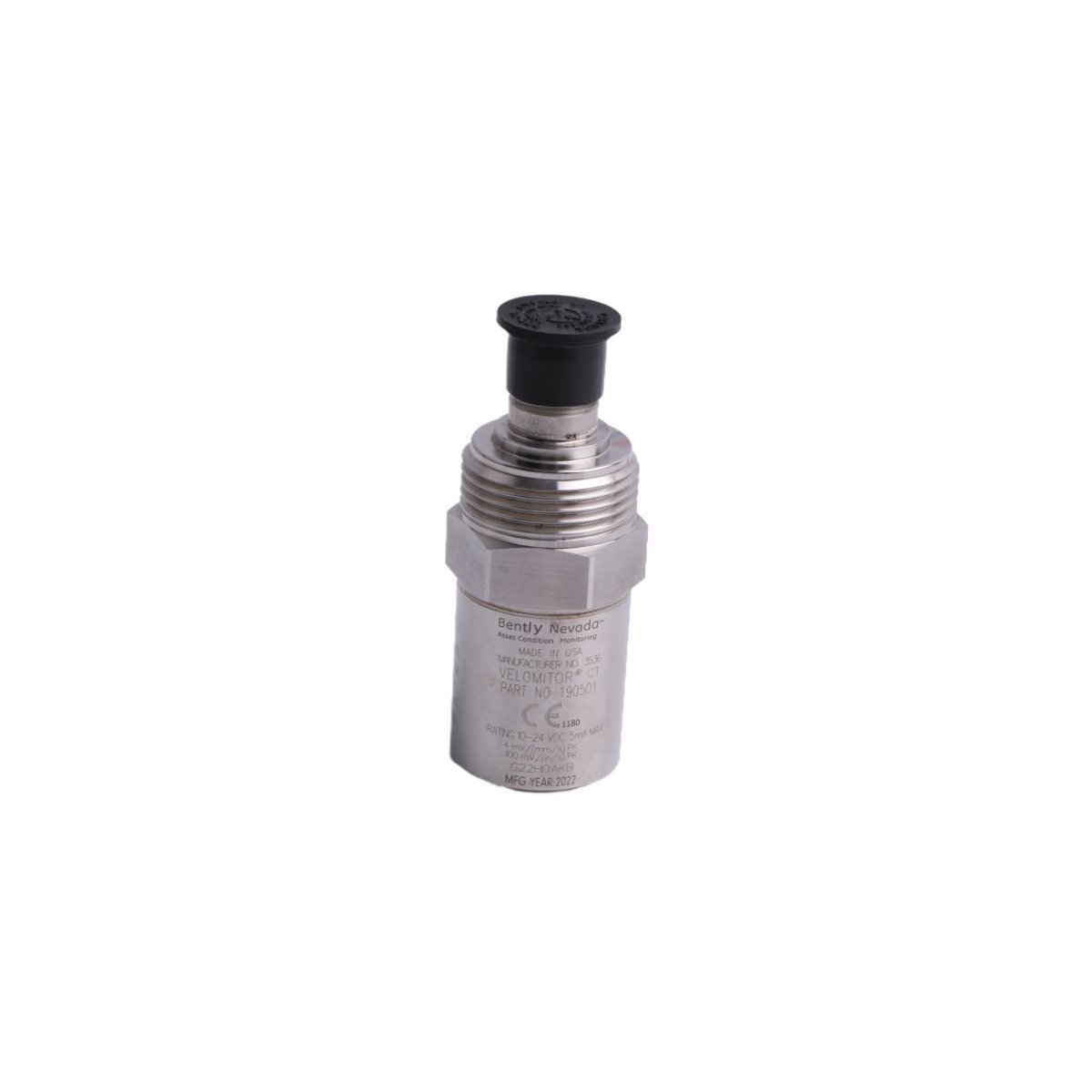

The Bently Nevada 190501-00-00-CN Velomitor CT Transducer is a high-reliability, IEPE-compatible (Integrated Electronics Piezoelectric) velocity sensor engineered for continuous, real-time monitoring of low-frequency mechanical vibration in critical rotating machinery. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in condition monitoring and predictive maintenance solutions—this transducer delivers exceptional signal fidelity, thermal stability, and long-term repeatability across demanding industrial environments. Designed specifically for integration into asset health management systems such as System 1®, Machinery Manager®, and third-party PLC/DCS platforms, the 190501-00-00-CN conforms to ISO 10816, API 670 (4th & 5th Editions), and IEC 60068-2 environmental standards. Its compact, hermetically sealed stainless steel housing ensures resistance to moisture, oil mist, electromagnetic interference (EMI), and corrosive atmospheres commonly found in power generation, petrochemical, refining, pulp & paper, and marine propulsion facilities. The transducer operates on a constant-current supply (2–10 mA) and outputs a low-impedance voltage signal proportional to velocity (mV/mm/s), eliminating the need for external charge amplifiers and simplifying system architecture. All units are factory-calibrated with NIST-traceable documentation and undergo 100% functional testing—including frequency response verification from 2.5 Hz to 10 kHz (±5%), sensitivity tolerance ≤ ±3%, and thermal drift < 0.05%/°C—ensuring compliance with OEM specifications and regulatory audit requirements. This model is supplied new, never refurbished or repaired, and carries full manufacturer warranty coverage.

Detailed Specifications

Key Features

• IEPE Signal Conditioning Built-In: Integrated microelectronic circuitry enables direct connection to standard vibration analyzers, data acquisition systems, and PLC analog inputs without external signal conditioning hardware—reducing installation complexity and failure points.
• Wideband Low-Frequency Response: Optimized for structural resonance detection and bearing fault diagnosis starting at 2.5 Hz, making it ideal for slow-speed gearboxes, large compressors, and wind turbine drivetrains.
• Hermetic Stainless Steel Construction: 316 stainless steel body with laser-welded housing provides superior corrosion resistance in offshore, refinery, and wastewater treatment applications exposed to H₂S, salt spray, and hydrocarbon vapors.
• NIST-Traceable Calibration Certificate Included: Each unit ships with individual calibration report documenting sensitivity, frequency response, phase linearity, and thermal drift—essential for ISO 17025-compliant maintenance programs and regulatory audits.
• Zero-Drift Thermal Compensation: Advanced temperature-compensated piezoceramic element and ASIC design ensure stable output across extreme ambient fluctuations—critical for unattended remote monitoring sites.
• Plug-and-Play Compatibility: Fully interoperable with Bently Nevada 3500/42M, 3300 XL, 3300 NSV, and all System 1® monitoring software versions; supports Modbus TCP, OPC UA, and HART digital communication via compatible interfaces.
• Extended Service Life: Rated for >100 million cycles MTBF (Mean Time Between Failures) and validated per MIL-STD-810H shock/vibration testing—minimizing unplanned downtime and lifecycle TCO (Total Cost of Ownership).

Applications

• Rotating Equipment Monitoring: Continuous velocity-based vibration measurement on steam/gas turbines, centrifugal pumps, axial compressors, and electric motors operating at speeds from 10 RPM to 15,000 RPM.
• API 670-Compliant Machinery Protection Systems (MPS): Primary or backup transducer for shaft relative/absolute vibration, bearing housing velocity, and pedestal monitoring in safety-critical turbomachinery installations.
• Predictive Maintenance Programs: Integration into reliability-centered maintenance (RCM) workflows for early detection of imbalance, misalignment, looseness, bearing degradation, and gear tooth wear.
• Power Generation Assets: Monitoring of generator rotors, exciter bearings, boiler feedwater pumps, and condensate extraction pumps in coal, nuclear, combined-cycle, and renewable hybrid plants.
• Marine & Offshore Platforms: Ruggedized deployment on main propulsion engines, auxiliary generators, thrusters, and HVAC chillers subject to high humidity, salt fog, and dynamic deck motion.
• Process Industry Compliance: Enabling adherence to API RP 581 risk-based inspection (RBI), ISO 55000 asset management standards, and OSHA 1910.169 mechanical integrity requirements.
• Edge Intelligence & IIoT Integration: Seamless connectivity to industrial IoT gateways, cloud analytics platforms (e.g., Seeq, Uptake), and AI-driven diagnostics engines leveraging time-series vibration data streams.
