Description

Brief Product Description

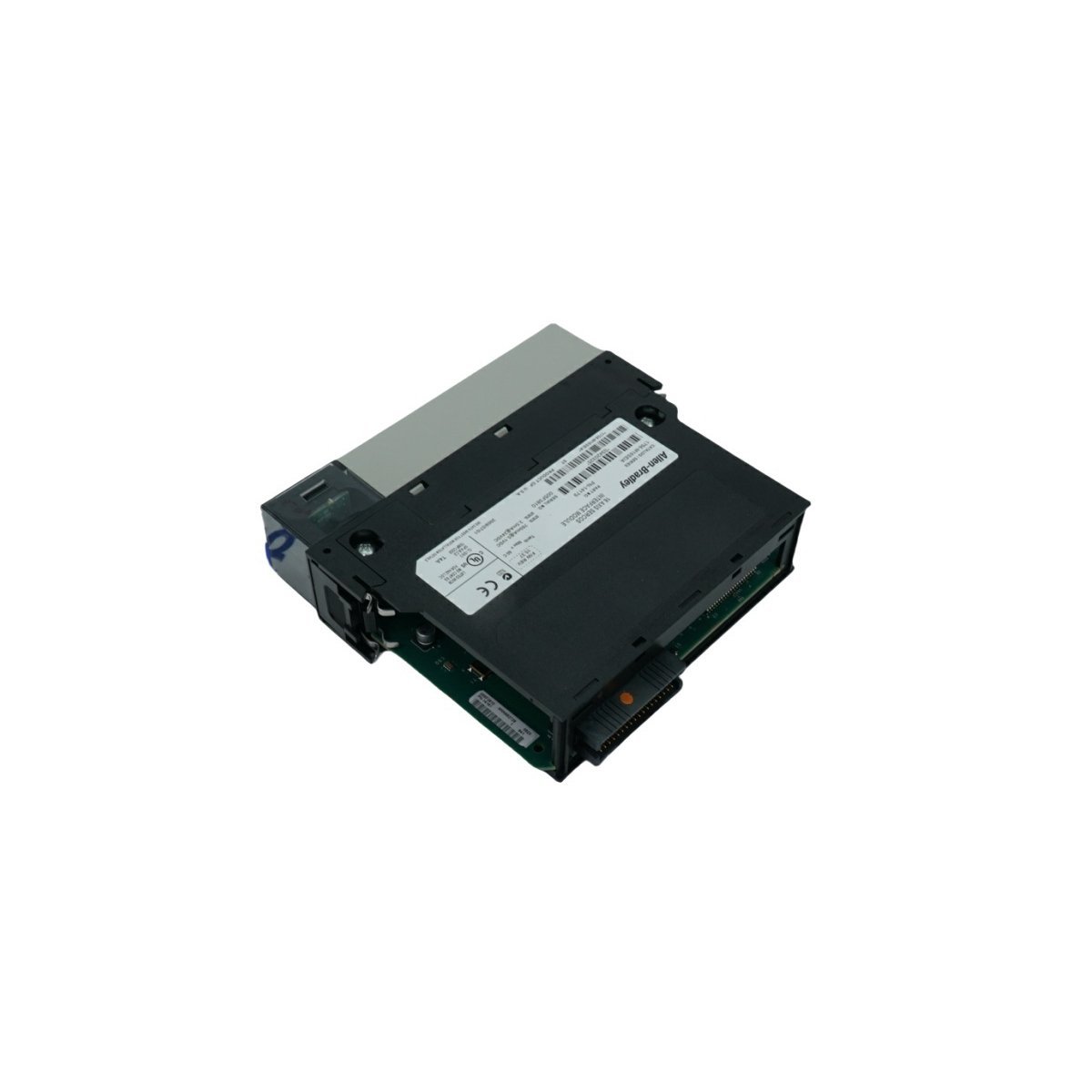

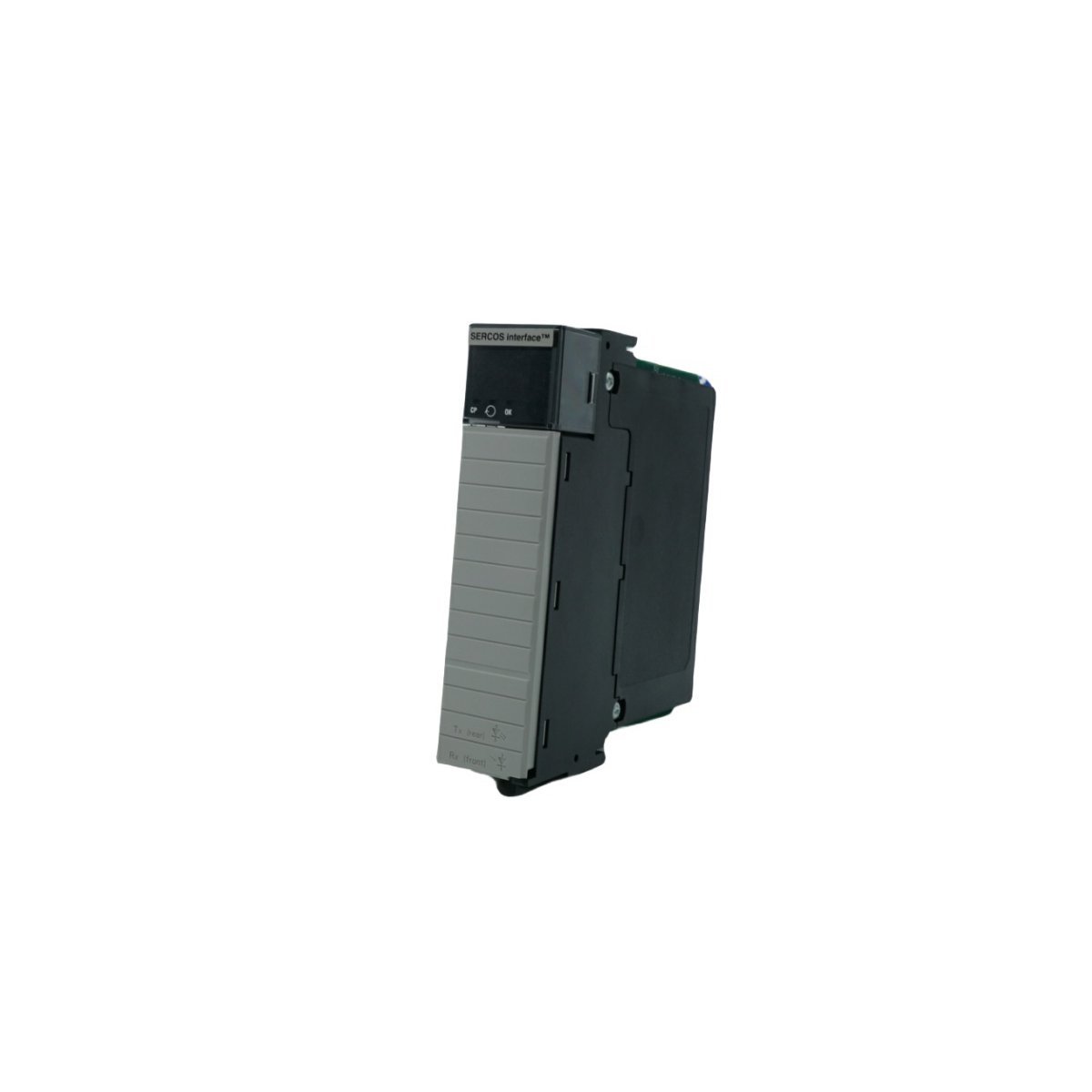

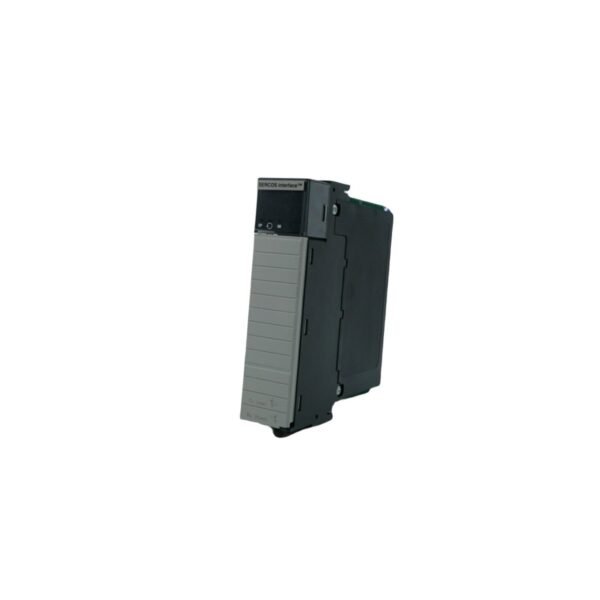

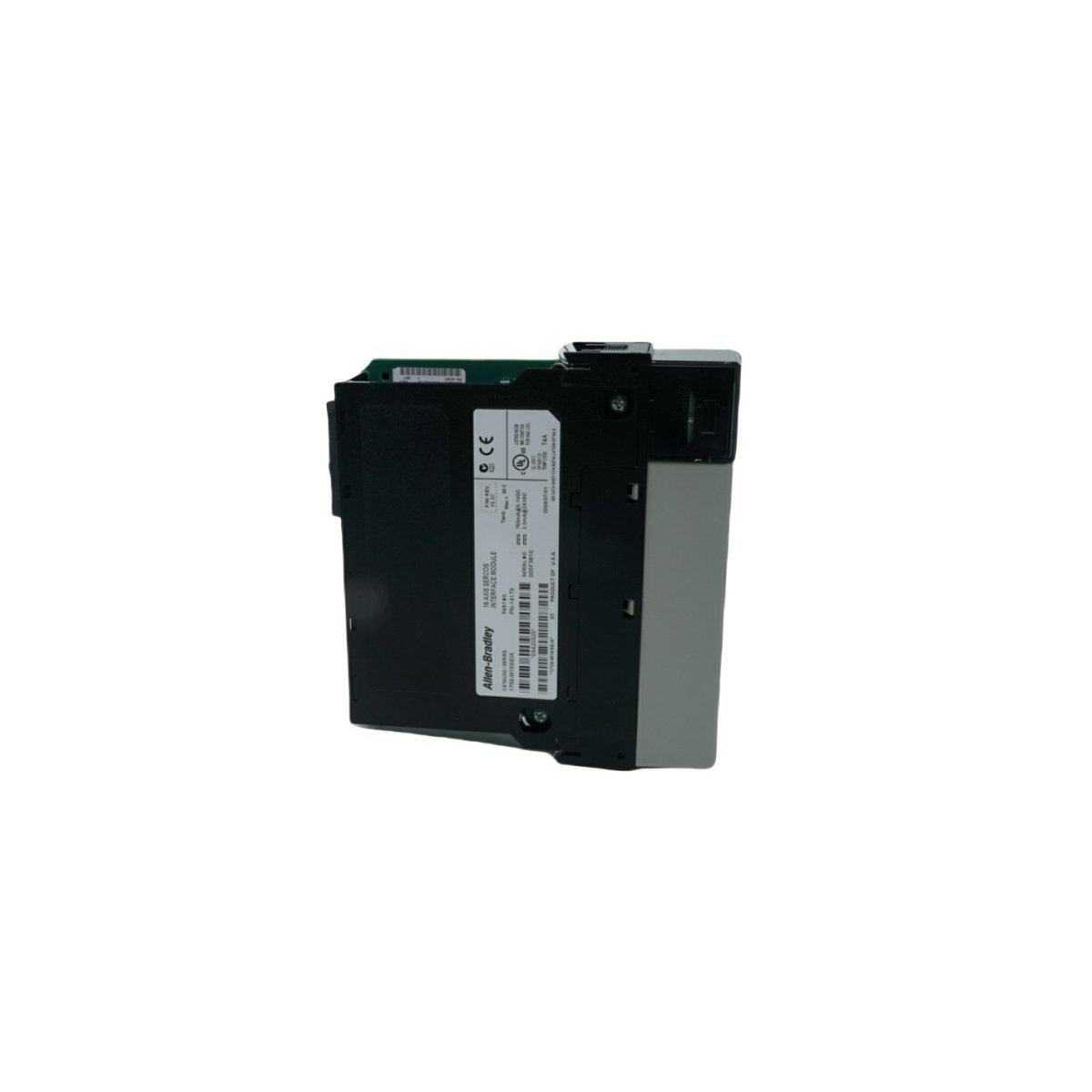

The Allen-Bradley 1756-M16SE is a high-performance ControlLogix motion module designed to manage up to 16 servo axes via a digital SERCOS interface. By utilizing fiber-optic communication, this module provides precise, noise-immune control for complex multi-axis Kinetix drive systems.

Product Description

High-Precision Motion Control

The Allen-Bradley 1756-M16SE serves as a specialized communication bridge between ControlLogix processors and servo drives. This module leverages the SERCOS (Serial Real-time Communication System) protocol to deliver synchronized motion commands across 16 independent axes. Because it utilizes a digital fiber-optic ring, the system eliminates the complex wiring typically associated with traditional analog servo interfaces. This optical link significantly reduces electromagnetic interference (EMI) and ensures that high-speed position, velocity, and torque data remain accurate across the entire motion network.

Optimized Real-Time Performance

Achieving low-latency execution is a core strength of the 1756-M16SE architecture. The module supports selectable data rates of 4 Mbps or 8 Mbps, allowing users to balance axis count with cycle speed. For instance, at an 8 Mbps data rate, the module can achieve a rapid 0.5 ms update cycle for up to four axes. Consequently, this high-speed throughput makes the module an ideal choice for demanding applications such as high-speed packaging, robotic synchronization, and precision CNC machining. Furthermore, the ControlLogix backplane allows a single controller to manage up to 32 axes by utilizing multiple interface modules simultaneously.

Versatile Hardware Integration

The 1756-M16SE integrates seamlessly with the broader Rockwell Automation motion ecosystem. It maintains full compatibility with several Kinetix drive families, including the Kinetix 2000, 6000, and 7000 series, as well as Ultra3000 SERCOS drives. Installation remains straightforward as the module fits into any standard ControlLogix 1756 chassis slot. Additionally, the interface supports both simplex and redundant controller topologies, providing the flexibility required for high-availability industrial environments. By adopting this fiber-optic approach, engineers can simplify cabinet layouts while maintaining the robust processing power needed for sophisticated logic and motion synchronization.
