Description

Brief Product Description

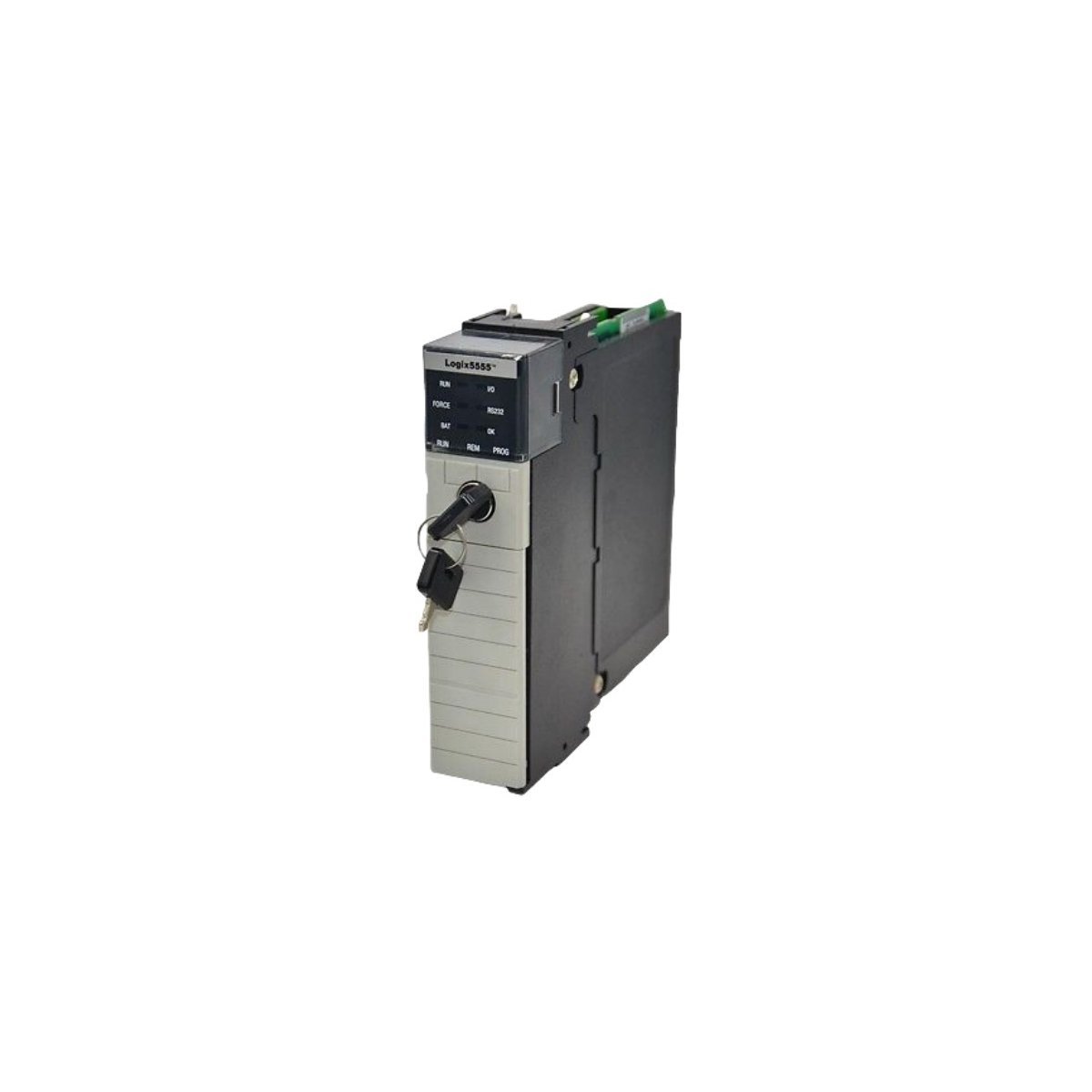

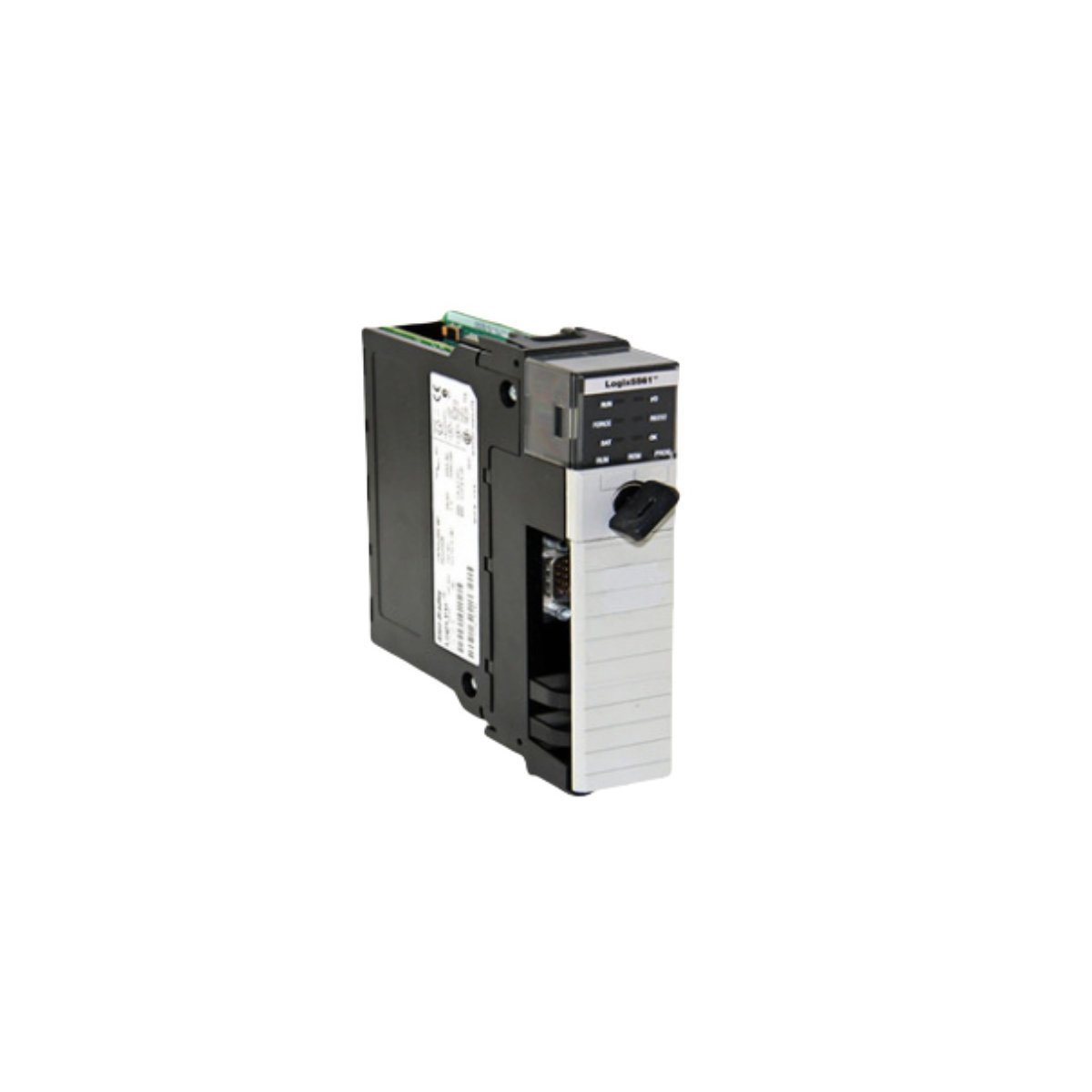

The Allen-Bradley 1756-L55M24 is a high-performance Logix5555 controller designed for the ControlLogix platform, featuring 3.5 MB of integrated memory and support for complex motion and safety applications.² This modular processor enables high-speed data processing and multi-protocol communication within a compact, scalable chassis.

Product Description

Versatile Control and Modular Architecture

The Allen-Bradley 1756-L55M24 serves as a central processing hub within the ControlLogix ecosystem, facilitating seamless integration of discrete, motion, drive, and safety control functions. Because it utilizes a modular backplane design, users can position the controller in any available chassis slot to optimize hardware layout. This processor efficiently coordinates with various I/O and communication modules, supporting industry-standard networks such as EtherNet/IP, ControlNet, and DeviceNet. Consequently, the 1756-L55M24 provides the scalability required for both small-scale automation and large, distributed industrial architectures.

High-Performance Processing and Memory

Equipped with 3.5 megabytes of non-volatile user memory, the 1756-L55M24 handles intensive application code without relying on battery backup for data retention. The module supports a diverse range of IEC 61131-3 programming languages, including Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), and Sequential Function Chart (SFC).³ This flexibility allows engineers to choose the most efficient logic format for their specific automation task. Furthermore, an onboard RS-232 serial port enables direct programming and diagnostic connections using 1756-CP3 or 1747-CP3 interface cables.

Industrial Reliability and Safety Compliance

The Rockwell 1756-L55M24 is engineered for continuous operation in demanding environments, maintaining peak performance across a temperature range of 0 to 60°C.⁴ While the module supports hot-swapping (Removal and Insertion Under Power), technicians must strictly follow safety protocols in hazardous locations to prevent electrical discharge. The unit manages power consumption effectively, drawing 1.25 Amps at 5.1V DC, which results in a low thermal dissipation of 5.7 Watts. These technical characteristics ensure that the controller remains a stable cornerstone for GuardLogix and standard ControlLogix systems where system uptime and diagnostic accuracy are paramount.

Technical Specifications
