Description

Technical Overview

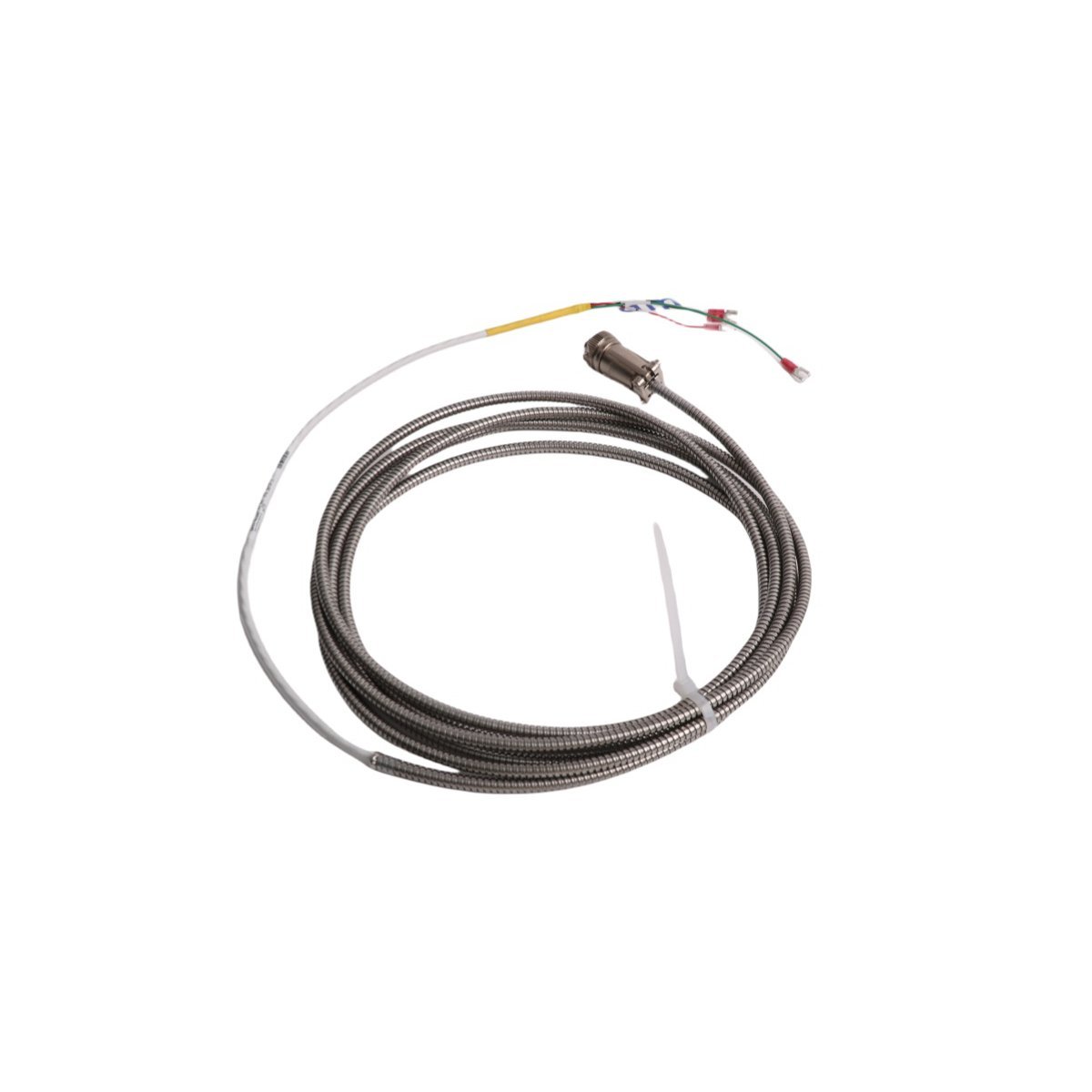

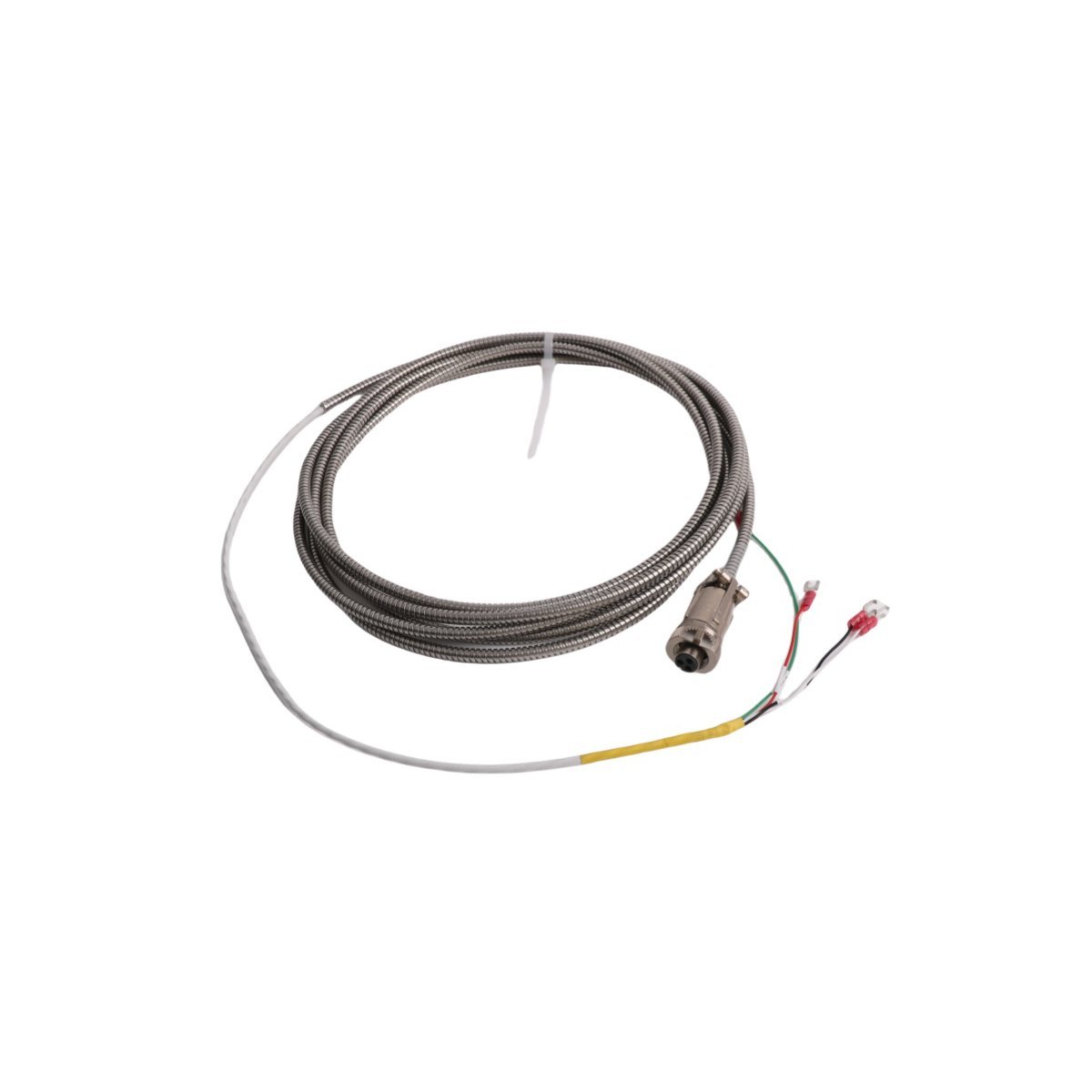

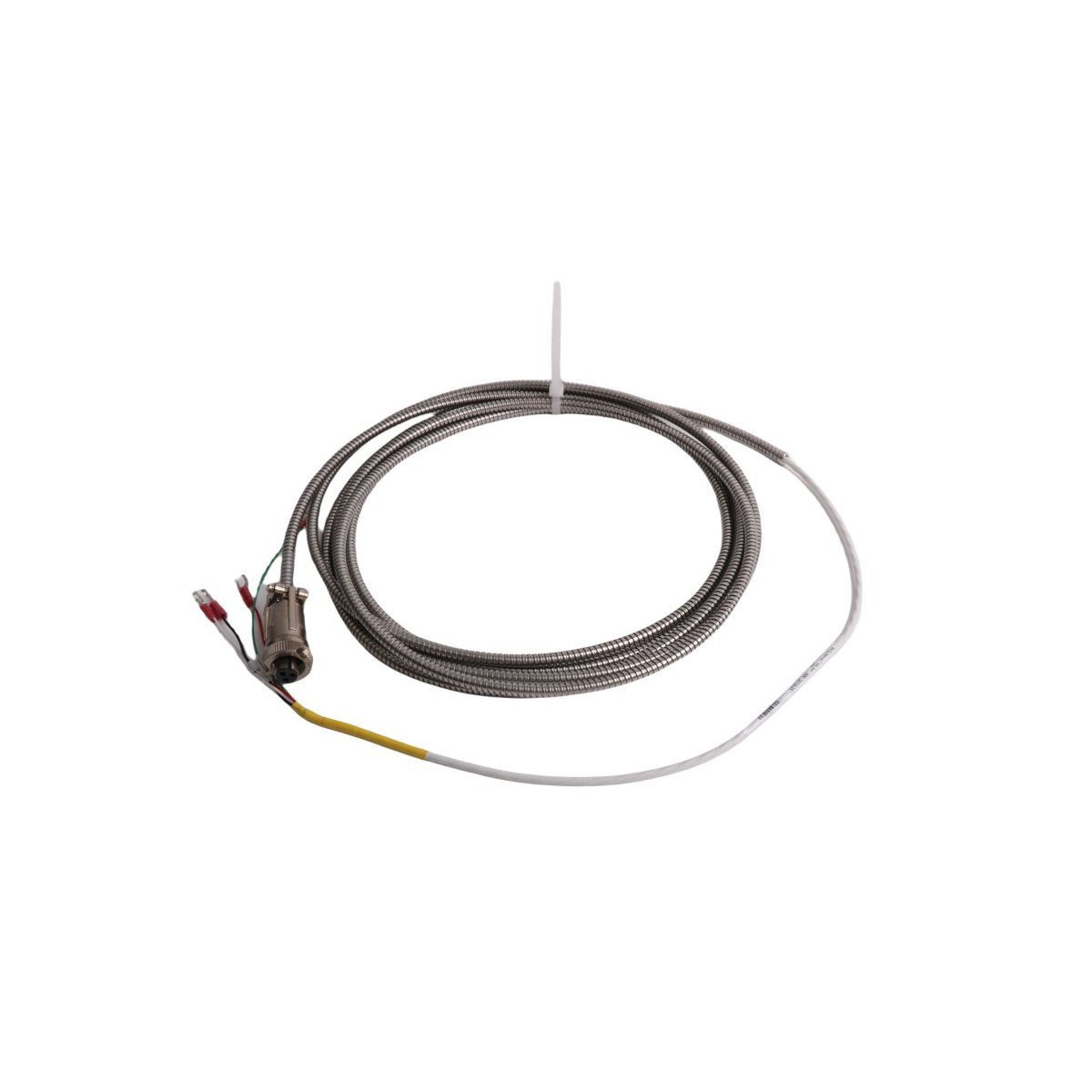

The Bently Nevada 16710-45 Interconnect Cable is a high-integrity, engineered signal transmission solution designed exclusively for integration within Bently Nevada’s industry-leading machinery protection and condition monitoring systems. Manufactured by Baker Hughes (under the Bently Nevada brand), this cable serves as a critical interface between proximity probe sensors, extension cables, and the corresponding monitor modules—ensuring accurate, low-noise transmission of dynamic vibration and position signals in demanding industrial environments. Built to meet stringent IEC 61000-4 electromagnetic compatibility (EMC) standards and conforming to API RP 670 (4th Edition) requirements for machinery protection systems, the 16710-45 delivers exceptional signal fidelity, thermal stability, and mechanical robustness. Its precision-matched impedance (50 Ω nominal) and tightly controlled capacitance per unit length minimize phase shift and signal attenuation—critical factors when measuring sub-micron shaft displacements or high-frequency rotor vibrations. The cable features a dual-shielded, twisted-pair construction with a foil-and-braid shield combination, providing >95% coverage and superior rejection of common-mode noise from variable frequency drives (VFDs), switchgear, and RF sources. Each unit undergoes 100% factory testing—including time-domain reflectometry (TDR), continuity verification, insulation resistance measurement (>100 MΩ at 500 VDC), and shield integrity validation—to guarantee compliance with Bently Nevada’s rigorous quality benchmarks. Designed for long-term reliability in continuous operation, the 16710-45 supports ambient temperature ranges from –40 °C to +85 °C and exhibits excellent resistance to hydrocarbons, ozone, and industrial solvents. As an OEM-specified component, it ensures full system compatibility with Bently Nevada 3300 XL, 3500, 3600, and System 1 platforms—eliminating configuration conflicts, calibration drift, or warranty voidance associated with non-certified alternatives.

Detailed Specifications

Key Features

• OEM-Engineered Signal Integrity: Precision-tuned 50 Ω impedance and ultra-low phase distortion ensure faithful reproduction of high-resolution proximity probe signals—essential for accurate orbit analysis, gap voltage trending, and machine health diagnostics.
• Dual-Layer EMI/RFI Shielding: Combines aluminum foil for high-frequency noise suppression with a dense tinned copper braid for low-frequency interference rejection—delivering best-in-class EMC performance in electrically noisy turbine halls and compressor stations.
• Chemical & Thermal Resilience: FEP insulation resists degradation from hydraulic oils, lubricants, cleaning solvents, and ozone exposure while maintaining dielectric strength across extreme ambient temperatures.
• Plug-and-Play Compatibility: Pre-terminated with genuine Bently Nevada 3300-series style connectors (male BNC on monitor end, female BNC on probe end); fully compatible with 3300 XL 8mm/11mm probes, 3500/3600 rack modules, and System 1 data acquisition hardware.
• Traceable Quality Assurance: Each cable carries a unique serial number linked to its production batch, test reports, and calibration certificates—supporting ISO 9001:2015 and API Q1 quality management system audits.
• Long-Term Reliability Design: Stranded drain wire, stress-relieved connector boots, and cold-welded center conductor terminations prevent intermittent faults, cold solder joints, and shield breakage during thermal cycling or mechanical vibration.
• Regulatory-Ready Documentation: Supplied with Declaration of Conformity (DoC), RoHS/REACH compliance statement, and full test data packet—facilitating regulatory submissions for nuclear, offshore, and safety-critical applications.

Applications

• Turbomachinery Monitoring: Critical for steam/gas turbine, centrifugal compressor, and axial-flow fan installations where precise shaft displacement, vibration, and differential expansion measurements are mandated per API 612/617 standards.
• Power Generation Assets: Deployed in fossil fuel, combined-cycle, and hydroelectric generating units for real-time rotor dynamics surveillance, bearing health assessment, and trip logic interfacing.
• Oil & Gas Infrastructure: Integral to upstream pumping stations, midstream pipeline compressors, and downstream refinery rotating equipment subject to API RP 670 and ISA-84.00.01 (IEC 61511) functional safety requirements.
• Marine Propulsion Systems: Used aboard commercial vessels and naval platforms for engine crankshaft deflection monitoring, gearbox condition tracking, and propulsion alignment verification.
• Industrial Manufacturing Lines: Supports predictive maintenance programs for large motors, paper machine dryers, rolling mill stands, and extruders requiring sub-micron positional accuracy.
• Research & Test Facilities: Trusted in university labs, OEM development centers, and independent test rigs for modal analysis, balancing validation, and rotordynamic modeling due to its metrological-grade repeatability.
• Safety-Critical Retrofit Projects: Enables compliant upgrades of legacy monitoring systems without compromising SIL-2 or SIL-3 integrity per IEC 61508—particularly when replacing non-certified cabling in aging infrastructure.
